Amada CSHW-220 NOTCHING MACHINES

$9,950

Make:: Amada

Model:: CSHW-220

Year:: 1986

Ref #:: 162378

Or call us for a quote at (973) 497-7500 or send us an email at rl@machineryvalues.com

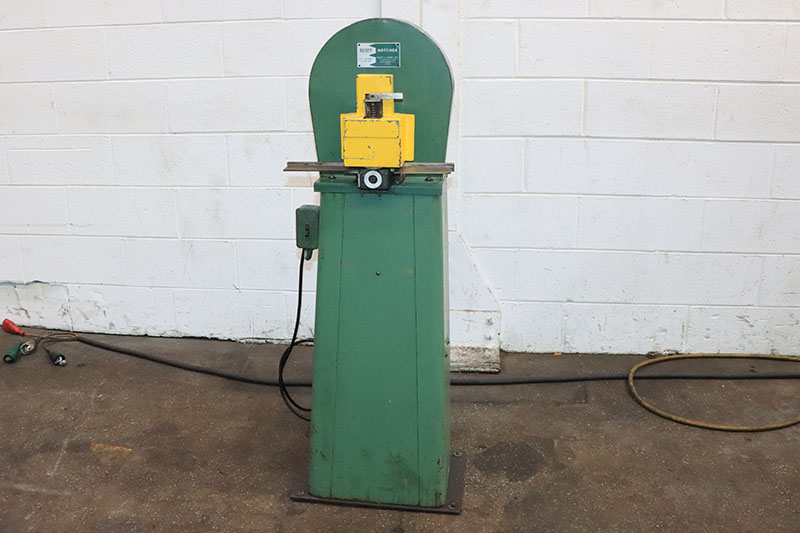

.236" x 8.66" x 8.66" AMADA CSHW-220 Hyd. Notcher
Model CSHW-220      S/N 22000255   New 1986

Specifications:
Maximum Thickness Capacity ................. .236 in (6 mm)
Corner Notching Capacity ... 8.66 in x 8.66 in (220 mm x 220 mm)
Edge Notching Capacity ..... 1.97 in x 3.94 in (50 mm x 100 mm)
Speed - Corner Notch ....................... 40 spm
Speed - Edge Notch ......................... 42 spm
Maximum Tonnage ............................ 27 Ton
Hydraulic Tank Capacity .................... 14.5 gallons

Approx. Weight ............................. 3,530 lbs.
Approx. Dimensions ................. 44" x 46" x 52" (l x w x h)

Equipped With:
Gauge Position LED Display
Gauge Stops with Fine Adjustments
Easy Blade Gap Clearance Adjustment
Electric Foot Switch

FOB: Ronkonkoma, NY
