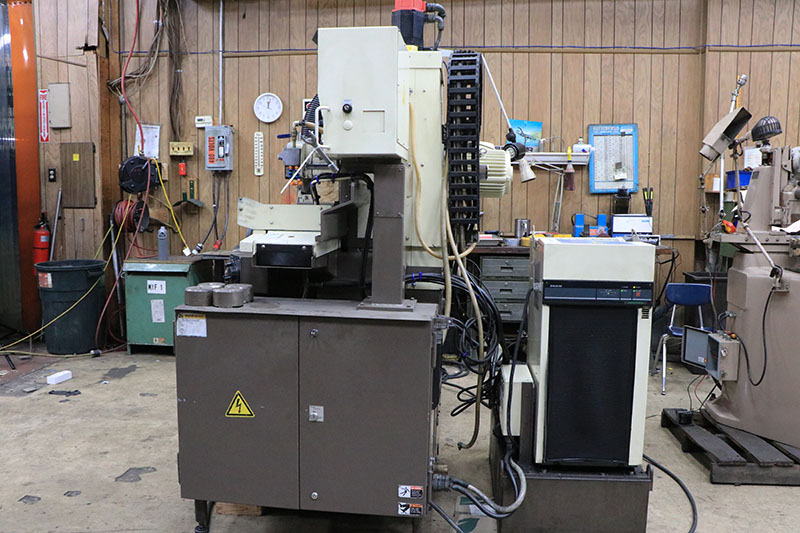

Amada Meister, 1999, FANUC 20-FA, 3-POINT DRESSER, EMC CNC SURFACE GRINDERS

Price on Request

Make:
Amada
Model:
Meister, 1999, FANUC 20-FA, 3-POINT DRESSER, EMC
Year:
1999
Ref #:
169124

Or call us for a quote at (973) 497-7500 or send us an email at grinders@machineryvalues.com

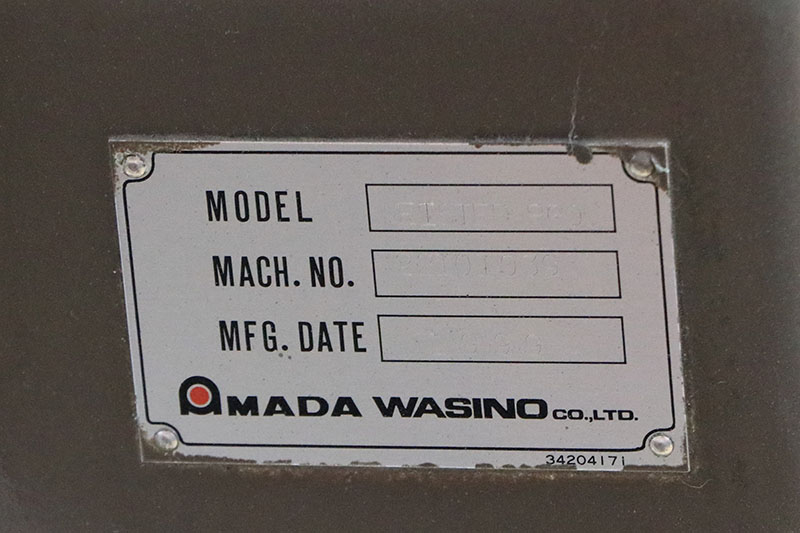

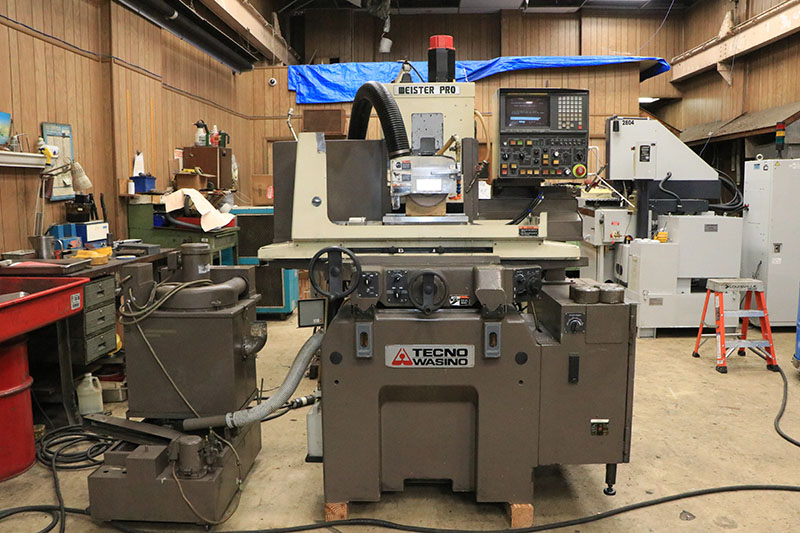

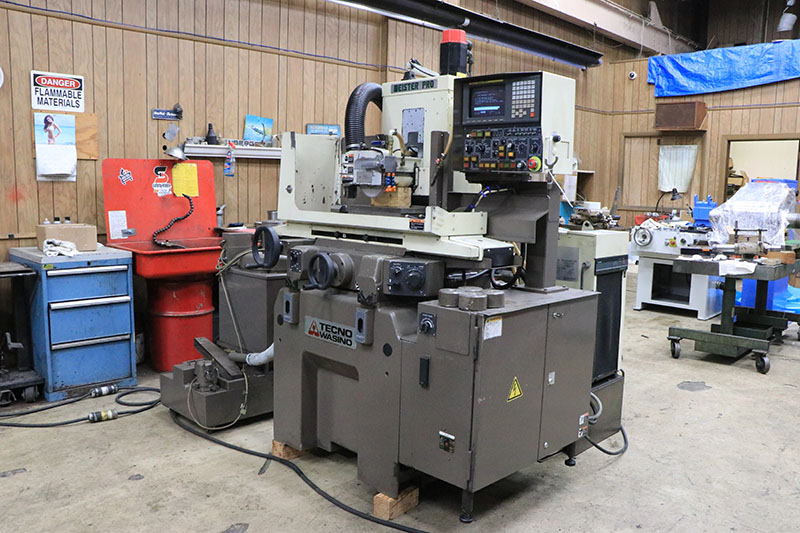

    Amada-Wasino "Meister" "CNC"
         "MADE IN JAPAN"
 "HIGH PRECISION - HIGH PRODUCTIVITY"
     SURFACE & PROFILE GRINDER

S/N:  22101039     NEW:  1999

SPECIFICATIONS:
TABLE WORKING SURFACE ....... 17- 3/4" x 5- 7/8"
MAX. LONGITUDINAL TRAVEL .... 18- 7/8"
MAX. CROSS TRAVEL ........... 7- 1/16""
SPINDLE CENTER TO TABLE ..... 5- 1/18" TO 15- 3/4"

LONGITUDINAL TABLE SPEED .... 3.3' - 164' FPM
MAX. No. OF TABLE
 MRECIPROCATIONS WITH
 19/32" STROKE .............. 250

CROSS/SADDLE FEED:
RAPID CROSS FEED, JOG (3).... 0 - 1312FT./MIN.
                              1,640 FT./MIN.
                              3,280 FT.MIN.
 HANDLE FEED, PER REV. ...... 0.0004", 0.004",
                               0.04", 0.15"
 HANDLE FEED,PER GRAD. ...... 0.000004", 0.00004",
                               0.0004", 0.0015"
MINIMUM FEED INCREMENT ...... 0.0000010"
POSITION DETECTION SYSTEM ... GLASS SCALE/0.05um

WHEELHEAD:
RAPID WHEELHEAD FEED (JOG) .. 3.9"/MIN. & 39"/MIN.
 HANDLE FEED, PRE REV. ...... 0.0004", 0.004",
                               0.04", 0.15"
HANDLE FEED,PER GRAD. ....... 0.000004", 0.00004",
                               0.0004", 0.0015"
MINIMUM FEED INCREMENT ...... 0.0000010"
POSITION DETECTION SYSTEM ... LINEAR SCALE/0.05um

WHEEL SPINDLE:
SIZE (OD x WIDTH x BORE) .... 8" x 1/4" x 1- 1/4"
WHEEL SPINDLE SPEED,
  INF. VAR. ................. 500 - 5,000 RPM
MOTOR ....................... 3 H.P.

FLOOR SPACE ................. 74" x 64" x 77"H
APPROX. MACHINE WEIGHT ...... 4,400 LBS.

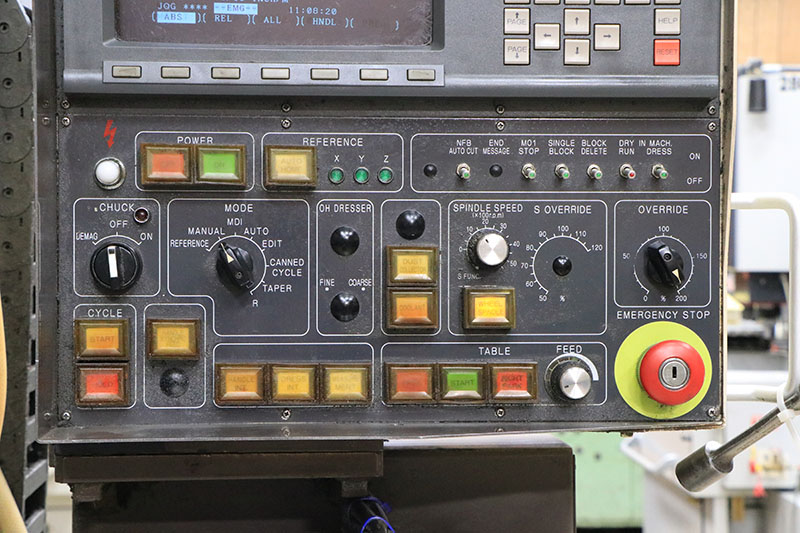

MACHINE FEATURES:

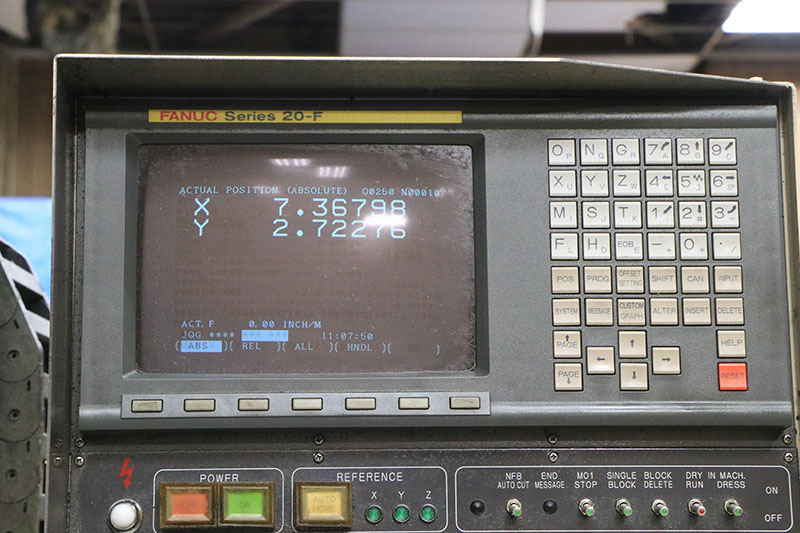

FANUC 20-FA CNC
- AMADA WASINO "MEISTER" VER. 1.28 SOFTWARE
- SIMULTANEOUS 2-AXIS + 1 AXIS

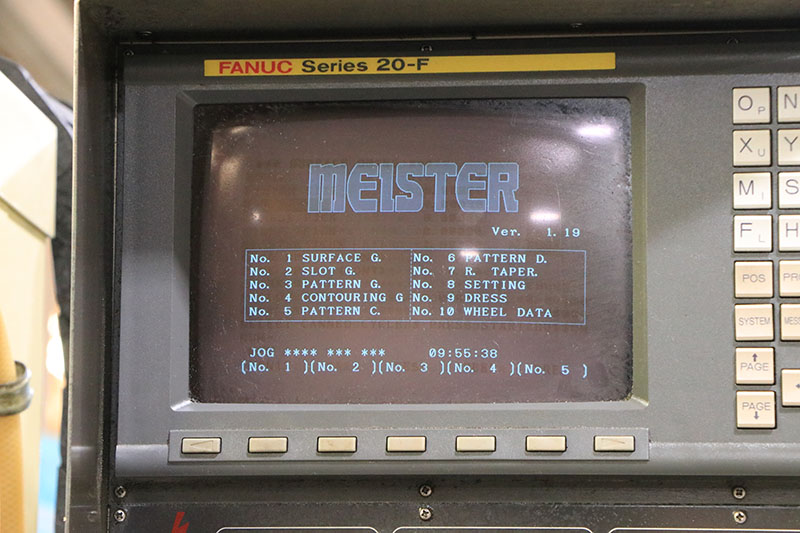

- CRT GRAPHIC DISPLAY
- EASY TO USE CONVERSATIONAL SOFTWARE
- (1) SURFACE GRINDING
  (2) SLOT GRINDING
  (3) PATTERN GRINDING
  (4) CONTOURING GRIND
  (5) PATTERN C.
  (6) PATTERN D.
  (7) R. TAPER
  (8) SETTING
  (9) DRESS
  (10) WHEEL DATA

  - FULL KEYPAD WITH G-CODE PROGRAMMING
 -  ORIGINAL SOFTWARE (MEISTER VERSI0N 1.19)
   ALLOWS OPERATOR TO BE PRODUCTIVE
   WITHOUT HAVING TO KNOW COMPLEX
   CNC PROGRAMMING.
- PATTERN GRINDING COMPLEX SHAPES CAN BE
   PROCESSED EASILY BY COMBINING FIVE PATTERNS.
   THE COMBINATION OF PLUNGE AND TRAVERSE
   OPTIONS MAKES SELECTING THE APPROPRIATE
   PROCESSING EASY.
- CONTOUR GRINDING CAN BE IMPLEMENTED BY
   INPUTTING THE GRAPHIC DATA OF ARBITRARY
   SHAPES. ROUGH GRINDING BY PLUNGE
   GRINDING CAN ALSO BE IMPLEMENTED,
   AND THE CREATED DATA CAN BE SAVED
   IN THE CNC AREA.
- PATTERN DRESSING BY INPUTTING THE DIMENSIONS
   REQUIRED FOR THE BASIC SHAPE ON THE SCREEN,
   THE GRINDSTONES PERFORM THE MOLDING USING
   A SIMPLE PROFILE DRESSER.  THE GRINDSTONES
   CAN ALSO PERFORM THE MOLDING DURING THE
   PROCESSING AND INTERRUPT DRESSING.

- HIGH SPEED TABLE RECIPROCATION, AMADA WASINO's
   PROPRIETARY POSITIONING SCALE AND HYDRAULIC SERVO
   SYSTEM CAN ACHIEVE 250 TABLE REVERSALS PER MINUTE,
   A SIGNIFICANT INCREASE IN GRINDING EFFICIENCY.

-  TABLE FEATURES "V-FLAT" SLIDEWAYS WITH HOLLOW
   RUNNERS FOR HIGH SPEED AND ACCURACY.  MEISTER
   SERIES GRINDERS SUPPORT RECIPROCATION SPEEDS
   TWO TO THREE TIMES FASTER THAN ANY FORMER
   MODEL, GREATLY IMPROVING EFFICIENCY.

- FANUC AC SERVO DRIVES

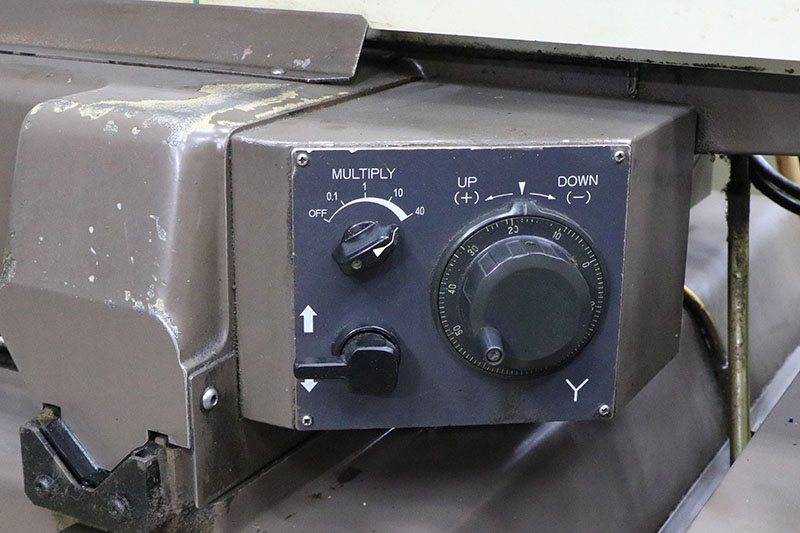

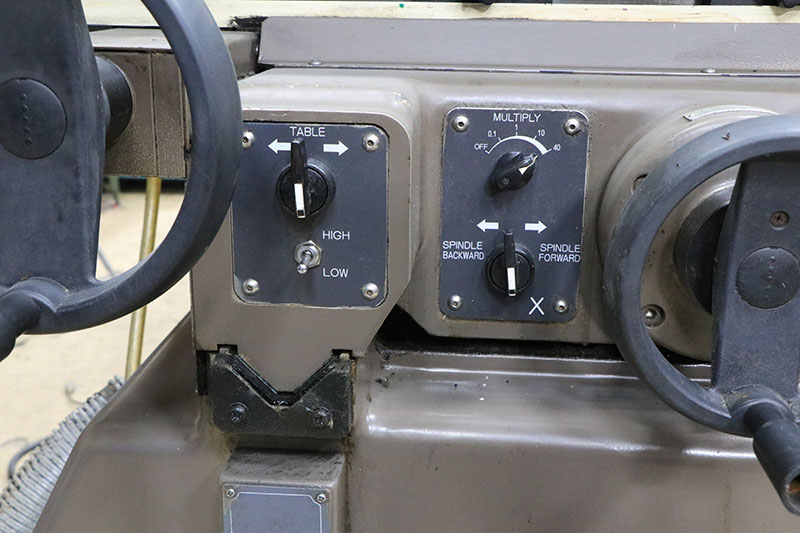

- HANDWHEELS FOR TABLE & SADDLE MOVEMENTS,
   CROSS FEED HANDWHEEL IS ELECTRONIC,
   MANUAL PULSE GENERATOR MOUNTED ON RIGHT
   OF TABLE AT ERGONIC HEIGHT, FOR EASE
   OF OPERATION.

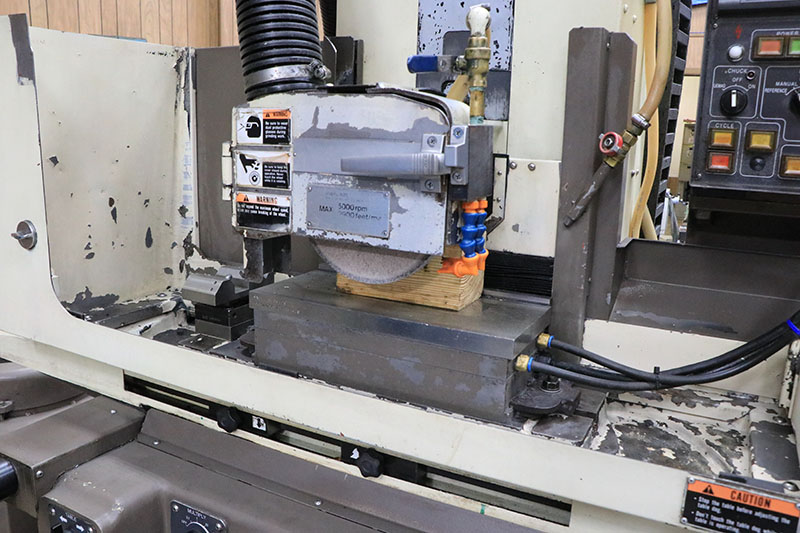

EQUIPPED WITH:

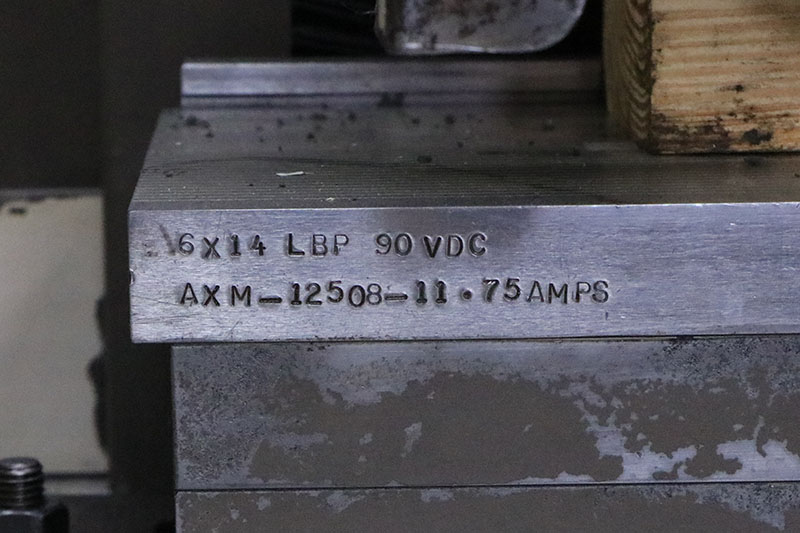

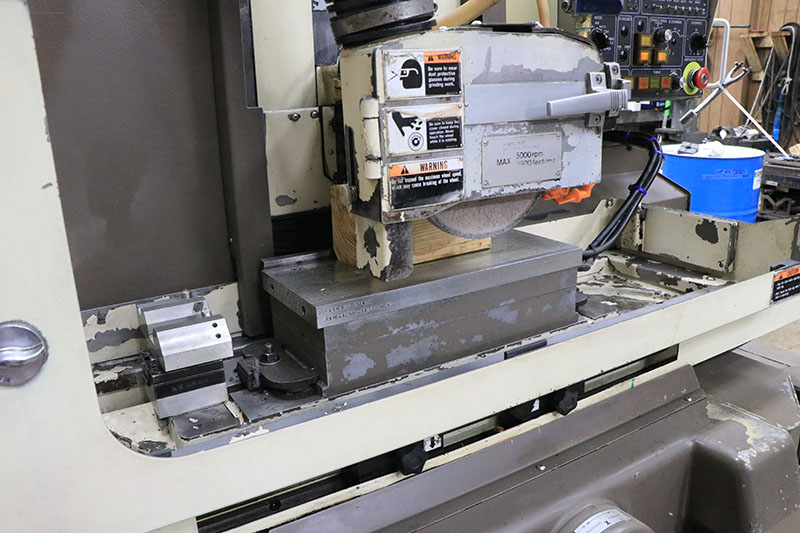

6" X 14" O.S. WALKER "LBP" FINE-DIVISION
 ELECTRO-MAGNETIC CHUCK
VARIABLE HOLD NEUTROFIER CONTROL
3-DRESSER ARRAY MOUNTED ON TABLE,
 LOCATED TO THE LEFT OF THE CHUCK

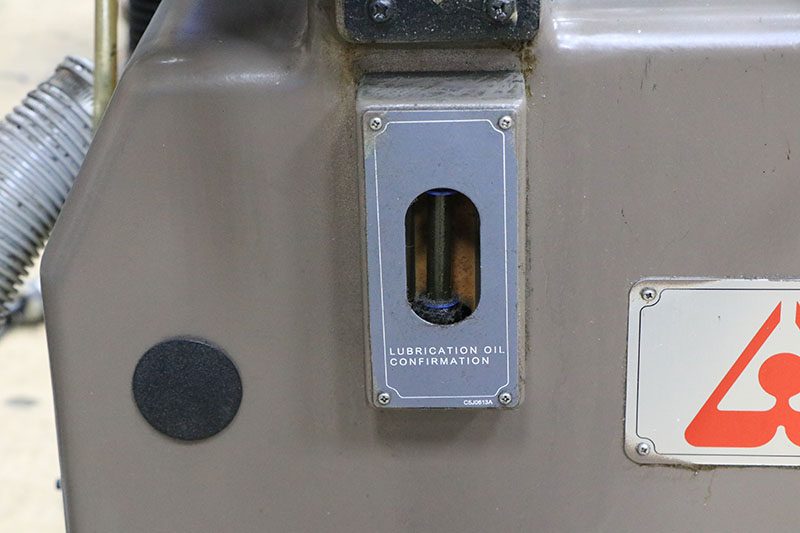

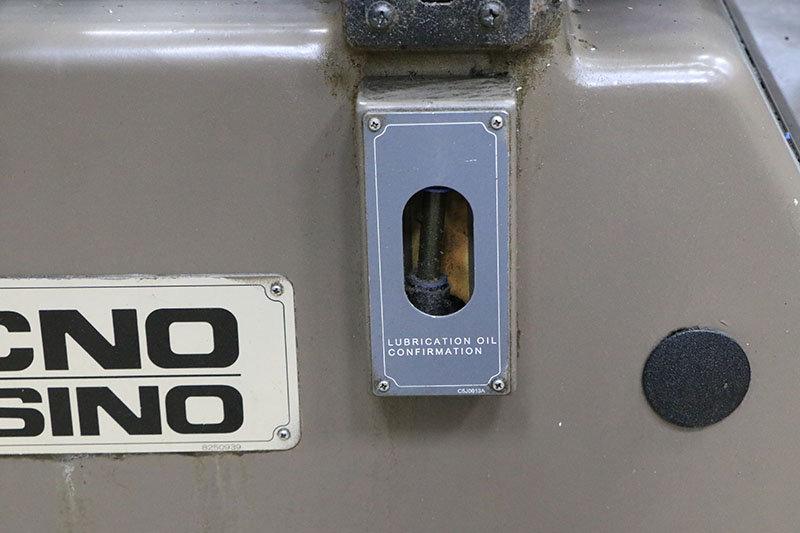

AUTOMATIC LUBRICATION SYSTEM, WITH WINDOW FOR
 VIEWING OF OIL FLOW.

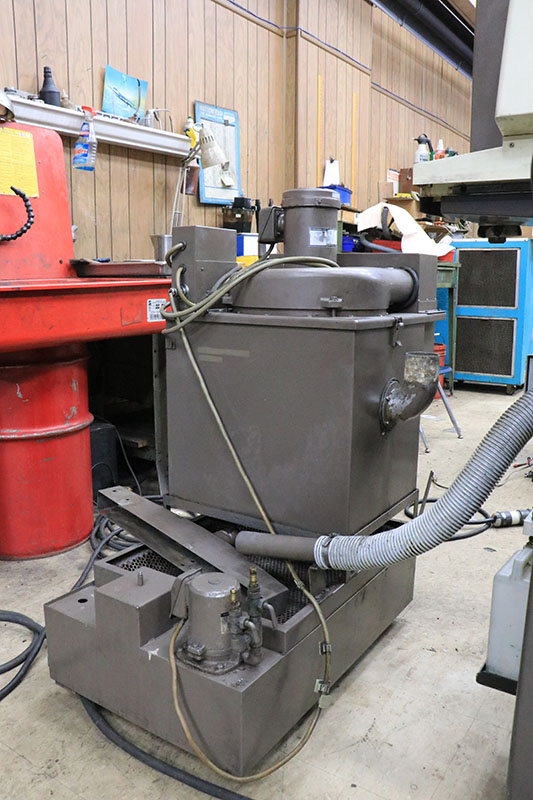

COMBINATION COOLANT SYSTEM & FUJI DUST COLLECTOR

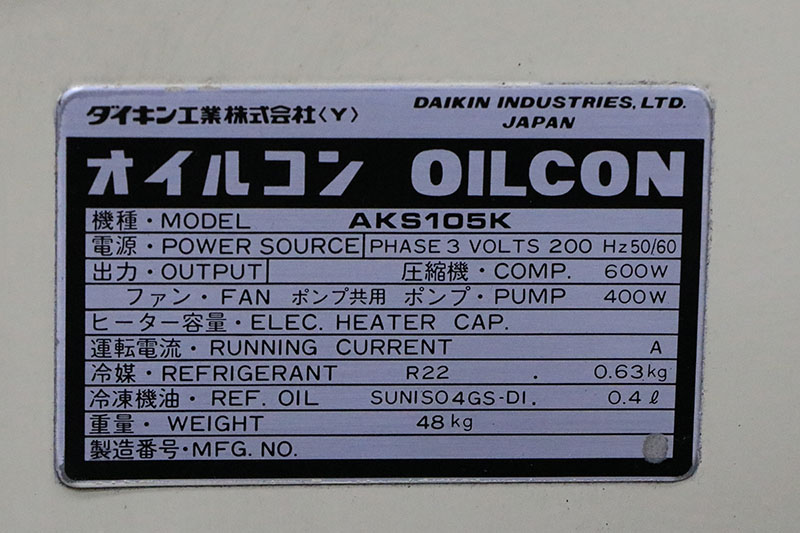

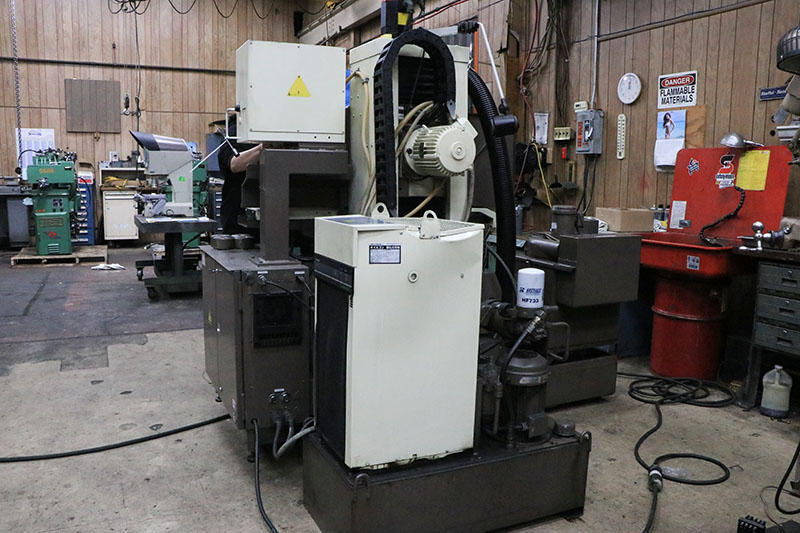

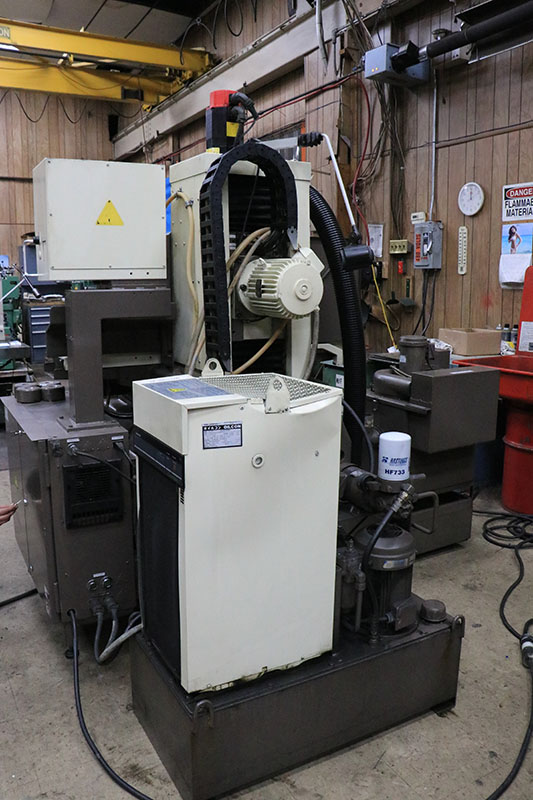

"DAIKIN" OIL COOLING UNIT, MOUNTED WITH
 HYDRAULIC EXTERNAL HYDRAULIC SYSTEM,
 FOR EASY ACCESS & NO THERMAL INTRUSION INTO
 THE MACHINE.
FACTORY COOLANT GUARDING
WORK LIGHT
SET OF MANUALS
HYDRALIC SERVO TABLE - TABLE SPEED IS PROVIDED BY
  A DIAL ON THE FANUC CNC CONTROL
2 HP AC MOTOR WITH INVERTER DRIVE, PROVIDING
  INFINITLEY VARIABLE SPINDLE SPEEDS.
  OPERATOR TURNS A DIAL ON THE FANUC CONTROL,
  OR PROGRAMS USING S CODE.

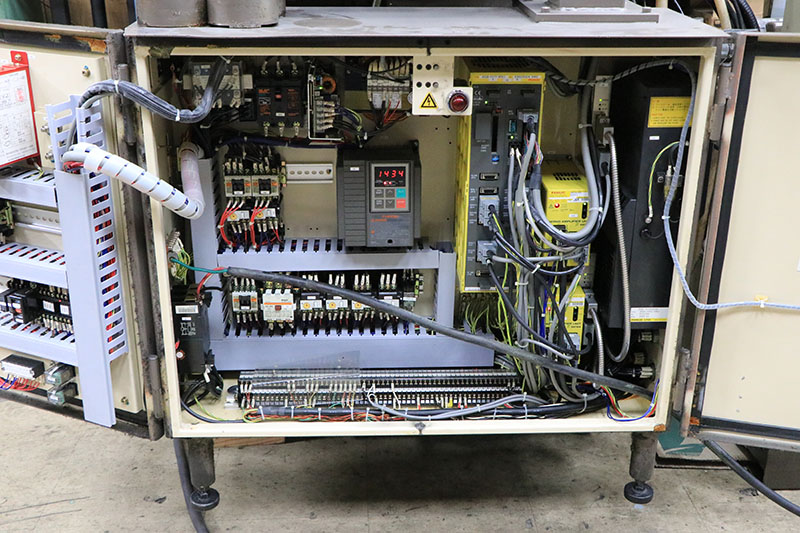

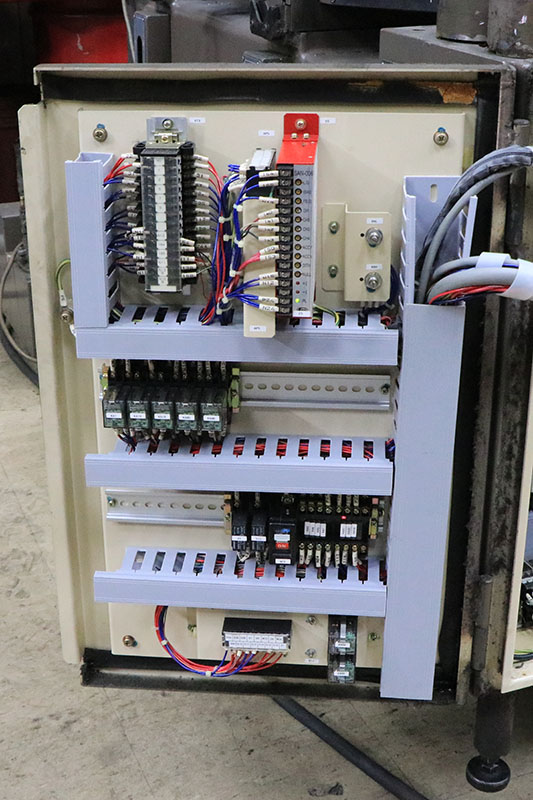

ELECTRICAL CABINET ON MACHINE, NOT SEPARATE
MACHINE IS WIRED FOR 3/60/220 VOLTS


** SUPERIOR CONDITION - ORIGINAL PAINT - EXCEPTIONAL APPEARANCE **
            ** SO QUIET, SO SMOOTH -  RUNS BEAUTIFULLY! **
** INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE **
