Amada Togu III, 2009 PUNCH & DIE GRINDERS

Price on Request

Make:: Amada

Model:: Togu III, 2009

Year:: 2009

Ref #:: 179434

Or call us for a quote at (973) 497-7500 or send us an email at grinders@machineryvalues.com

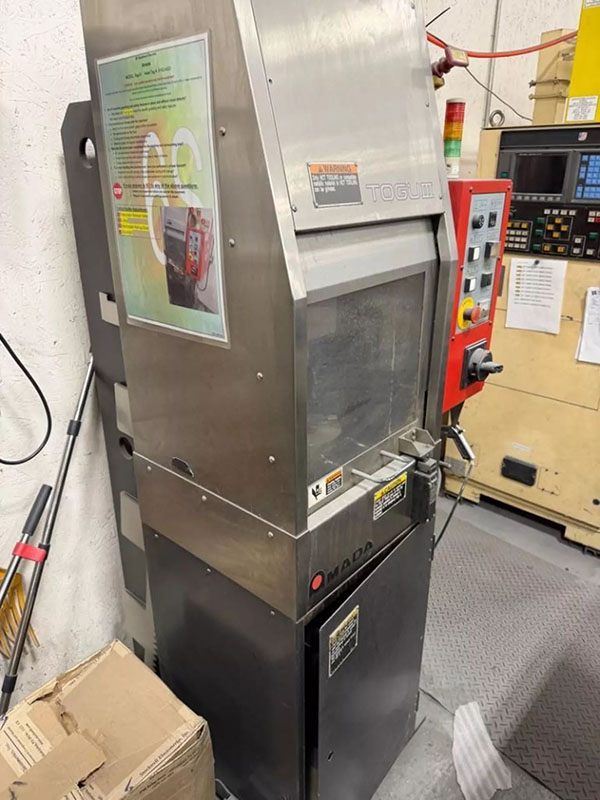

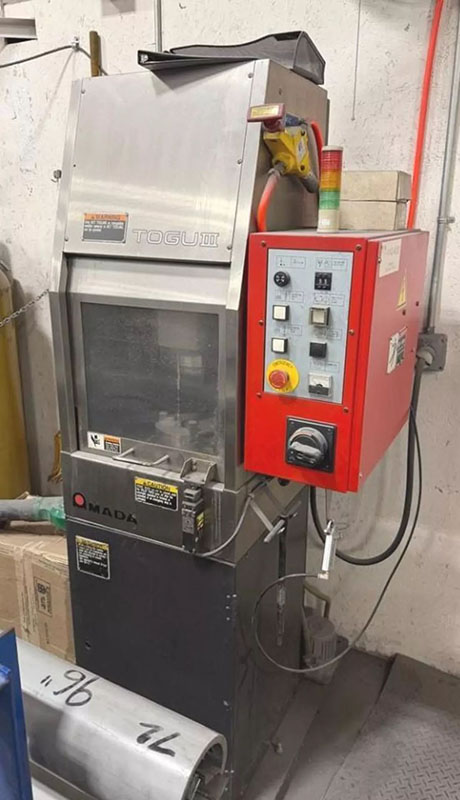

        AMADA MODEL TOGU-III
       PUNCH & DIE GRINDER
         (MADE IN JAPAN)

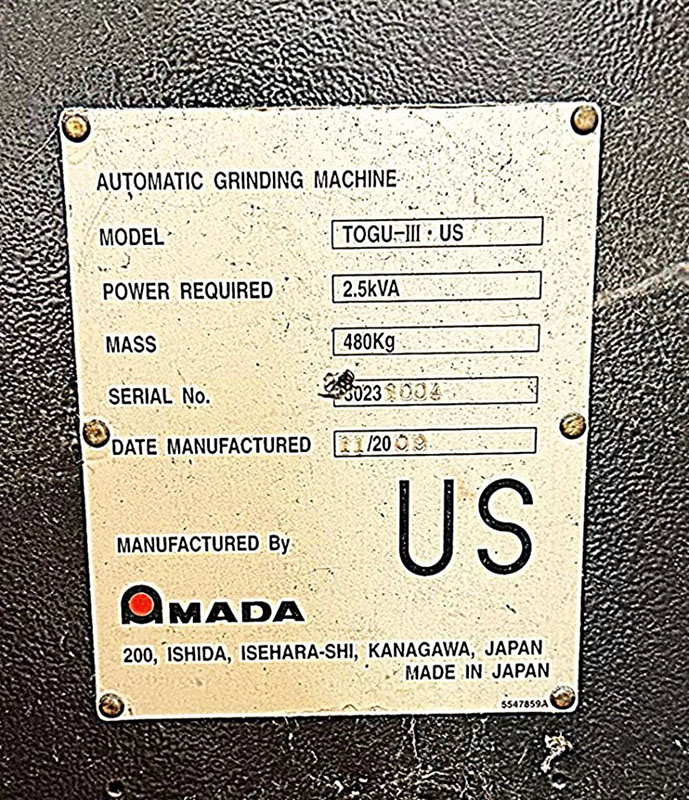

S/N: 30231004     NEW: 11/20/2009

** MAINTAIN PUNCHES & DIES
   AT OPTIMUM CONDITION **


GENERAL SPECIFICATIONS:

MAXIMUM GRINDING AMOUNT: 0.099"
MAXIMUM/MINIMUM TOOL DIAMETER: 6.299”
MAXIMUM/MINIMUM TOOL HEIGHT: 5.906"
STANDARD GRINDING WHEEL: 5.315"
SPINDLE MOTOR: 2 H.P.
SPINDLE ROTATING SPEED: 3000 R.P.M.
VERTICAL TRAVEL DISTANCE: 9.449"
VERTICAL FEED MOTOR: DC SERVO MOTOR
JOG FEED SPEED: 11.811 I.P.M.
POSITIONING SPEED: 1.1811 I.P.M.
GRINDING SPEED: 0.0023622 I.P.M.
TABLE MOTOR: 0.1 KW
TABLE ROTATING SPEED: 72 R.P.M.
COOLANT TANK CAPACITY: 8.90 GALLONS
COOLANT PUMP MOTOR: 0.06 KW
SUPPLY VOLTAGE: 230 VOLTS
ELECTRIC POWER CONSUMPTION: 2.5 KVA

DIMENSIONS: 33" x 34" x 76"
WEIGHT: 1,100 LBS

EQUIPPED WITH:

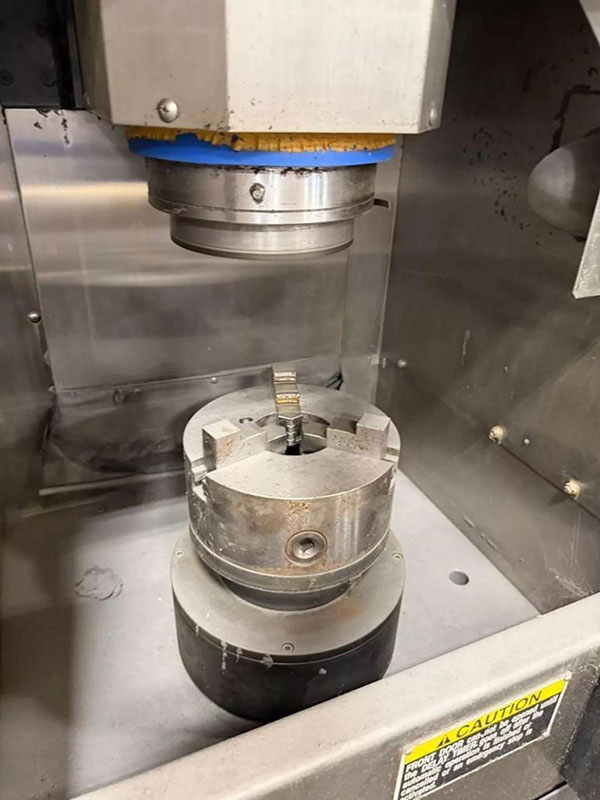

6" DIAMETER SCROLL-TYPE THREE JAW CHUCK

"COMMENTS FROM AMADA":

* HIGH-PRECISION AUTOMATED GRINDING
  DESIGNED SPECIFICALLY
  OR TURRET PUNCH PRESS TOOLING.

* SERVO-CONTROLLED WET ROTARY GRINDING
  PROVIDES UNSURPASSED SURFACE FINISH
  WHILE SIGNIFICANTLY INCREASING
  TOOL LIFE.

* EASY OPERATION, EXPERIENCED GRINDING
  OPERATOR IS NOT REQUIRED.

* SMALL FOOTPRINT ALLOWS STRATEGIC
  SHOP PLACEMENT.


** INSPECT UNDER POWER IN OUR HARRISON, NJ **
** EXCEPTIONAL CONDITION & APPEARANCE **
** - ORIGINAL PAINT - **
