Betenbender 4-70 PRESS BRAKES, HYDRAULIC

$17,500

Make:: Betenbender

Model:: 4-70

Year:: 2013

Ref #:: 179204

Or call us for a quote at (973) 497-7500 or send us an email at presses@machineryvalues.com

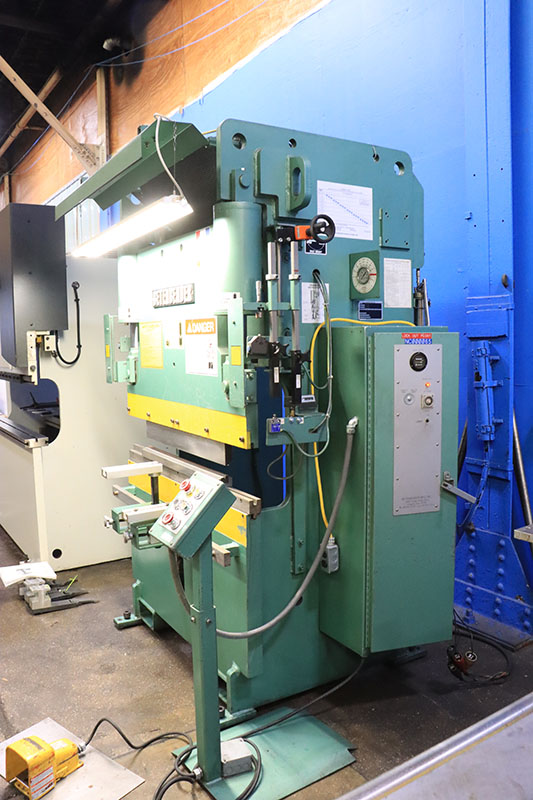

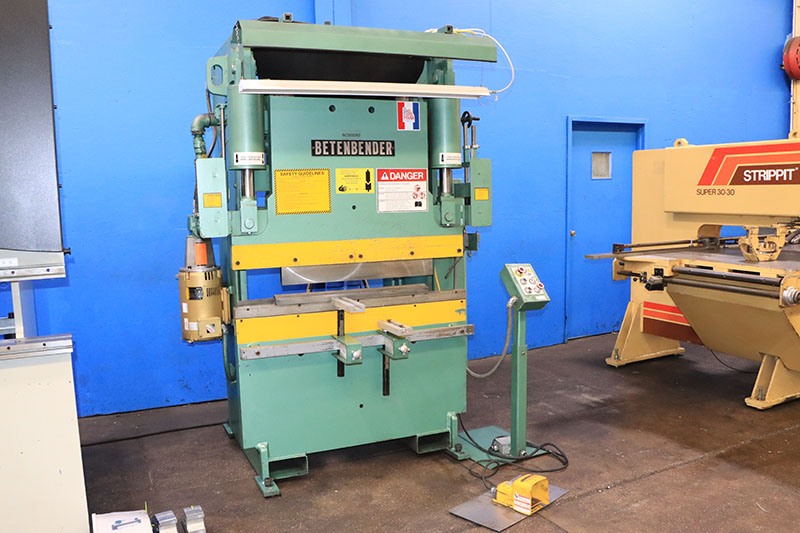

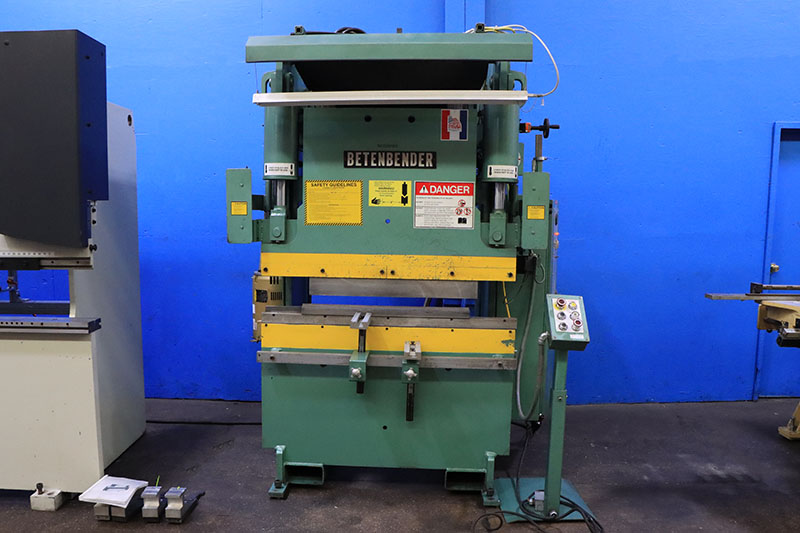

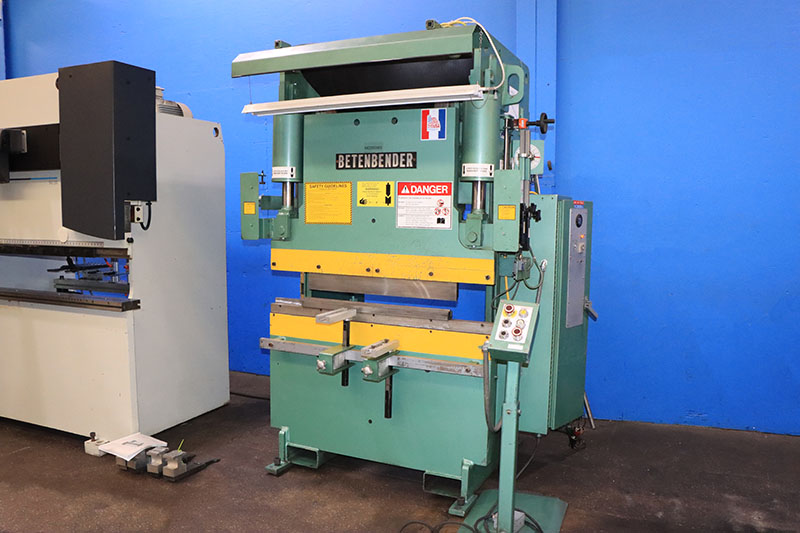

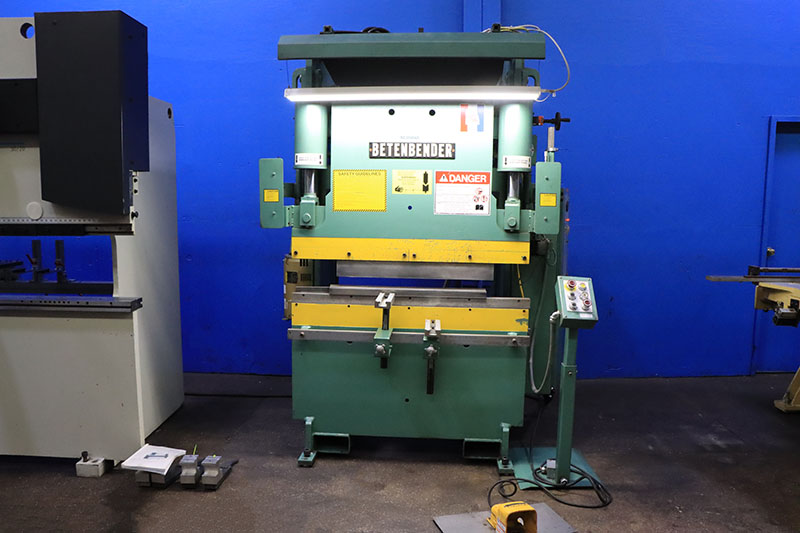

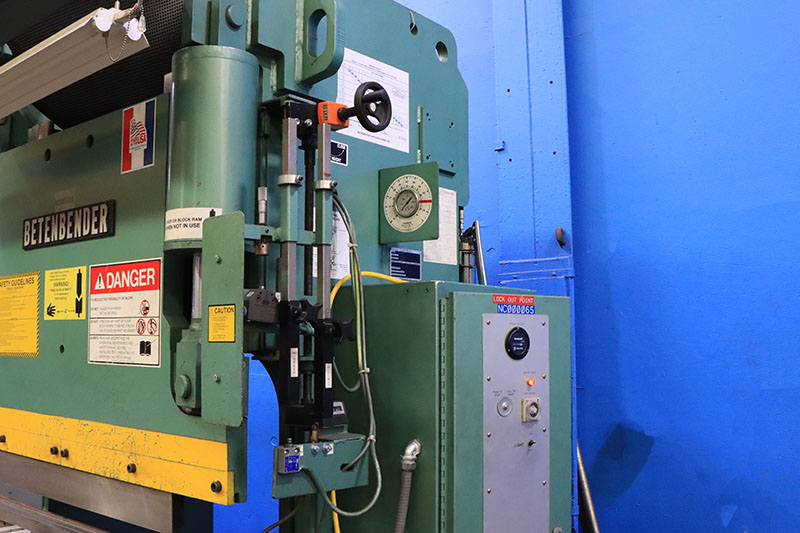

Betenbender 70 Ton x 4' Hydraulic Press Brake

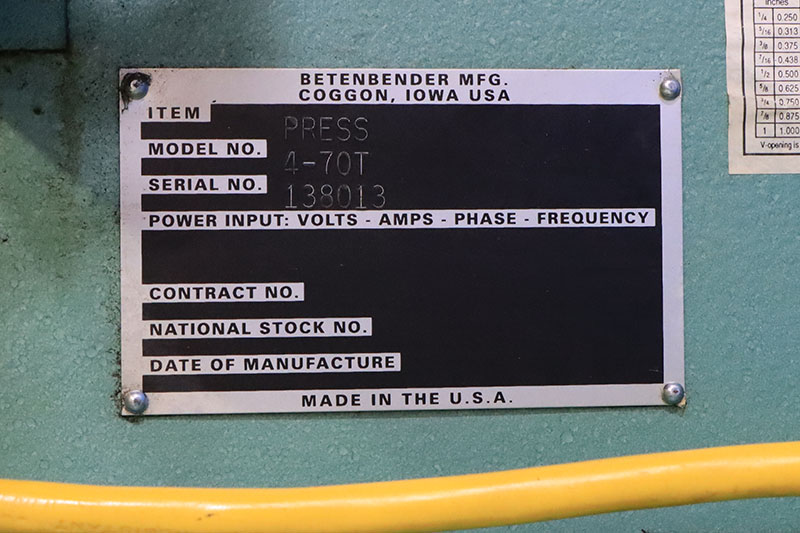

Model 4'-70        S/N 138013        New 2013

Tonnage .................... 70
Bed Size ................... 4'
Throat Depth ............... 8"
Open Height ................ 12"
Closed Height .............. 6"
Height of Bed .............. 28"
Distance Between Housing ... 30-1/2"
Width of Bed ............... 2"
Speeds: Press (IPM) ........ 0-44"
Rapid Approach (IPM) ....... 44"
Return to Open (IPM) ....... 63"

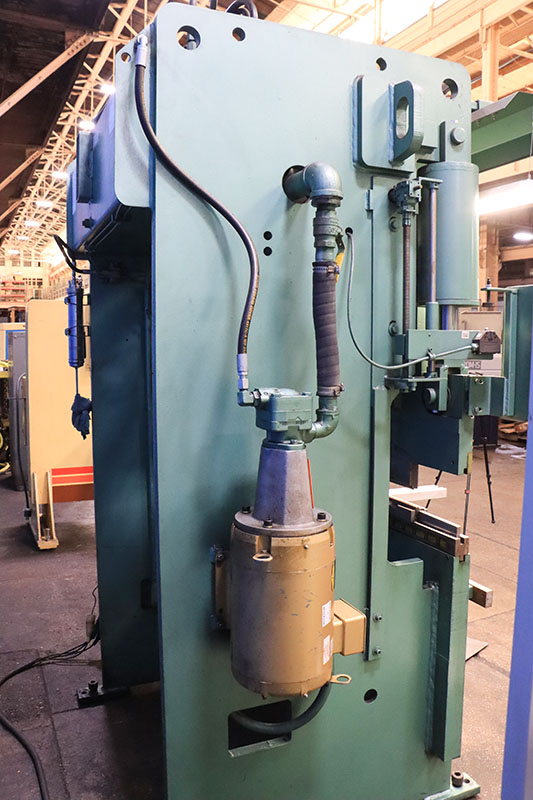

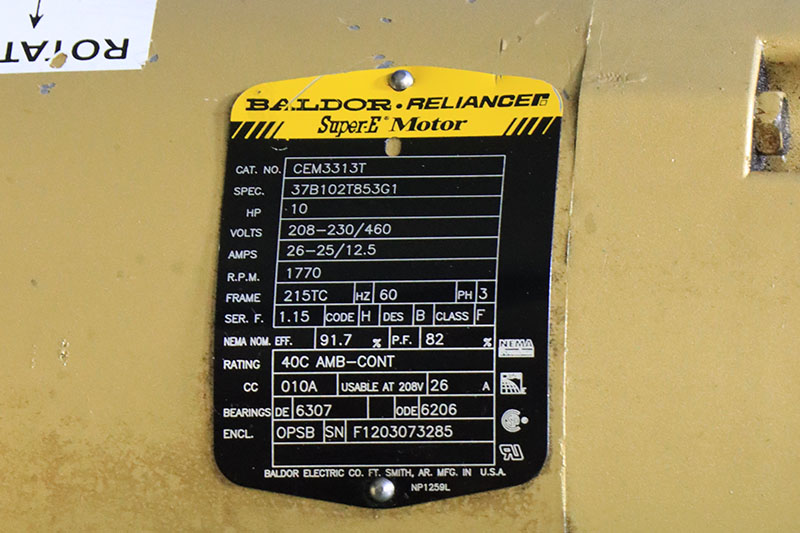

Motor HP ................... 10

Dimensions ........ 63" X 45" X 104" H
Weight ............ 7,500 lbs.

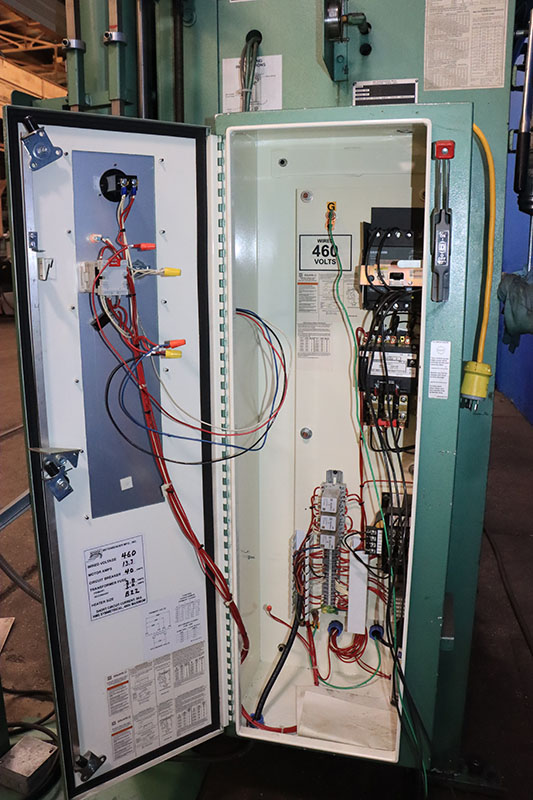

VOLTAGE 208 / 230 / 460 currently 460 v

STANDARD FEATURES:

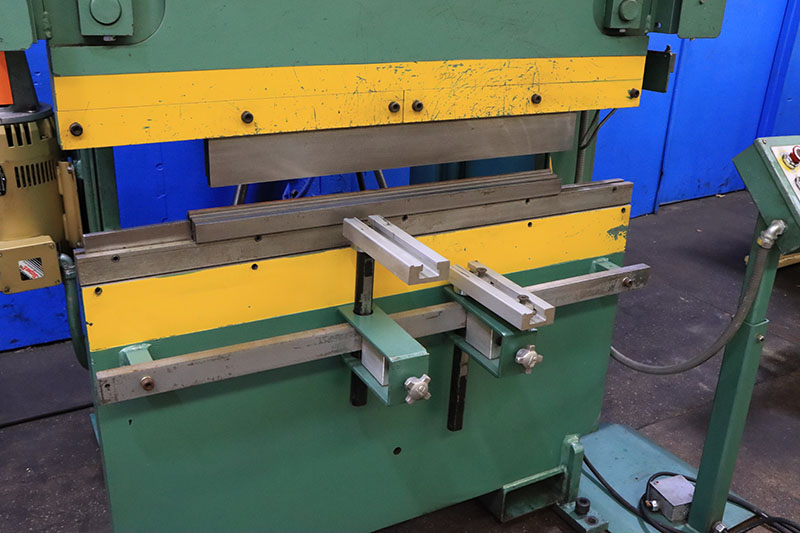

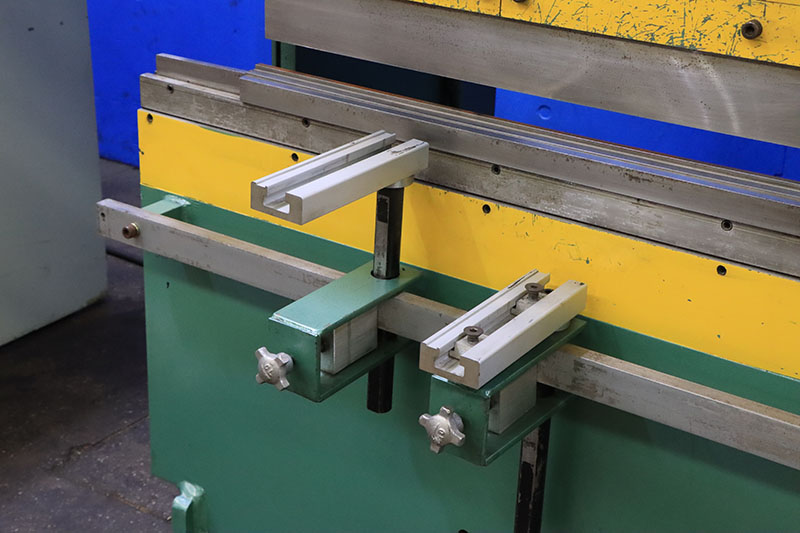

- (2) Adjustable Front Support Arms
- Illumination Kit
- NEMA Electrics

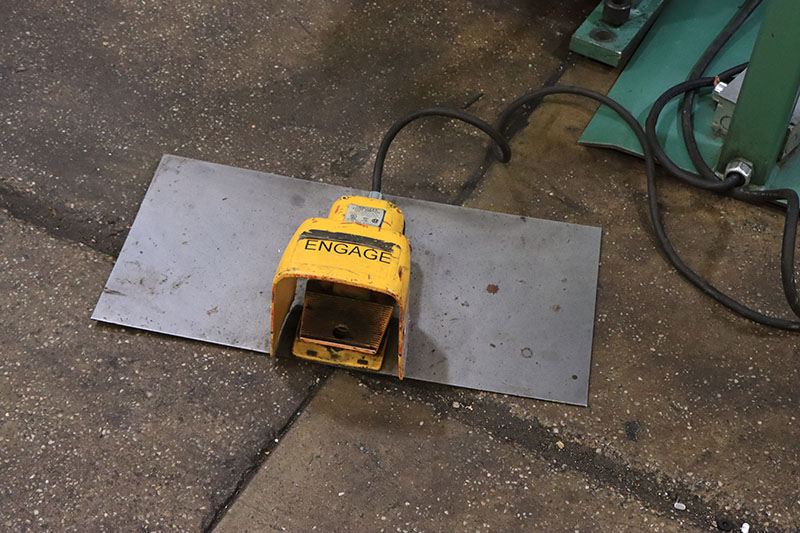

- Three Position Foot Pedal
- Depth Stop
- Bottom Time Delay

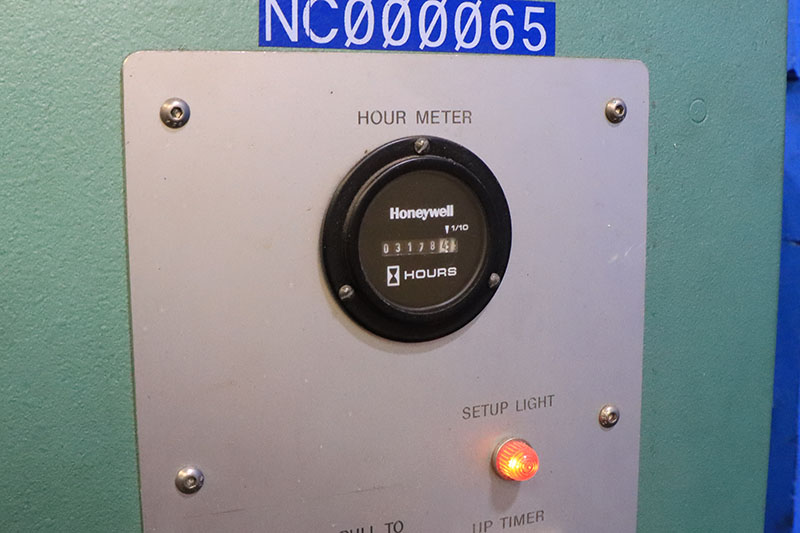

- Hour Meter
- American Made Motor and Valves
- Disconnect Switch
- American Made Hoses and Fittings
- All Steel Construction
- Hydraulic Pressure: 2750 PSI
- Cylinders are steel, double acting piston type with hardened, ground and chromed rods
- Hardened Pins with Spherical bearings for alignment
- Front & Back of Bed Machined Smooth for Mounting of Gauges

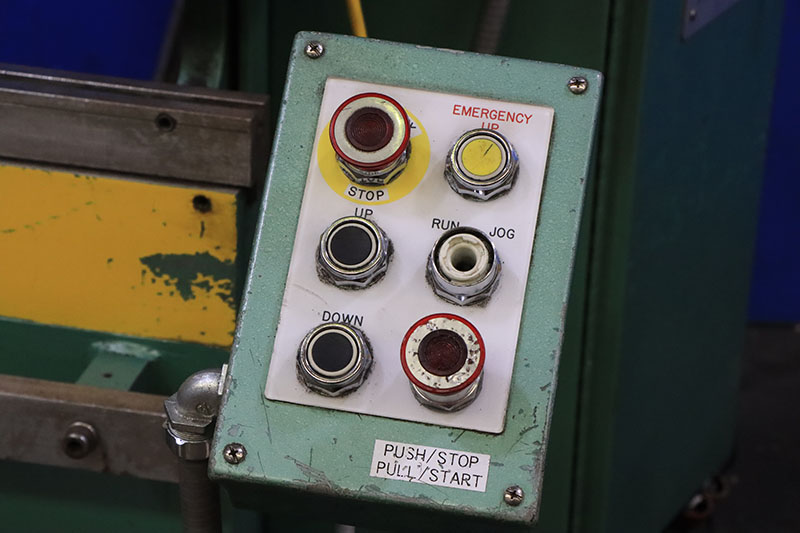

- Multi-switch control panel (with Emergency up, run-jog, up & down & Emergency stop)

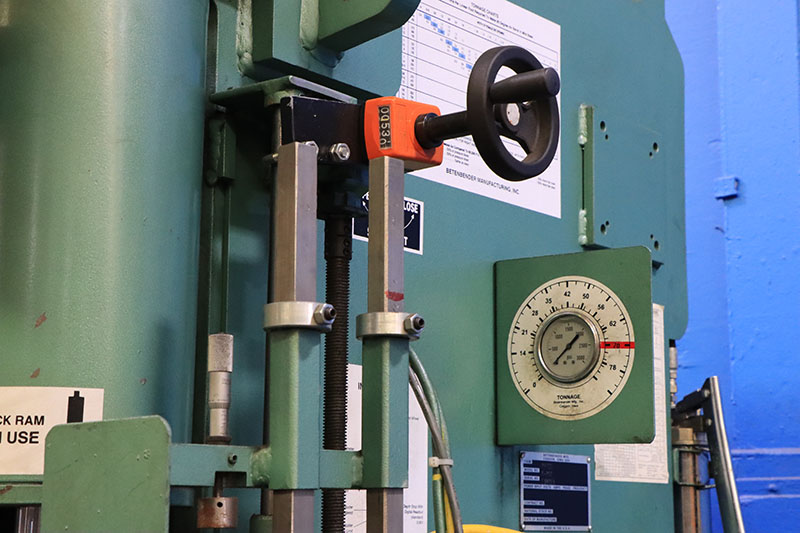

- Hand wheel control to .001 for depth of bend adjustment

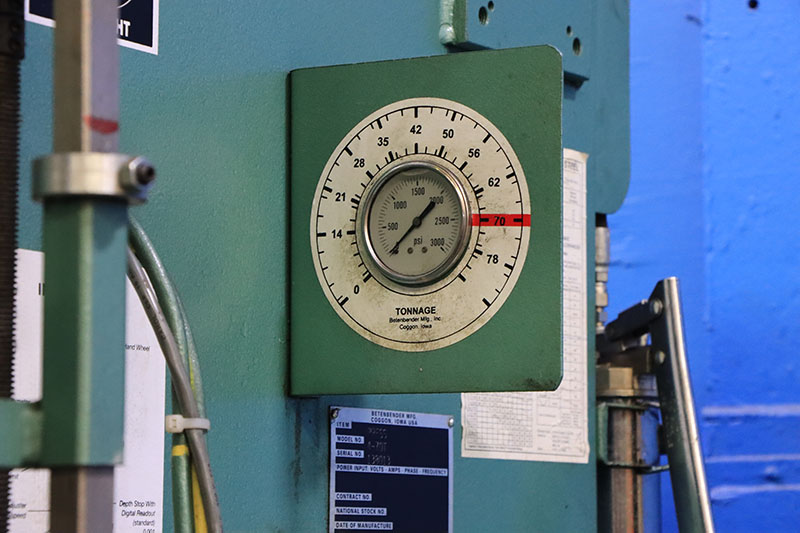

- Pressure Gauge
- Control Panel
- Ram Machined with 1/2" x 3/4" slot
