Blanchard 22-42, 50 H.P., WET BASE, 3/8" CHUCK LIFE, COOLANT ROTARY SURFACE GRINDERS, VT SPDL (BLANCHARD TYPE)

Price on Request

Make:: Blanchard

Model:: 22-42, 50 H.P., WET BASE, 3/8" CHUCK LIFE, COOLANT

Year:: 1971

Ref #:: 177862

Or call us for a quote at (973) 497-7500 or send us an email at grinders@machineryvalues.com

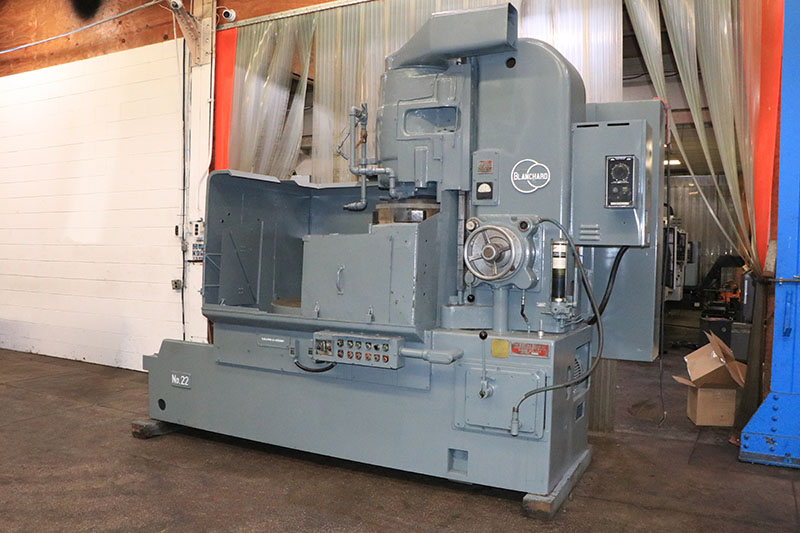

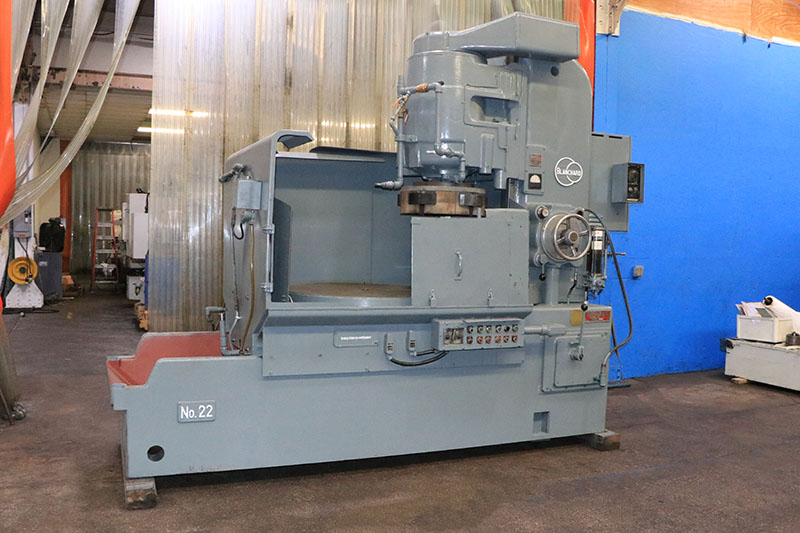

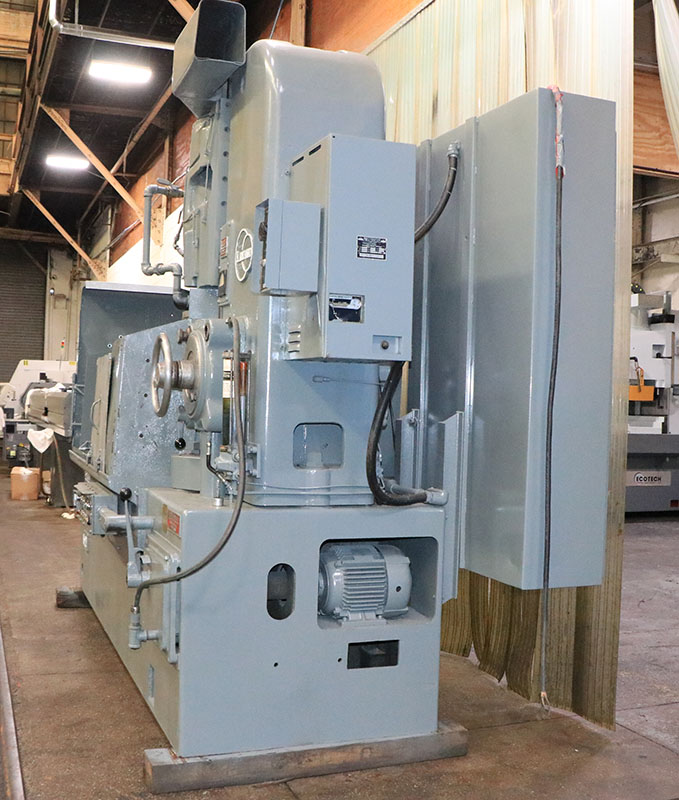

  42" BLANCHARD ROTARY SURFACE GRINDER,
 WET BASE WITH SELF-CONTAINED COOLANT SYSTEM

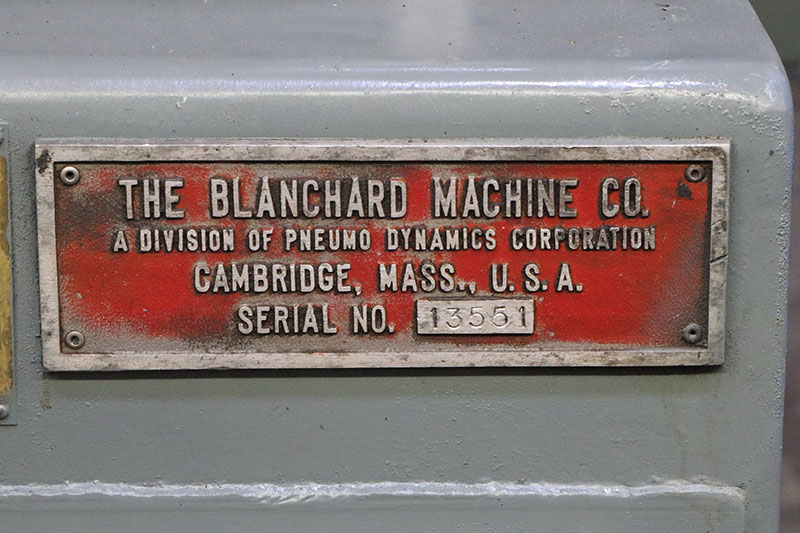

MODEL: #22-42        S/N: 13551     NEW:  1971


CHUCK DIAMETER ........................ 42"
SWING INSIDE GUARDS ................... 48"
VERTICAL RANGE UNDER NEW WHEEL ........ 24"
MAXIMUM LOAD ON CHUCK ................. 3,000 LBS
GRINDING WHEEL DIAMETER ............... 22"
GRINDING WHEEL SPEED .................. 720 RPM
CHUCK SPEEDS (6) ...................... 6 TO 33 RPM
INFINITELY VARIABLE POWER DOWNFEED .... 0.004" TO .080"

APPROXIMATE DIMENSIONS................. 12'L X 8'4"W X 102"H
APPROXIMATE WEIGHT .................... 15,000 LBS

EQUIPPED WITH:
HIGH COLUMN - THIS MACHINE HAS 24" VERTICAL
  RANGE WITH A NEW WHEEL!  THIS IS A DESIRABLE
  OPTIONAL FEATURE THAT PROVIDES YOU TO DO WORK
  THAT MANY OTHER BLANCHARD OWNERS CANNOT DO.

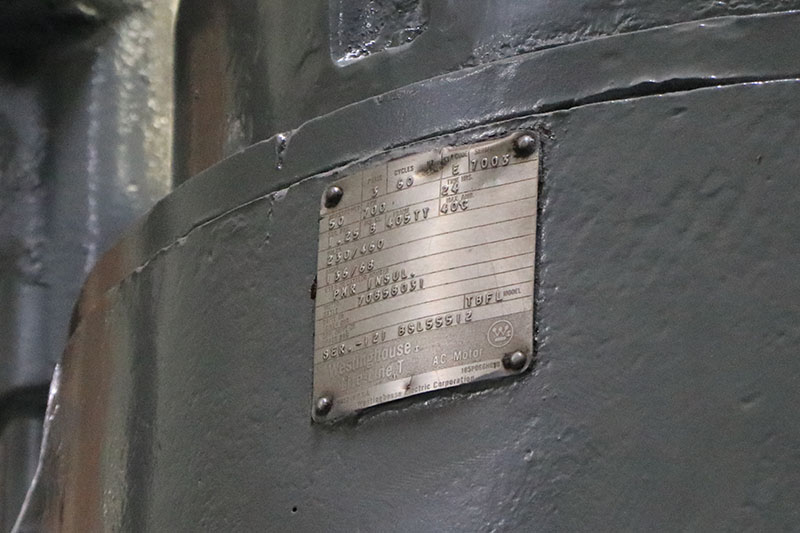

50 HP 3/60/230-460 VOLT SPINDLE MOTOR
HARDENED & REPLACEABLE BED WAYS

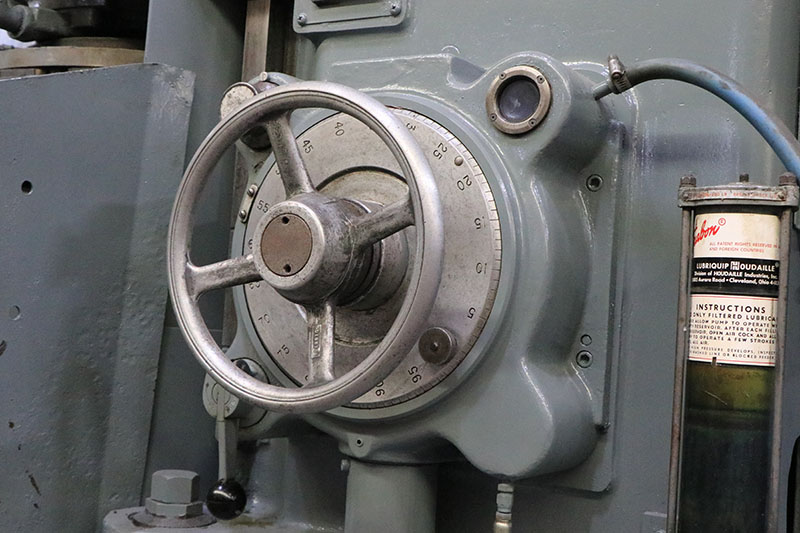

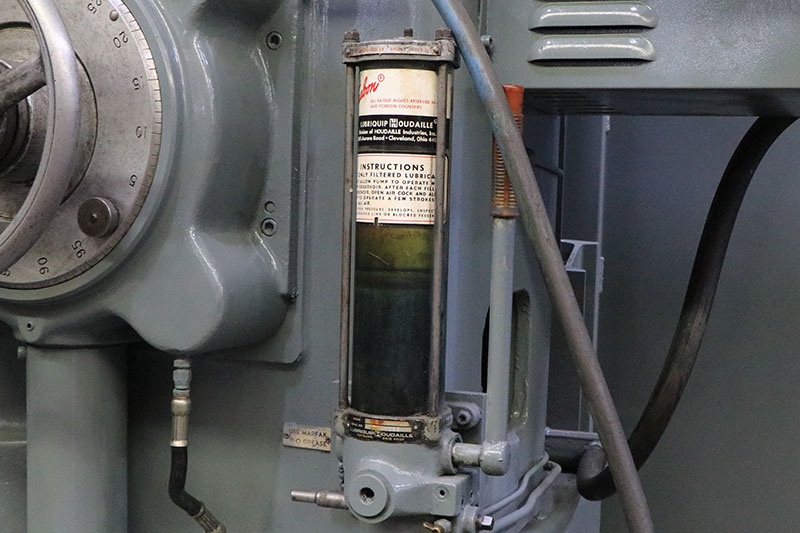

TRABON MANUAL LUBRICATION PUMP
EXTRA VERTICAL RANGE (24" CAPACITY)

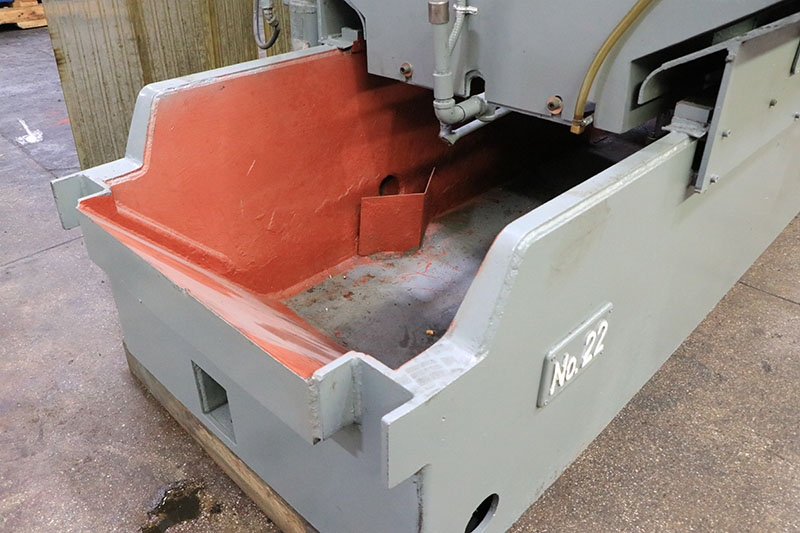

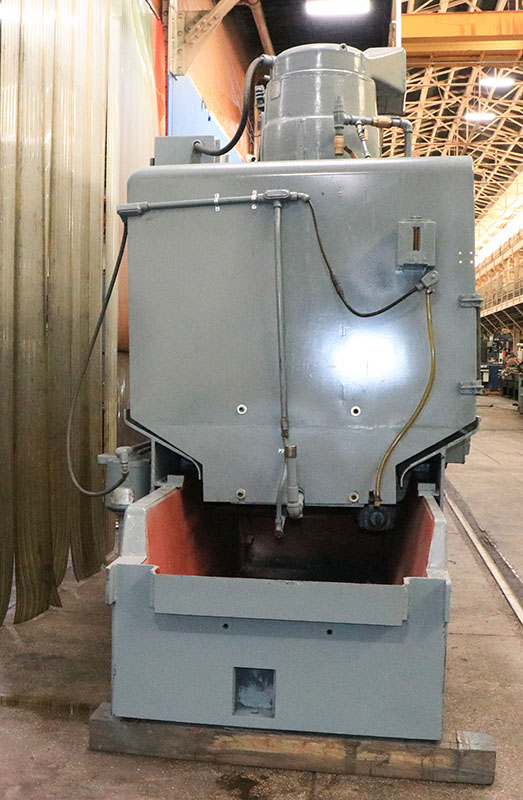

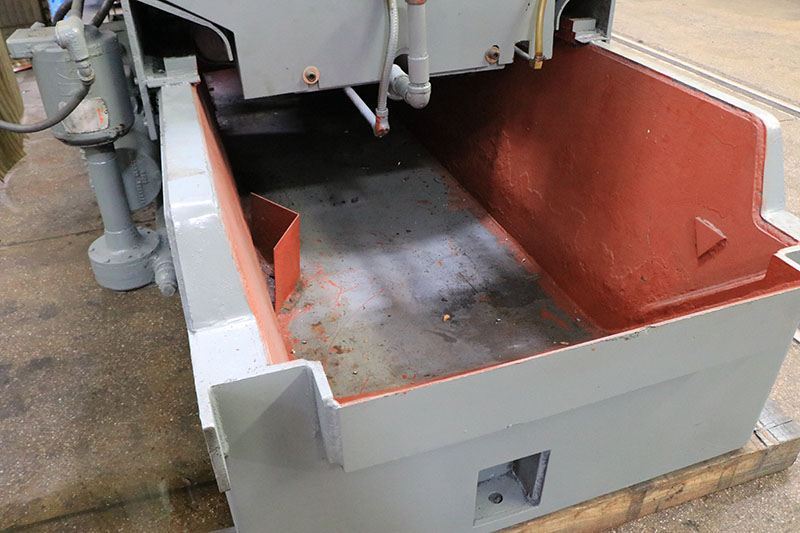

WET BASE W/SELF-CONTAINED COOLANT SYSTEM

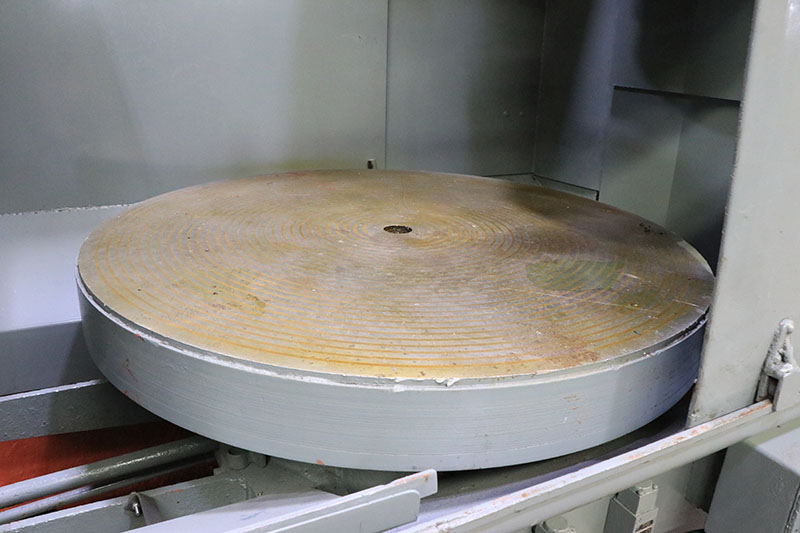

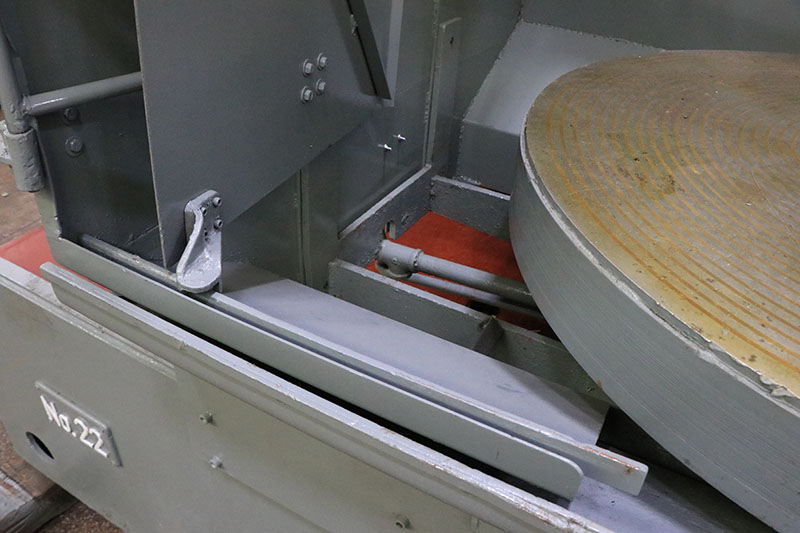

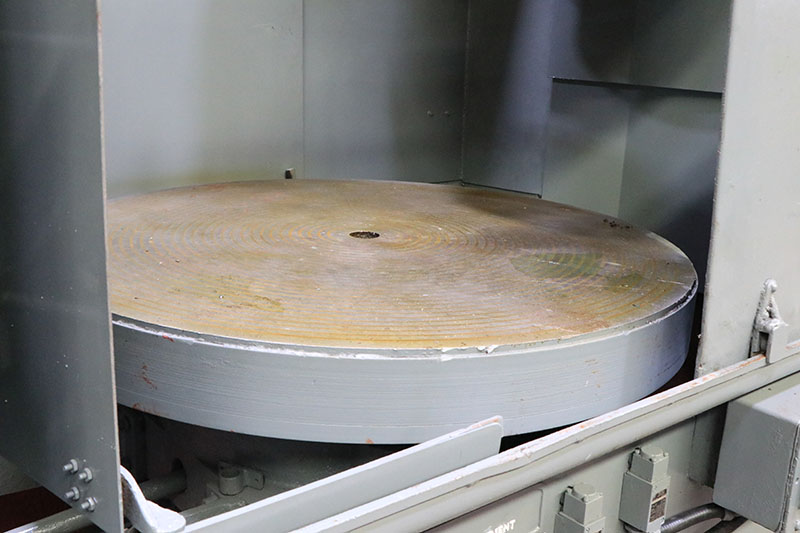

42" ELECTRO-MAGNETIC CHUCK, 3/8" CHUCK LIFE

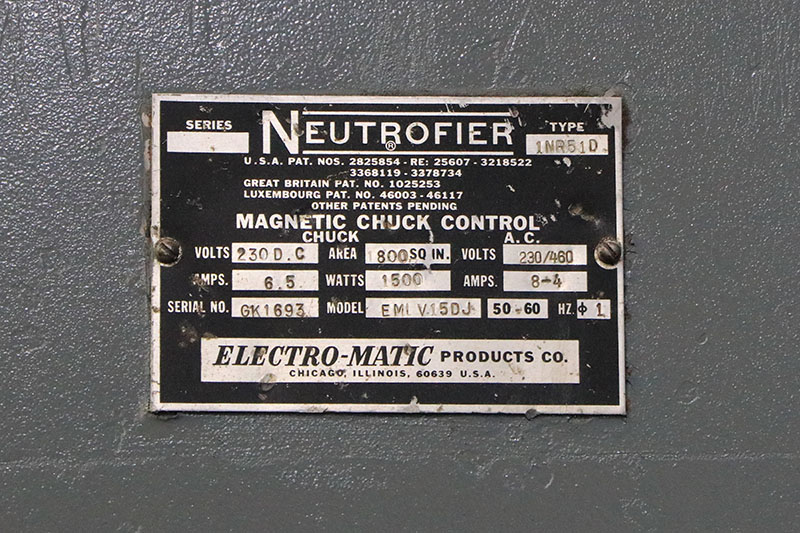

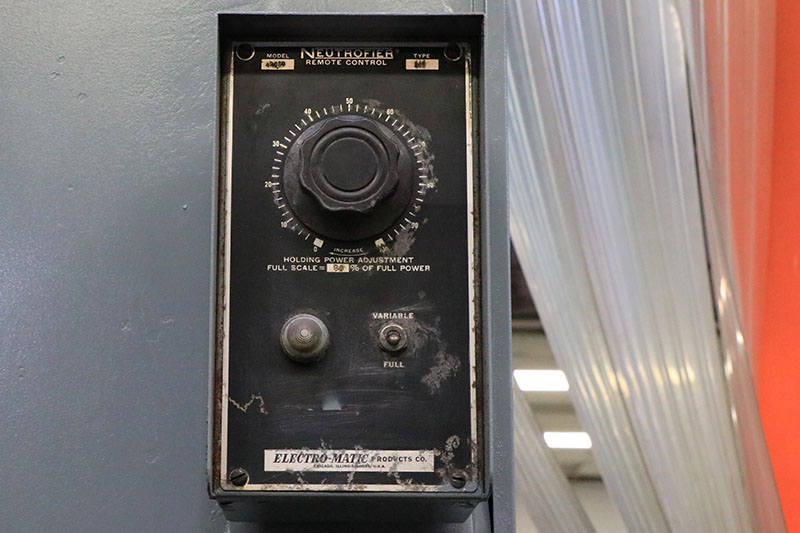

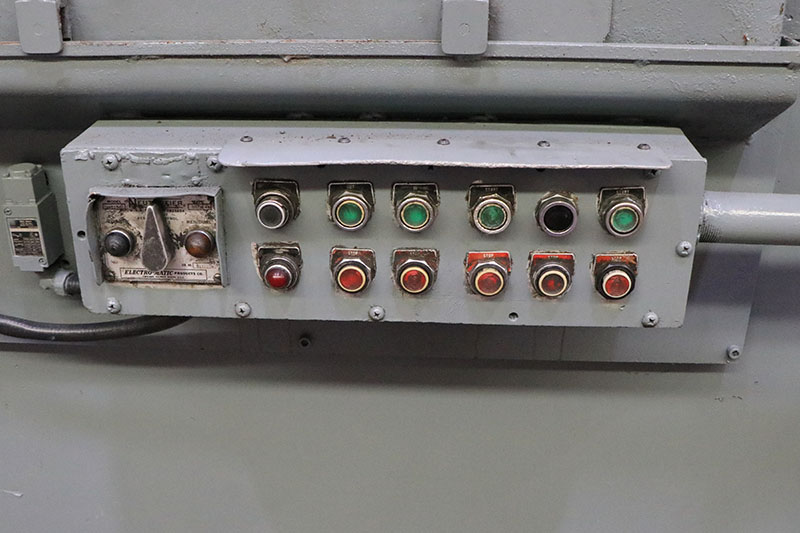

"ELECTRO-MATIC" NEUTROFIER CONTROL, 1500 WATT POWER SUPPLY
22" DIAMETER SEGMENTED WHEEL (CORTLAND)

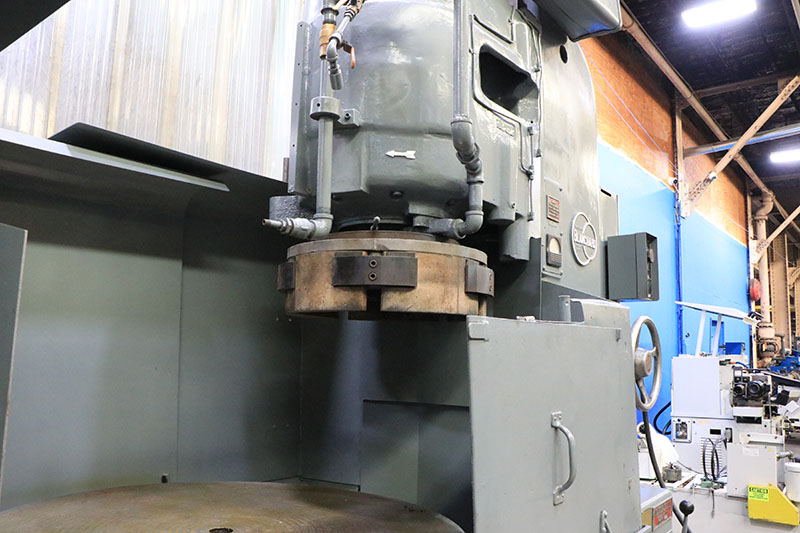

WHEELHEAD HAS RAPID RAISE & LOWER BY POWER
 INTERLOCKED WITH FEED

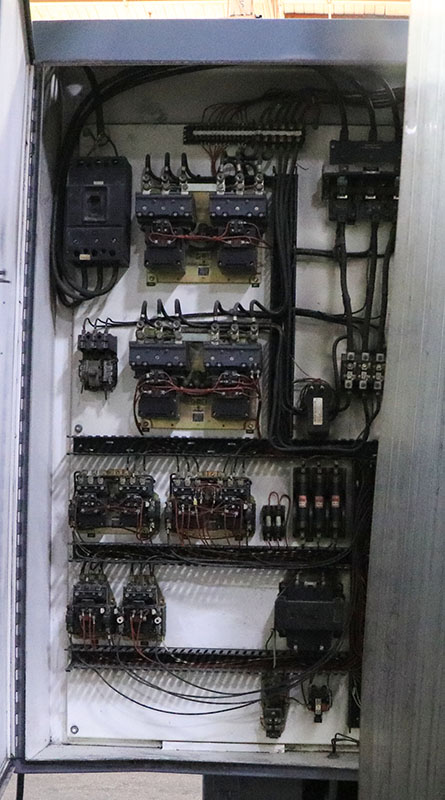

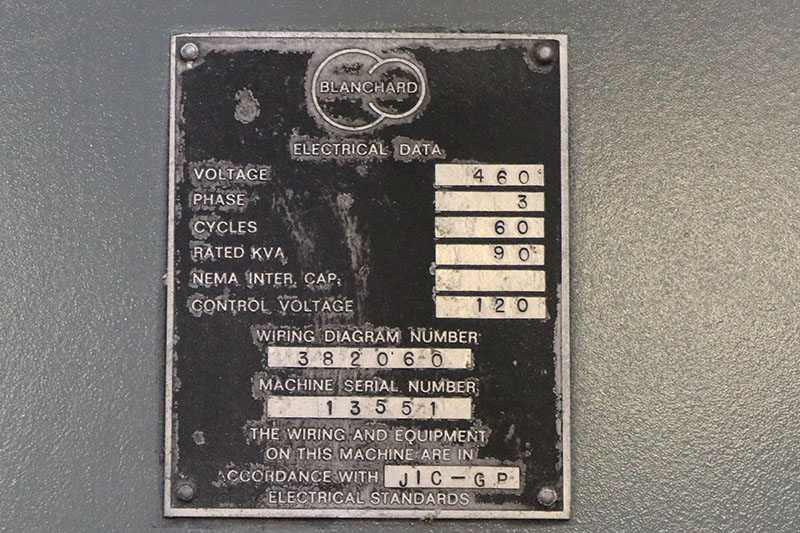

WIRED PRESENTLY FOR 3/60/460 VOLTS, 90 KVA

** SERVICED, TAKEN APART, CLEANED & PAINTED **
** READY FOR DELIVERY **
** INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE **
** SUPERB CONDITION & APPEARANCE - THIS IS A SUPERIOR MACHINE **
