Bridgeport 2J Vari-Speed WOW! VERTICAL MILLS - VERTICAL MILLING MACHINES

Price on Request

Make:: Bridgeport

Model:: 2J Vari-Speed WOW!

Year:: 1972

Ref #:: 179080

Or call us for a quote at (973) 497-7500 or send us an email at boringmills@machineryvalues.com

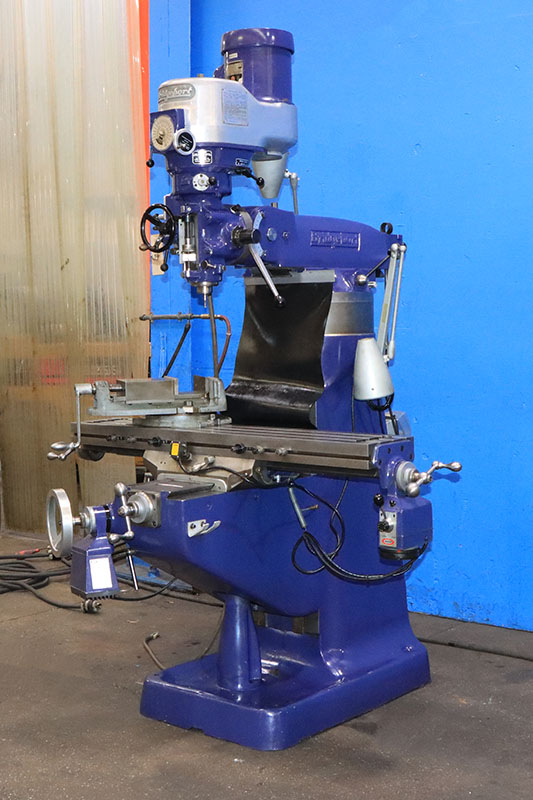

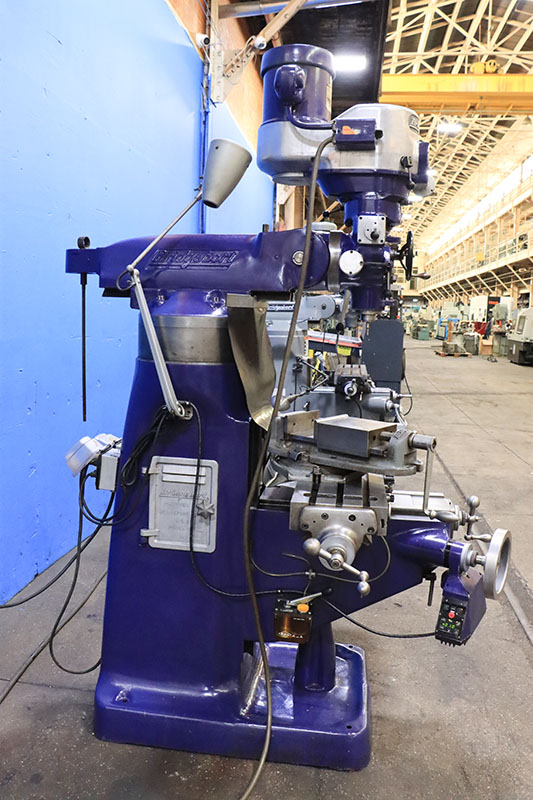

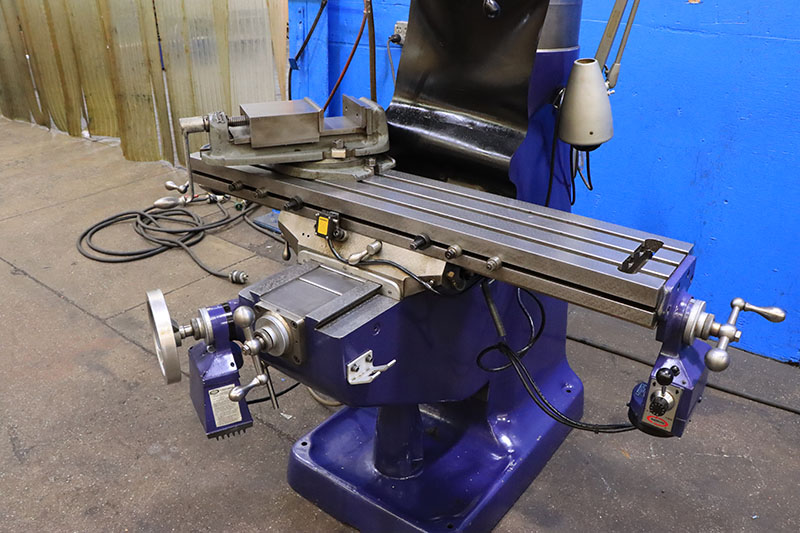

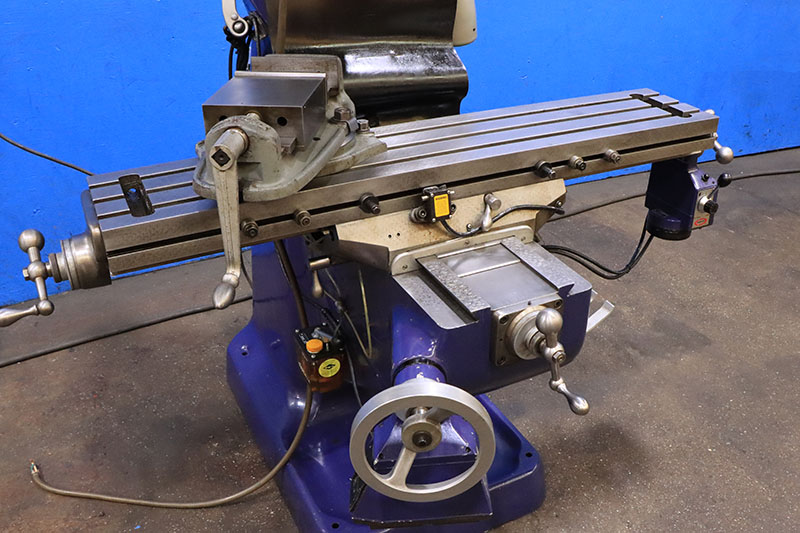

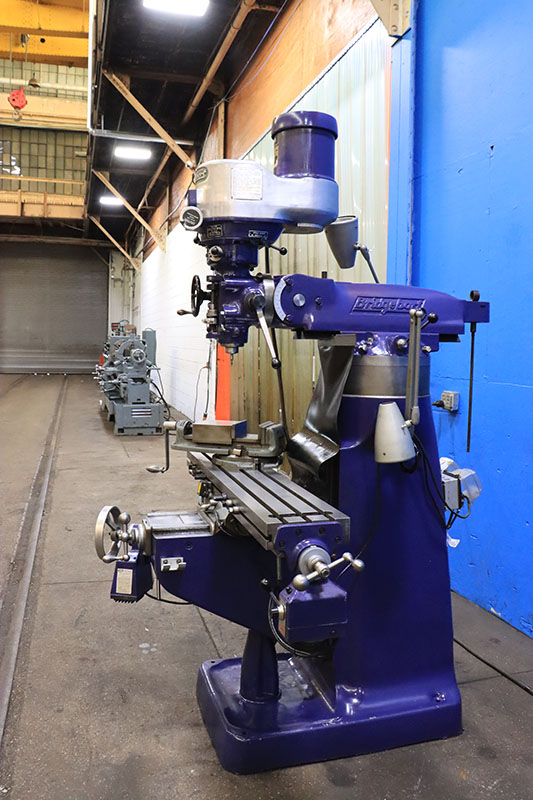

BRIDGEPORT VERTICAL MILLING MACHINE

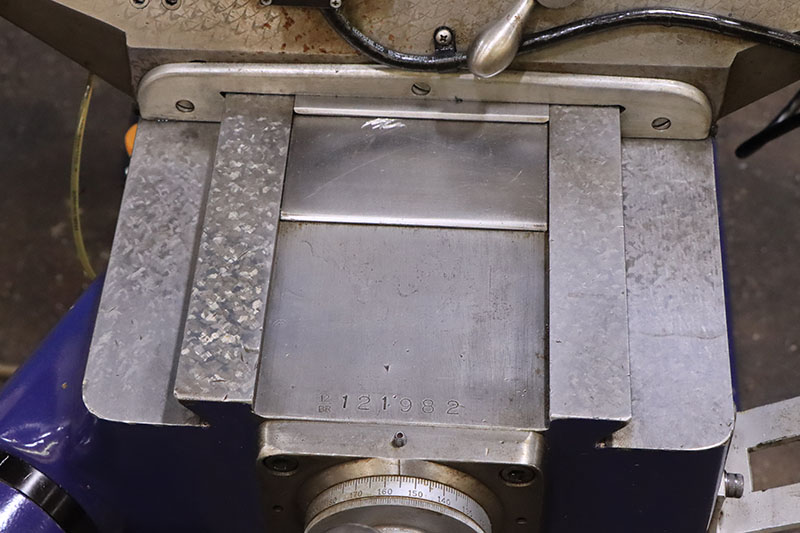

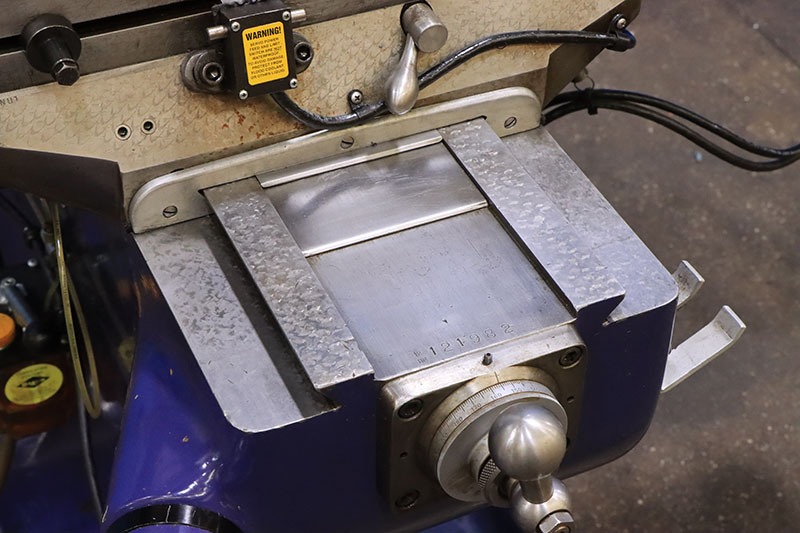

MODEL: 2J, S/N: 12/BR 121982, NEW: 1972

SPECIFICATIONS:

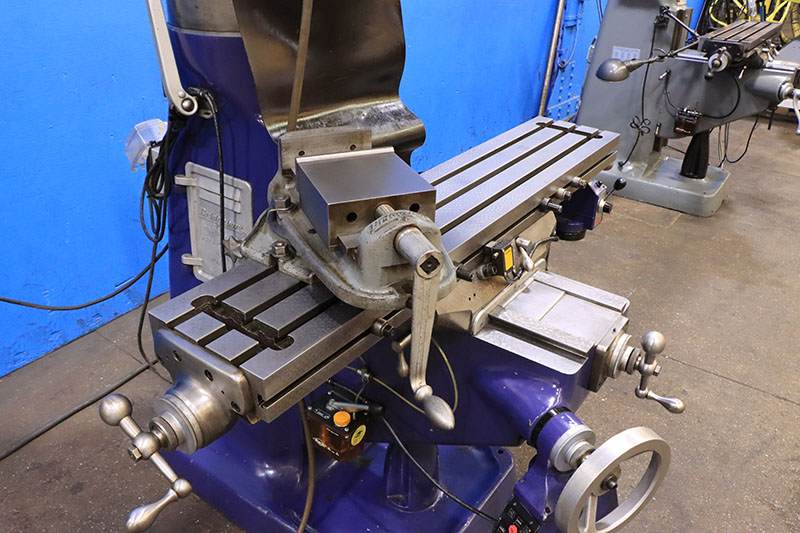

TABLE SIZE ............................ 9" X 42"
NUMBER OF T-SLOTS ..................... 3
LONGITUDINAL TABLE TRAVEL ............. 30"
CROSS TRAVEL .......................... 12"
QUILL TRAVEL .......................... 5"
KNEE TRAVEL ........................... 16"
RAM TRAVEL ............................ 12"
MAX/MIN DISTANCE, SPINDLE NOSE TO TABLE 18-1/2" / 2-1/2"
MAX/MIN DISTANCE, CENTERLINE OF SPINDLE
    TP FACE OF COLUMN ............... 18-3/4" / 6-3/4"
HEAD TILT, LEFT & RIGHT ............... 90 DEGREES
HEAD TILT, FRONT & REAR ............... 45 DEGREES
INFINITELY VARIABLE SPEED RANGE ....... 60 - 4,200 RPM
SPINDLE TAPER ......................... R-8
MAX COLLET CAPACITY ................... 3/4"
QUILL TRAVEL .......................... 5"
QUILL FEEDS ....................... 0.0015", 0.003", 0.006"
APPROXIMATE WEIGHT .................... 2,000 LBS

EQUIPPED WITH:

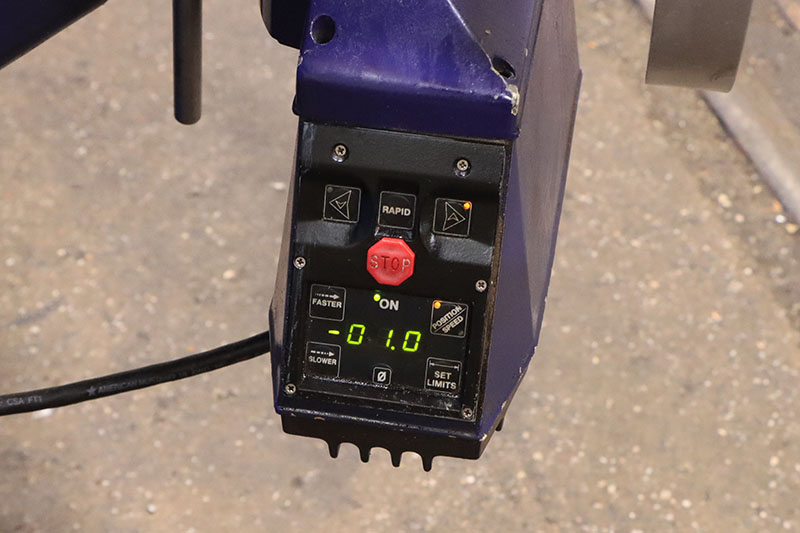

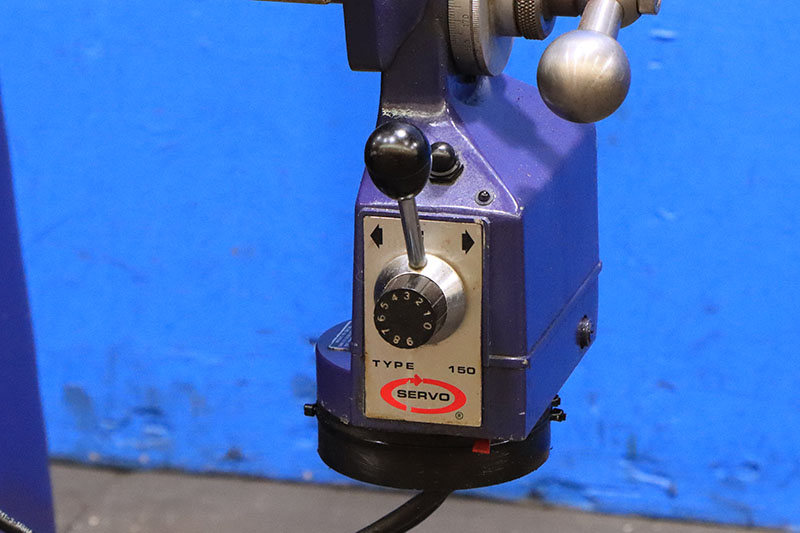

SERVO POWER FEED FOR LONGITUDINAL TABLE TRAVEL
SERVO POWER FEED FOR KNEE VERTICAL TRAVEL

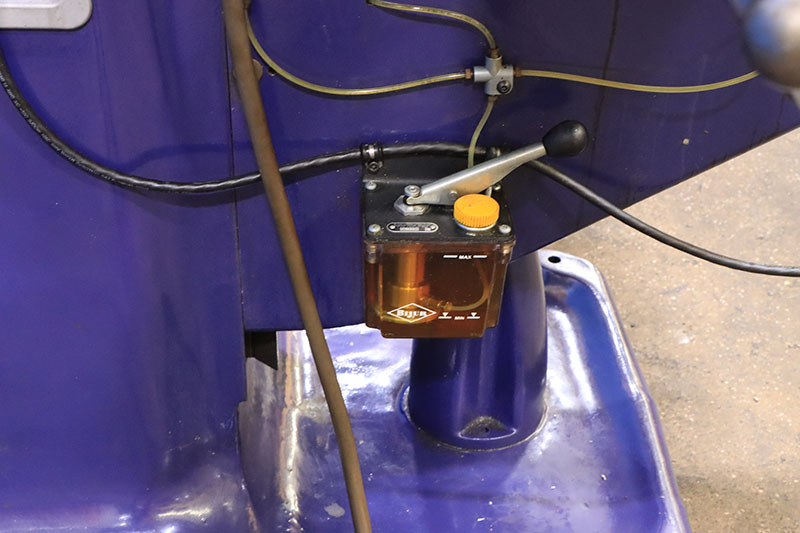

BIJUR ONE-SHOT LUBE

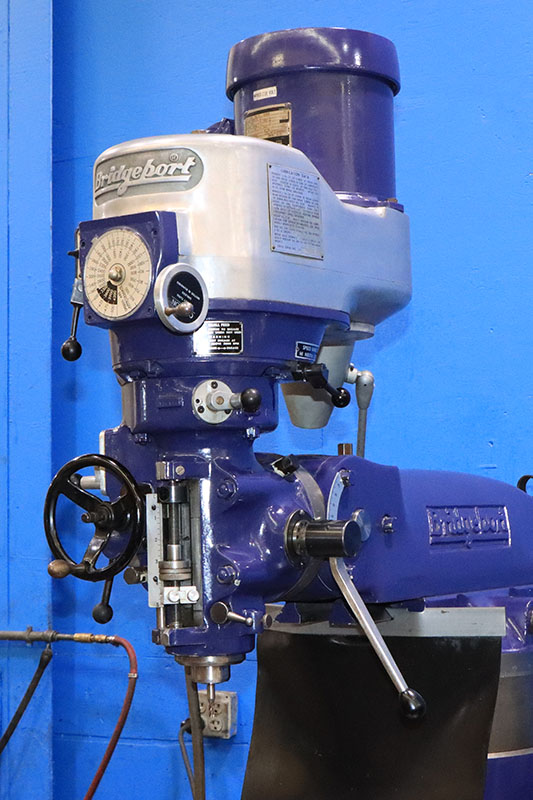

BRIDGEPORT VARI-SPEED MILLING HEAD
1-1/2 HORSE POWER 3 PHASE MILLING HEAD

INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE

CONDITION:   ****  SUPERB  ****
