Bridgeport BPS1 Series NEW VERTICAL MILLS

Price on Request

Make:: Bridgeport

Model:: BPS1 Series

Year:: NEW

Ref #:: 179251

Or call us for a quote at (973) 497-7500 or send us an email at boringmills@machineryvalues.com

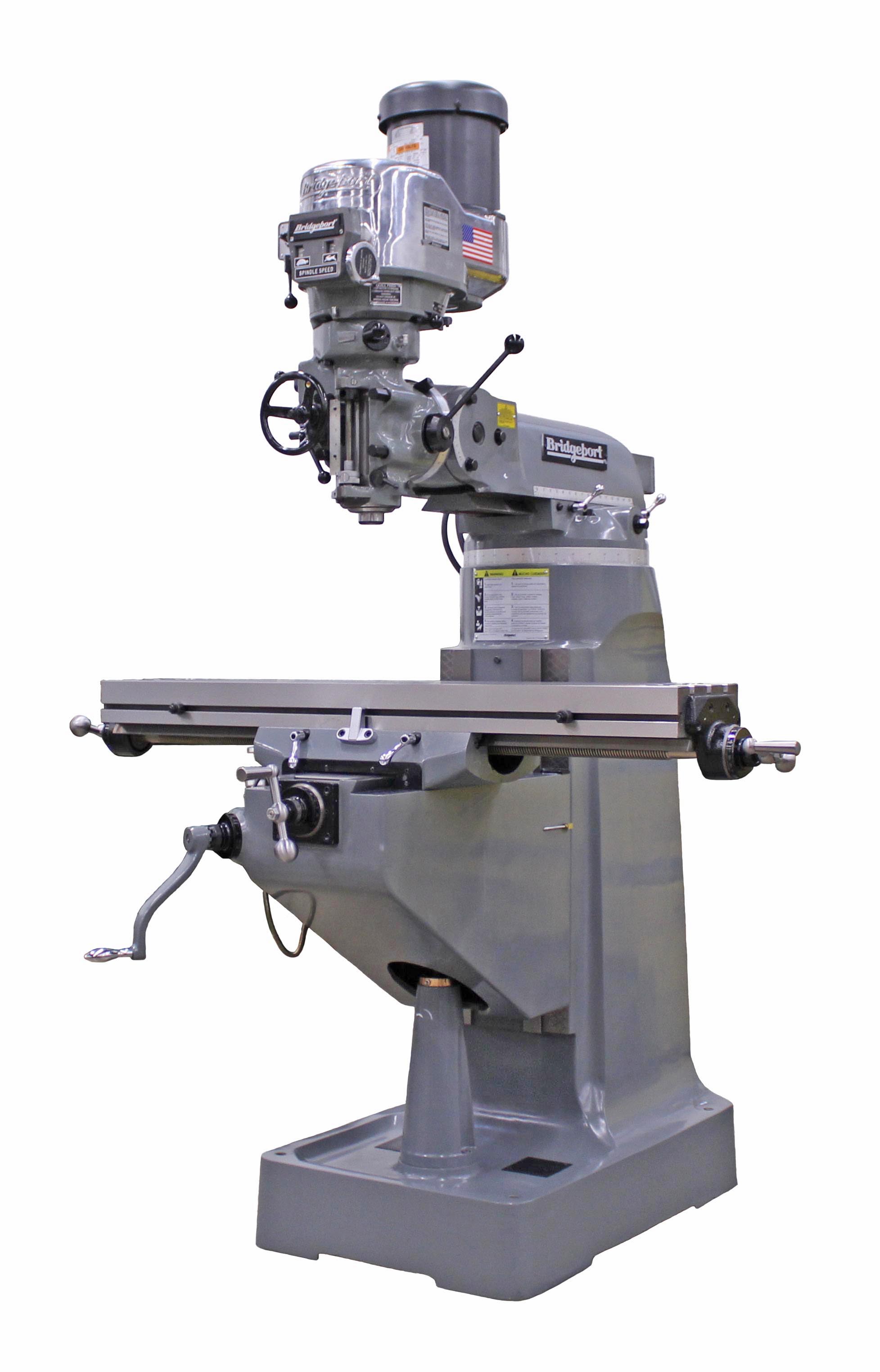

NEW BRIDGEPORT-CLAUSING VERTICAL MILL
MODEL: BPS1 MILL

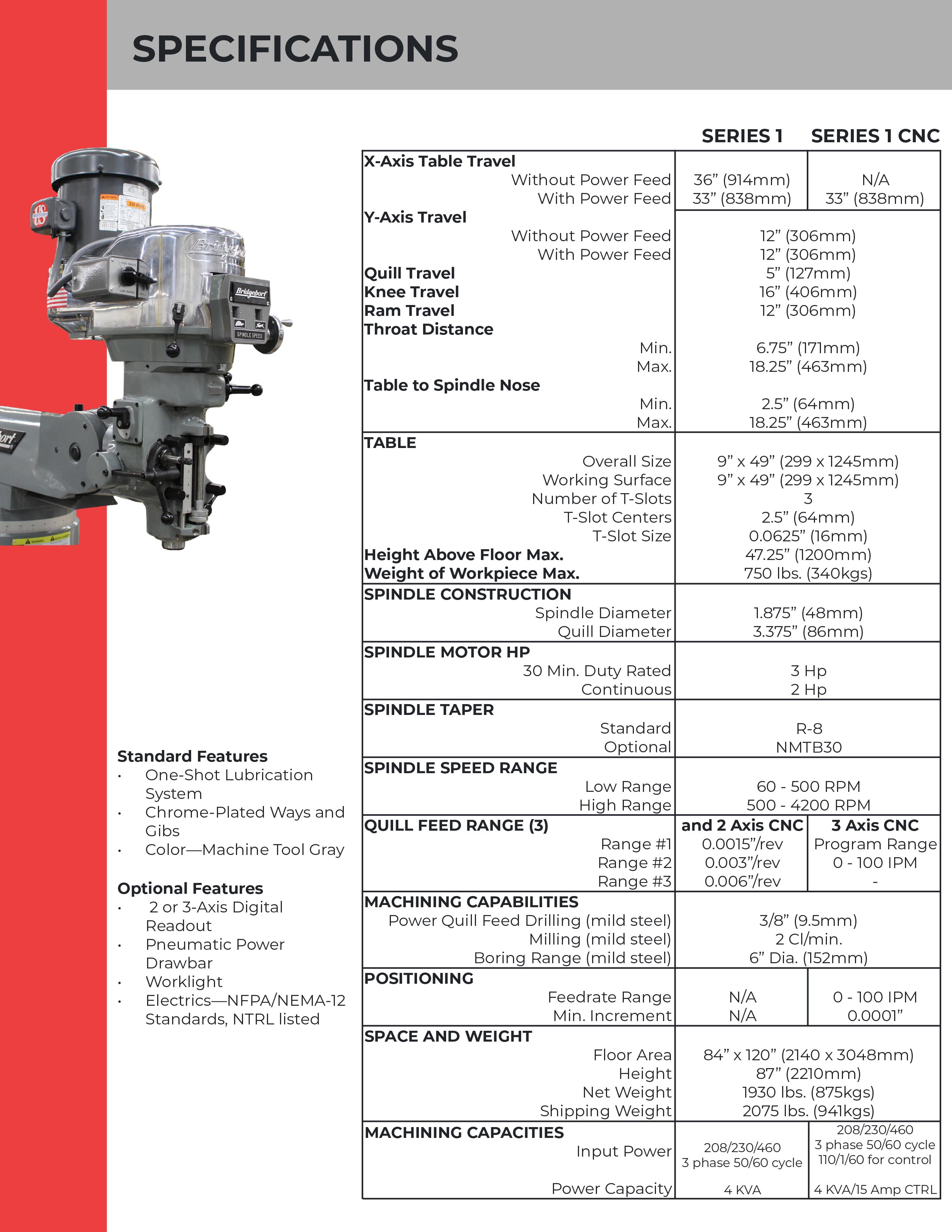

SPECIFICATIONS:
TABLE & WAYS TABLE SIZE .................. 9” X 49”
TABLE HEIGHT ABOVE FLOOR (MAX) ........... 47.25”
TABLE LOAD  .............................. 750LBS.
NO. OF T-SLOTS ........................... 3
T-SLOT WIDTH ............................. 5/8”
T-SLOT CENTER DISTANCE ................... 2.5”
TABLE WAYS ............................... DOVETAIL
KNEE WAYS ................................ DOVETAIL
COLUMN WAYS .............................. DOVETAIL
TRAVELS
X LONGITUDINAL TABLE (W/O PWR FEED) ...... 36”
X LONGITUDINAL TABLE (W/PWR FEED) ........ 33”
Y CROSS .................................. 12”
KNEE ..................................... 16”
RAM ...................................... 12”
THROAT DISTANCE (MIN) .................... 6.75”
THROAT DISTANCE (MAX) .................... 18.75”
TABLE TO NOSE GAUGE LINE (MIN/MAX) ....... 2.5” / 18.25”
MOTORS & SPINDLE SPINDLE MOTOR
(DUTY CYCLE/CONTINUOUS) .................. 3 HP / 2HP
AMP. DRAW 208V. .......................... 7
AMP. DRAW 230V. .......................... 7
AMP. DRAW 460V. .......................... 5
SPEED RANGE HIGH RANGE ................... 500-4200 RPM
SPEED RANGE LOW RANGE .................... 60-500 RPM
MAIN SPINDLE TAPER ....................... R8
SPINDLE TRAVEL ........................... 5”
QUILL FEED (IN/REV.) ..................... .0015/.003/.006
QUILL DIAMETER ........................... 3.375”
CAPACITIES POWER QUILL FEED .............. 3/8”
MILLING CAPACITY (MILD STEEL) ............ 2 CI/IN
BORING RANGE (MILD STEEL) ................ 6” DIA
SPINDLE DIAMETER ......................... 1.875”
FEED RATE RANGE (X,Y) .................... 0.50-35 IPM
MINIMUM INCREMENT 0.001”
CONSTRUCTION & WEIGHT FLOOR AREA ......... 7 X 10 FT
HEIGHT ................................... 87”
NET WEIGHT ............................... 1930 LBS
SHIPPING WEIGHT .......................... 2075 LBS
INPUT POWER 208/230/460 VOLT 3 PHASE, 50/60 HZ  4KVA

STANDARD EQUIPMENT
- MECHANICAL VARIABLE SPEED DRIVE SYSTEM

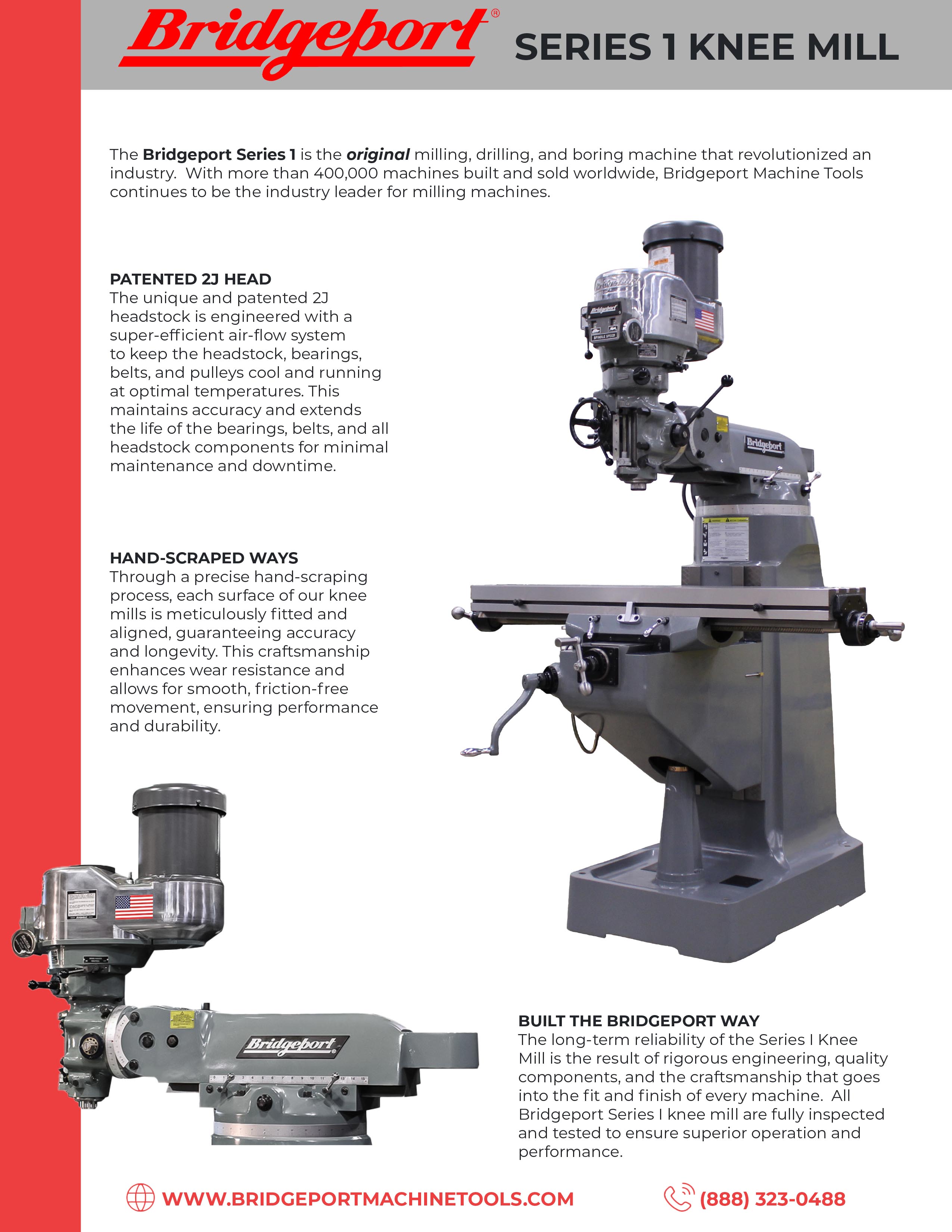

- PATENTED 2J HEAD GIVES UNIQUE AIR COOLING FOR SPINDLE BEARINGS
- HARDENED & SCRAPED, X, Y & Z WAYS
- SCRAPED GIBS FOR ALIGNMENT
- T-SLOTS ARE GROUND TO PROVIDE REFERENCE EDGE FOR POSITIONING YOUR WORKPLACE
- HARDENED & SCRAPED TABLE SURFACE
- HARDENED & GROUND SPINDLE
- CHROME-PLATED WAYS AND GIBS
- CHROMED & GROUND QUILL
- CHROMED X, Y, & Z LEADSCREWS
- DOUBLE NUT LEADSCREW FOR BACKLASH COMPENSATION
- ABEC 7/CP4 SPINDLE BEARINGS
- ONE-PIECE WAY WIPERS
- 7/16”-20 IMPERIAL DRAWBAR  R8
- 3 / 2 HP AC MOTOR (3HP 30 MINUTE DUTY/ 2HP CONTINUOUS)
- ARTICULATING HEAD FOR COMPOUND ANGLES
- WORM GEAR ANGULAR POSITIONING OF HEAD IN TWO DIRECTIONS
- LEVER-OPERATED MANUAL RAPID QUILL MOVEMENT
- HANDWHEEL FOR FINE QUILL FEED
- ADJUSTABLE AUTOMATIC FEED DISENGAGEMENT FOR QUILL FEED IN BOTH DIRECTIONS
- MICROMETER DEPTH STOP
- REVERSING SWITCH FOR CLOCKWISE OR COUNTER CLOCKWISE OPERATION
- R8 SPINDLE TAPER
- SPINDLE BRAKE (HAND OPERATED)
- ONE-SHOT LUBRICATION
- LEVELING BOLTS AND PADS (IN TOOL BOX)
- TOOL KIT, TEST AND ACCURACY CHART
- OPERATIONS MANUAL/PARTS LIST
- SERIES 1 STANDARD 208/230 OR 460 3 PHASE (OTHER VOLTAGES REQUIRE A TRANSFORMER)
