Bridgeport SERIES I VERTICAL MILLS - VERTICAL MILLING MACHINES

$9,950

Make:: Bridgeport

Model:: SERIES I

Year:: 1997

Ref #:: 164008

Or call us for a quote at (973) 497-7500 or send us an email at boringmills@machineryvalues.com

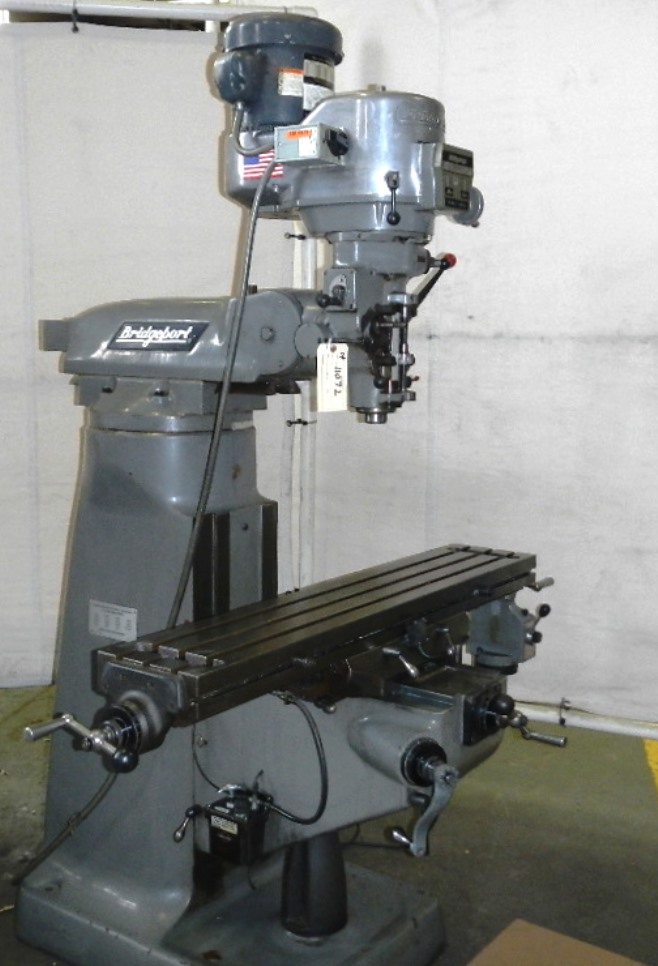

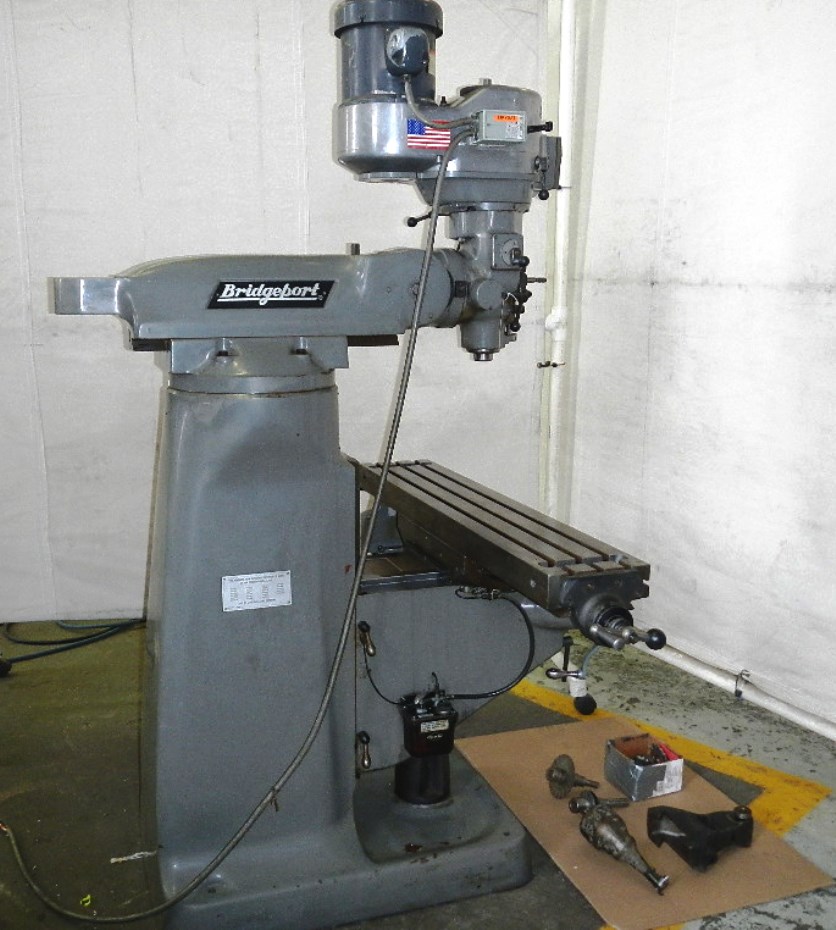

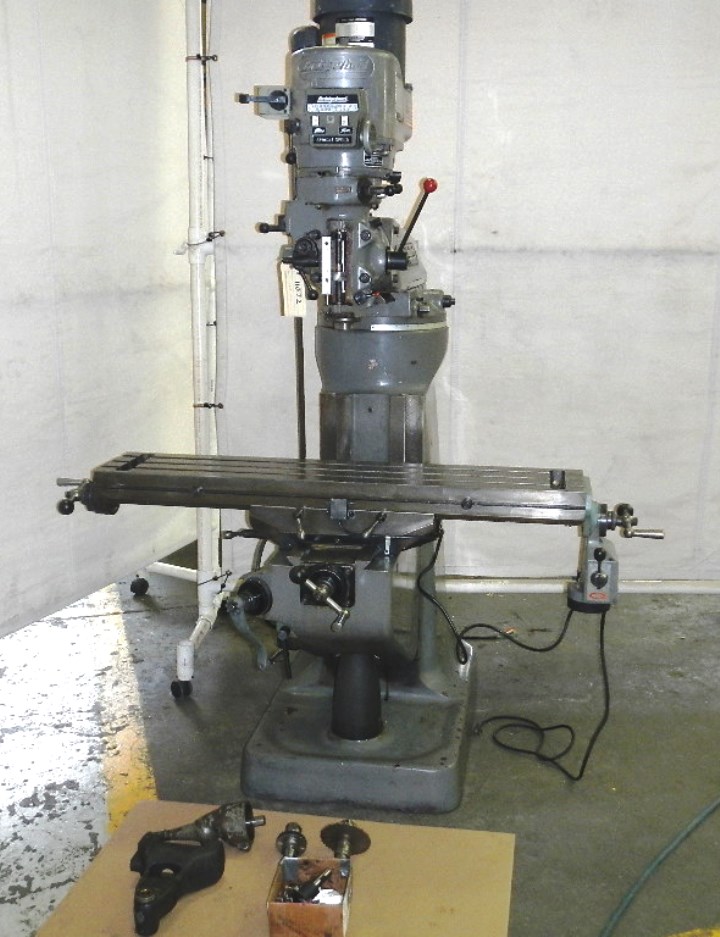

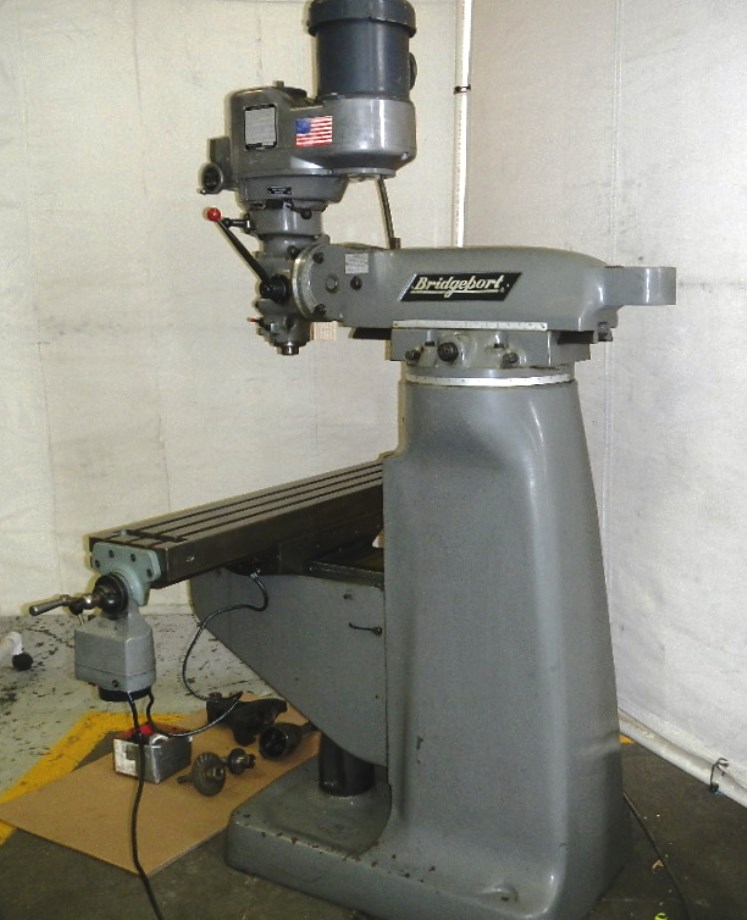

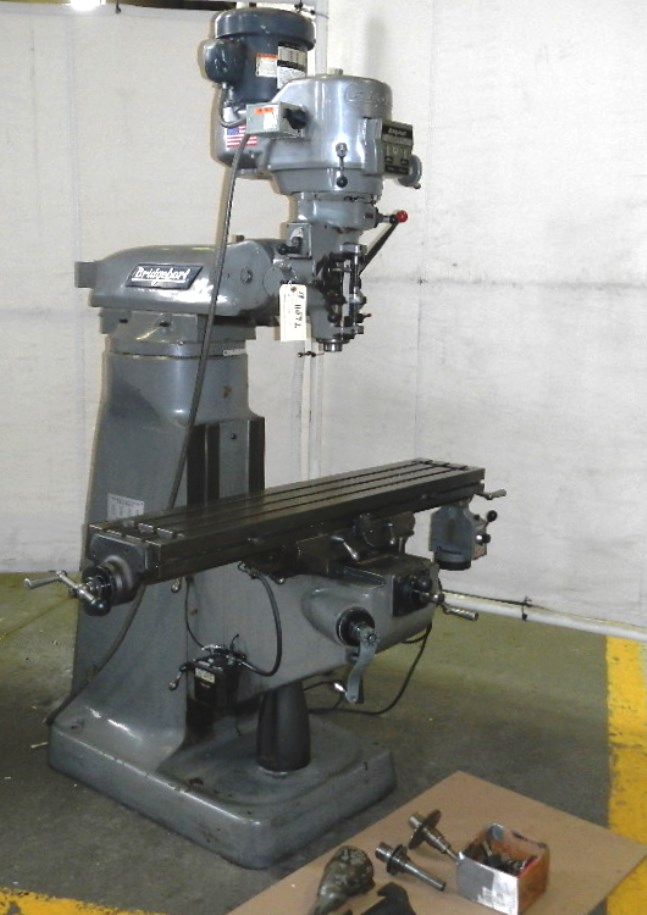

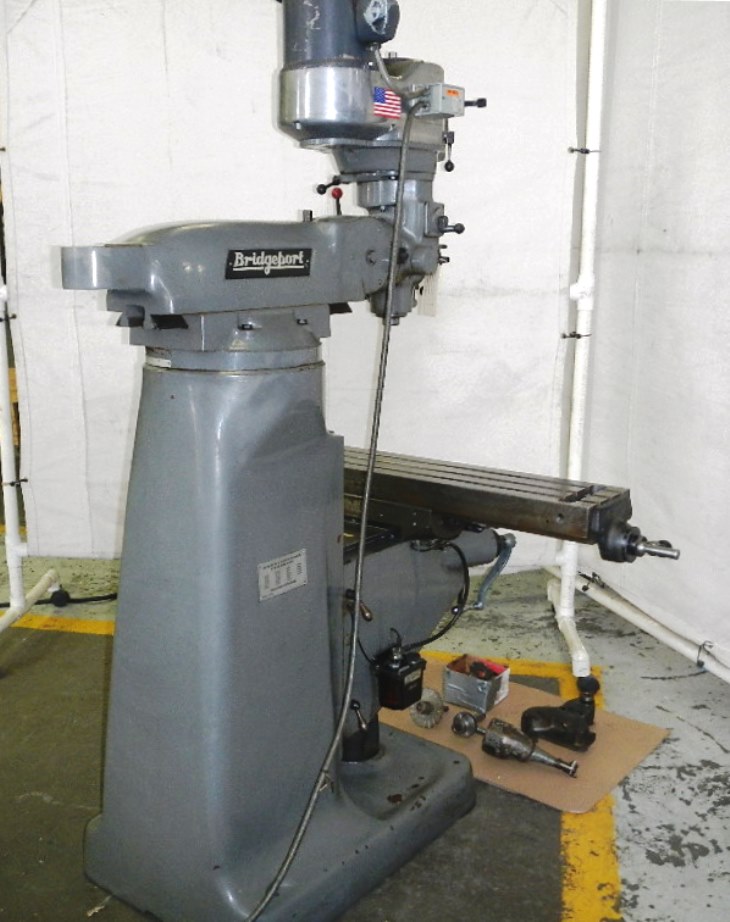

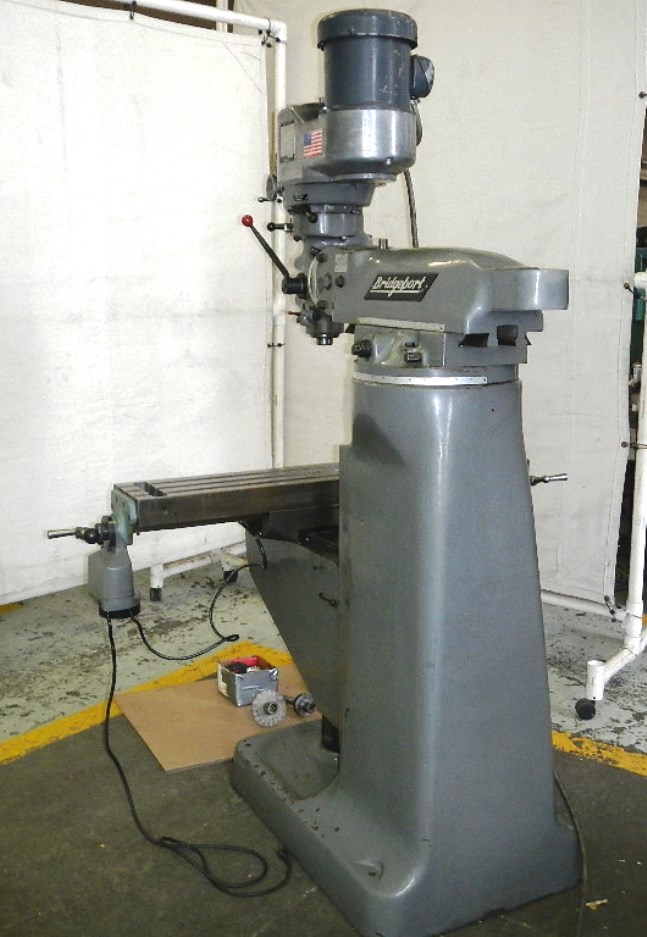

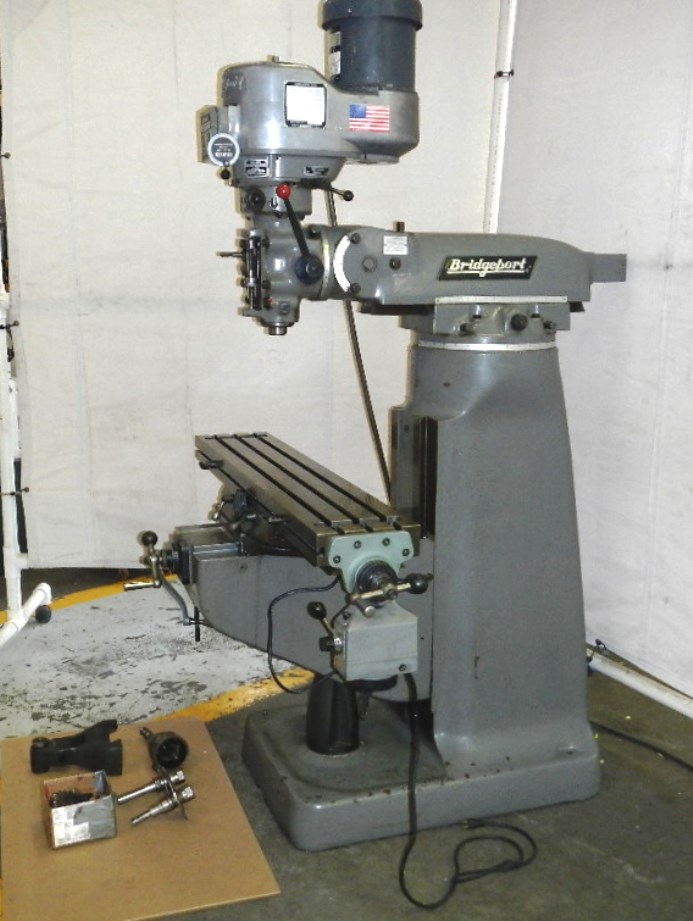

BRIDGEPORT VERTICAL MILL

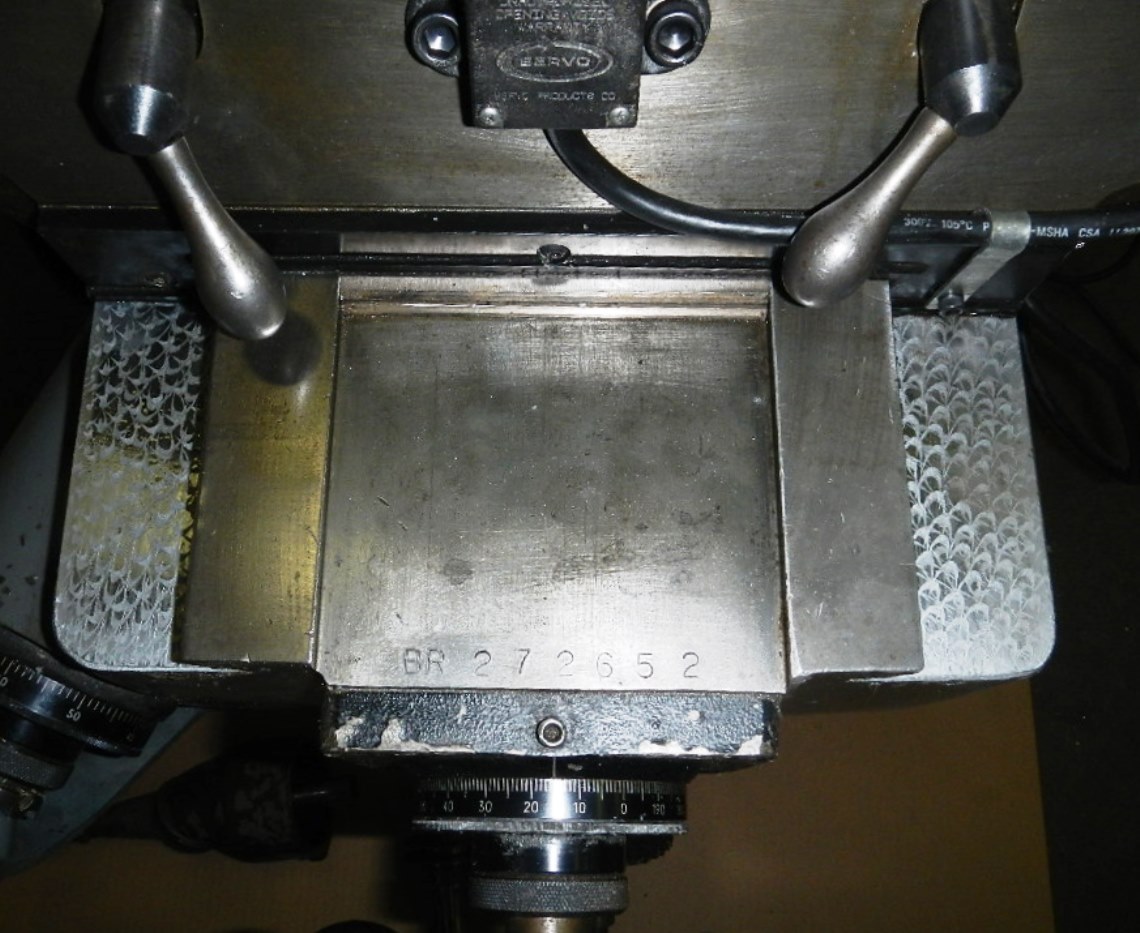

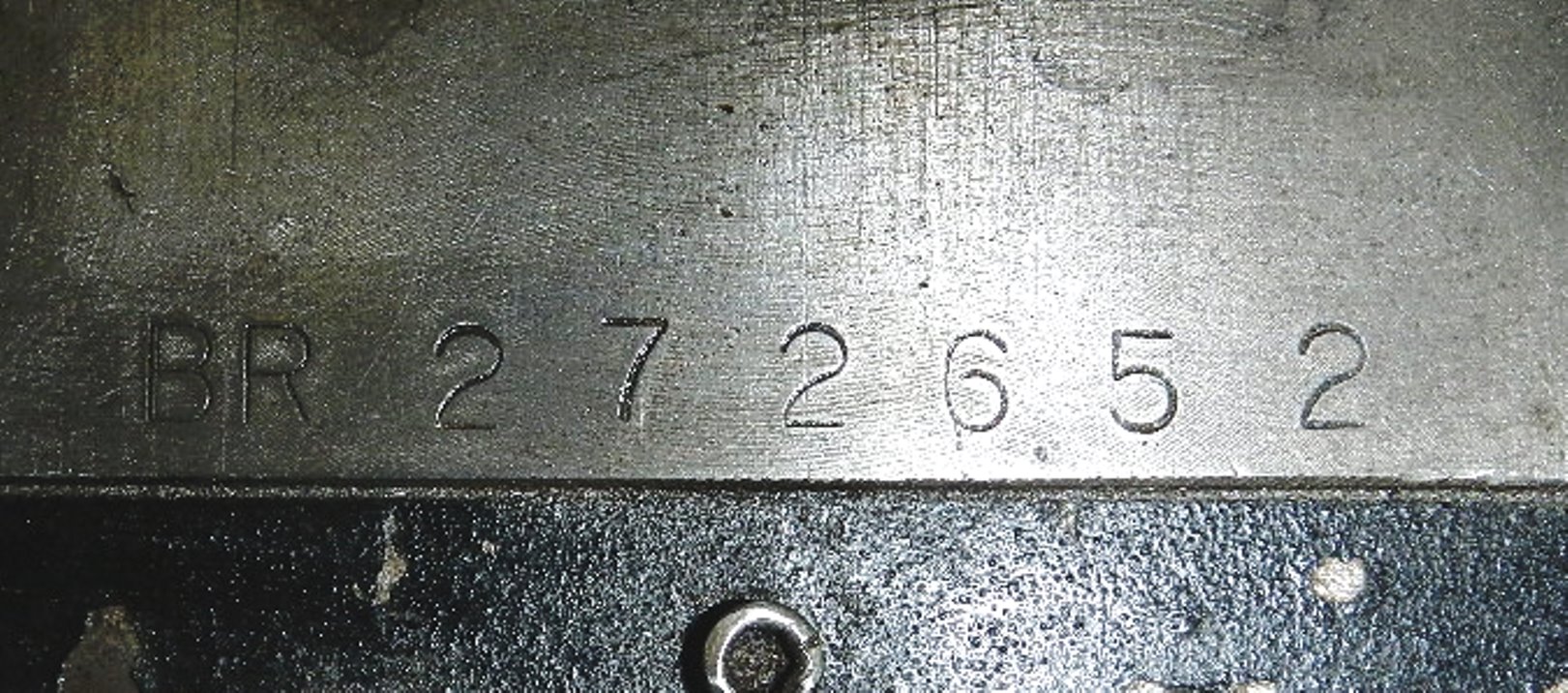

MODEL: SERIES I, S/N: 12/BR 272652, NEW: 1997

SPECIFICATIONS:
TABLE WORKING SURFACE ............... 9 X 48
TABLE TRAVEL (LONGITUDINAL X) ....... 36
SADDLE TRAVEL (Y) ................... 12

QUILL TRAVEL ........................ 5
KNEE TRAVEL ......................... 16
RAM TRAVEL .......................... 12
THROAT DISTANCE ..................... 6 3/4 - 18 3/4"

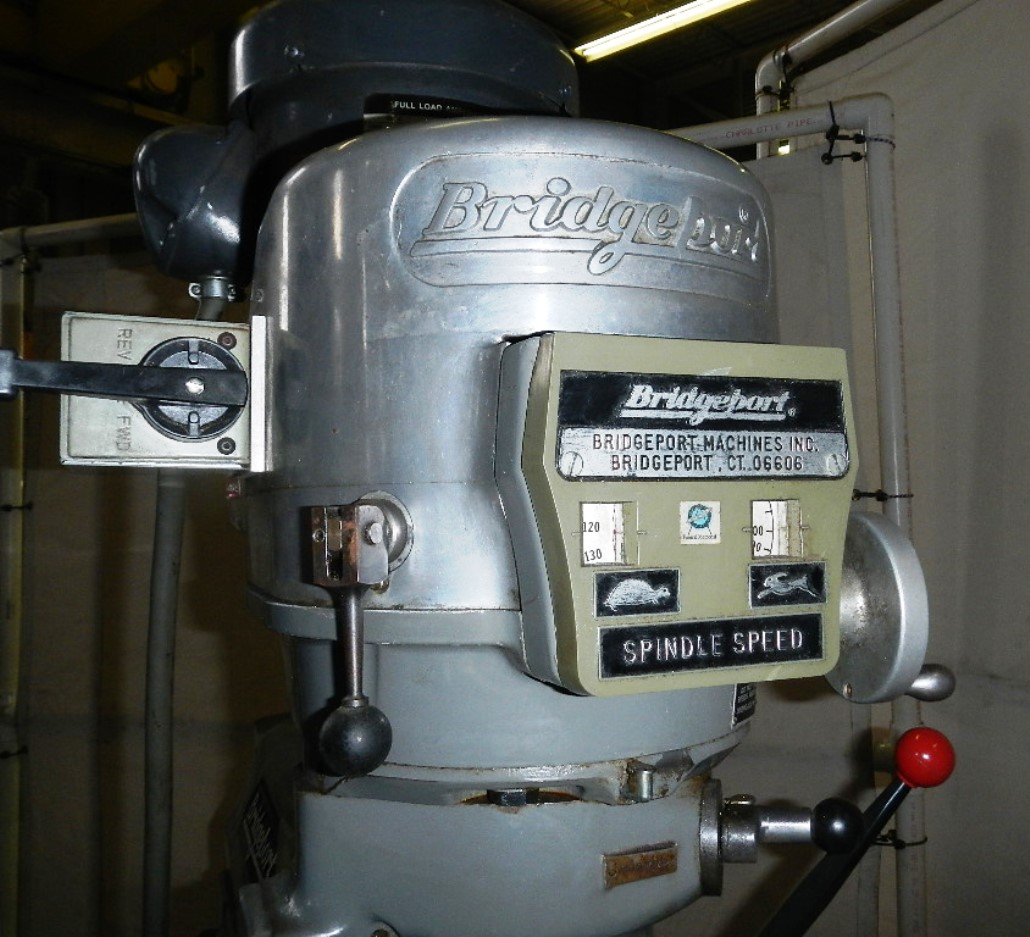

SPINDLE SPEEDS ...................... 60 - 4,200 RPM
POWER DOWN FEED TO HEAD (3) ......... .0015 , .003 , .006
COLLET CAPACITY ..................... 3/4
SPINDLE TAPER ....................... R-8
MAX WORKPIECE WEIGHT ................ 750 LBS.

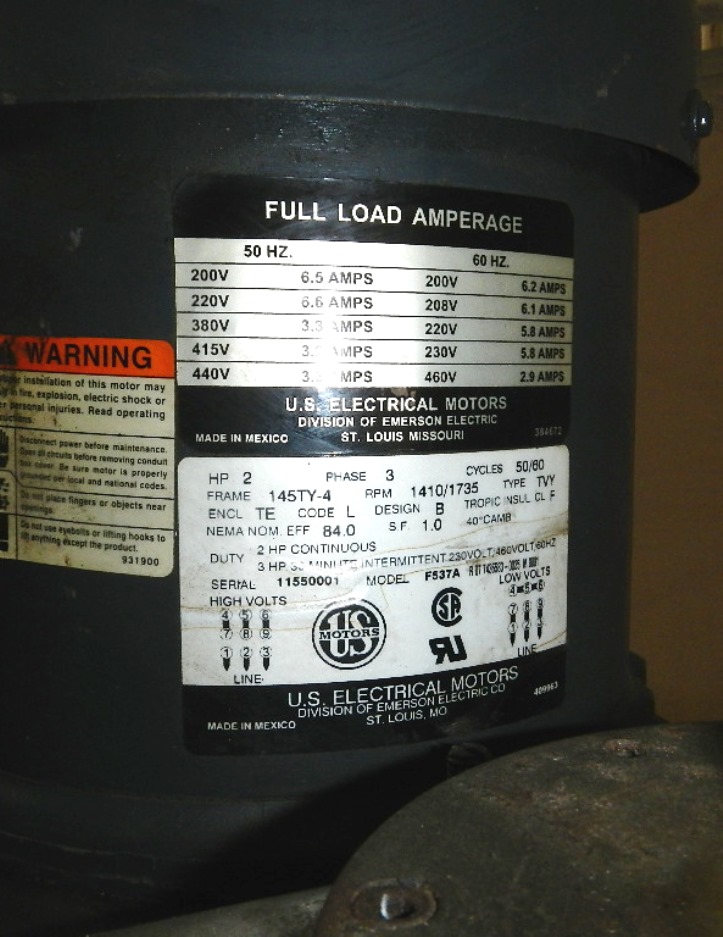

ELECTRICS 2 HP ...................... 220-440/3/60
APPROXIMATE OVERALL DIMENSIONS ...... 66 W X 63 D X 83 H
APPROXIMATE WEIGHT .................. 2,000 LBS.

EQUIPPED WITH
CHROME WAYS
SERVO MODEL: 140 POWER FEED (X-AXIS)

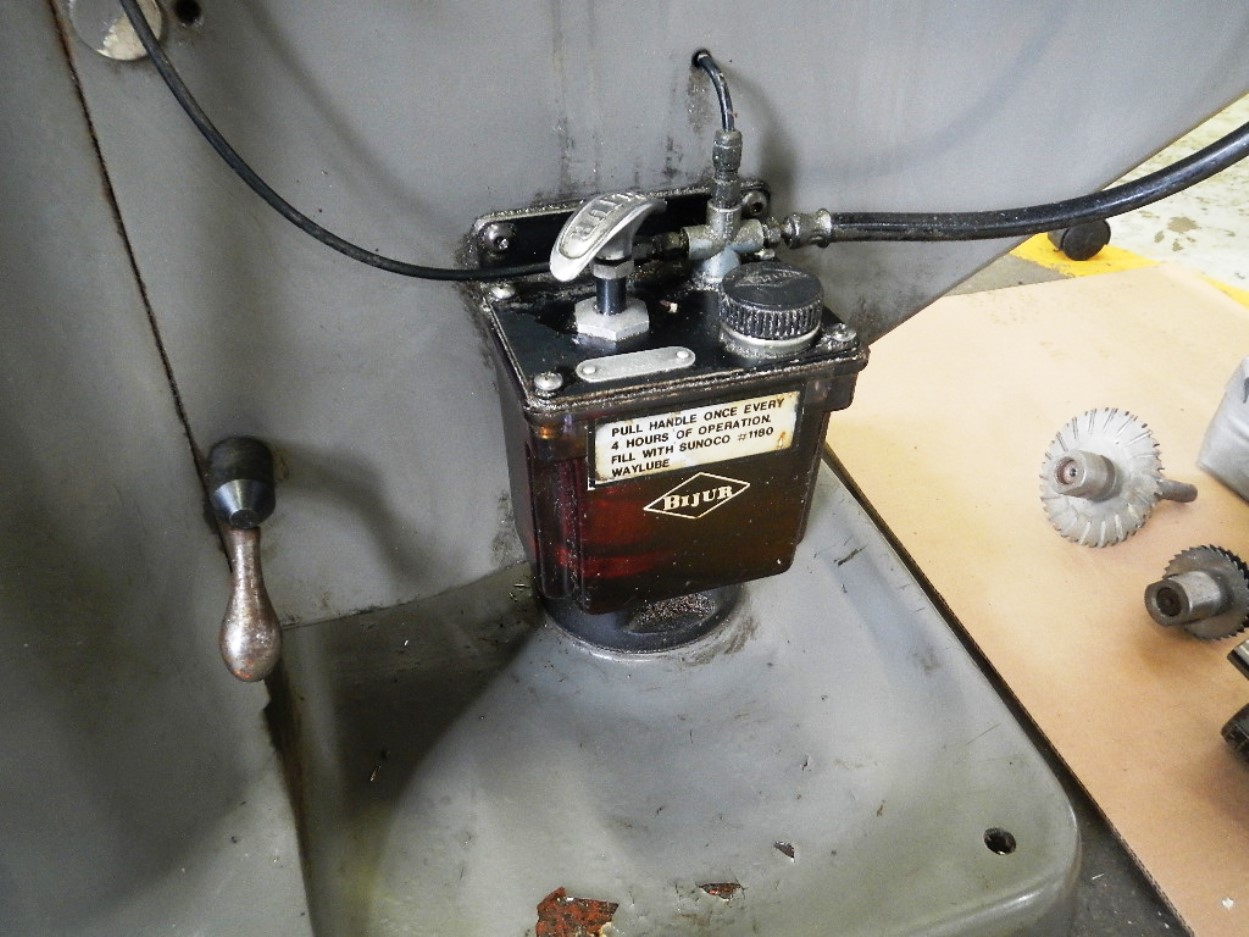

BIJUR AUTOMATIC LUBE
ADJUSTABLE TABLE TRAVEL STOPS

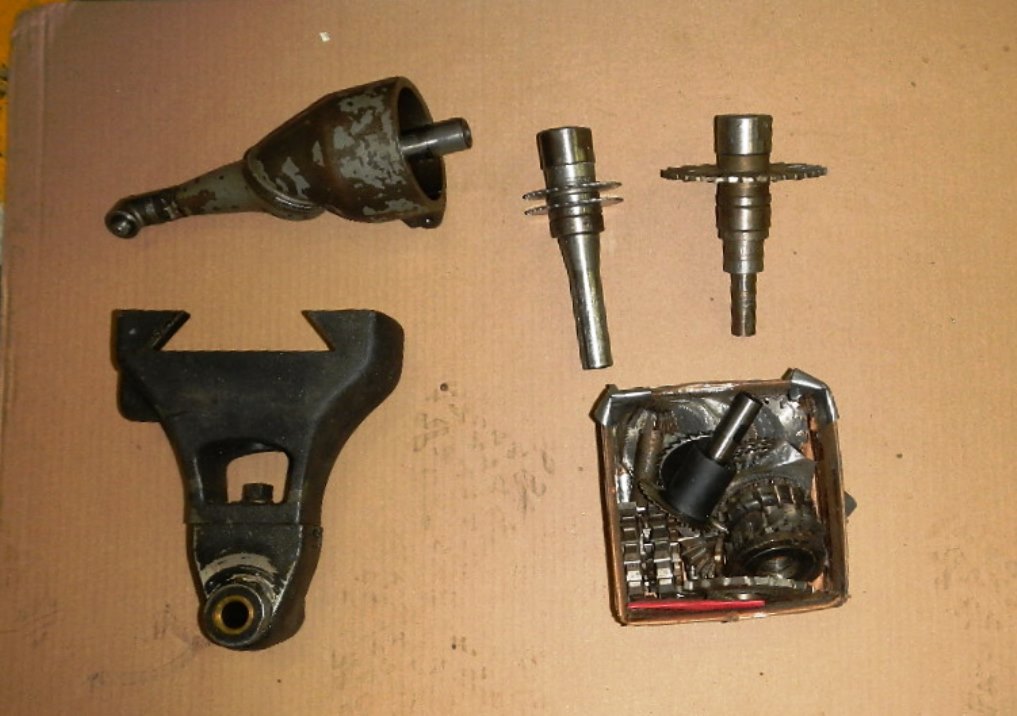

TYPE JA UNIVERSAL 50% SPEED INCREASING COMPOUND SPINDLE ATTACHMENT
DOVETAIL MOUNTED ARBOR SUPPORT WITH MISCELLANEOUS ARBORS AND CUTTERS.

INSPECT UNDER POWER IN A MIDWEST WAREHOUSE
