Brown & Sharpe #1, NEW 1960, I.D. ATTACH., AUTO CYCLE UNIVERSAL CYLINDRICAL GRINDERS

Price on Request

Make:
Brown & Sharpe
Model:
#1, NEW 1960, I.D. ATTACH., AUTO CYCLE
Year:
1960
Ref #:
159897

Or call us for a quote at (973) 497-7500 or send us an email at grinders@machineryvalues.com

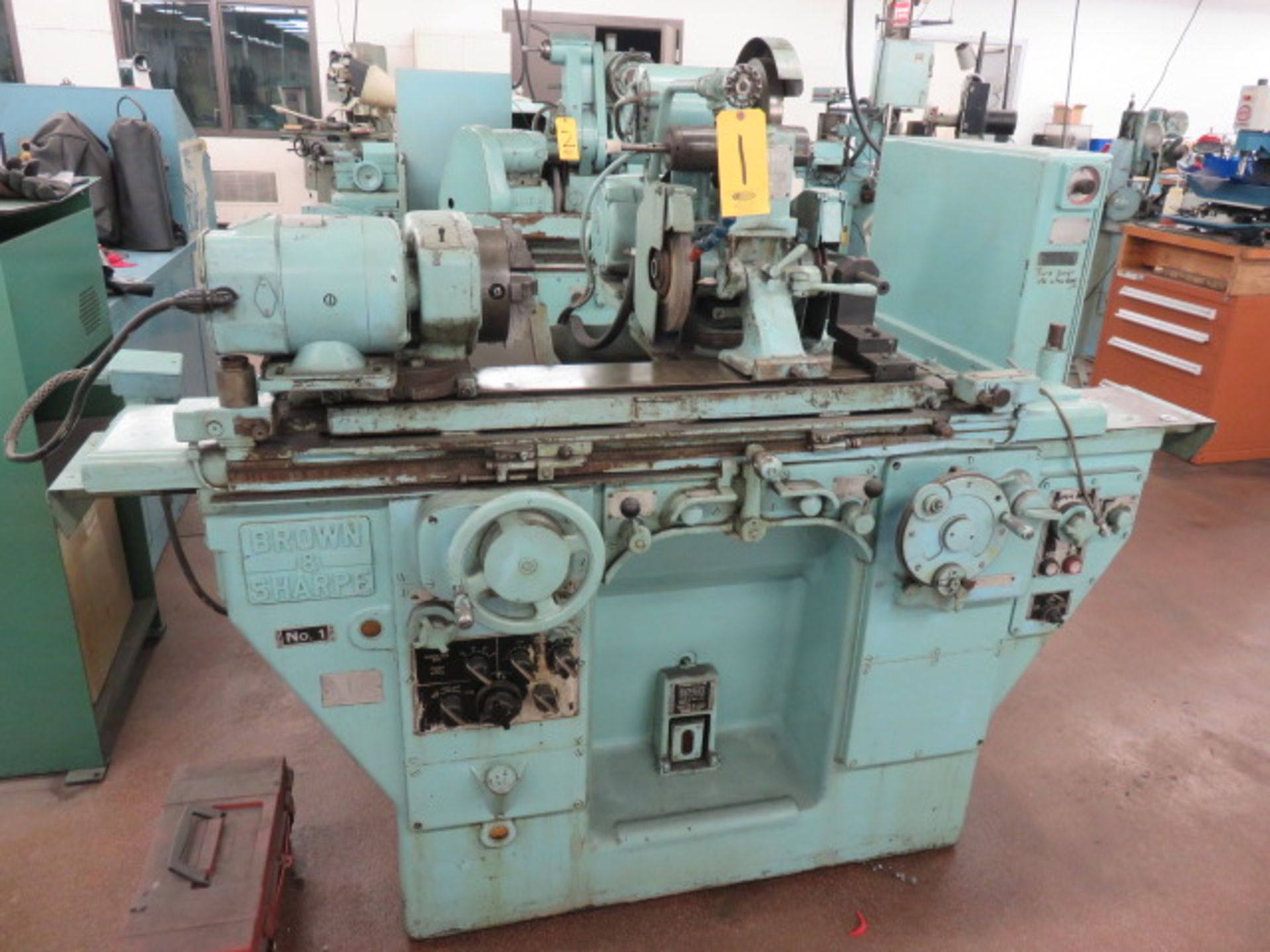

  10" X 20" BROWN & SHARPE UNIVERSAL I.D./O.D.
          CYLINDRICAL GRINDER

MODEL:  #1    S/N:  521-1-240    NEW:  1960

UNIQUE TO BROWN & SHARPE GRINDERS FEATURE
- DOUBLE SWIVEL WHEELHEAD:

"THE WHEEL SPINDLE HEAD WHICH SUPPORTS THE EXTERNAL AND
 INTERNAL GRINDING SPINDLES CAN BE SWIVELED TO EITHER
 SIDE OF ZERO. AN ADDITIONAL SWIVEL THROUGH 90 DEGREES
 IS PROVIDED AT THE WHEEL SLIDE. ANY COMPOUND SETTING
 REQUIRED IN COMBINATION STRAIGHT & TAPER OR DOUBLE
 TAPER GRINDING, O.D. OR I.D., CAN BE MADE QUICKLY
 & ACCURATELY.

 THE UNIVERSAL TURRET, WHICH  SUPPORTS THE WHEEL
 SPINDLE HEAD, PROVIDES FURTHER ADJUSTMENT
 FOR CHANGE OF WHEEL LOCATION. THE TURRET
 SWIVELS ON THE WHEEL SLIDE, AND CAN BE LOCKED
 IN ANY OF FOUR POSITIONS. EACH CHANGE MOVES THE
 WHEEL 2". RIGHT HAND WHEEL MOUNTING PROVIDES
 FOUR ADDITIONAL WHEEL POSITIONS."

SWING OVER TABLE ....................... 10"
DISTANCE BETWEEN CENTERS, NOMINAL ...... 20"
DISTANCE BETWEEN CENTERS, MAXIMUM ...... 22-3/4"
GRINDING WHEEL MOTOR ................... 2 HP
WHEELHEAD SPINDLE SPEEDS (3) ........... 2,500/3,000/3,600 RPM
GRINDING WHEEL SIZE .................... 10" X 1" X 3"
SWIVEL AT THE WHEELSLIDE ............... 90° EITHER WAY
WHEEL SPINDLE SWIVELS .................. 90° EITHER WAY

HEADSTOCK MOTOR ........................ 1/4 HP
INFINITELY VARIABLE SPINDLE SPEEDS ..... 60 TO 600 RPM
HEADSTOCK SPINDLE NOSE TAPER ........... A2-5"
HEADSTOCK SWIVELS EITHER SIDE OF ZERO .. 90°

INFINITELY VARIABLE TABLE SPEED ........ 3" TO 150" IPM
TABLE PER REV. OF HANDWHEEL:
  SLOW ................................. 0.1"
  FAST ................................. 1.5"
DWELL AT EACH OR ALTERNATE TABLE REV. .. 0 - 2-1/2 SEC.
TABLE SWIVEL, ANGULAR SETTING .......... 8-1/4 DEG.
SCALES-TAPER PER FT. ................... 3-1/2" (25%)
AUTOMATIC CROSS FEED, REDUCTION IN
  DIAMETER OR WORK
  AT EACH OR ALTERNATE REVERSALS ....... 0.0001" - .003"
AUTO PLUNGE INFEED ..................... YES
SPARKOUT TIMER ......................... YES
HAND FEED PER REV. OF HANDWHEEL:
  SLOW ................................. 0.1"
  FAST ................................. 0.3"

TAILSTOCK SPINDLE TAPER ................ #7 JARNO
TAILSTOCK SPINDLE TRAVEL ............... 5/8"

APPROXIMATE WEIGHT ..................... 5,100 LBS

MACHINE FEATURES:
  WHEELHEAD - DOUBLE SWIVEL & TURRET (DESCRIBED ABOVE)
  HYDRAULIC TABLE TRAVERSE
  AUTO INFEED
  AUTO PLUNGE INFEED WITH SPARKOUT TIMER
  ADJUSTABLE TABLE DWELL
  RIGHT OR LEFT END WHEEL MOUNTING
  SWIVELLING AT WHEEL SPINDLE HEAD OR AT THE WHEEL
   SLIDE PERMITS ANY COMPOUND SETTING REQUIRED IN
   COMBINATION STRAIGHT AND TAPER GRINDING,
   EXTERNAL OR INTERNAL
  L.H. & R.H. GRINDING WHEEL COVERS
  DUAL DEAD/LIVE HEADSTOCK SPINDLE
  SELF-CONTAINED COOLANT SYSTEM
  3/60/220-440 VOLT MOTORS

EQUIPPED WITH:

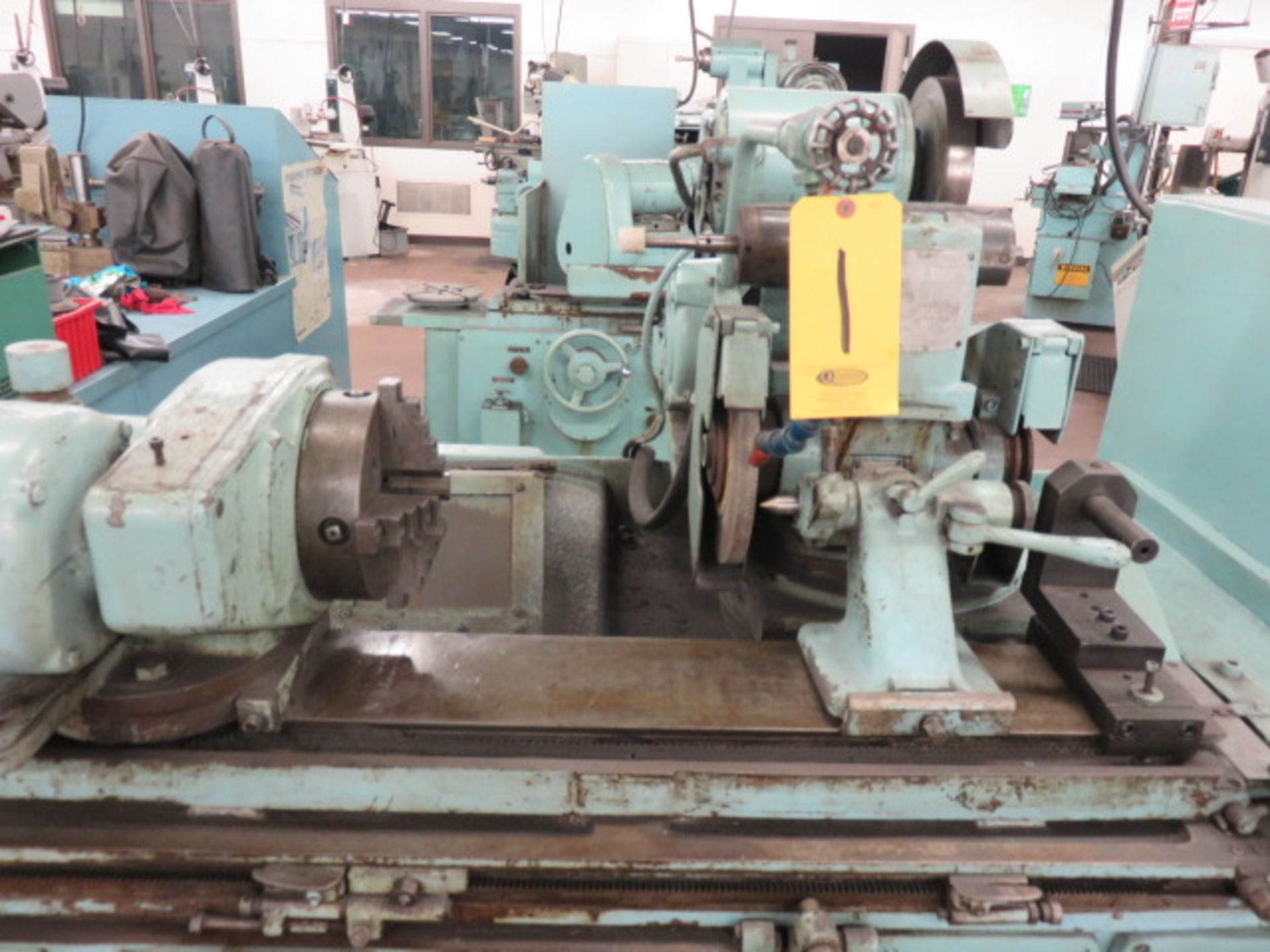

SWING DOWN I.D. GRINDING ATTACHMENT WITH I.D. SPINDLE
4-JAW CHUCK MOUNTED ON WORKHEAD


** INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE **
**  EXCELLENT CONDITION & APPEARANCE **
