Brown & Sharpe 1020U, SWING DOWN I.D., HYD. TABLE, AUTO INFEED UNIVERSAL CYLINDRICAL GRINDERS

Price on Request

Make:: Brown & Sharpe

Model:: 1020U, SWING DOWN I.D., HYD. TABLE, AUTO INFEED

Year:: 1976

Ref #:: 169102

Or call us for a quote at (973) 497-7500 or send us an email at grinders@machineryvalues.com

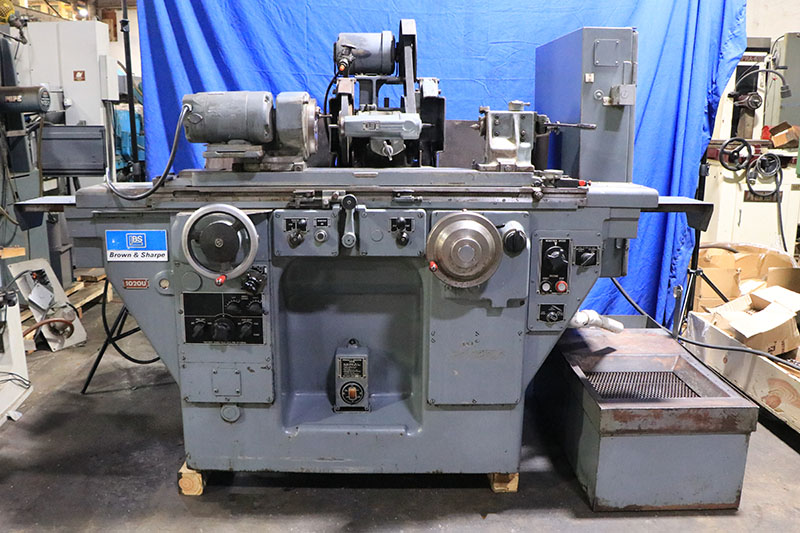

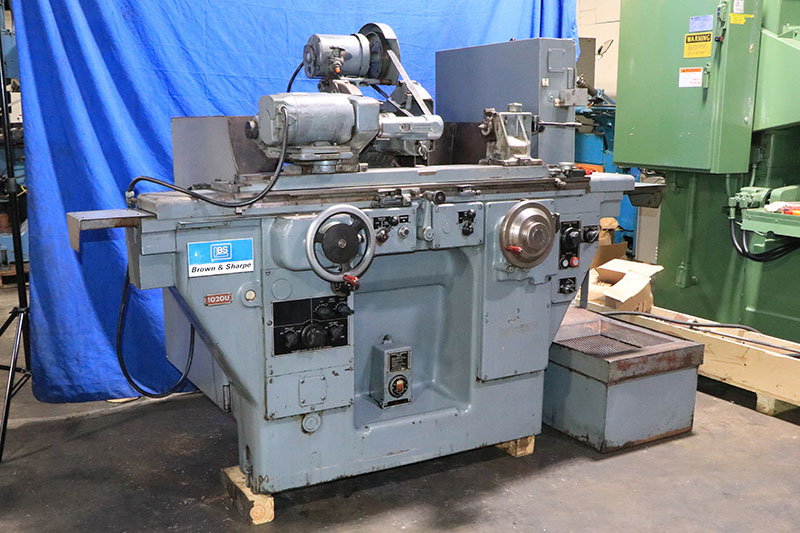

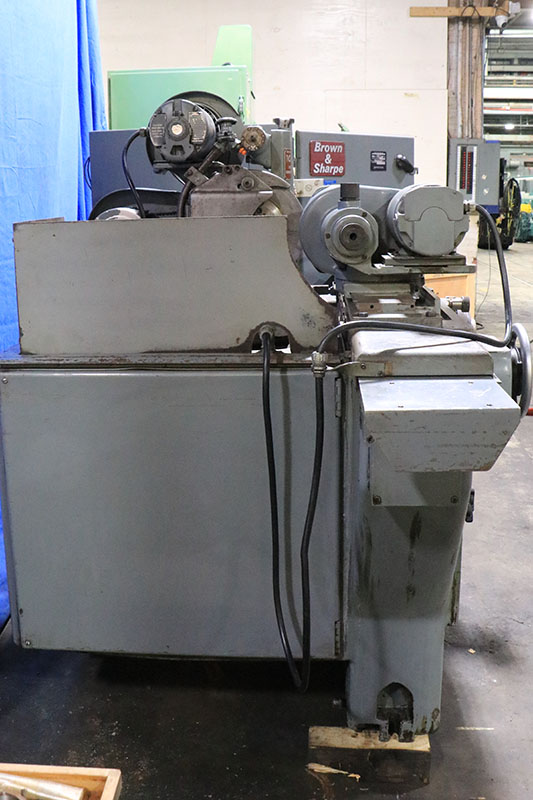

   10" X 20" BROWN & SHARPE "MADE IN USA"
 UNIVERSAL I.D./O.D. CYLINDRICAL GRINDER

** SUPER-PRECISION MACHINE, WITH INFEED HANDWHEEL
   GRADUATED TO READ TO 20 MILLIONTHS OF AN INCH **

MODEL: 1020U       S/N: 521-1020-231      NEW: 1976

SWING OVER TABLE ........................ 10"
DISTANCE BETWEEN CENTERS, NOMINAL ....... 20"
DISTANCE BETWEEN CENTERS, MAXIMUM ....... 22-3/4"

WHEELHEAD SPINDLE SPEEDS (3) ....... 2100, 2400 & 2800 RPM
GRINDING WHEEL SIZE ..................... 12" x 1" x 5"
SWIVEL AT THE WHEELSLIDE ................ 90° EITHER WAY
WHEEL SPINDLE SWIVELS ................... 90° EITHER WAY

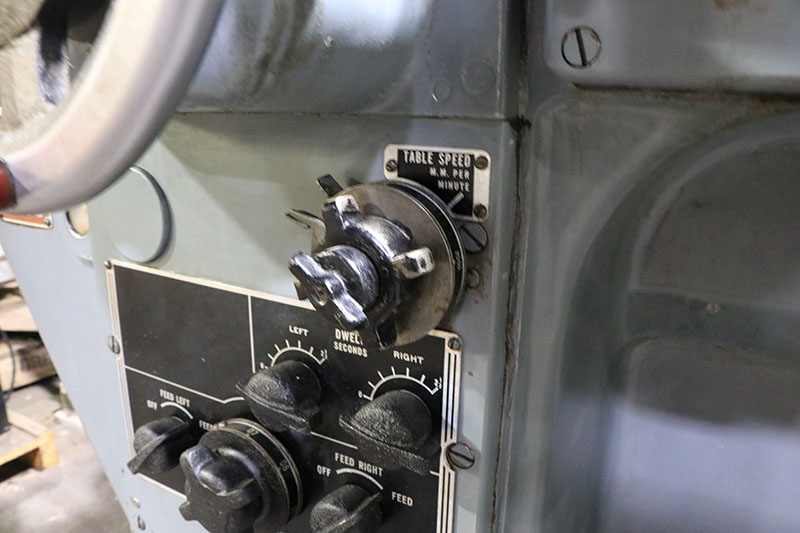

TABLE:
INFINITELY VARIABLE TABLE SPEED ......... 3" TO 150" IPM
TABLE PER REV. OF HANDWHEEL:
SLOW .................................... 0.1"
FAST .................................... 1.5"

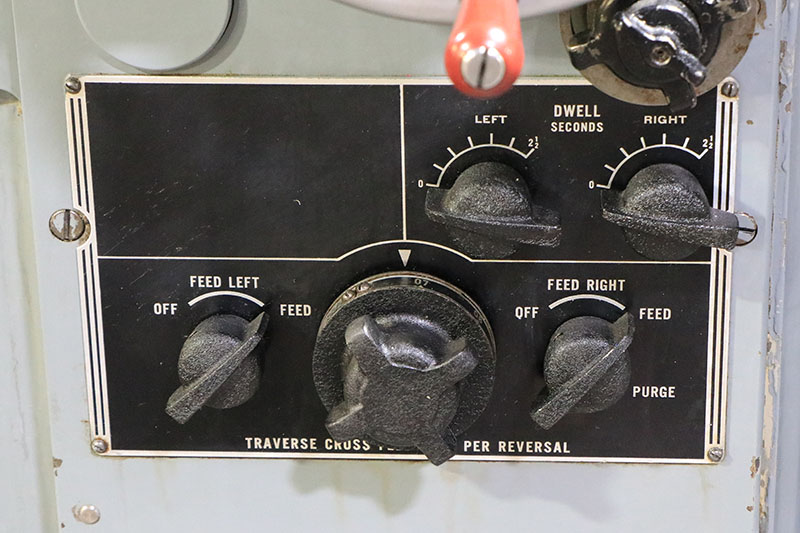

DWELL AT EACH OR ALTERNATE TABLE REV. ... 0 - 2-1/2 SEC.

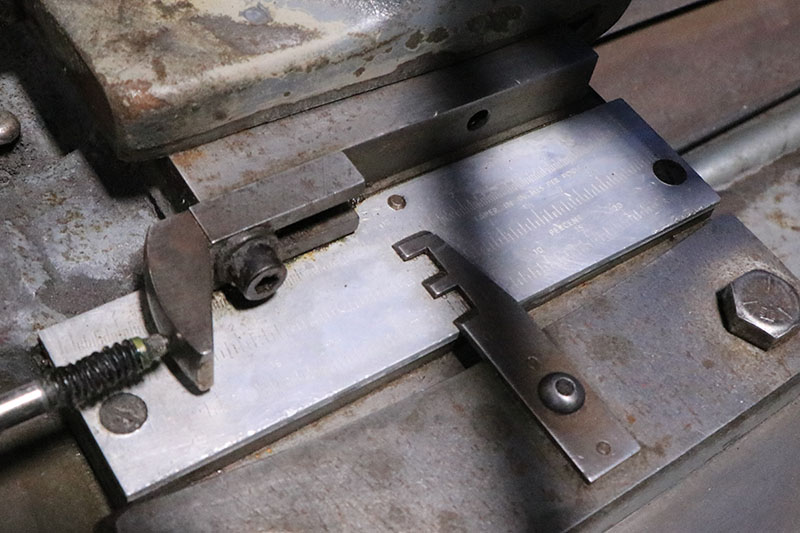

TABLE SWIVEL, SCALES FOR ANGULAR
 SETTING ................................ 8-1/4°
SCALES-TAPER PER FT. .................... 3-1/2"

WHEELHEAD INFEED:
MAX. TRAVEL OF WHEELSLIDE ............... 5"

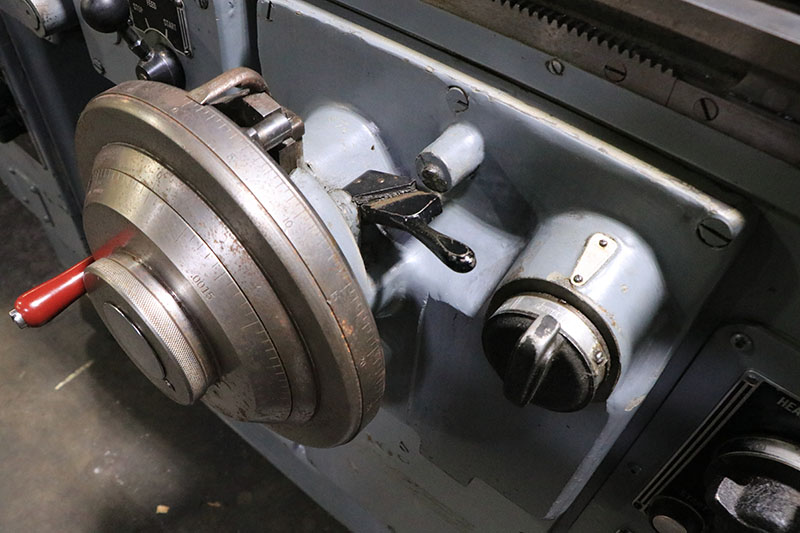

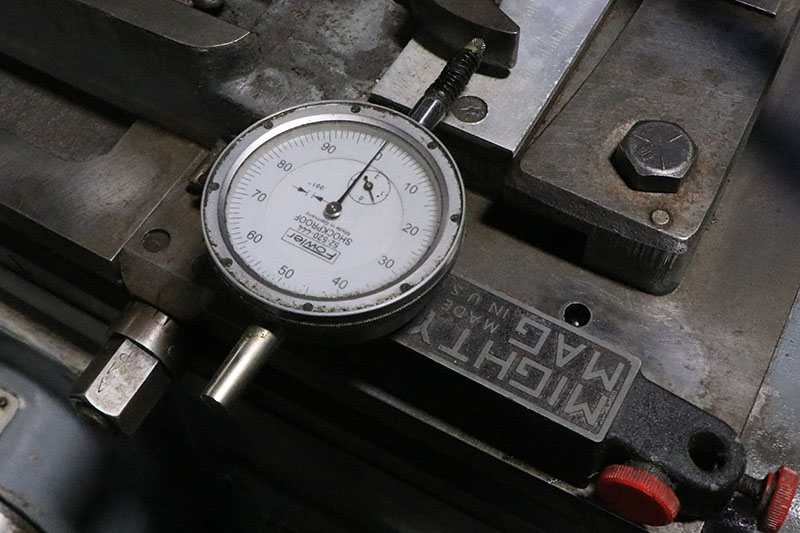

CROSSFEED HANDWHEEL GRAD. ............... 0.000020"
AUTOMATIC CROSS FEED, REDUCTION IN
 DIAMETER OR WORK @ EACH OR
 ALTERNATE REVERSALS .................... 0.0001" - 0.003"
HAND FEED PER REV. OF HANDWHEEL:
SLOW .................................... 0.1"
FAST .................................... 0.3"

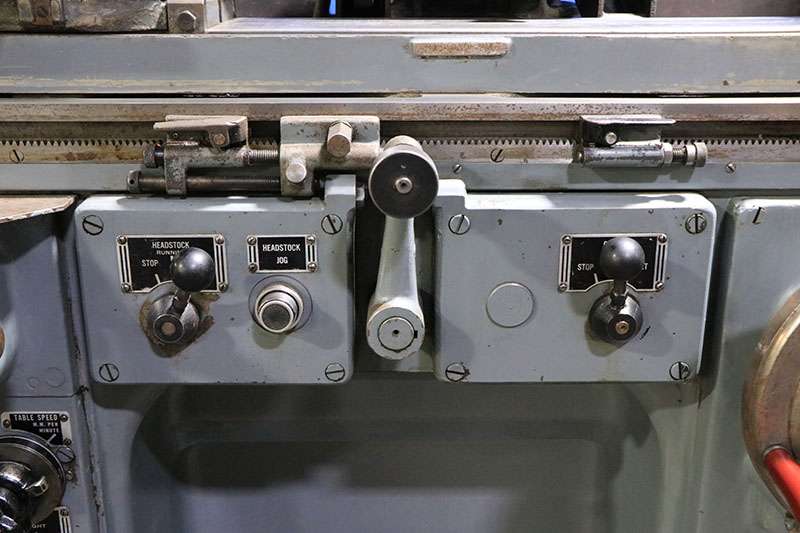

WORKHEAD & TAILSTOCK:

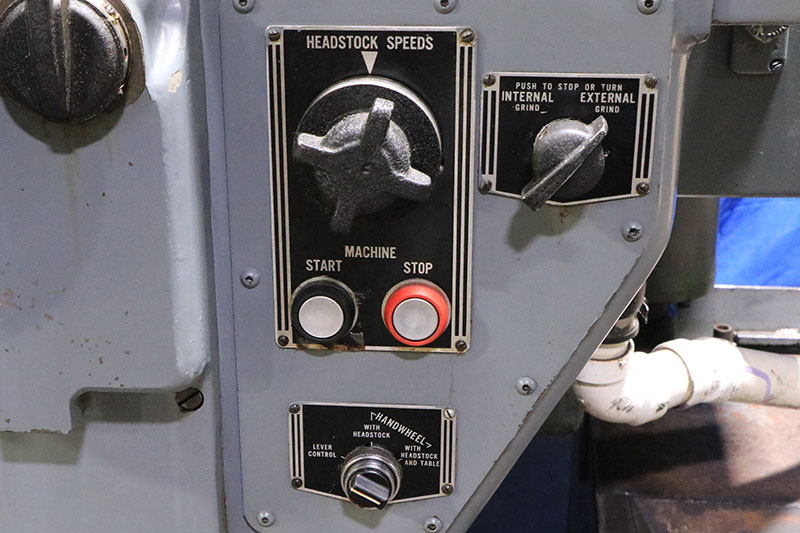

INFINITELY VARIABLE SPINDLE SPEEDS ...... 60 TO 600 RPM
HEADSTOCK SPINDLE NOSE TAPER ............ A2-5"
HEADSTOCK SWIVELS EITHER SIDE OF ZERO ... 90°

TAILSTOCK SPINDLE TAPER ................. #7 JARNO
TAILSTOCK SPINDLE TRAVEL ................ 5/8"

APPROXIMATE WEIGHT ...................... 5,100 LBS
APPROX. DIMS ....................... 94"L-R x 66"D x 62.5"H

STANDARD FEATURES:
INFEED HANDWHEEL GRADUATED TO READ TO 0.000020"
HYDRAULIC TABLE TRAVERSE
AUTO INFEED OF WHEELHEAD @ TABLE REVERSALS
ADJUSTABLE TABLE DWELL
RIGHT OR LEFT END WHEEL MOUNTING

UNIQUE TO BROWN & SHARPE GRINDERS FEATURE

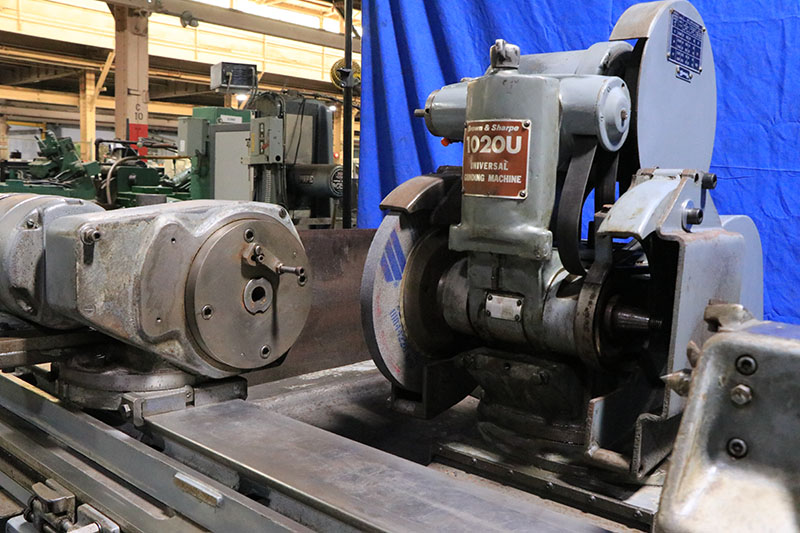

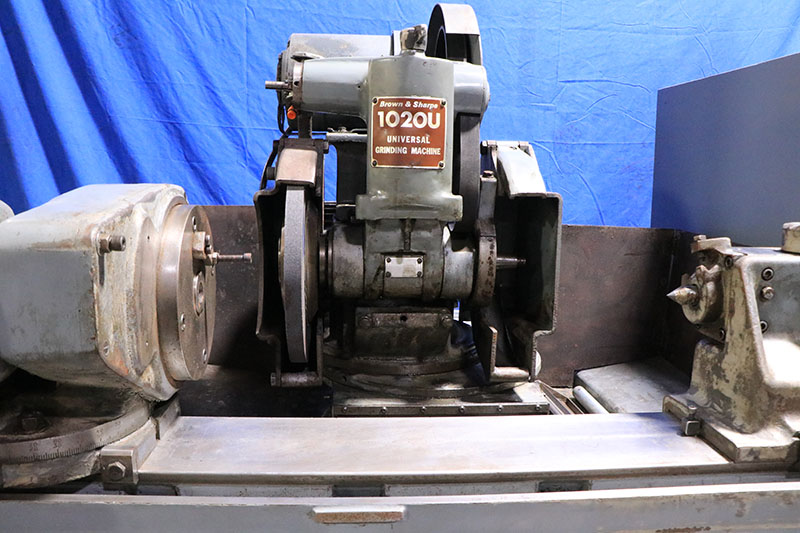

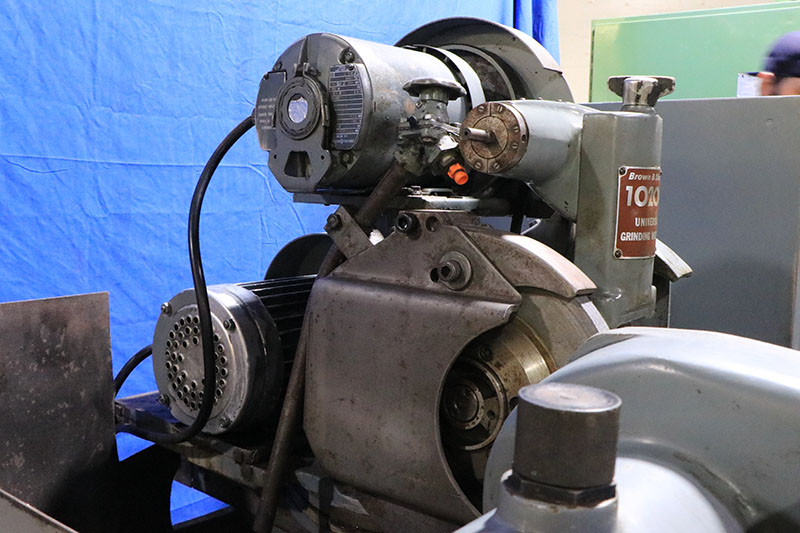

 - DOUBLE SWIVEL WHEELHEAD:

THE WHEEL SPINDLE HEAD WHICH SUPPORTS THE
  EXTERNAL & INTERNAL GRINDING SPINDLES CAN
  BE SWIVELED TO EITHER SIDE OF ZERO.
  AN ADDITIONAL SWIVEL THROUGH 90 DEGREES
  IS PROVIDED AT THE WHEEL SLIDE.  ANY COMPOUND
  SETTING  REQUIRED IN COMBINATION STRAIGHT
  & TAPER OR DOUBLE TAPER GRINDING, O.D. OR
  I.D., CAN BE MADE QUICKLY & ACCURATELY.

 THE UNIVERSAL TURRET, WHICH SUPPORTS THE
  WHEEL SPINDLE  HEAD, PROVIDES FURTHER
  ADJUSTMENT FOR CHANGE OF WHEEL LOCATION.
  THE TURRET SWIVELS ON THE WHEEL SLIDE, AND
  CAN BE LOCKED IN ANY OF FOUR POSITIONS.
  EACH CHANGE MOVES THE WHEEL 2" ON THE
  1020U MODEL.  RIGHT HAND WHEEL MOUNTING
  PROVIDES FOUR ADDITIONAL WHEEL POSITIONS.

DUAL DEAD/LIVE HEADSTOCK SPINDLE

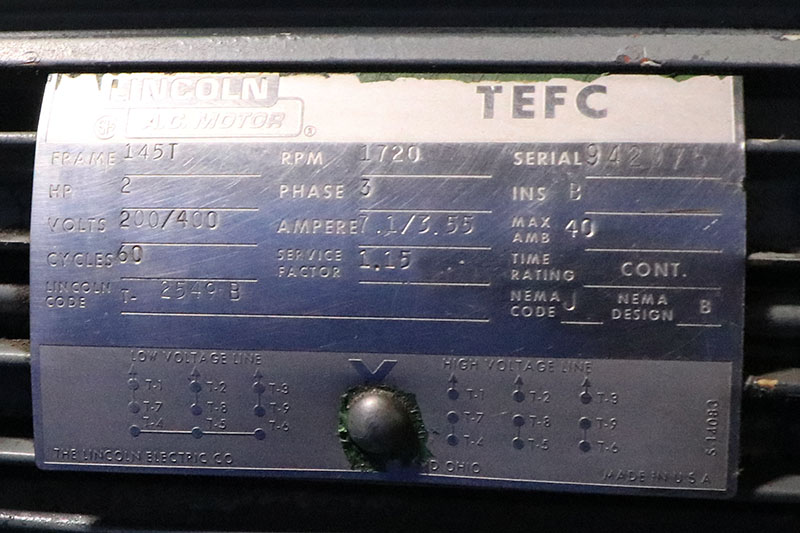

WHEELHEAD MOTOR, 2 H.P./3/60/200-400 VOLTS

EQUIPPED WITH:

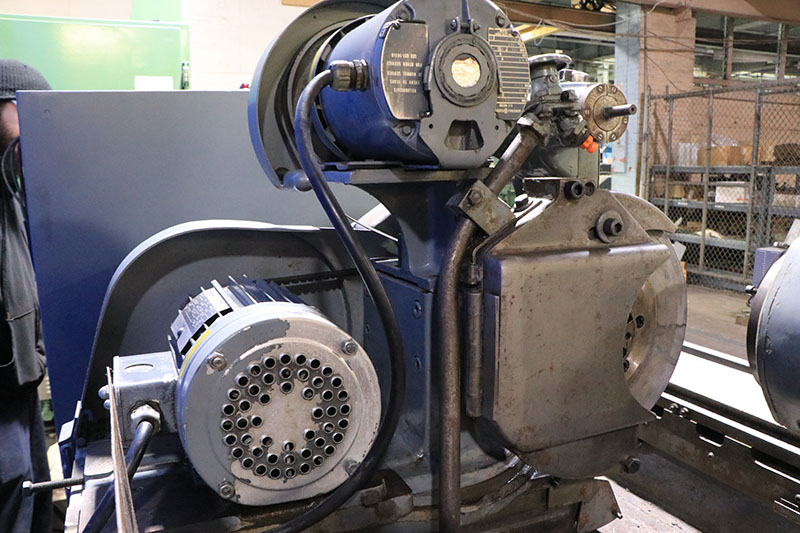

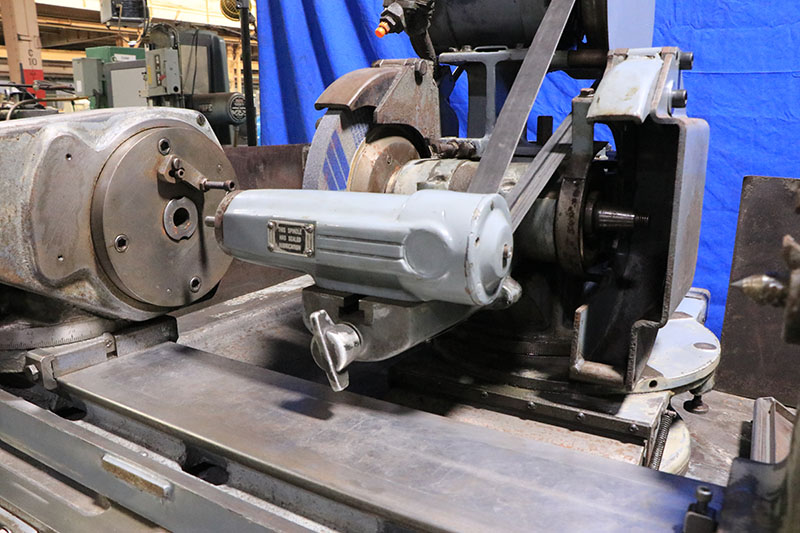

SWING DOWN INTERNAL GRINDING ATTACHMENT
BROWN & SHARPE I.D. GRINDNG SPINDLE
2-POINT REST
OTHER ACCESSORIES

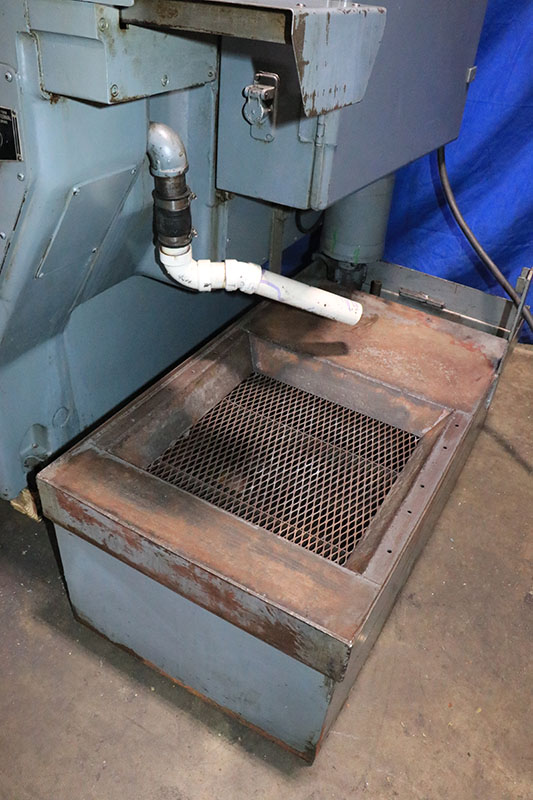

COOLANT SYSTEM

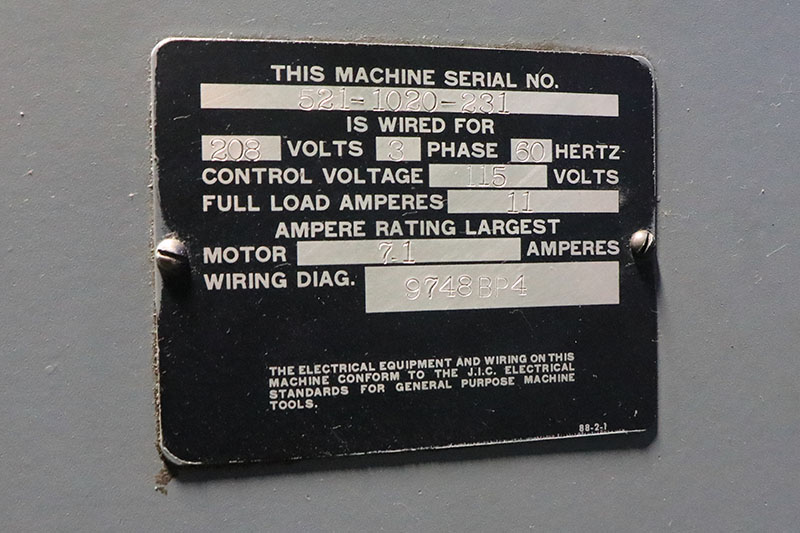

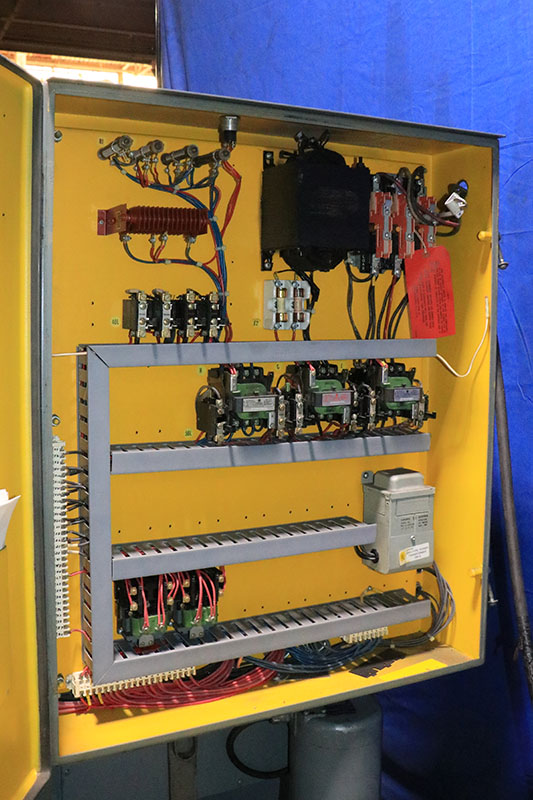

MACHINE IS PRESENTLY WIRED FOR 3/60/208 VOLTS

 LINK TO VIDEO: https://youtu.be/ZuiB-RHAgyY?si=Dk1JhkjbG4JBoYUB

** EXCEPTIONAL CONDITION & APPEARANCE - ORIGINAL PAINT **
** INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE **
