Brown & Sharpe 1024U, 1987, SWING DOWN I.D., FULL AUTO CYCLE UNIVERSAL CYLINDRICAL GRINDERS

Price on Request

Make:: Brown & Sharpe

Model:: 1024U, 1987, SWING DOWN I.D., FULL AUTO CYCLE

Year:: 1986

Ref #:: 179124

Or call us for a quote at (973) 497-7500 or send us an email at grinders@machineryvalues.com

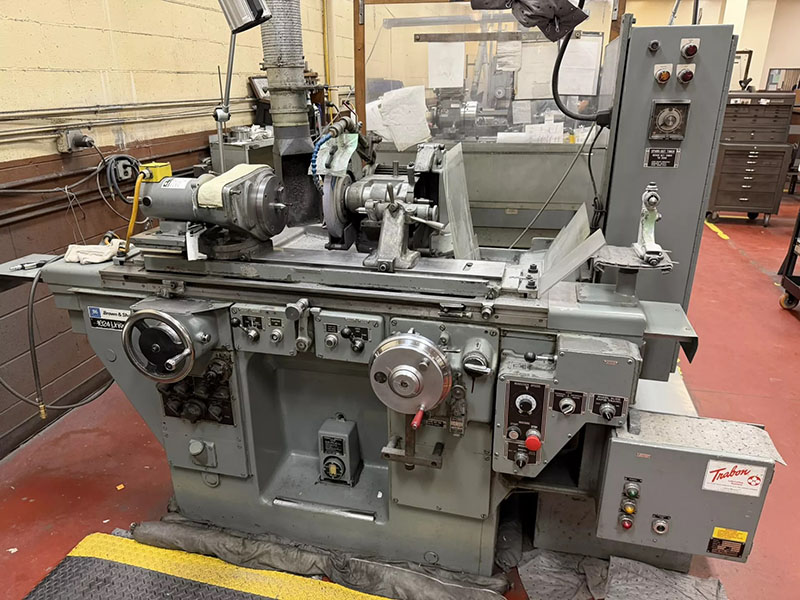

      10" X 24" BROWN & SHARPE
   UNIVERSAL CYLINDRICAL GRINDER

** SWING DOWN FACTORY I.D. ATTACHMENT
    AND A B & S I.D. GRINDING SPINDLE,
    ARE AVAILABLE TO PURCHASE
    FOR THIS MACHINE, P.O.R. **

MODEL: 1024U   S/N: 521-1024-376    NEW: 1987

        ** FULL AUTO CYCLE **
- PICK, PLUNGE, RAPID, SPARKOUT TIMER

CAPACITY:
SWING OVER TABLE .................... 10"
DISTANCE BETWEEN CENTERS, NOMINAL ... 24"
DISTANCE BETWEEN CENTERS, MAXIMUM ... 26-3/4"

TABLE:
INFINITELY VARIABLE TABLE SPEED ..... 3" TO 150" IPM
TABLE PER REV. OF HANDWHEEL:
   SLOW ............................. 0.1"
   FAST ............................. 1.5"
DWELL AT EACH OR ALTERNATE
 TABLE REV. ......................... 0 - 2-1/2 SEC.
TABLE SWIVEL, SCALES FOR
  ANGULAR SETTING ................... 8-1/4 DEG.
SCALES-TAPER PER FT. ................ 3-1/2"

WHEELHEAD:
GRINDING WHEEL SIZE ................. 12" x 1" x 5"
MINIMUM GRINDING WHEEL WIDTH ........ 3/8"
WHEELHEAD SPINDLE SPEEDS (3) .... 2100, 2400 & 2800 RPM
SWIVEL AT THE WHEELSLIDE ............ 90° EITHER WAY
WHEEL SPINDLE SWIVELS ............... 90° EITHER WAY

MAX. TRAVEL OF WHEELSLIDE ........... 5"
CROSSFEED HANDWHEEL GRAD. ........... 0.00002"
AUTOMATIC CROSS FEED,
  REDUCTION IN DIAMETER OR WORK
  AT EACH OR ALTERNATE REVERSALS .... 0.0001" - .003"
HAND FEED PER REV. OF HANDWHEEL:
   SLOW ............................. 0.1"
   FAST ............................. 0.3"


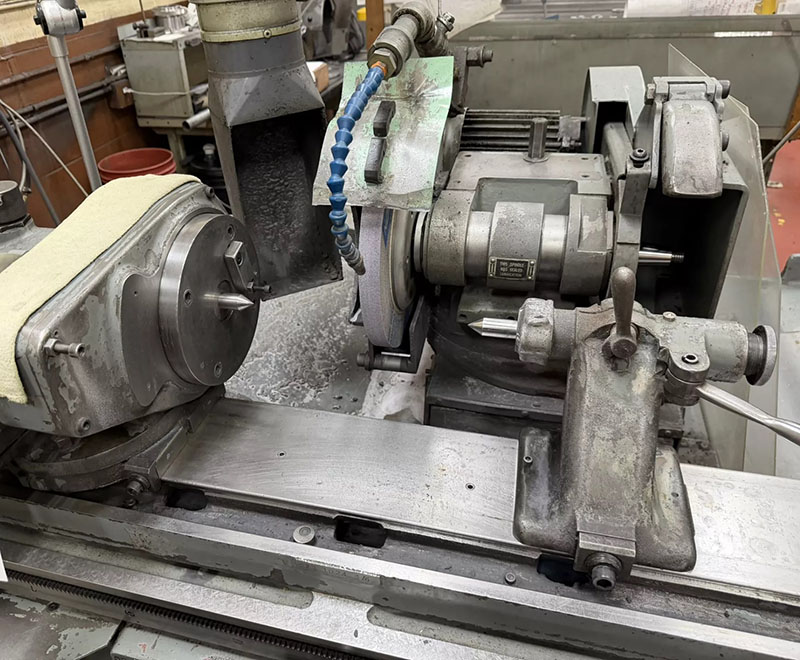

WORKHEAD & TAILSTOCK:
INFINITELY VARIABLE SPINDLE SPEEDS .. 60 TO 600 RPM
HEADSTOCK SPINDLE NOSE TAPER ........ A2-5"
HEADSTOCK SWIVELS,
 EITHER SIDE OF ZERO ................ 90°

TAILSTOCK SPINDLE TAPER ..............#7 JARNO
TAILSTOCK SPINDLE TRAVEL ............ 5/8"

APPROXIMATE WEIGHT .................. 5,100 LBS

UNIQUE TO BROWN & SHARPE GRINDERS FEATURE
 - DOUBLE SWIVEL WHEELHEAD:

THE WHEEL SPINDLE HEAD WHICH SUPPORTS THE
 EXTERNAL AND INTERNAL GRINDING SPINDLES
 CAN BE SWIVELED TO 90° EITHER SIDE OF ZERO.
 AN ADDITIONAL SWIVEL THROUGH 90° IS
 PROVIDED AT THE WHEEL SLIDE.  ANY COMPOUND
 SETTING  REQUIRED IN COMBINATION
 STRAIGHT & TAPER OR DOUBLE TAPER GRINDING,
 O.D. OR I.D., CAN BE MADE QUICKLY
 AND ACCURATELY.

THE UNIVERSAL TURRET, WHICH SUPPORTS THE
 WHEEL SPINDLE HEAD, PROVIDES FURTHER
 ADJUSTMENT FOR CHANGE OF WHEEL LOCATION.
 THE TURRET SWIVELS ON THE WHEEL SLIDE,
 AND CAN BE LOCKED IN ANY OF FOUR POSITIONS.
 EACH CHANGE MOVES THE WHEEL 2".
 RIGHT HAND WHEEL MOUNTING PROVIDES FOUR
 ADDITIONAL WHEEL POSITIONS.

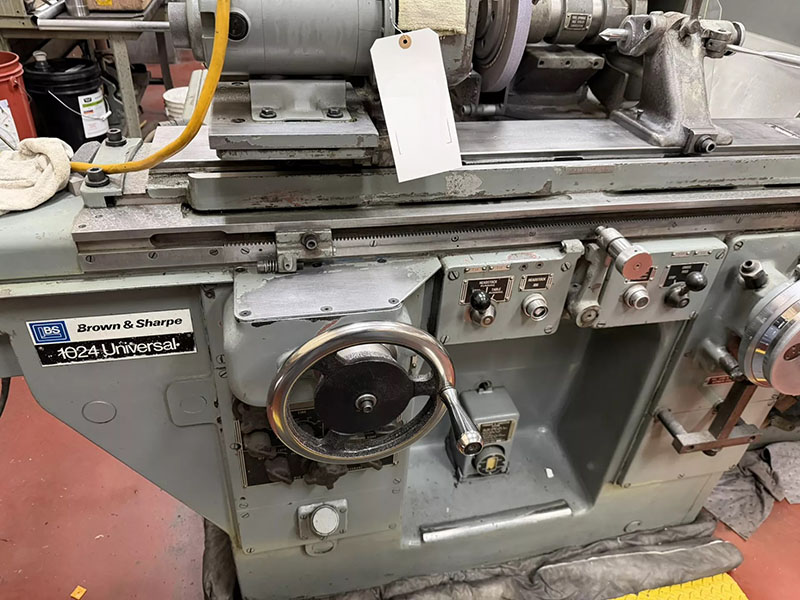

MACHINE FEATURES:
INFEED HANDWHEEL GRADUATED TO READ TO 0.000020"
HYDRAULIC TABLE TRAVERSE
AUTO INFEED OF WHEELHEAD @ TABLE REVERSALS
AUTO PLUNGE INFEED OPTION
POWER RAPID WHEELHEAD ADVANCE & RETRACTION
SPARKOUT TIMER
ADJUSTABLE TABLE DWELL
L.H. OR R.H. WHEEL MOUNTING
SELF-CONTAINED HYDRAULIC SYSTEM
OIL CHILLER UNIT (FAN COOLED)


EQUIPPED WITH:
"TRABON" AUTOMATIC LUBRICATION SYSTEM,
 WITH INDICATOR LIGHTS
DUAL DEAD/LIVE HEADSTOCK SPINDLE
CENTER IN WORKHEAD

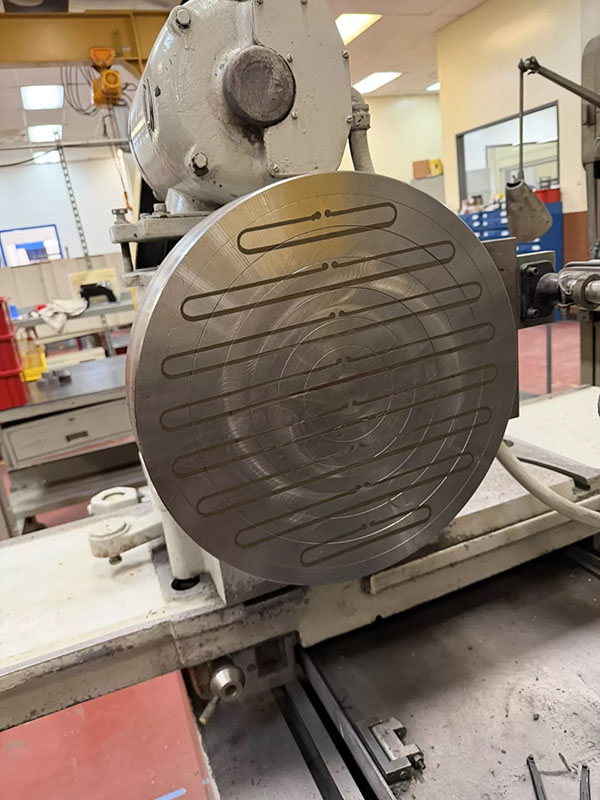

MAGNETIC CHUCK
TABLE MOUNTED WHEEL DRESSER
COOLANT SYSTEM

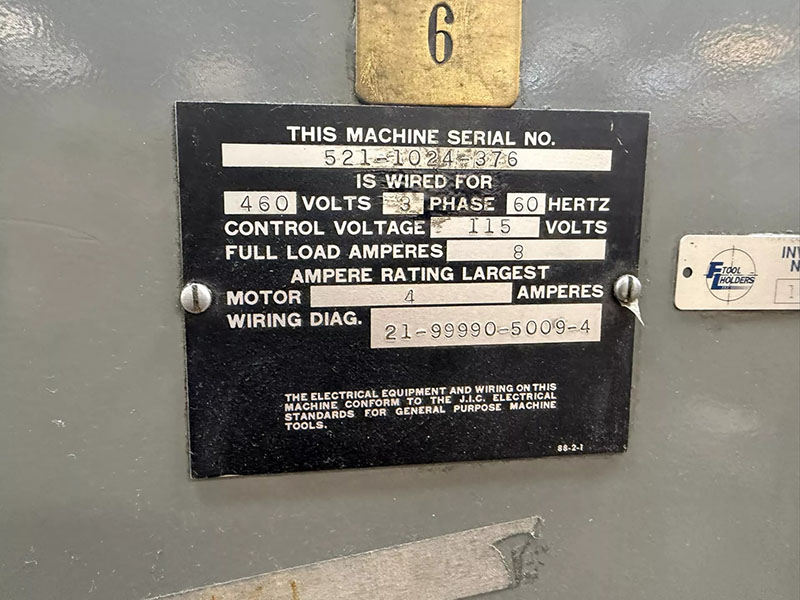

MOTORS ARE 3/60/230-460 VOLTS
MACHINE IS WIRED PRESENTLY FOR 460 VOLTS,
  8 FULL LOAD AMPS

SPECIAL NOTE:
THIS MACHINE IS PRESENTLY NOT EQUIPPED WITH
 A SWING DOWN I.D. GRINDING ATTACHMENT,
 WITH B & S I.D. GRINDING SPINDLE.
 WE HAVE A COMPLETE UNIT IN STOCK.
 IT CAN BE ADDED TO THIS MACHINE.
 PRICE IS AVAILABLE UPON REQUEST.


** INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE **
** SUPERIOR CONDITION - ORIGINAL PAINT **
