Brown & Sharpe 1440U, 1982, RISERS AVAIL TO INCREASE SWING TO 21" UNIVERSAL CYLINDRICAL GRINDERS

Price on Request

Make:: Brown & Sharpe

Model:: 1440U, 1982, RISERS AVAIL TO INCREASE SWING TO 21"

Year:: 1982

Ref #:: 173486

Or call us for a quote at (973) 497-7500 or send us an email at grinders@machineryvalues.com

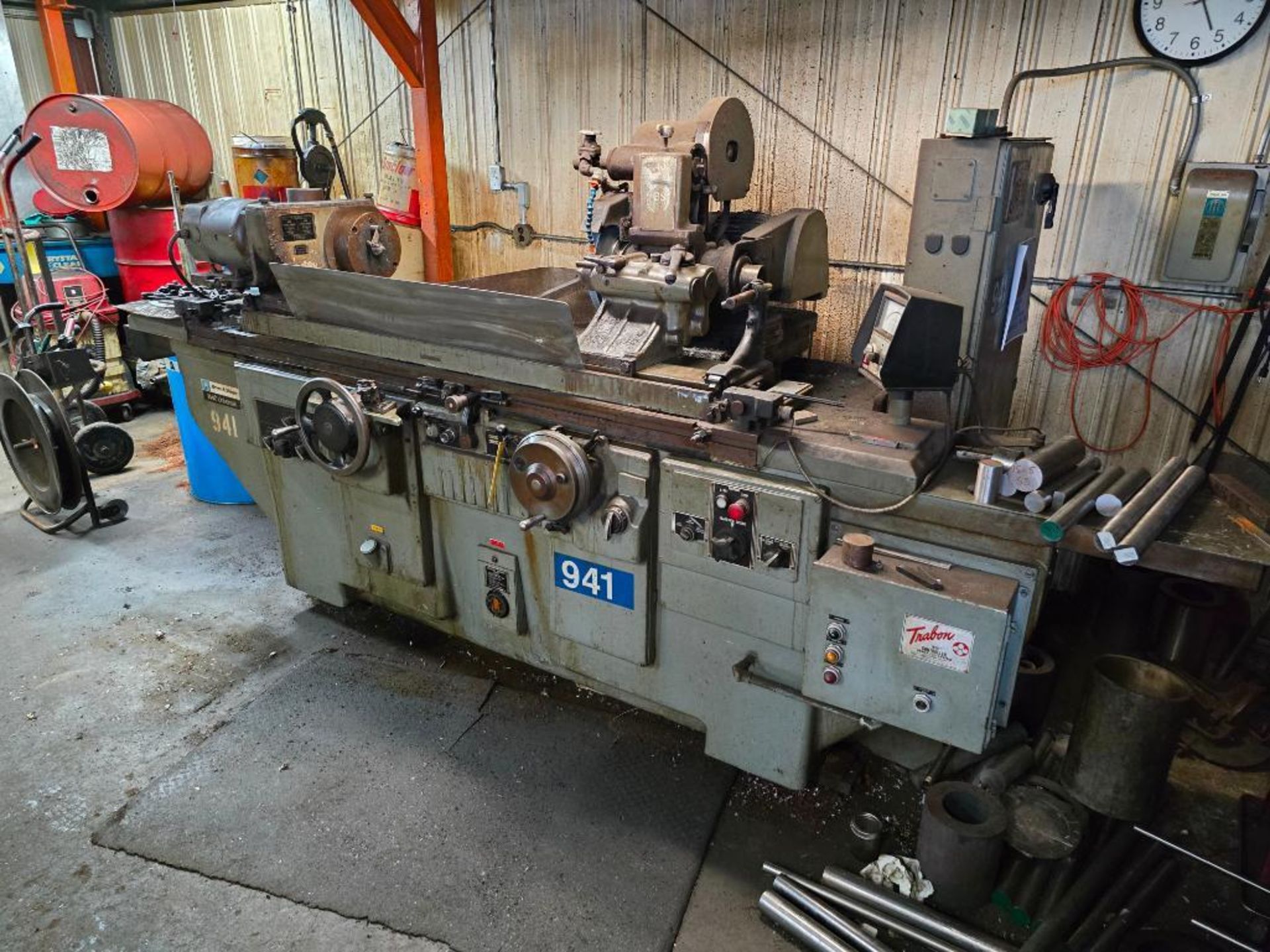

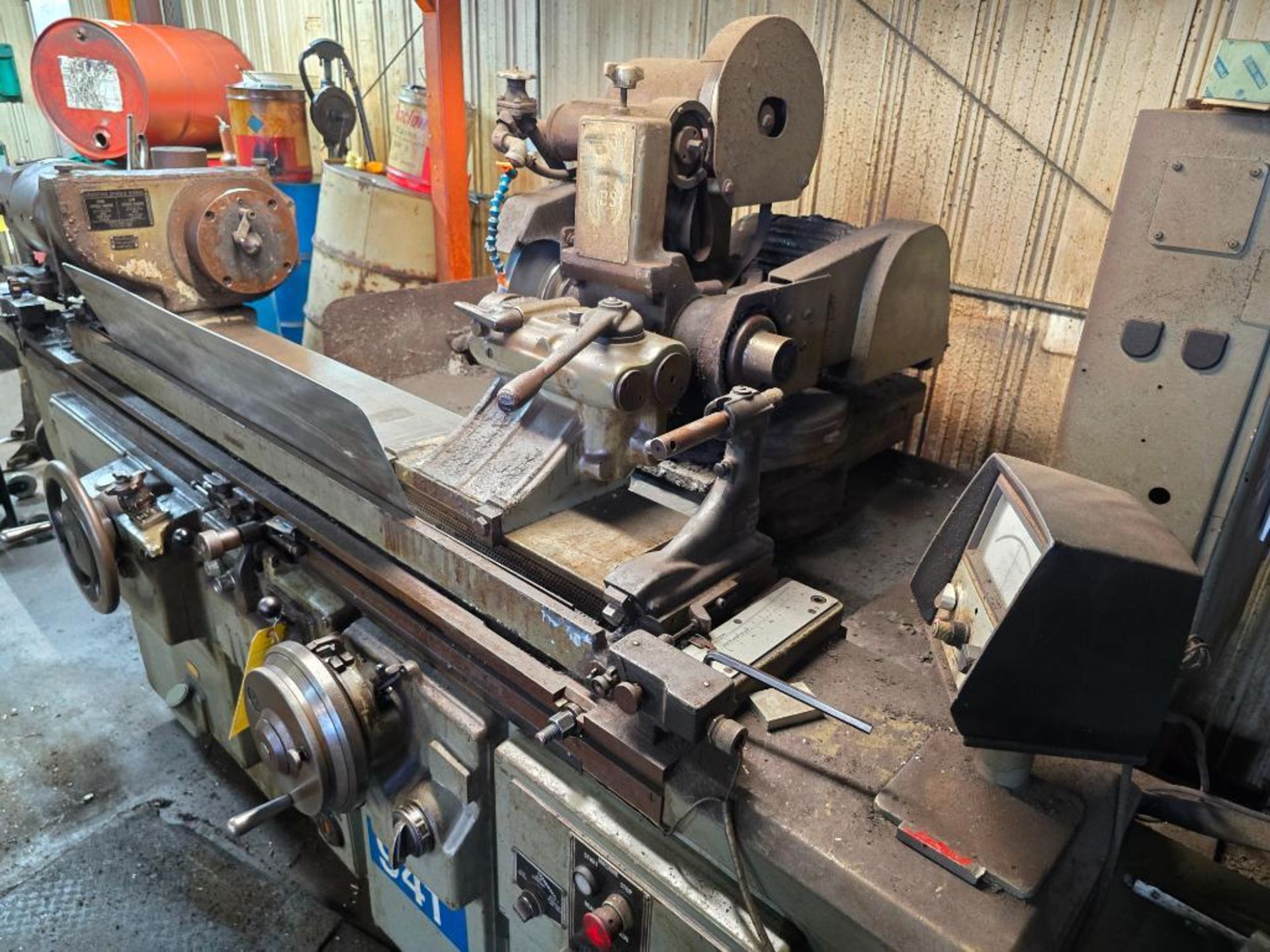

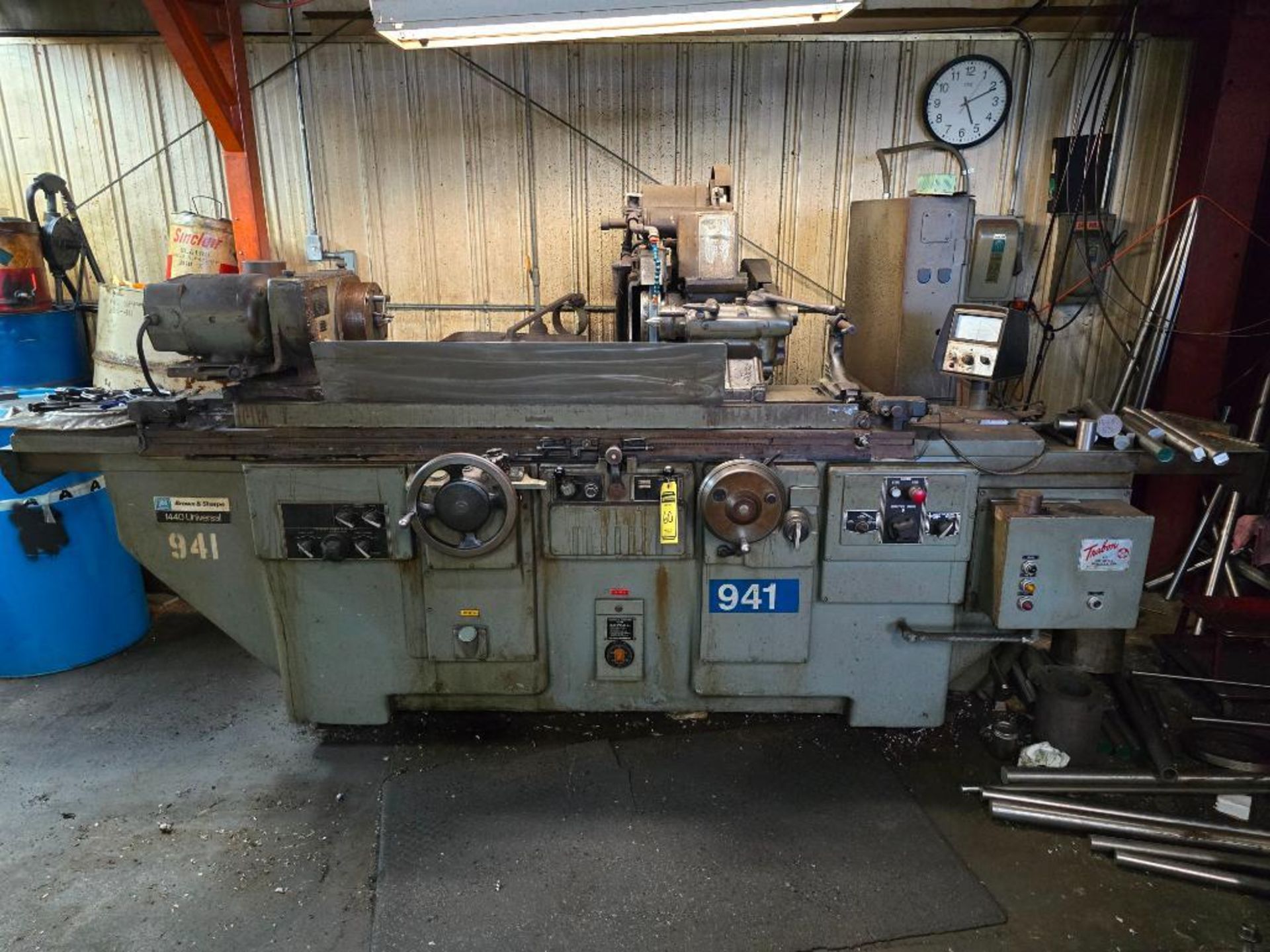

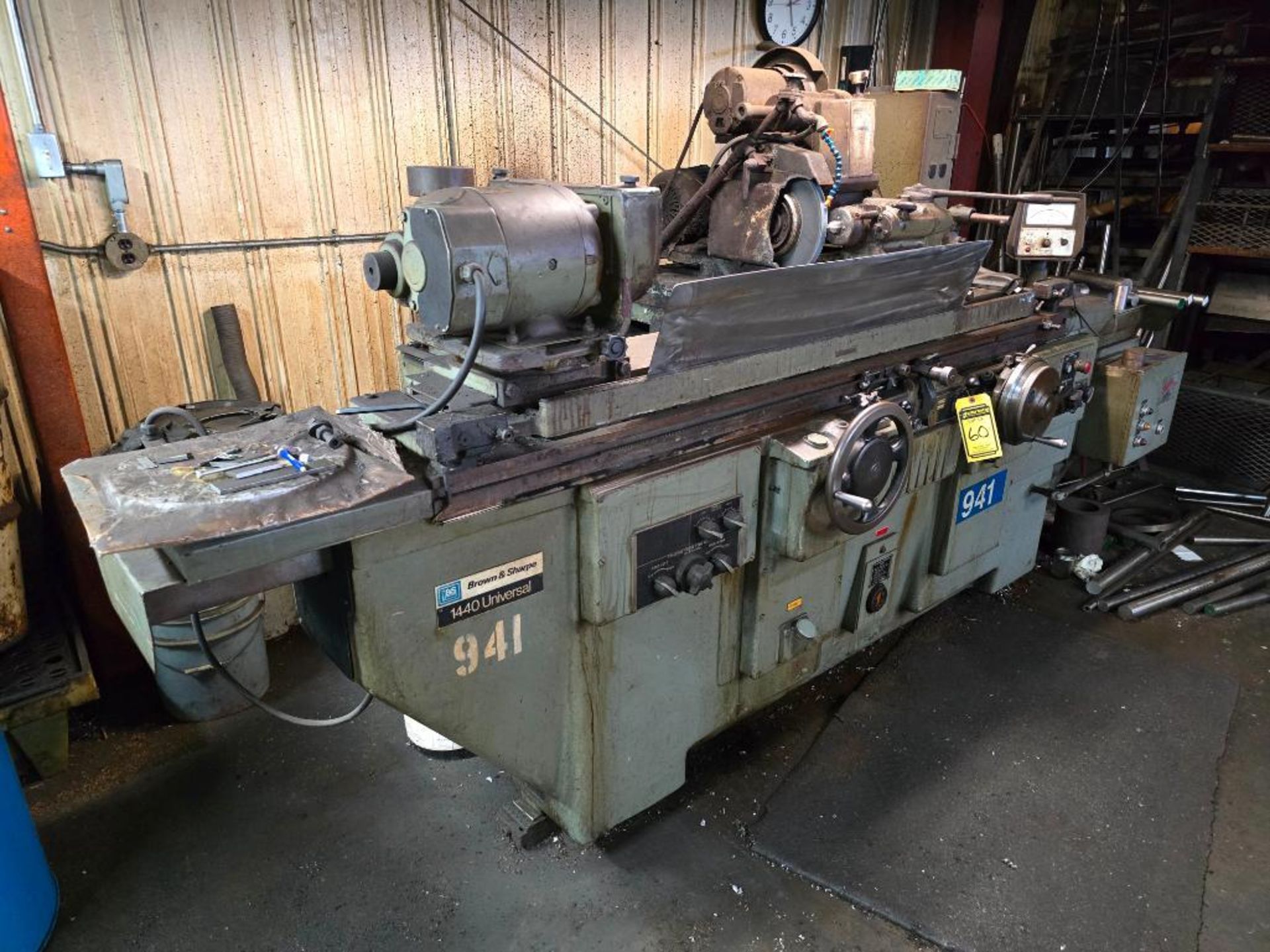

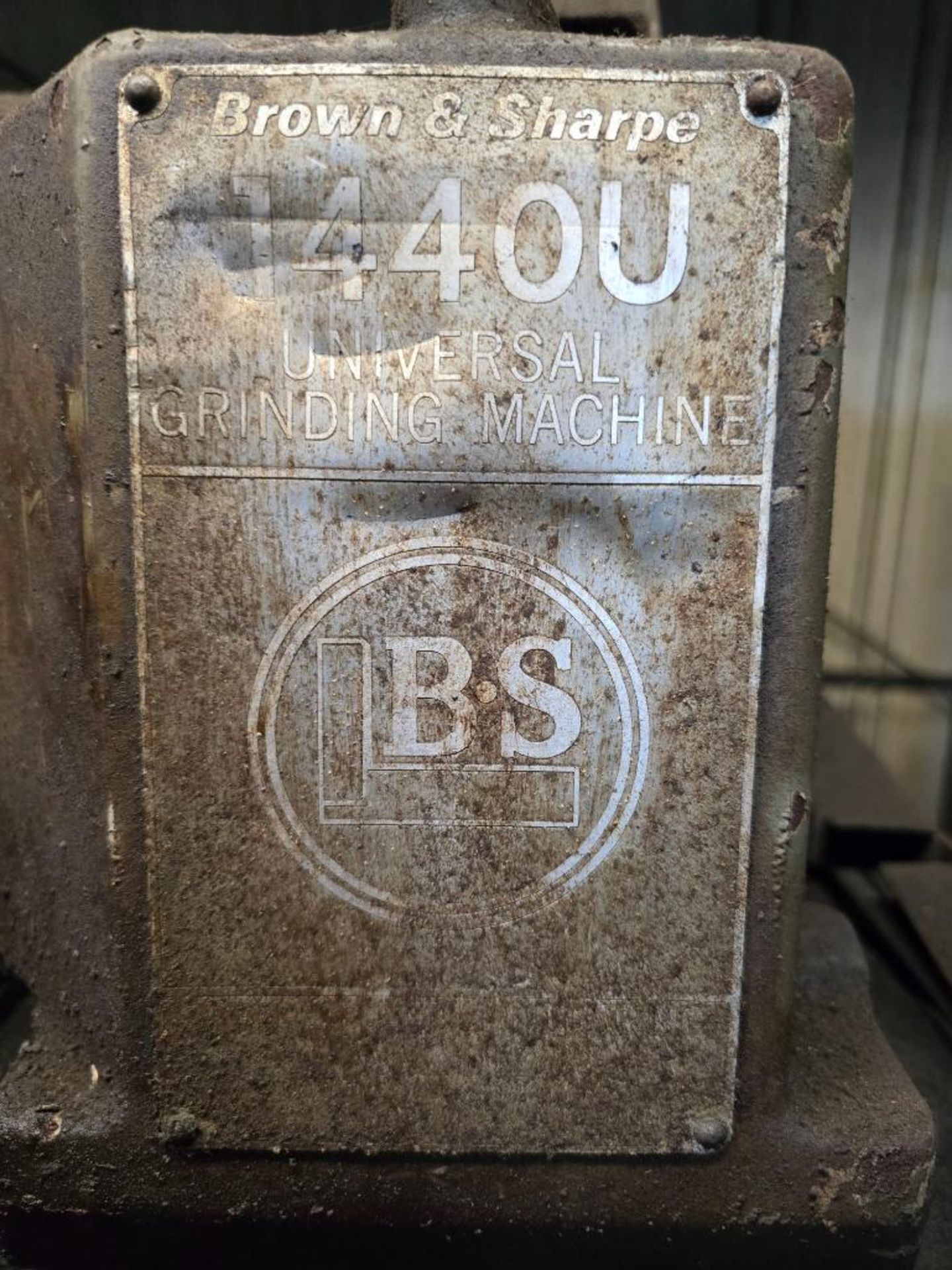

  BROWN & SHARPE MODEL: #1440U
    (MADE IN USA) "HIGH PRECISION"
UNIVERSAL I.D./O.D. CYLINDRICAL GRINDER

** THIS MACHINE CAN BE EQUIPPED WITH
   COPIES OF THE ORIGINAL FACTORY
   MADE RISER BLOCKS, ALLOWING FOR
   21" SWING CAPACITY, P.O.R. **


S/N: 521-1440-163    NEW: 1982

NOMINAL SWING WITHOUT THE OPTIONAL
 FACTORY RISER RISER BLOCKS .......... 14"
NOMINAL SWING WITH FACTORY RISERS .... 21"
DISTANCE BETWEEN CENTERS, NOMINAL .... 40"
DISTANCE BETWEEN CENTERS, MAXIMUM .... 43.75"

SWIVEL TABLE,
 SCALES FOR ANGULAR SETTING .......... 11° BACK
                                       3° FORWARD
             TAPER PER FOOT .......... 4.5" BACK
                                       1" FORWARD

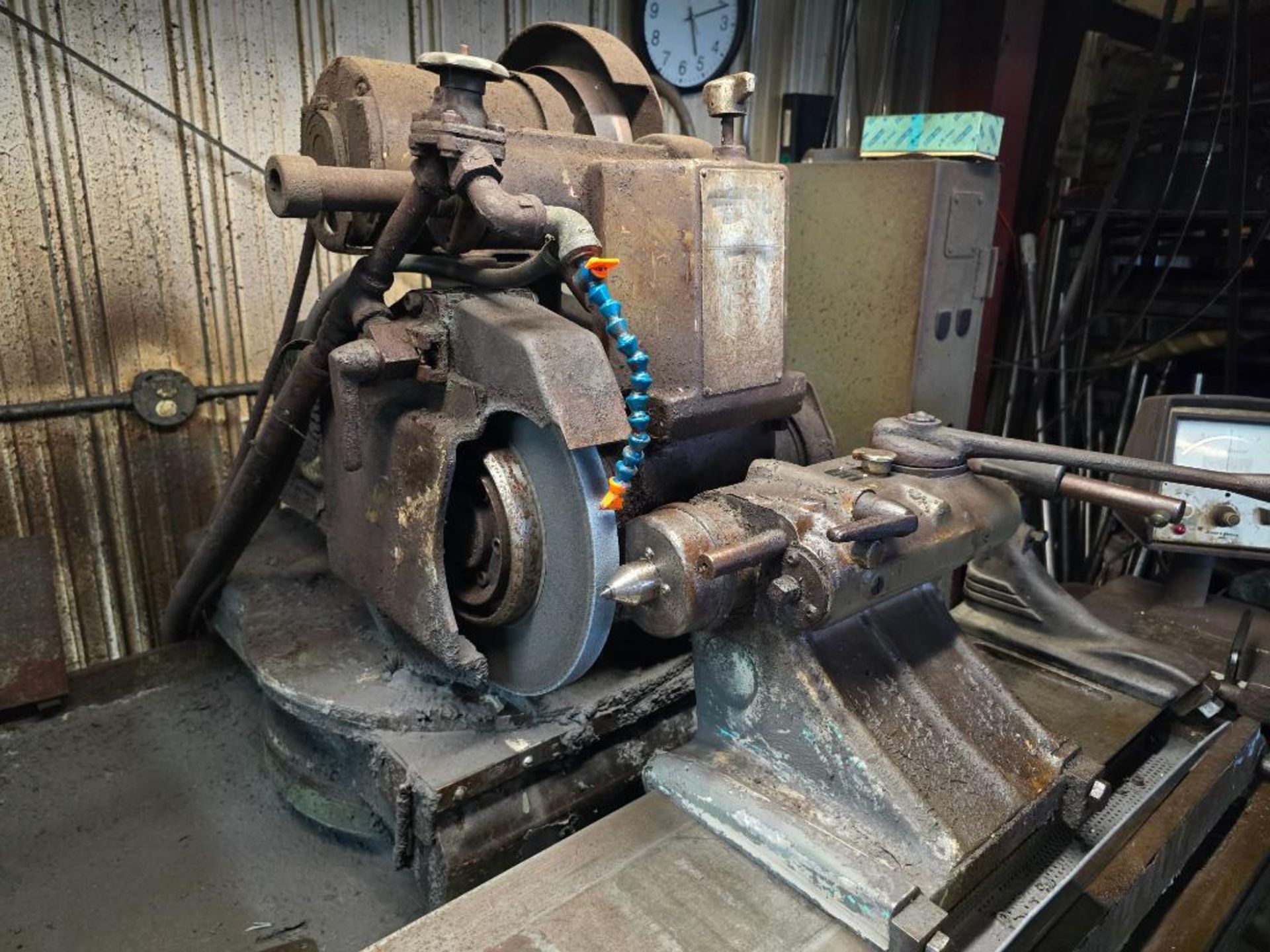

WHEELHEAD MOTOR ...................... 5 HP
WHEELHEAD SPINDLE SPEEDS (3) ... 1600, 2000 & 2400 RPM

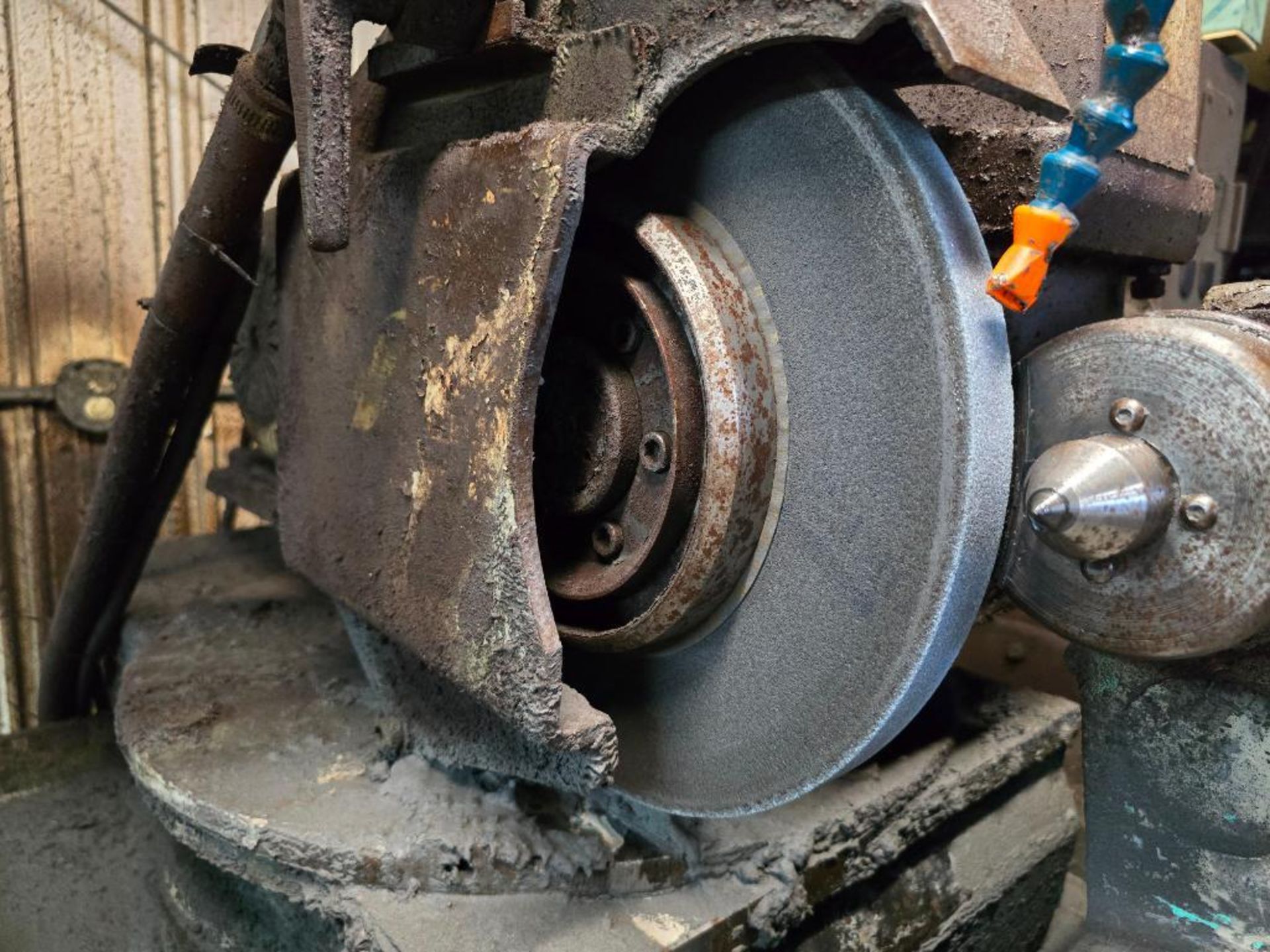

WHEEL SIZE ..................... 14" x 1-1/2" X 5"
WHEELHEAD SWIVELS,  .................. +/- 90°
WHEEL SPINDLE SWIVELS ................ 90°

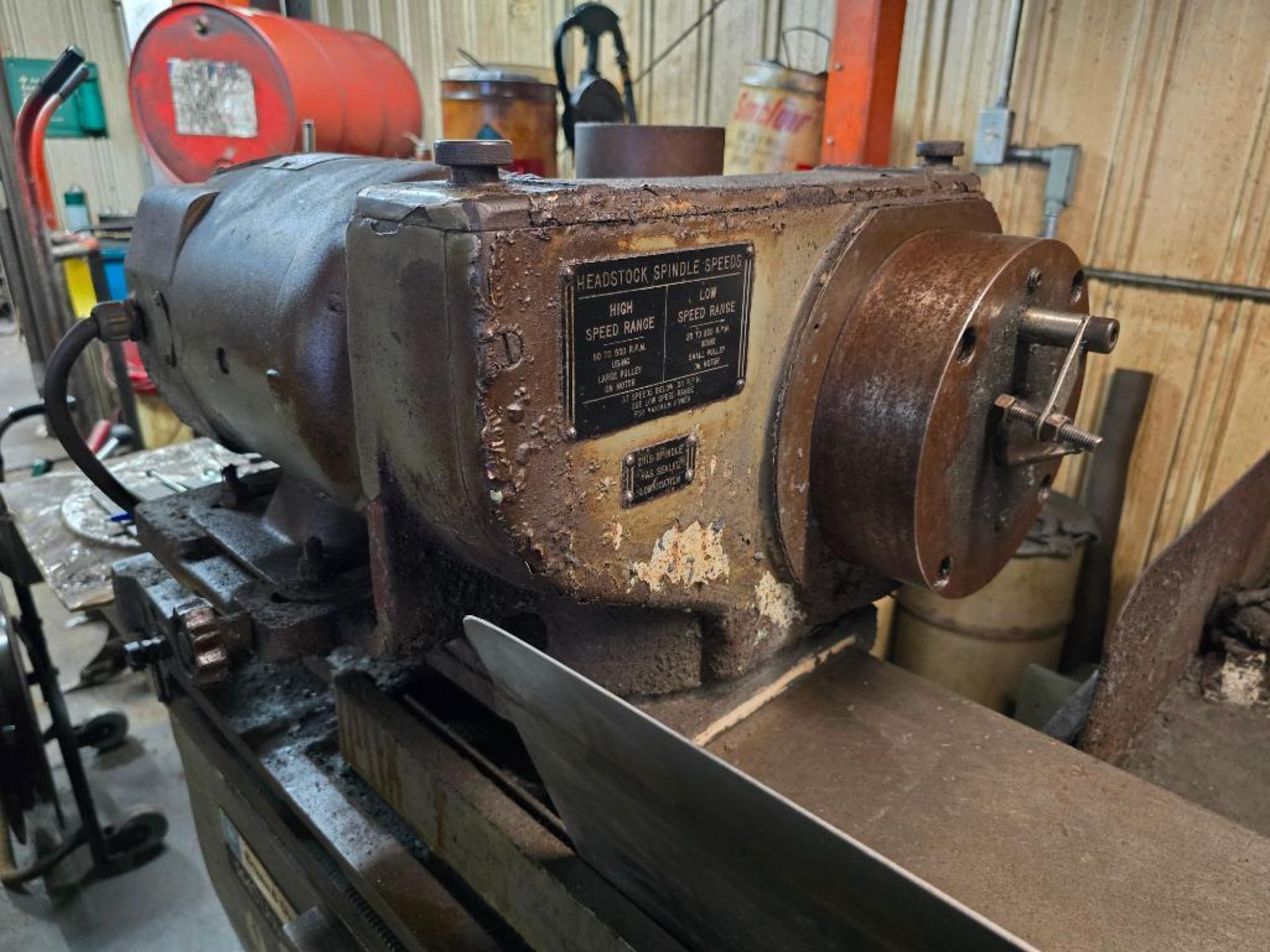

HEADSTOCK MOTOR ...................... 1/2 HP
HEADSTOCK SWIVELS .................... 180 DEG.
INFINITELY VARIABLE SPINDLE SPEEDS ... 25 TO 500 RPM
SPINDLE NOSE ......................... A2-6"

INFINITELY VARIABLE TABLE SPEED ...... 3" TO 150" IPM
TRAVEL PRE-REVOLUTION OF HANDWHEEL ... 0.1" SLOW
                                       1" FAST

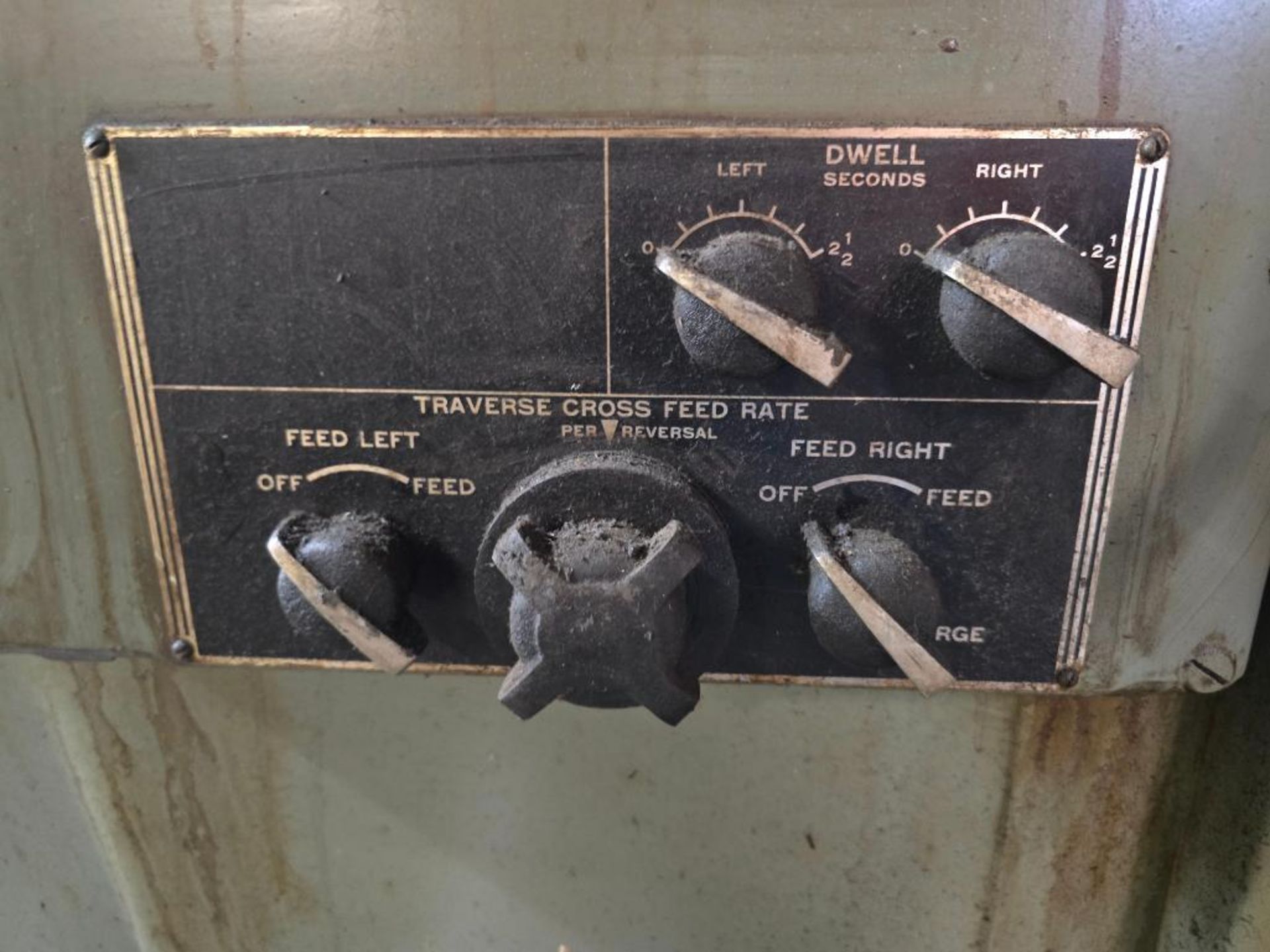

DWELL @ TABLE REVERSAL ......... 0 TO 2-1/2" SECONDS

SWIVEL TABLE - TAPER PER FOOT ........ 4" BACK
                                       3/4" FORWARD
       SCALES FOR ANGULAR SETTING .... 9- 1/2° BACK
                                       2° FORWARD

AUTOMATIC CROSS FEED, INF. VARIABLE .. 0.0001" - .003"
POSITIVE STOP SETTING ................ 0.000020"
HAND FEED PER REV. OF HANDWHEEL ...... 0.1" SLOW
                                       0.3" FAST

APPROXIMATE MACHINE WEIGHT ........... 9,200 LBS
APPROXIMATE DIMENSIONS ......... 132"L x 78.5"D x 61"H


UNIQUE TO BROWN & SHARPE GRINDERS FEATURE
 - DOUBLE SWIVEL WHEELHEAD:

"THE WHEEL SPINDLE HEAD WHICH SUPPORTS THE
  EXTERNAL & INTERNAL GRINDING SPINDLES
  CAN BE SWIVELED TO EITHER SIDE OF ZERO.
  AN ADDITIONAL SWIVEL THROUGH 90 DEGREES
  IS PROVIDED AT THE WHEEL SLIDE.
  ANY COMPOUND SETTING REQUIRED IN COMBINATION
  STRAIGHT & TAPER OR DOUBLE TAPER GRINDING,
  O.D. OR I.D., CAN BE MADE QUICKLY & ACCURATELY.

THE UNIVERSAL TURRET, WHICH SUPPORTS THE WHEEL
  SPINDLE HEAD, PROVIDES FURTHER ADJUSTMENT FOR
  CHANGE OF WHEEL LOCATION.  THE TURRET SWIVELS
  ON THE WHEEL SLIDE, AND CAN BE LOCKED IN ANY
  OF FOUR POSITIONS.  EACH CHANGE MOVES THE WHEEL
  3".  RIGHT HAND WHEEL MOUNTING PROVIDES FOUR
  ADDITIONAL WHEEL POSITIONS."

MACHINE FEATURES:
- HYDRAULIC OPERATION WITH POWER TABLE TRAVERSE
- AUTOMATIC INFEED .... POWER CROSSFEED
   ADJUSTABLE TO 0.000050"
- POSITIVE CROSSFEED STOP, ADJUSTABLE
   WITHIN 0.000020"
- L.H. OR R.H. GRINDING WHEEL MOUNTING
- DUAL DEAD/LIVE HEADSTOCK SPINDLE
- PULL-OUT HYDRAULIC SYSTEM
- 3/60/230-460 VOLT MOTORS


EQUIPPED WITH:
B & S SWING DOWN I.D. GRINDING ATTACHMENT

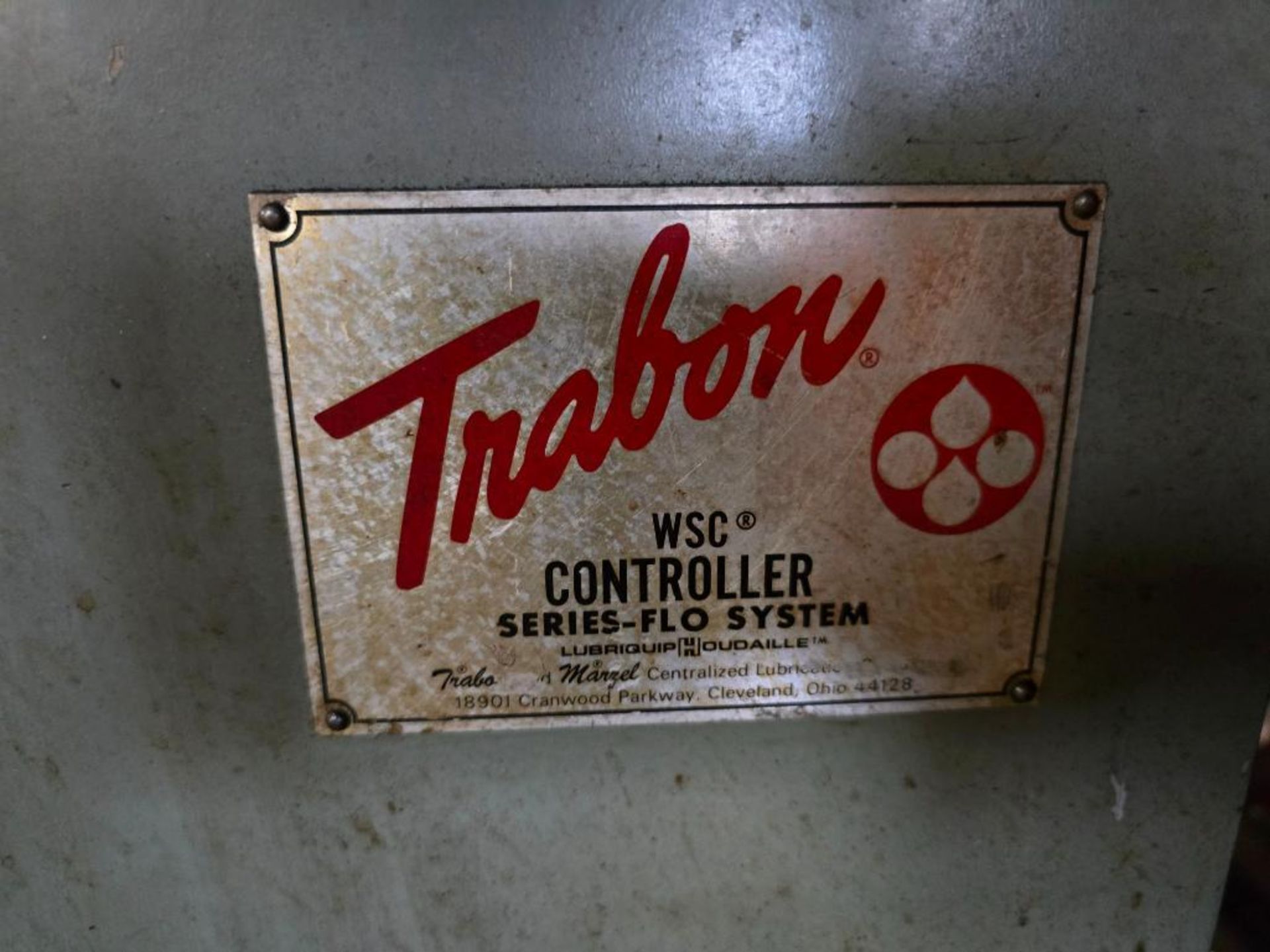

"TRABON" AUTOMATIC LUBRICATION SYSTEM,
 WITH INDICATOR LIGHTS
3-POINT STEADY REST
2-POINT STEADY REST
TABLE MOUNTED WHEEL DRESSER
CENTER IN WORKHEAD
EXTERNAL COOLANT TANK & PUMP
MACHINE IS PRESENTLY WIRED FOR 460 VOLTS

SPECIAL NOTE:
** THIS MACHINE CAN BE EQUIPPED WITH COPIES
   OF THE ORIGINAL FACTORY MADE RISER BLOCKS,
   ALLOWING FOR 21" SWING CAPACITY.  P.O.R. **

* INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE *

** EXCELLENT CONDITION & APPEARANCE **
        ** ORIGINAL PAINT **
** - FROM A QUALITY SHOP!!  **
