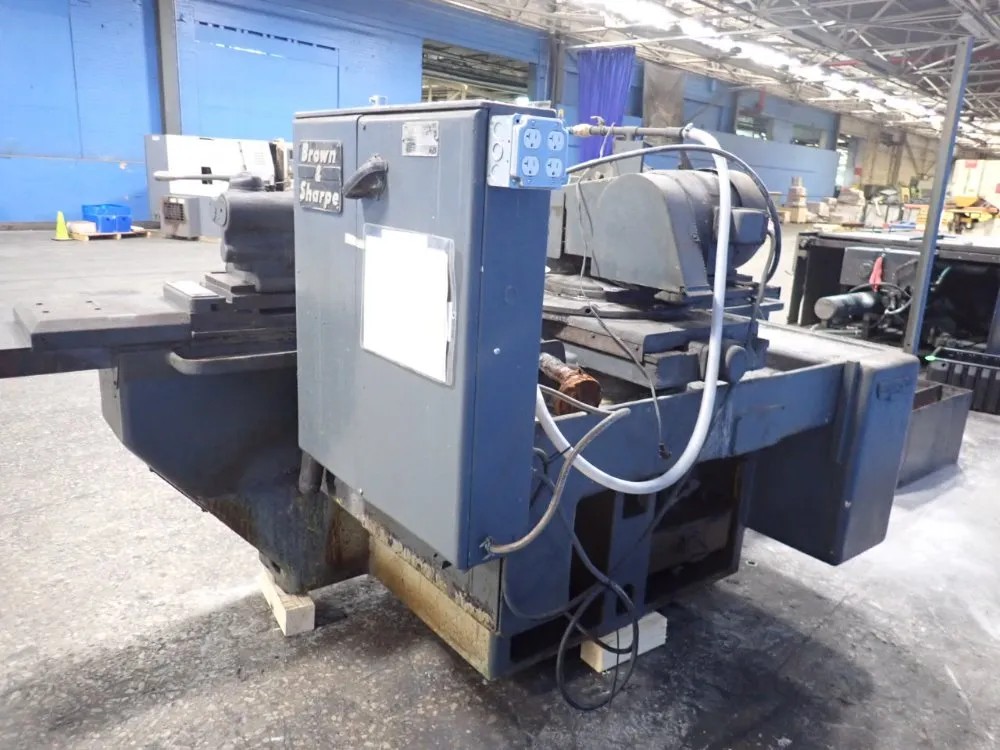

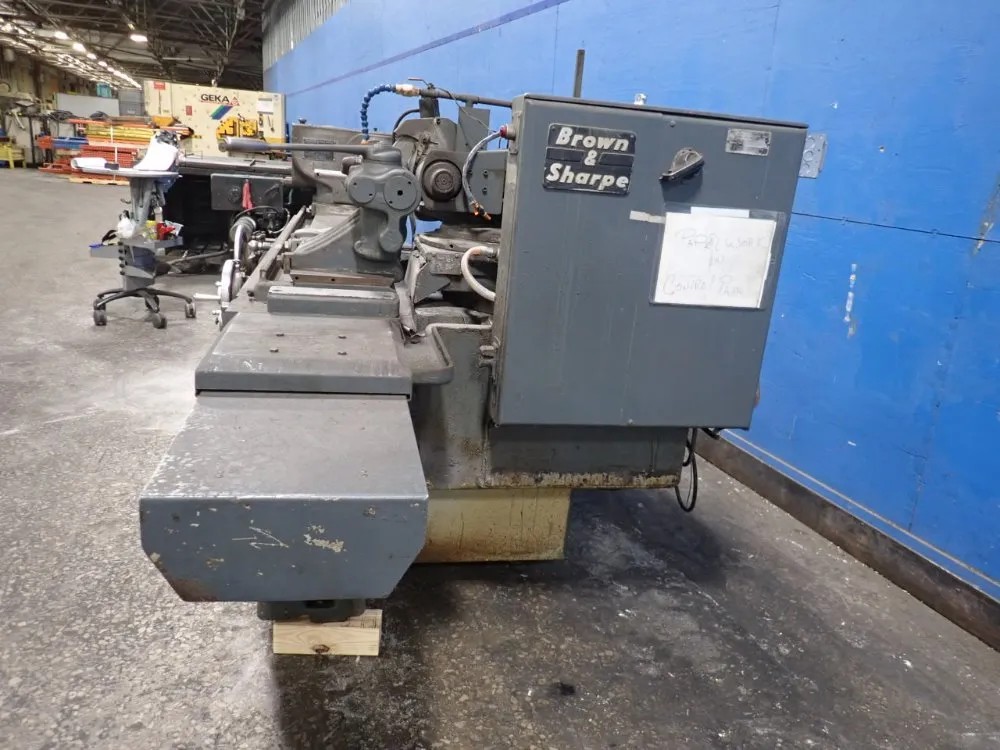

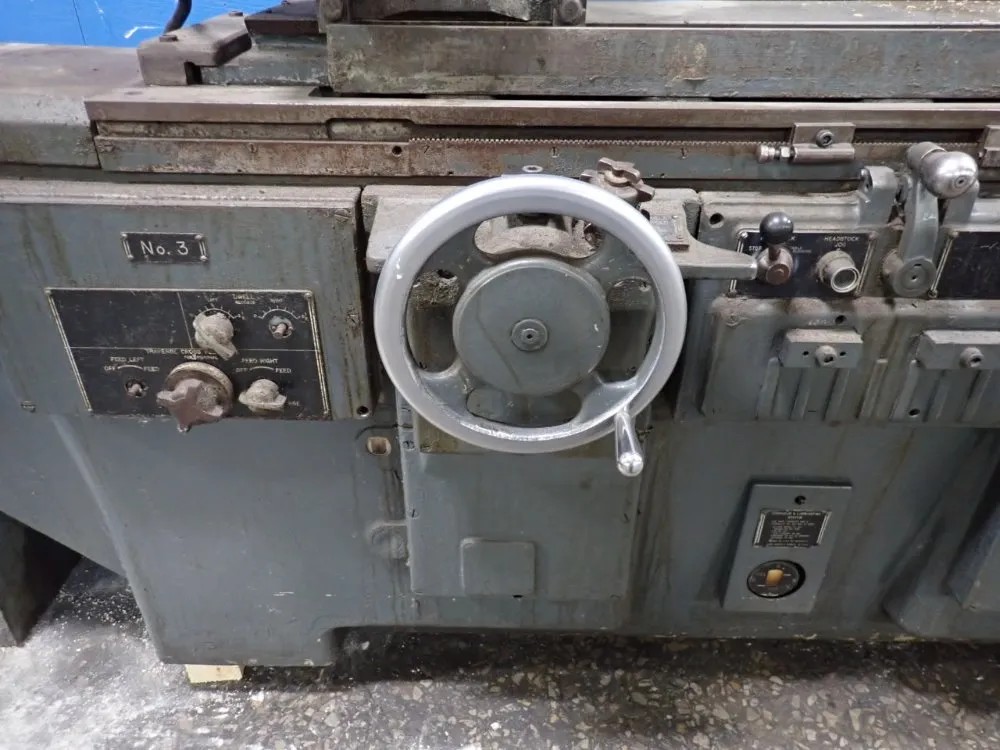

Brown & Sharpe #3, HYD. TABLE & AUTO INFEED, 14" WHEEL, UNIVERSAL CYLINDRICAL GRINDERS

Price on Request

Make:: Brown & Sharpe

Model:: #3, HYD. TABLE & AUTO INFEED, 14" WHEEL,

Year:: 1962

Ref #:: 179222

Or call us for a quote at (973) 497-7500 or send us an email at grinders@machineryvalues.com

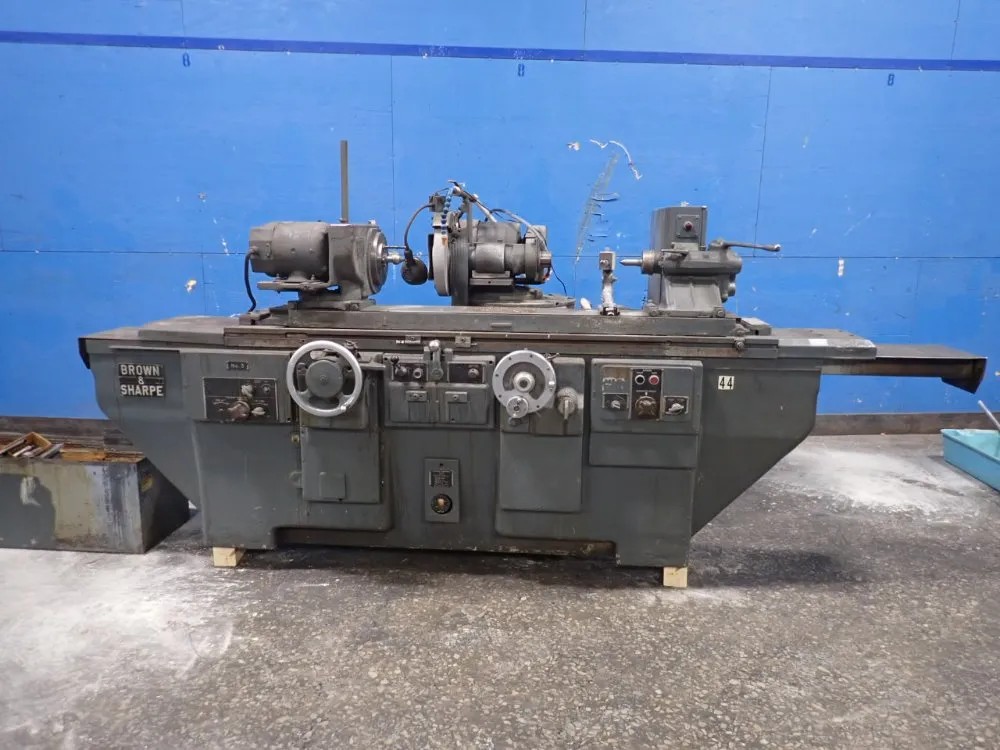

    14" X 40" BROWN & SHARPE
  UNIVERSAL CYLINDRICAL GRINDER


MODEL: #3       S/N:  521-3-85      NEW:  1962

NOMINAL SWING .......................... 14"
DISTANCE BETWEEN CENTERS, NOMINAL ...... 40"
DISTANCE BETWEEN CENTERS, MAXIMUM ...... 43-3/4"

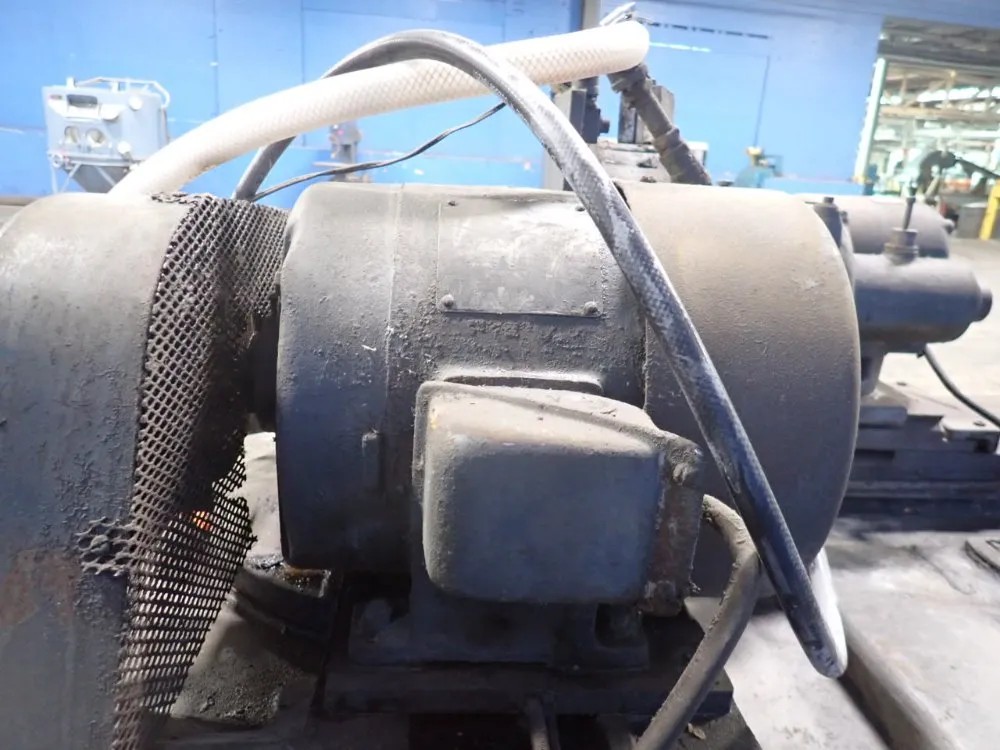

WHEELHEAD MOTOR ........................ 3 HP
WHEELHEAD SPINDLE SPEEDS (3) .......100, 2400 & 2800 RPM
WHEEL SIZE ........................ 14" x 1-1/2" x 5"
WHEELHEAD SWIVELS,
 LEFT & RIGHT OF CENTER ................ 90°
WHEEL SPINDLE SWIVELS .................. 90°

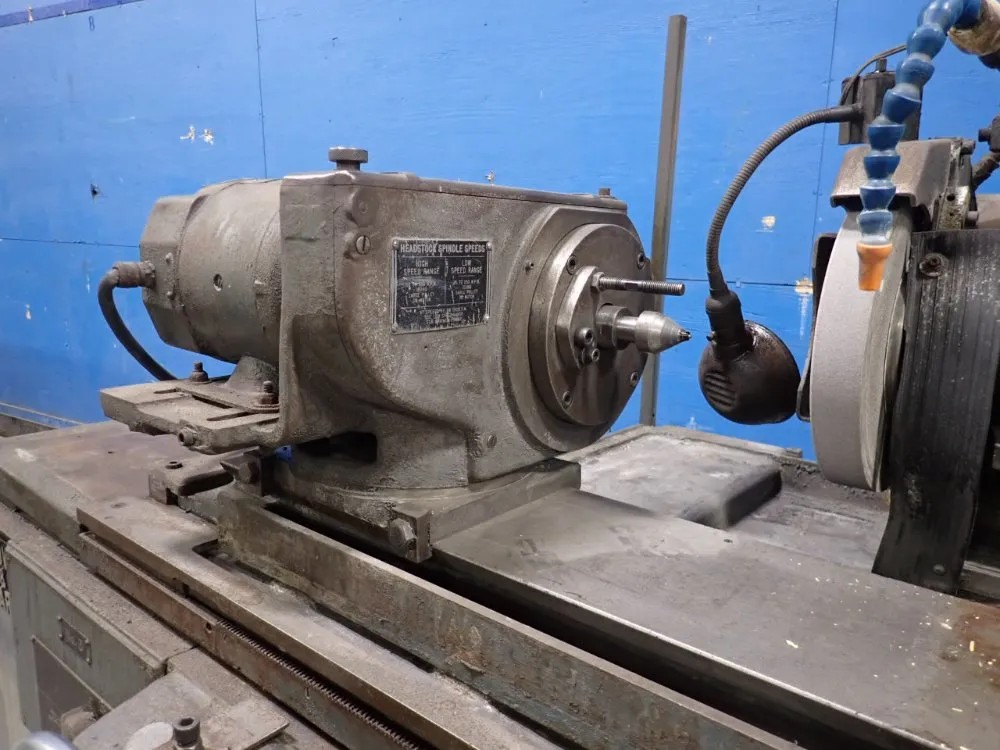

HEADSTOCK MOTOR ........................ 1/2 HP
HEADSTOCK SWIVELS ...................... 180°
INFINITELY VARIABLE SPINDLE SPEEDS ..... 25 TO 500 RPM
SPINDLE NOSE ........................... A2-6"
B & S TAPER HOLE ....................... No. 12

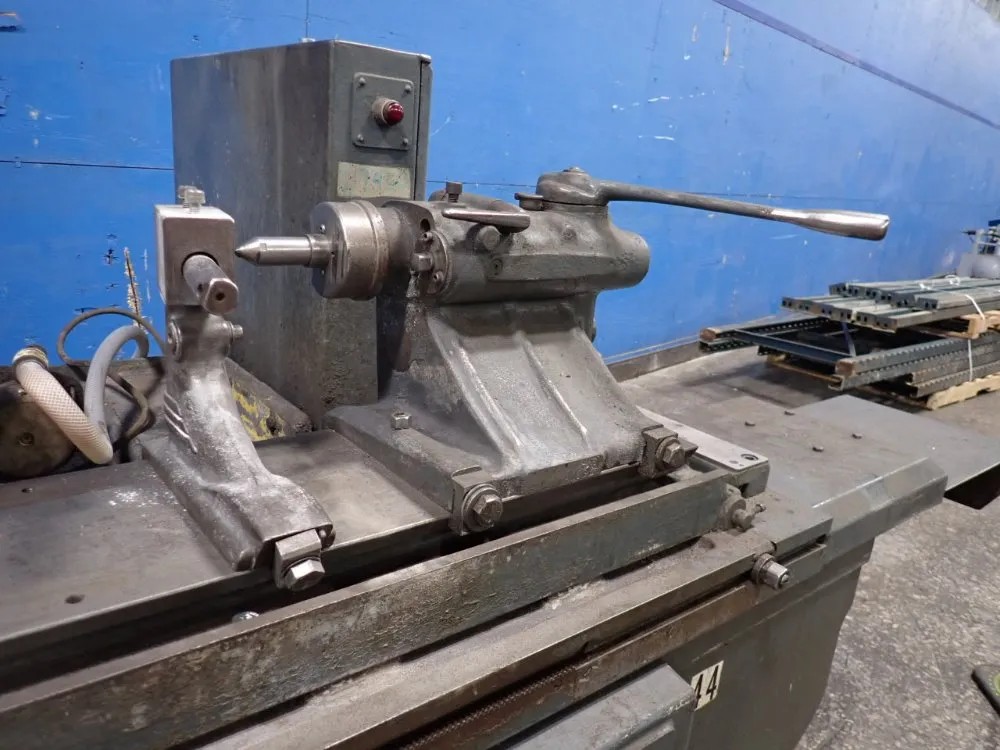

TAILSTOCK SPINDLE TAPER ................ No. 10 B & S
TAILSTOCK SPINDLE TRAVEL ............... 1"

INFINITELY VARIABLE TABLE SPEED ........ 3" TO 150" IPM
TRAVEL PRE-REVOLUTION OF HANDWHEEL ..... 0.1" SLOW
                                         0.1" FAST

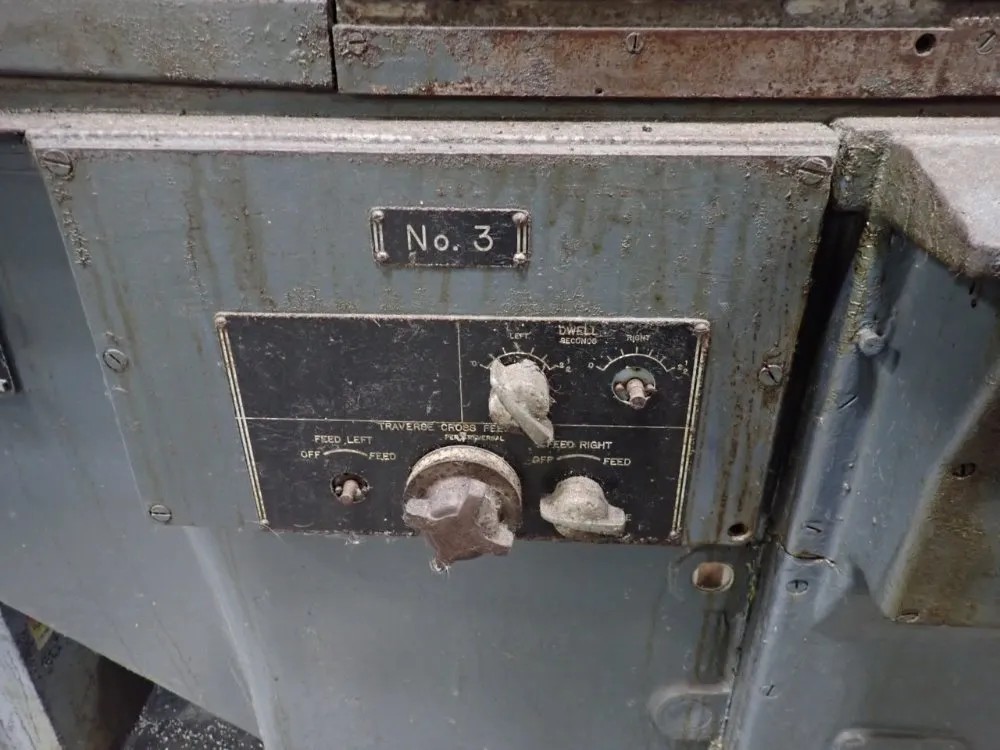

DWELL @ TABLE REVERSAL ................. 0 TO 2-1/2" SECONDS

SWIVEL TABLE - TAPER PER FOOT .......... 4. 5" BACK
                                         1" FORWARD
   - SCALES FOR ANGULAR SETTING          1° BACK
                                         3° FORWARD

AUTOMATIC CROSS FEED, INF. VARIABLE .... 0.0001" - .003"
POSITIVE STOP SETTING .................. 0.00002"

APPROXIMATE MACHINE WEIGHT ............. 9,200 LBS
APPROXIMATE DIMENSIONS ............. 152.75"L x 78.5"D x 61"H

EQUIPPED WITH:

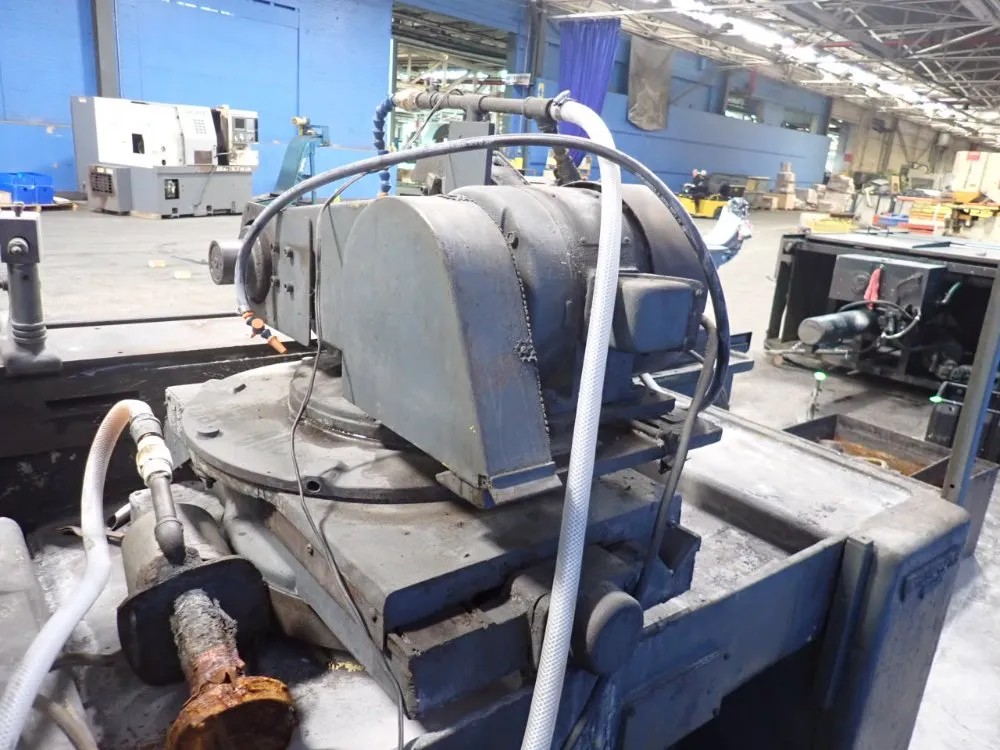

BROWN & SHARPE UNIQUE DESIGN FEATURE:
"DOUBLE SWIVEL WHEELHEAD"
  - SWIVELLING @ WHEEL SPINDLE HEAD
  OR @ THE WHEEL SLIDE PERMITS ANY COMPOUND SETTING
  REQUIRED IN COMBINATION STRAIGHT AND TAPER GRINDING

 HYDRAULIC OPERATOR FEATURING:
 -POWER TABLE TRAVERSE
 -AUTOMATIC INFEED

 RIGHT OR LEFT END WHEEL MOUNTING
 DUAL DEAD/LIVE HEADSTOCK SPINDLE
 PULL-OUT HYDRAULIC SYSTEM
 COOLANT SYSTEM

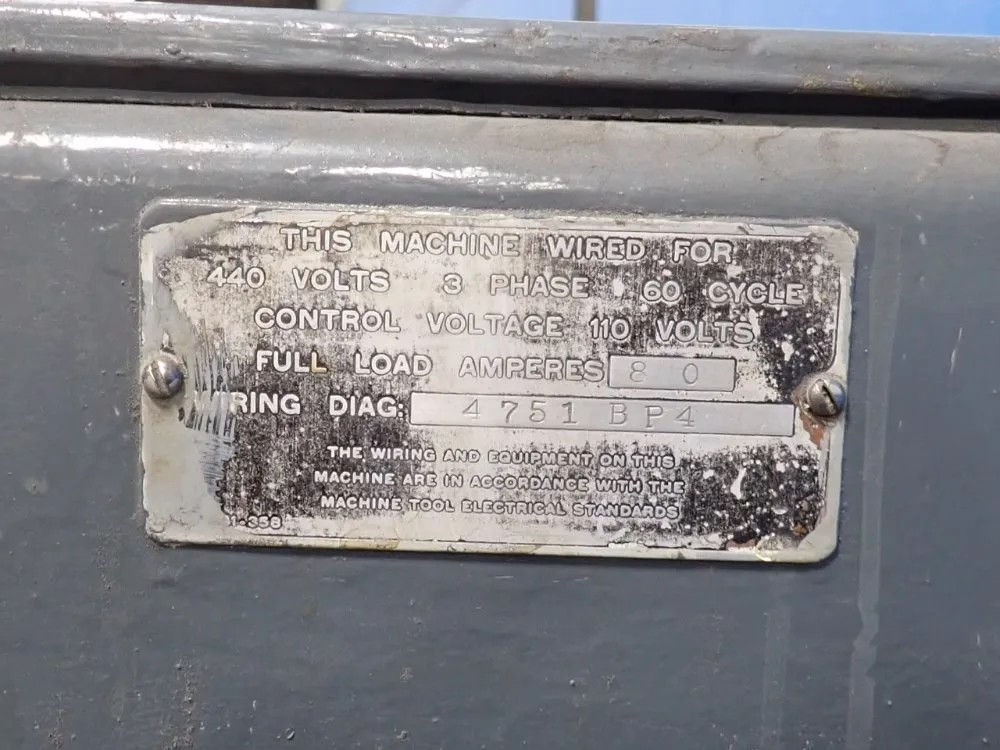

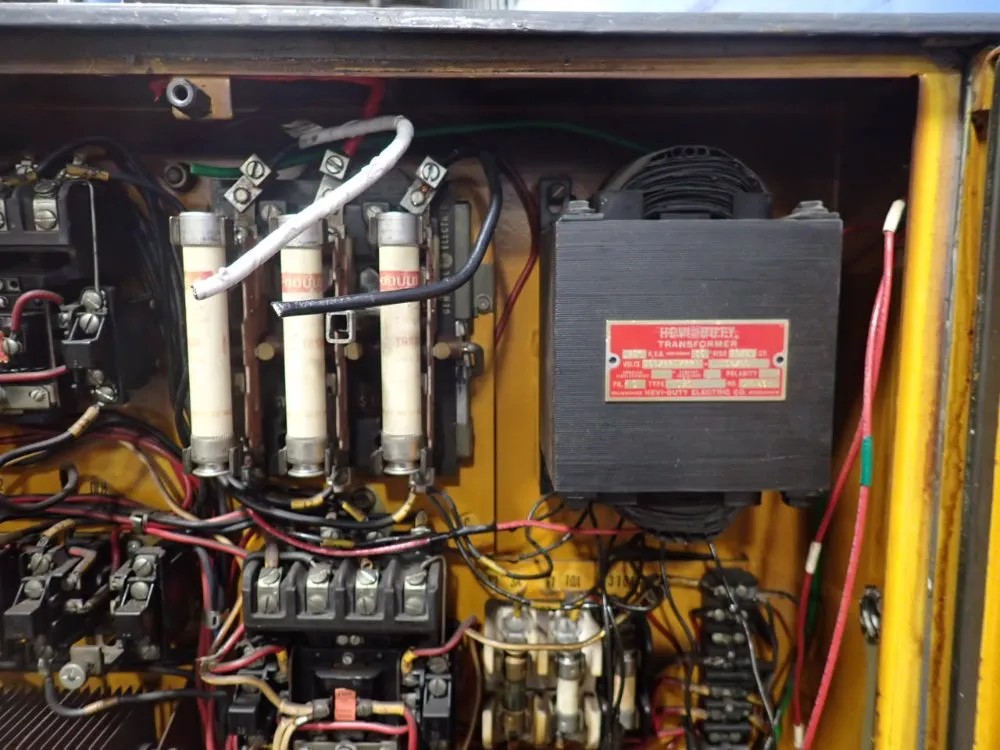

 3/60/220-440 VOLT MOTORS


* EXCELLENT CONDITION & APPEARANCE - VERY CLEAN MACHINE TOOL *
