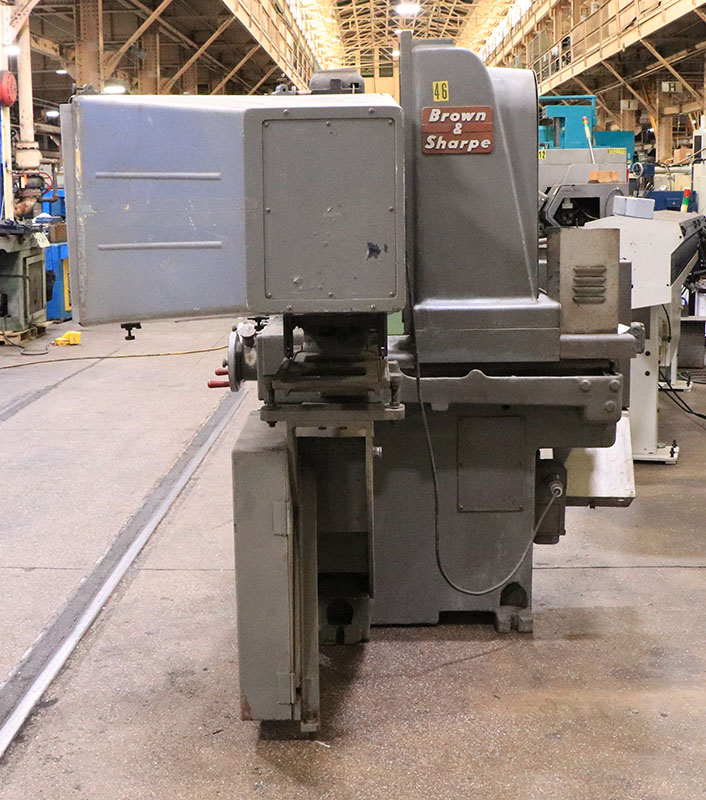

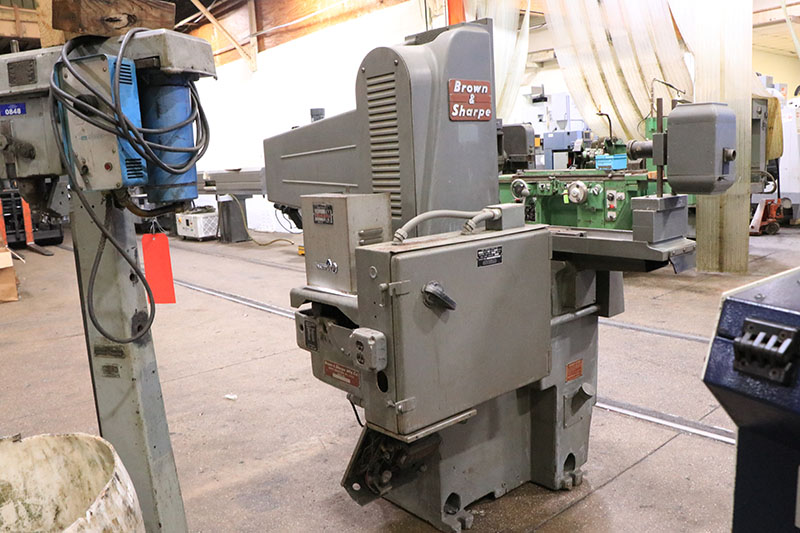

Brown & Sharpe 618 MICROMASTER VISUAL-TYPE SURFACE GRINDERS

Price on Request

Make:

Brown & Sharpe

Model:

618 MICROMASTER

Year:

1968

Ref #:

151489

Get a quote

Get financing

Or call us for a quote at (973) 497-7500 or send us an email at grinders@machineryvalues.com

---

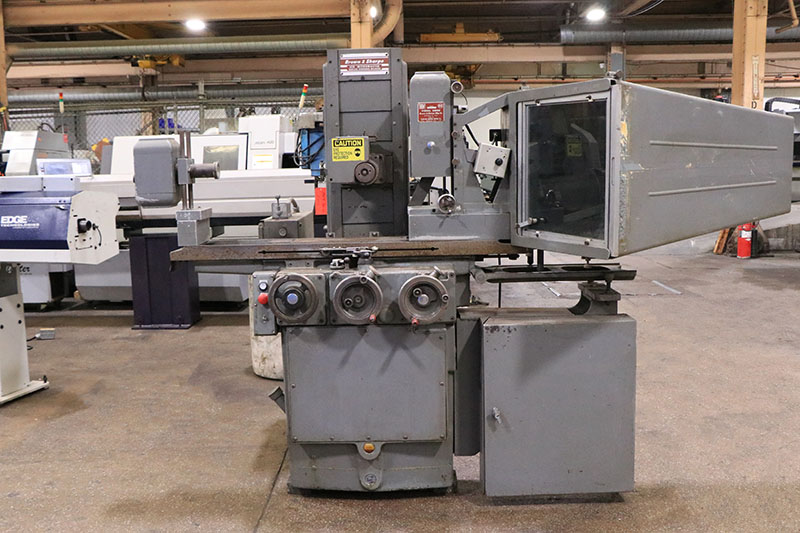

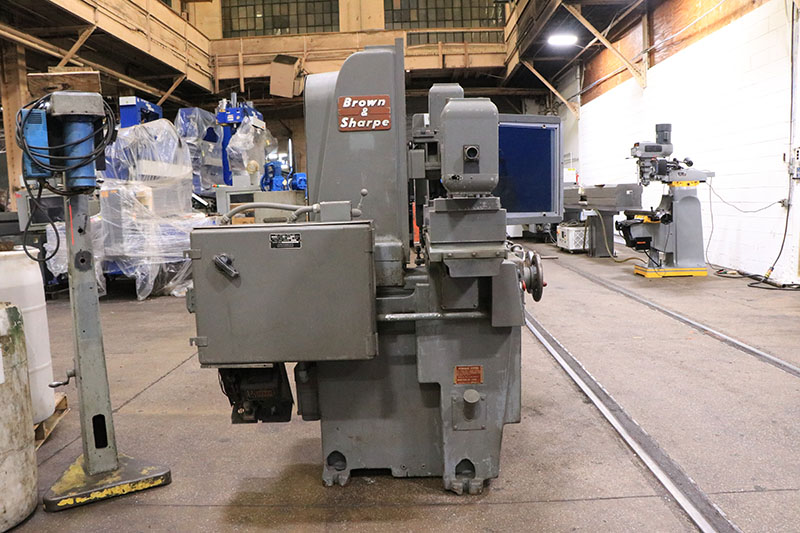

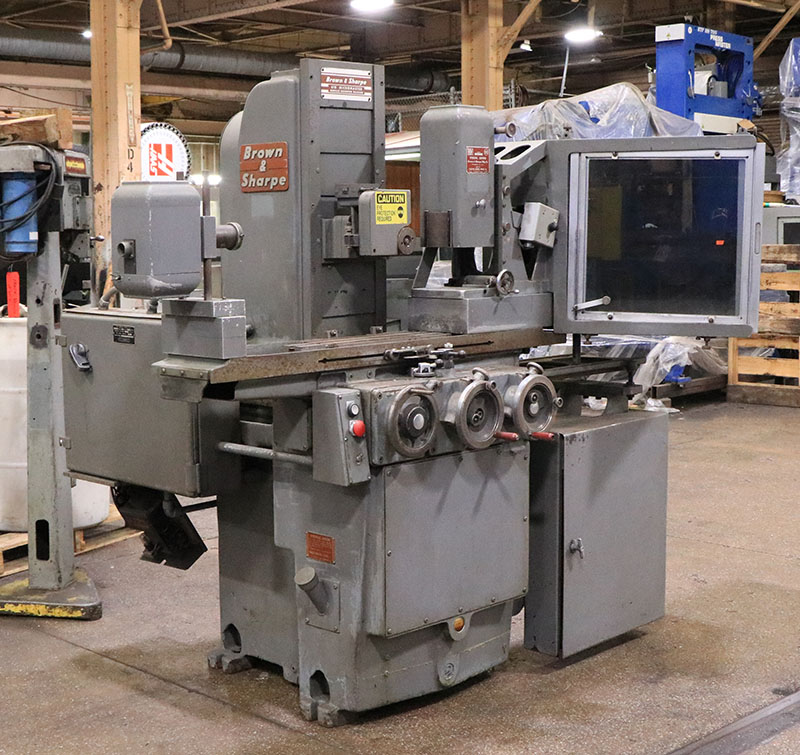

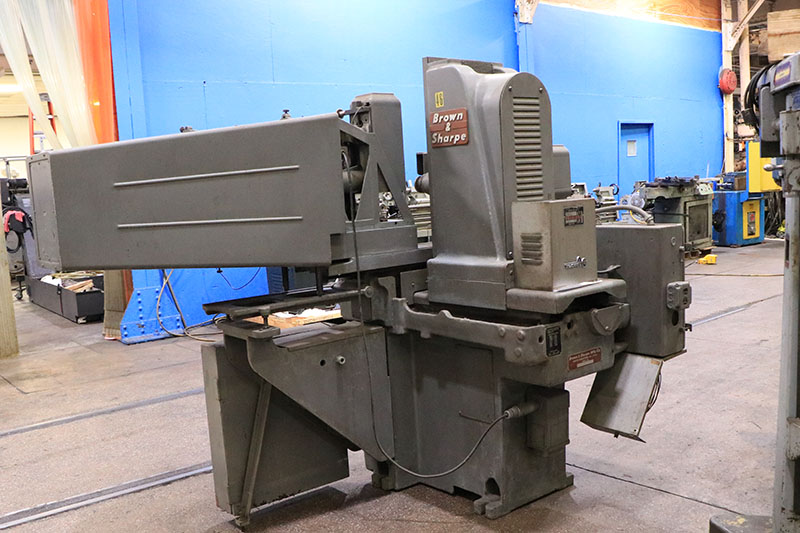

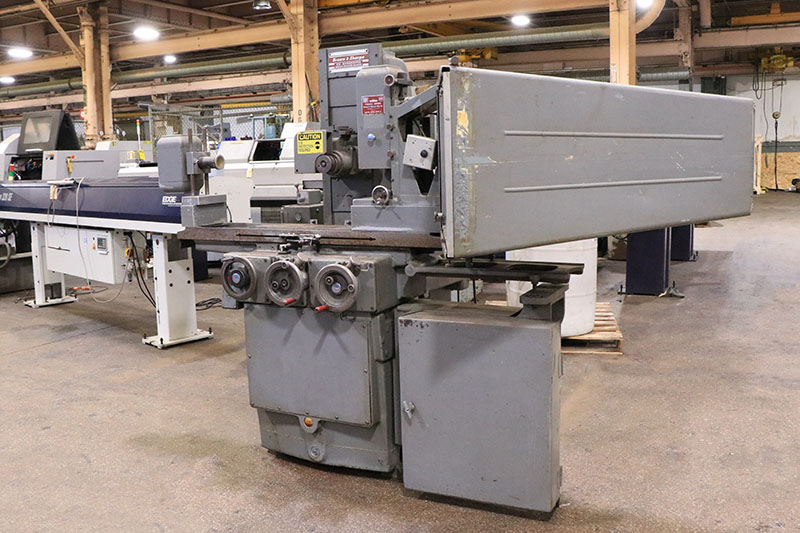

6" X 18" BROWN & SHARPE 'VISUAL GRIND" SURFACE GRINDER

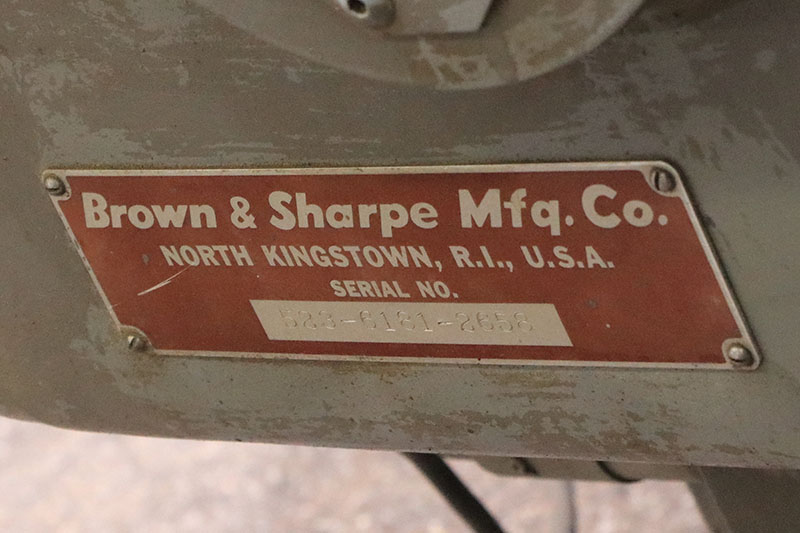

S/N: 523-6181-2658      NEW: 1966



WIDTH AND LENGTH GROUND ...................... 6" X 18"

HEIGHT OF WORK GROUND WITH 8" WHEEL ............... 15"

GRINDING WHEEL SIZE ................ 8" X 1/2" X 1-1/4"

MAXIMUM LONGITUDINAL TRAVEL ....................... 22"

CROSS FEED TRAVEL .................................. 7"

CROSS HANDWHEEL, GRADUATED TO READ TO ......... 0.0002"

CROSS FINE FEED KNOB, GRADUATED TO READ TO .... 0.0001"

VERTICAL TRAVEL OF SPINDLE .................... 15-3/4"

VERTICAL MOVEMENT OF SPINDLE PER HANDWHEEL REV... 0.05"

VERTICAL HANDWHEEL, GRADUATED TO READ TO ...... 0.0002"

VERTICAL FINE FEED KNOB, GRADUATED TO READ TO . 0.0001"

APPROXIMATE MACHINE WEIGHT .................. 4,000 LBS

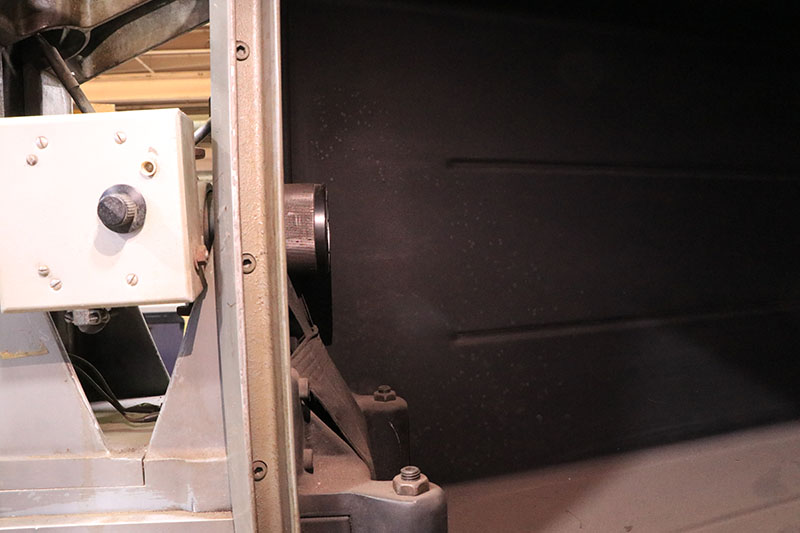

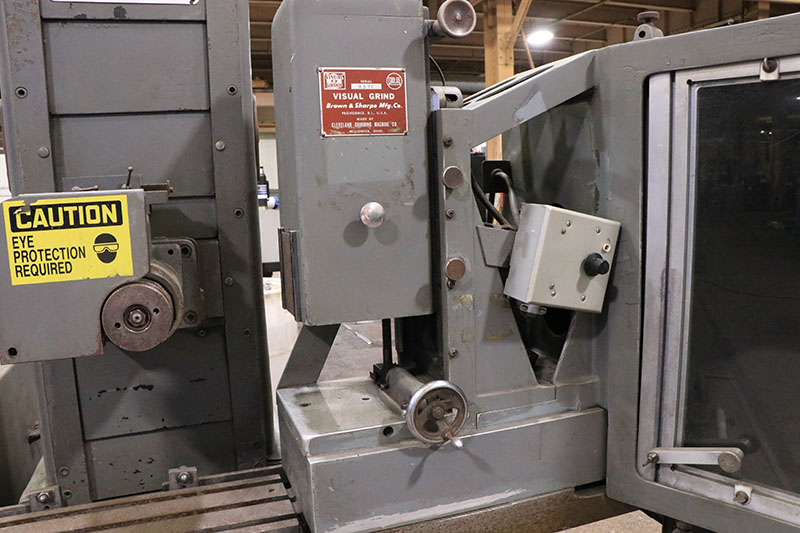

  B& S "VISUAL GRIND" SYSTEM

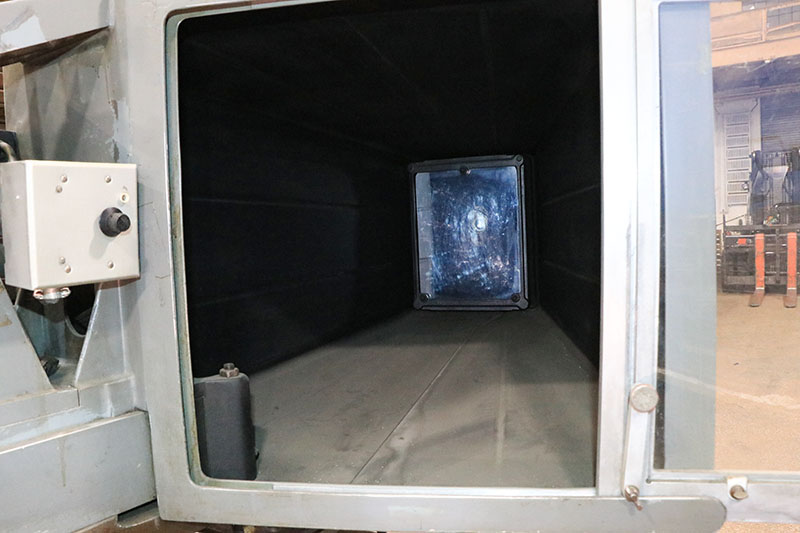

-TRUE IMAGE OPTICAL PROJECTION SYSTEM

-VISUAL CONTROL OVER ALL GRINDING OPERATIONS

-WATCH QUALITY CONTROL IN PROGRESS

-GRIND TO ANY DRAWING ON THE SCREEN OR EVEN THE WORKPIECE

  ITSELF.

-STANDARD SQUARE CHART ASSEMBLY

-VARIABLE LIGHT INTENSITY CONTROL

-10X LENS



  EQUIPPED WITH:

HAND FEEDS

FINE FEED KNOBS FOR CROSS & VERTICAL FEEDS (.0001" GRAD.)

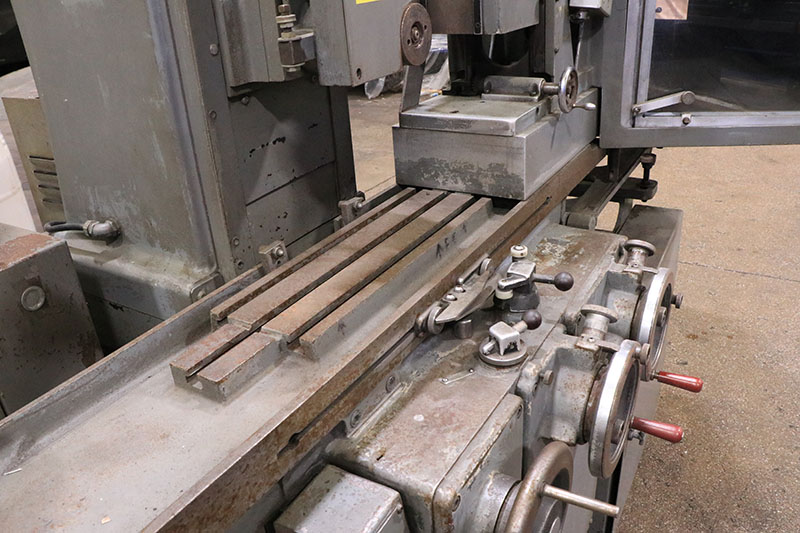

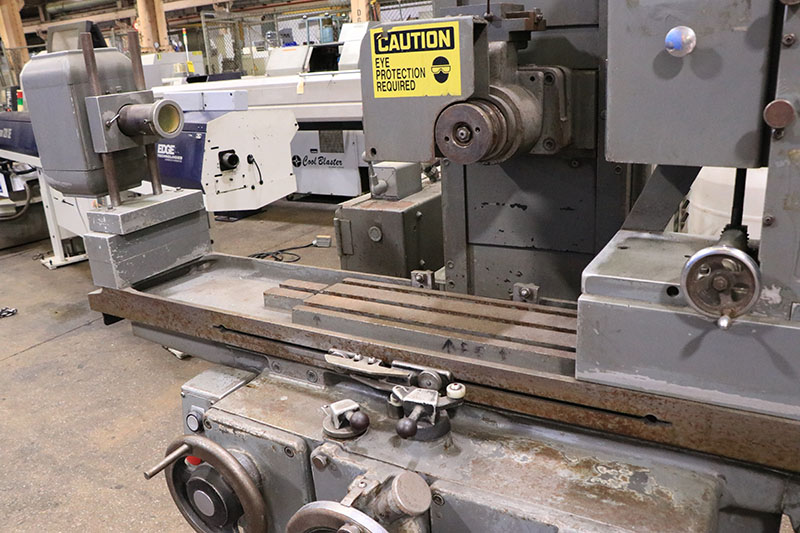

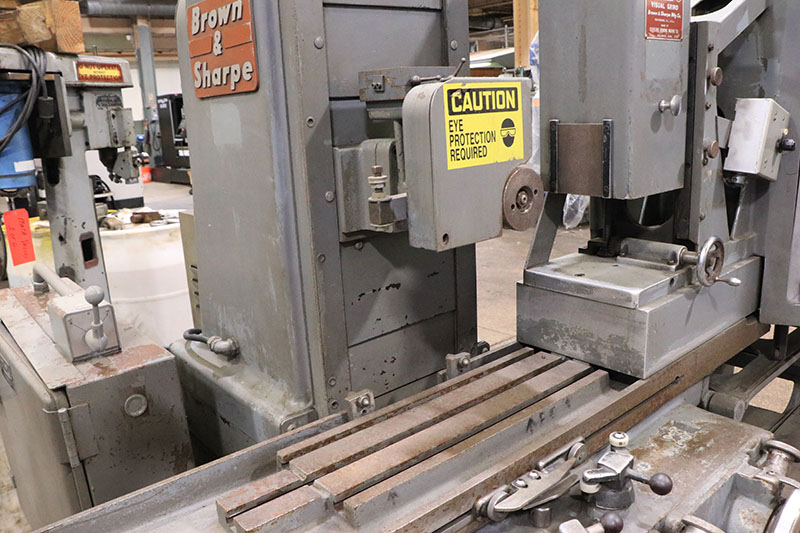

FORM GRINDING UNIT ON TABLE

SET-UP FOR DRY FRINDING

B & S "SUPER-PRECISION" SPINDLE

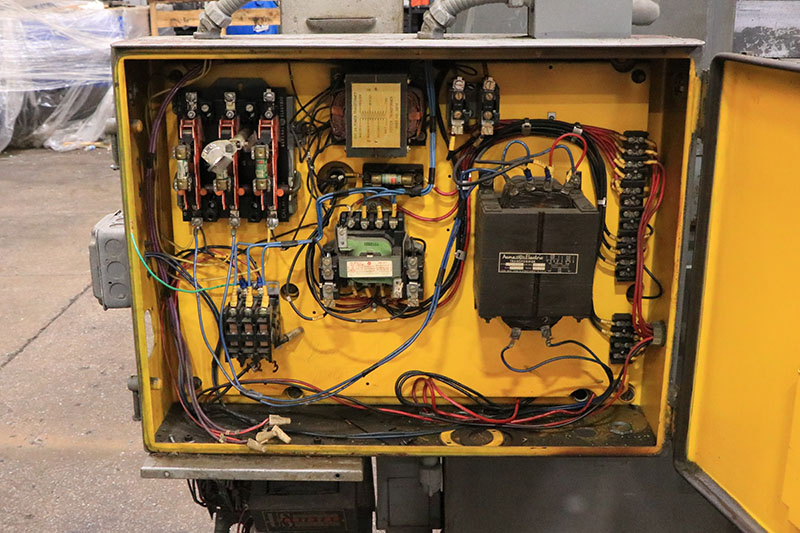

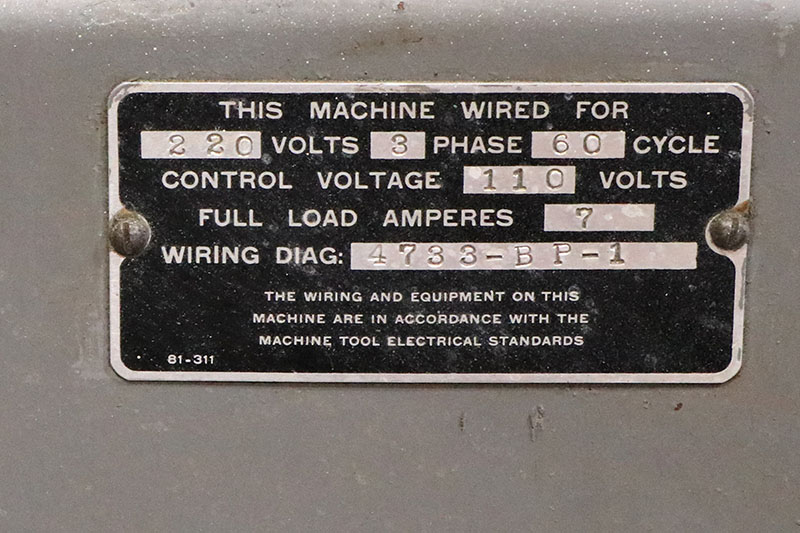

3/60/220-440 VOLT ELECTRICS





SPECIAL NOTE:

MACHINE WAS USED WITH A "OPTI-DRESS" MODEL "E" WHEEL FORMING

 UNIT, IT HAS BEEN SOLD SEPARATELY FROM THE MACHINE.



** VERY GOOD CONDITION& APPEARANCE  - ORIGINAL PAINT **

** INSPECT UNDER POWER IN OUR HARRISON, N.J. WAREHOUSE **
