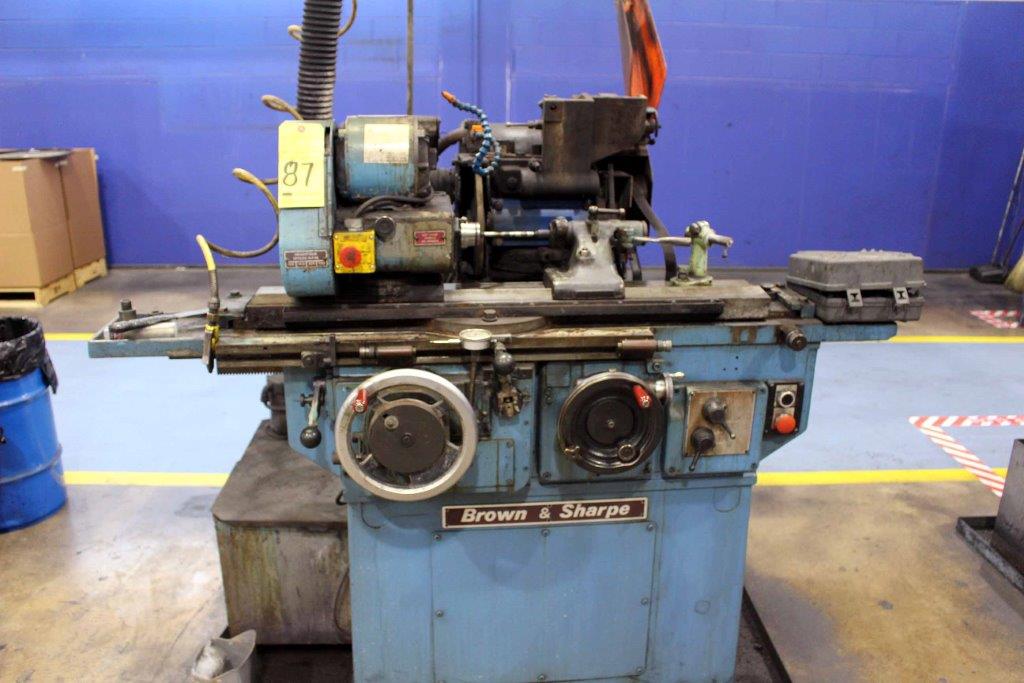

Brown & Sharpe 814U UNIVERSAL CYLINDRICAL GRINDERS

Price on Request

Make:: Brown & Sharpe

Model:: 814U

Year:: 1981

Ref #:: 155642

Or call us for a quote at (973) 497-7500 or send us an email at grinders@machineryvalues.com

    BROWN & SHARPE "PRECISION"
UNIVERSAL O.D./I.D. CYLINDRICAL GRINDER



MODEL:  814U VALUEMASTER
S/N: 525-8144-2971
NEW: 1981


  CAPACITY:
- GRINDS WORK UP TO ..................... 8" DIAMETER
- GRINDS LENGTH ......................... 14"
- DISTANCE BETWEEN CENTERS .............. 24"

  WHEELHEAD:
- GRINDING WHEEL SIZE ......... 10", 7" OR 5" DIAMETER
- GRINDING WHEEL SPEEDS (3) ... 2730, 3600 & 5150 RPM
- WHEELHEAD TRAVEL ...................... 8-3/8"
- WHEELHEAD SWIVELS, LEFT & RIGHT ....... 110°

  SWIVEL TABLE:
- ANGULAR SETTING TO LEFT & RIGHT ....... 90°
- FINE SCREW ADJ. FOR SETTING TAPERS
    UP TO ............................... 3" PER FT.
- TABLE TRAVEL .......................... 22"
- TRAVEL PER REV. OF HANDWHEEL .......... 1/4" SLOW
                                          6-1/4" FAST

  HEADSTOCK:
- SWIVELS LEFT & RIGHT ................. 100 DEGREES
- SPINDLE SPEEDS (4) ................... 128 TO 540 RPM

- APPROX. FLOOR SPACE ............... 68" x 55" x 65"H
- APPROX. WEIGHT ....................... 2,900 LBS.

EQUIPPED WITH:

SWING DOWN I.D. GRINDING ATTACHMENT WITH SPINDLE
POWER TABLE TRAVERSE (OPTION)
HAS ADDITIONAL TABLE SWIVEL FEATURE, FROM THE CENTER,
 FOR LARGE ADJUSTMENT OF 90°
DOUBLE ENDED WHEEL SPINDLE, LEFT & RIGHT
PRESENTLY SET-UP WITH 10" O.D. GRINDING WHEEL
MACHINE CAN BE USED WITH 10", 7" OR 5" DIA. WHEELS
DUAL LIVE/DEAD HEADSTOCK SPINDLE
FINE CROSS FEED KNOB (.0001" ON WORK DIA.)
ANTI-FRICTION BEARING WHEELHEAD SPINDLE
TABLE MOUNTED WHEEL DRESSER
COOLANT PUMP & PIPING
1 H.P. 3/60/230-460 VOLT WHEELHEAD MOTOR
1/6 H.P. WORKHEAD MOTOR
MACHINE IS PRESENTLY WIRED FOR 460 VOLTS



  ** EXCELLENT CONDITION & APPEARANCE **
** INSPECT UNDER POWER IN OUR HARRISON, N.J. WAREHOUSE **
