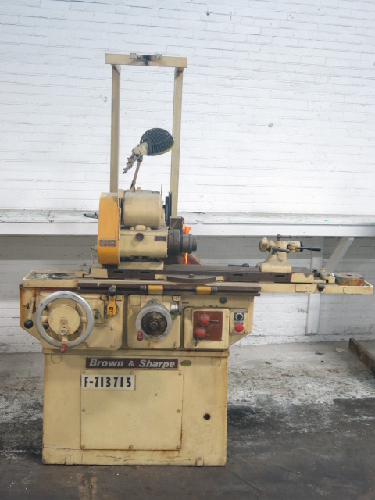

Brown & Sharpe 814U VALUEMASTER UNIVERSAL CYLINDRICAL GRINDERS

Price on Request

Make:: Brown & Sharpe

Model:: 814U VALUEMASTER

Year:: 1980

Ref #:: 154081

Or call us for a quote at (973) 497-7500 or send us an email at grinders@machineryvalues.com

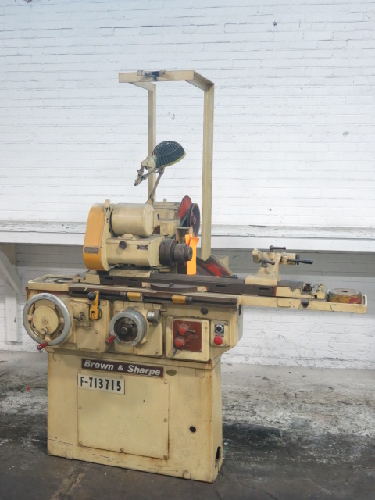

  8" x 14" BROWN & SHARPE "PRECISION" "MADE IN USA"
 UNIVERSAL CYLINDRICAL GRINDER



MODEL:  814U VALUEMASTER   S/N: 525-8144-2699    NEW: 1980

 CAPACITY:
- GRINDS WORK UP TO ..................... 8" DIAMETER
- GRINDS LENGTH ......................... 14"
- DISTANCE BETWEEN CENTERS .............. 24"

  WHEELHEAD:
- GRINDING WHEEL SIZE ................... 5", 7" OR 10" DIAMETER
- GRINDING WHEEL SPEEDS (3) ............. 2730, 3600 & 5150 RPM
- WHEELHEAD TRAVEL ...................... 8-3/8"
- WHEELHEAD SWIVELS, LEFT & RIGHT ....... 110 DEGREES

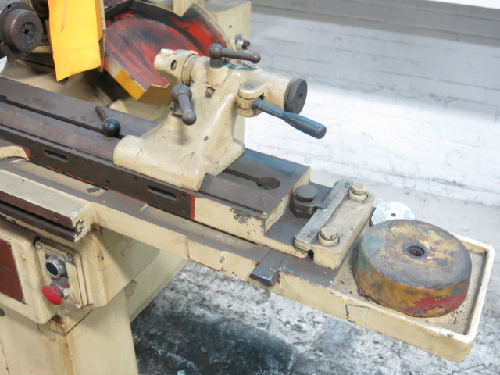

  SWIVEL TABLE:
- ANGULAR SETTING TO LEFT & RIGHT ........ 90 DEGREES
- FINE SCREW ADJ. FOR SETTING TAPERS UP TO 3" PER FT.
- TABLE TRAVEL ........................... 22"
- TRAVEL PER REV. OF HANDWHEEL ........... 1/4" SLOW
                                           6-1/4" FAST
- POWER TABLE, (6) TABLE SPEEDS FROM ..... 7 -3/4" TO 100" IPM

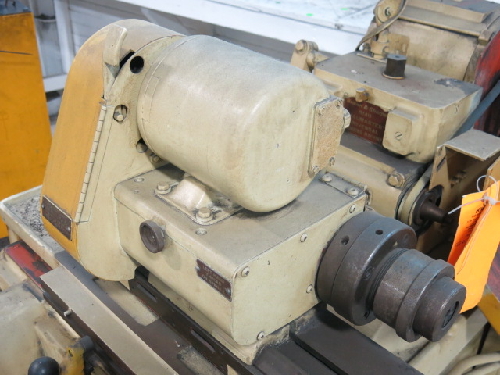

  HEADSTOCK:
- SWIVELS LEFT & RIGHT .................. 100 DEGREES
- SPINDLE SPEEDS (4) .................... 128 TO 540 RPM

- APPROXIMATE WEIGHT: ................... 2,900 LBS.
- APPROX. DIMENSIONS .................... 65" x 55"D x 55"H

  EQUIPPED WITH:
POWER TABLE TRAVERSE FEATURE
DOUBLE ENDED WHEEL SPINDLE, WHEELS CAN BE ON L.H. OR R.H.
CURRENTLY SET-UP WITH 7" GRINDING WHEEL .... MACHINE CAN
  ALSO BE USED WITH 5" OR 10" DIAMETER GRINDING WHEELS

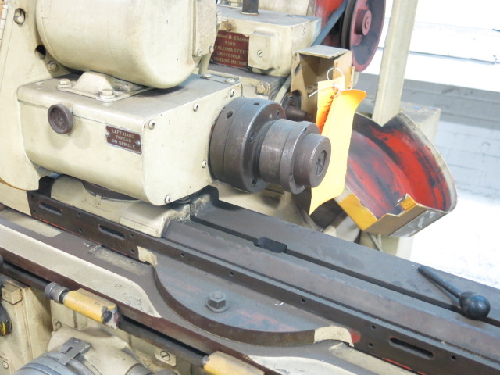

DUAL LIVE/DEAD HEADSTOCK SPINDLE
COLLET ATTACHMENT WITH ONE COLLET
FINE CROSS FEED KNOB (.0001" ON WORK DIA.)

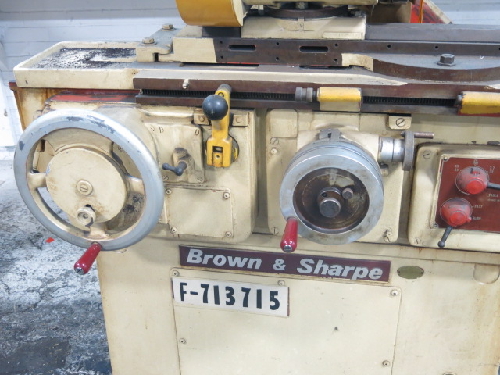

VERTICAL HANDWHEEL GRADUATED TO READ .0005"
ANTI-FRICTION BEARING WHEELHEAD SPINDLE

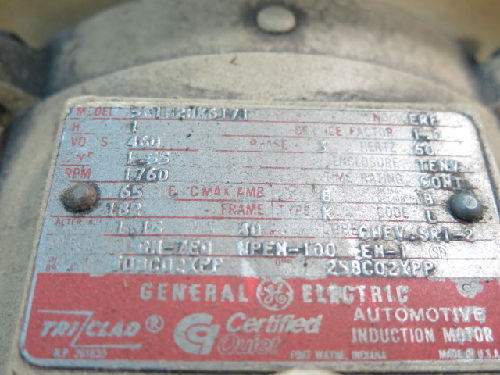

  1 H.P. 3/60/230-460 VOLT WHEELHEAD MOTOR
1/6 H.P. WORKHEAD MOTOR

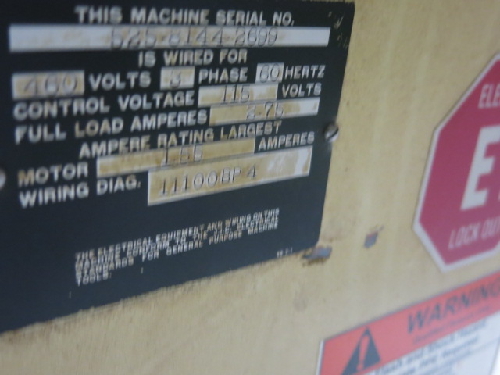

MACHINE IS PRESENTLY WIRED FOR 460 VOLTS

  ** EXCELLENT CONDITION& APPEARANCE **
** INSPECT UNDER POWER IN OUR HARRISON, N.J. WAREHOUSE **
