Bullard 54" CUTMASTER,Ram, Turret & Side Head, 4-Jaw VERTICAL BORING MILLS & VERTICAL TURRET LATHES

$69,500

Make:: Bullard

Model:: 54" CUTMASTER,Ram, Turret & Side Head, 4-Jaw

Year:

Ref #:: 179573

Or call us for a quote at (973) 497-7500 or send us an email at boringmills@machineryvalues.com

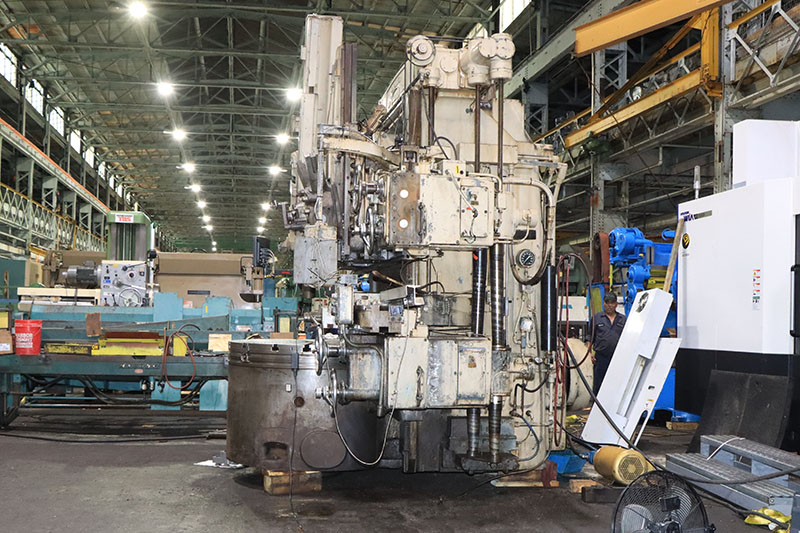

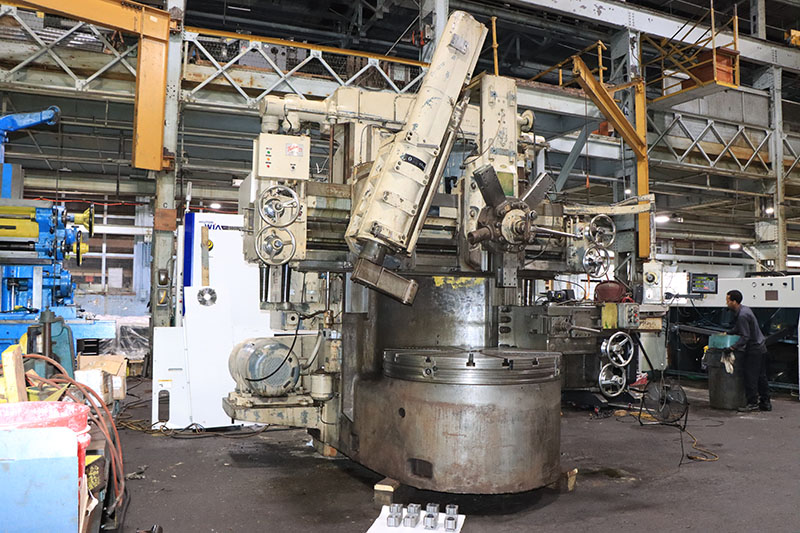

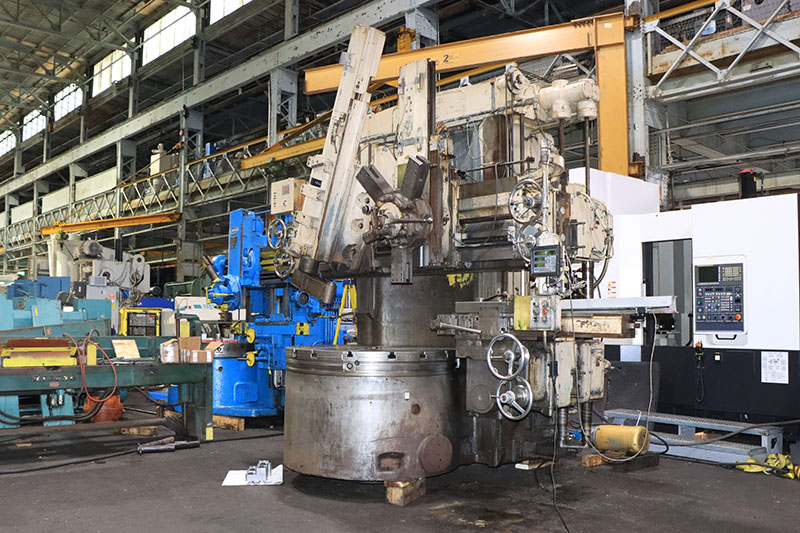

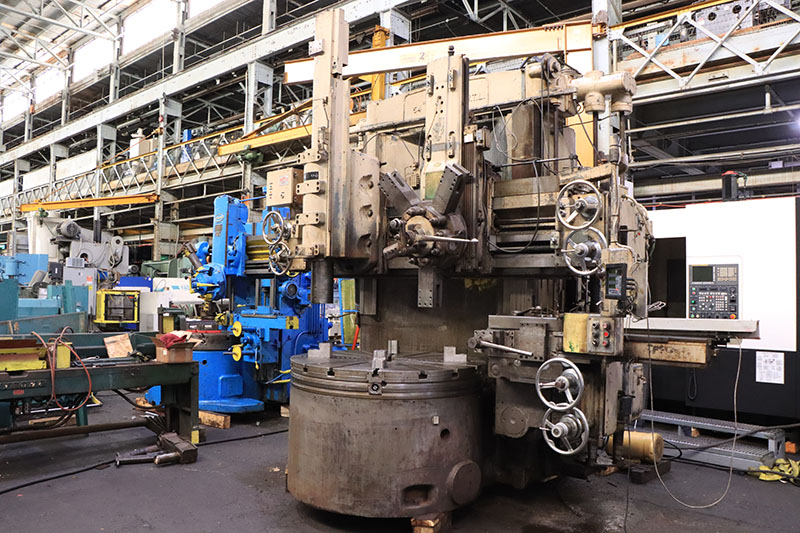

54" BULLARD VERTICAL BORING MILL

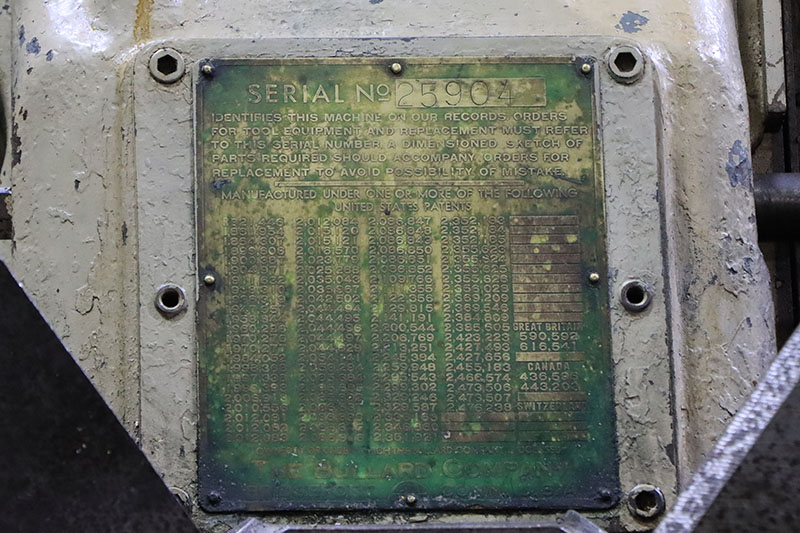

MODEL: 54" CUTMASTER,  S/N: 25904

SPECIFICATIONS
CHUCK DIAMETER.......................... 54"
MAXIMUM SWING WITH SIDE HEAD UP......... 58"
MAXIMUM SWING WITH SIDE HEAD DOWN....... 62"
MAXIMUM HEIGHT UNDER RAIL............... 44"
SPEED RANGE (20 SPEEDS)................. 3.3 TO 120 RPM
TABLE MOTOR............................. 30 HP
FEEDS (16 FEEDS)........................ .003 TO .500 IPR
VERTICAL TRAVEL OF TURRET............... 30-3/8"
SWIVEL OF TURRET........................ 30 DEG LEFT & RIGHT
VERTICAL TRAVEL OF THE RAM HEAD ........ 41"
SWIVEL OF RAM .......................... 30 DEG LEFT & RIGHT
HORIZONTAL TRAVEL OF SIDE HEAD ......... 27"
VERTICAL TRAVEL OF SIDE HEAD............ 44-1/4"
APPROXIMATE FLOOR SPACE................. 115" x 136" x 124"
HEIGHT WITH RAIL AND TURRET UP.......... 152"
APPROXIMATE WEIGHT ..................... 54,000 LBS

EQUIPPED WITH:

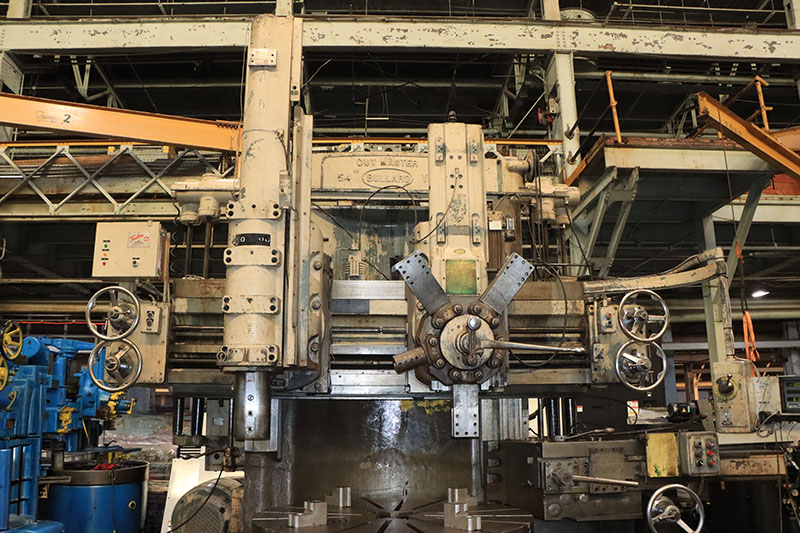

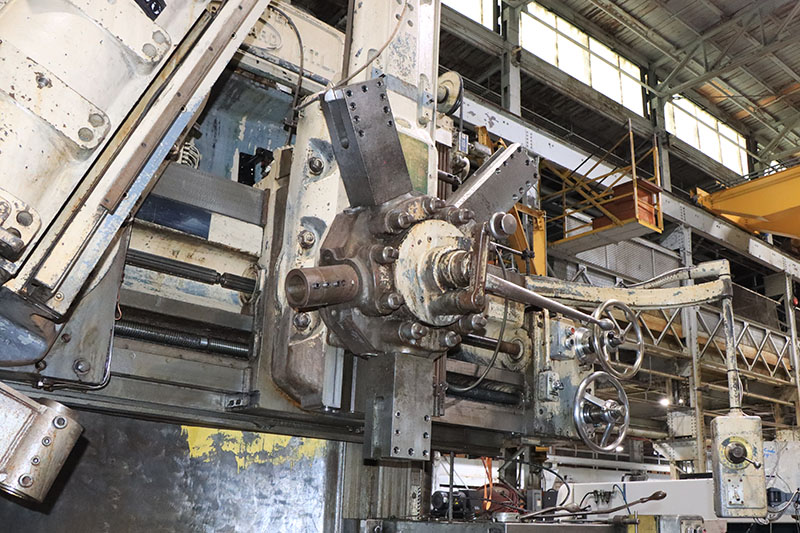

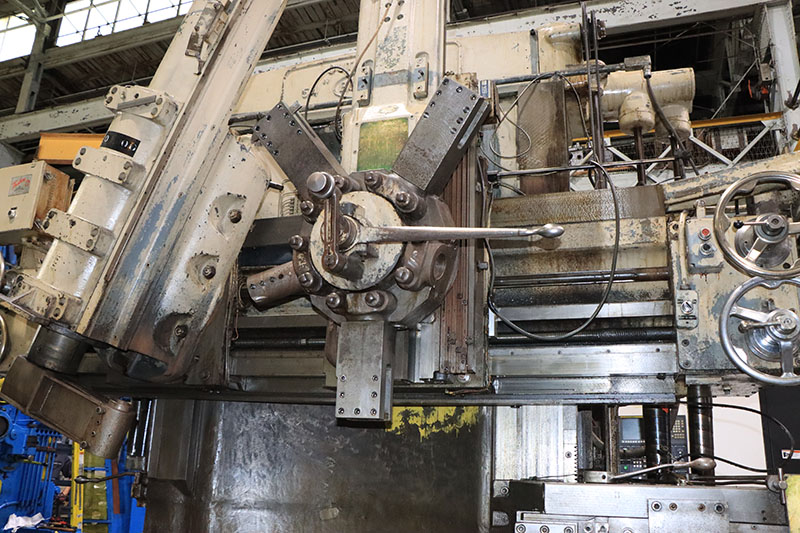

* 5-SIDED R.H. TURRET

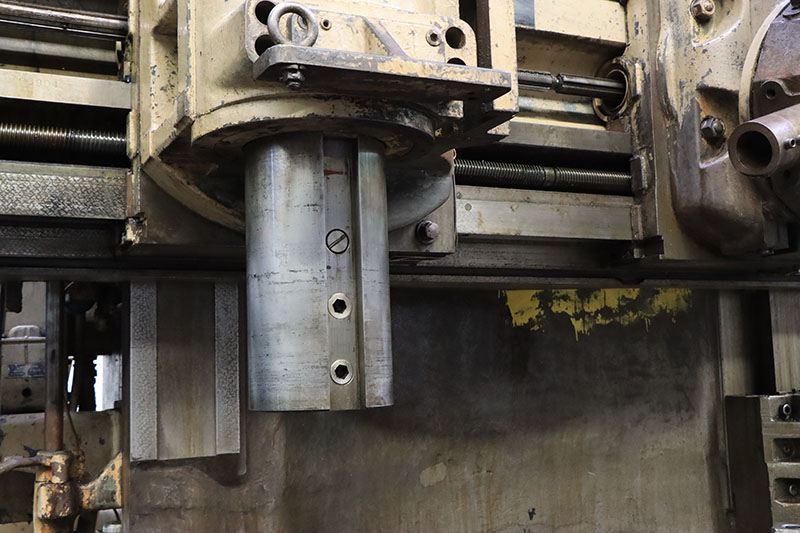

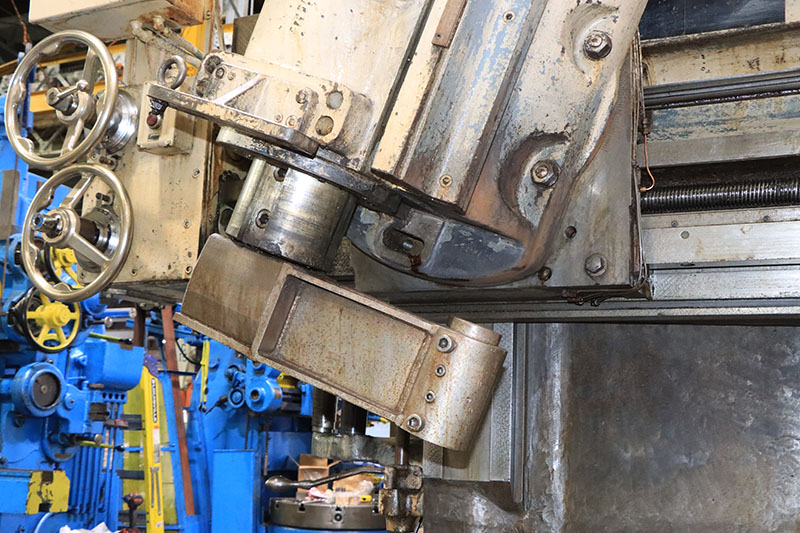

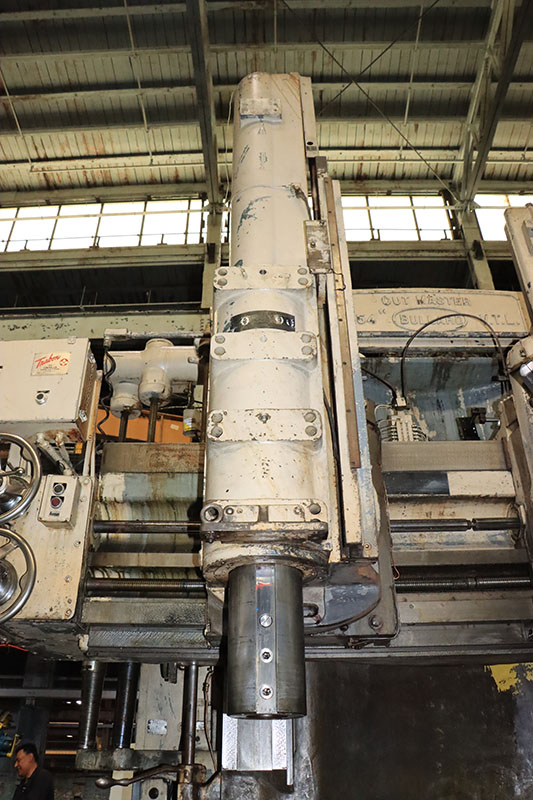

* L.H. LONG CYLINDER SWIVELING RAM HEAD

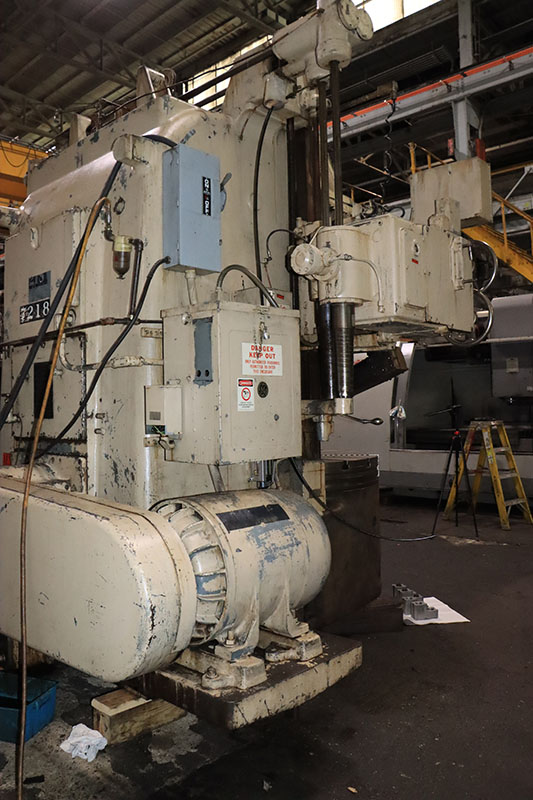

* SIDE HEAD
* ELEVATING RAIL

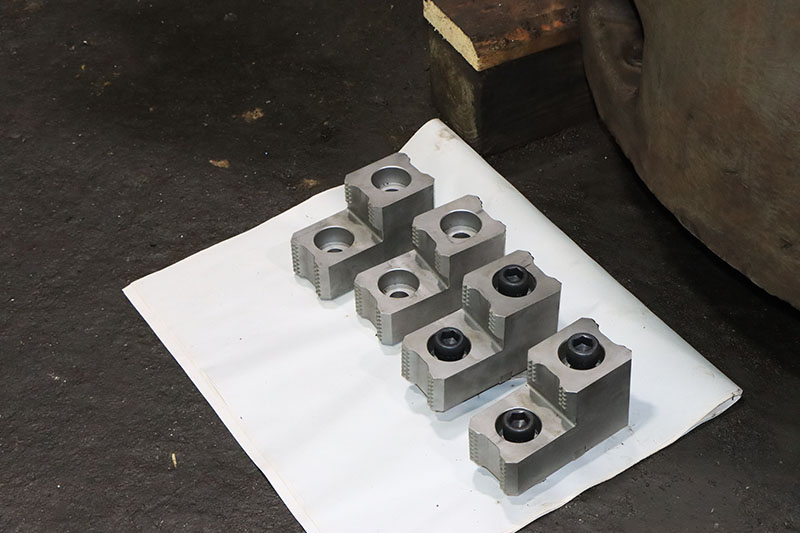

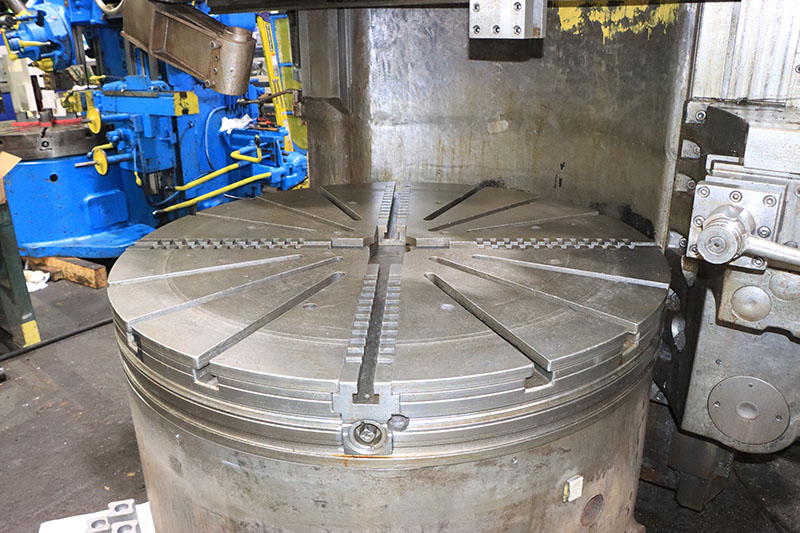

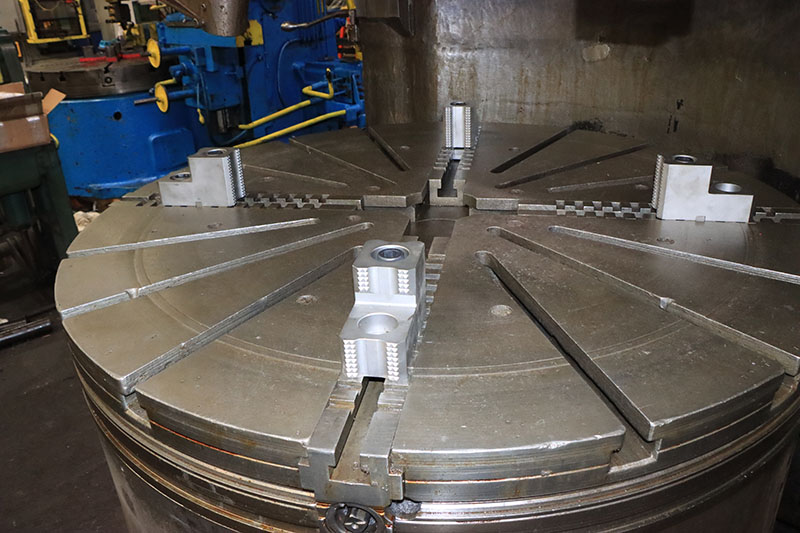

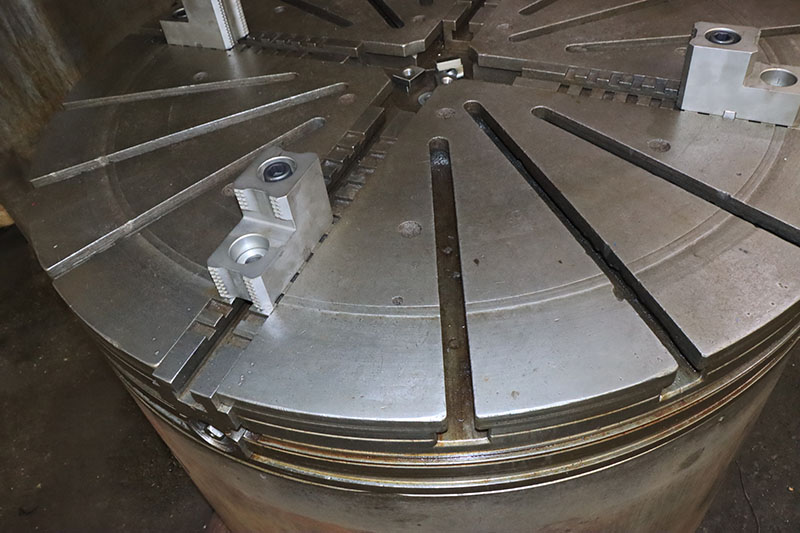

* 4-JAW INDEPENDANT CHUCK

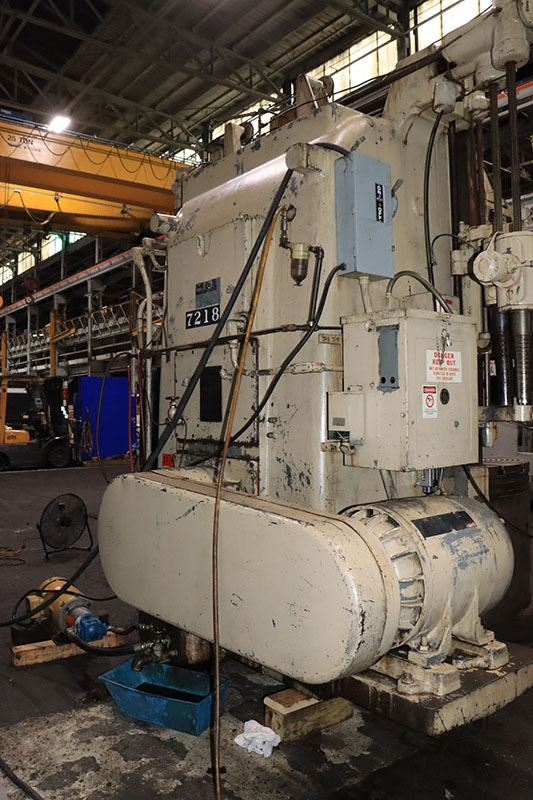

* 30 HORSE POWER MAIN DRIVE MOTOR

INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE
