BURKE NO. 4 HORIZONTAL MILLING MACHINES w/ PLAIN TABLE

$2,750

Make:: BURKE

Model:: NO. 4

Year:: 1995

Ref #:: 178549

Or call us for a quote at (973) 497-7500 or send us an email at boringmills@machineryvalues.com

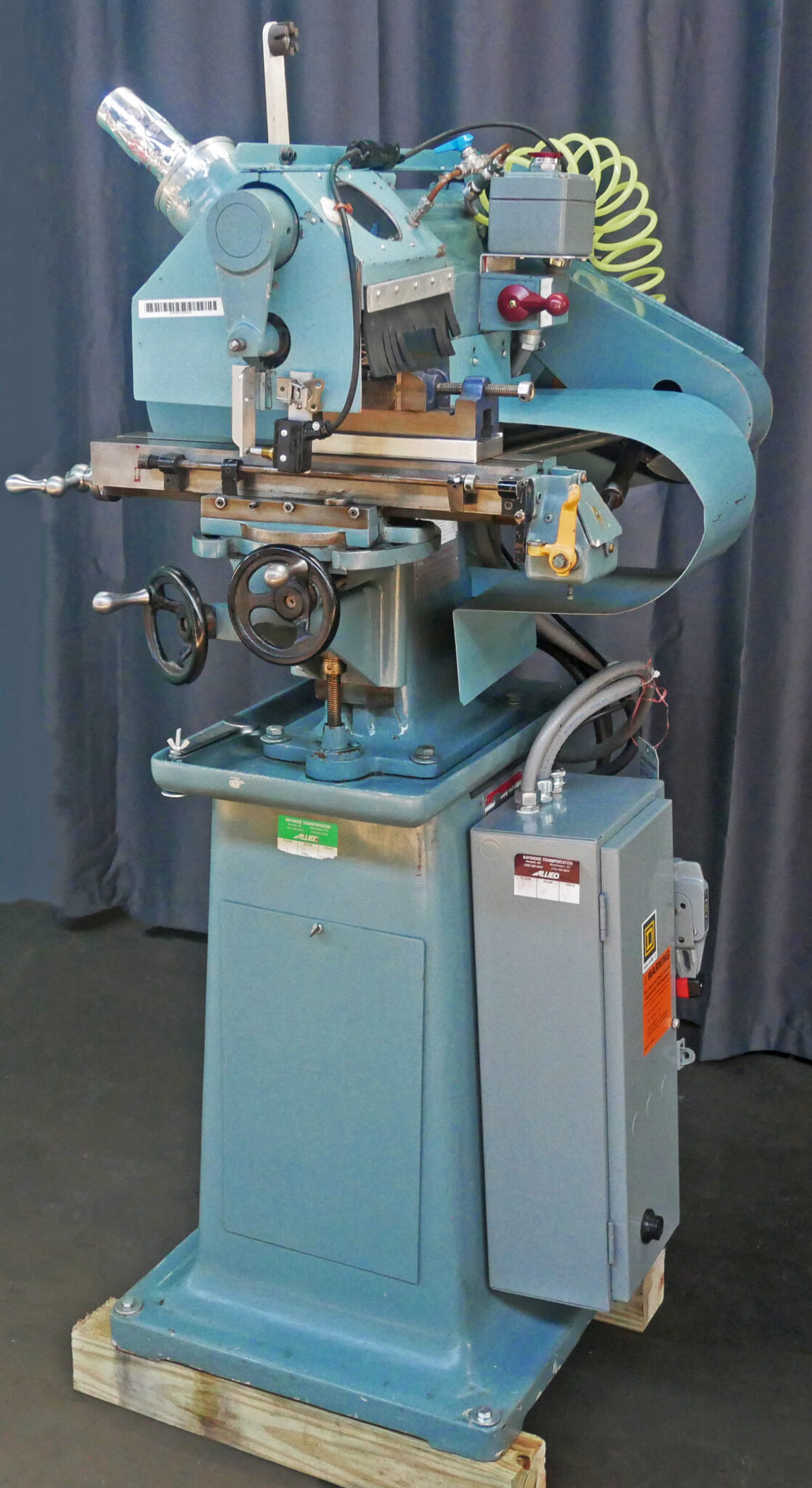

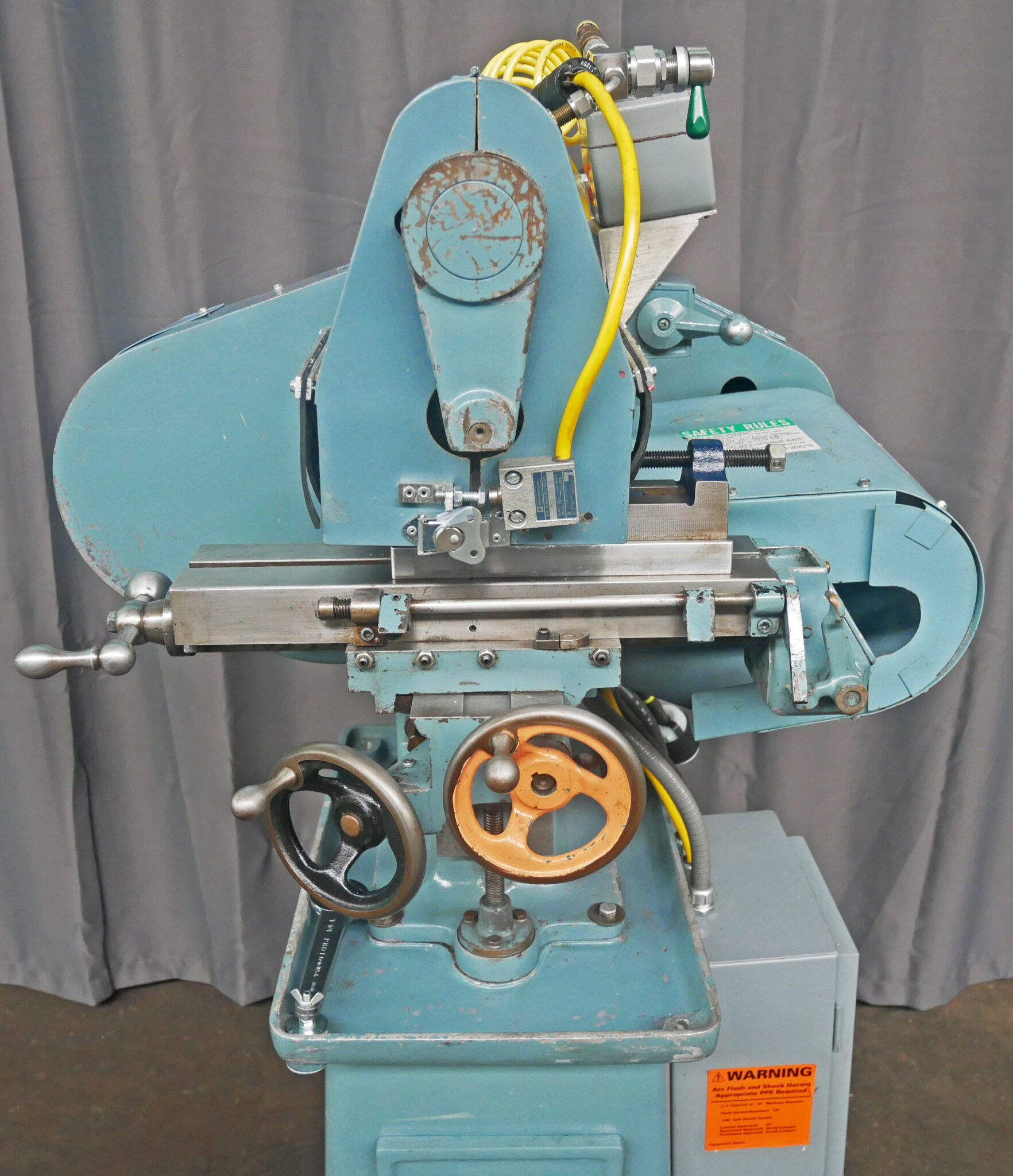

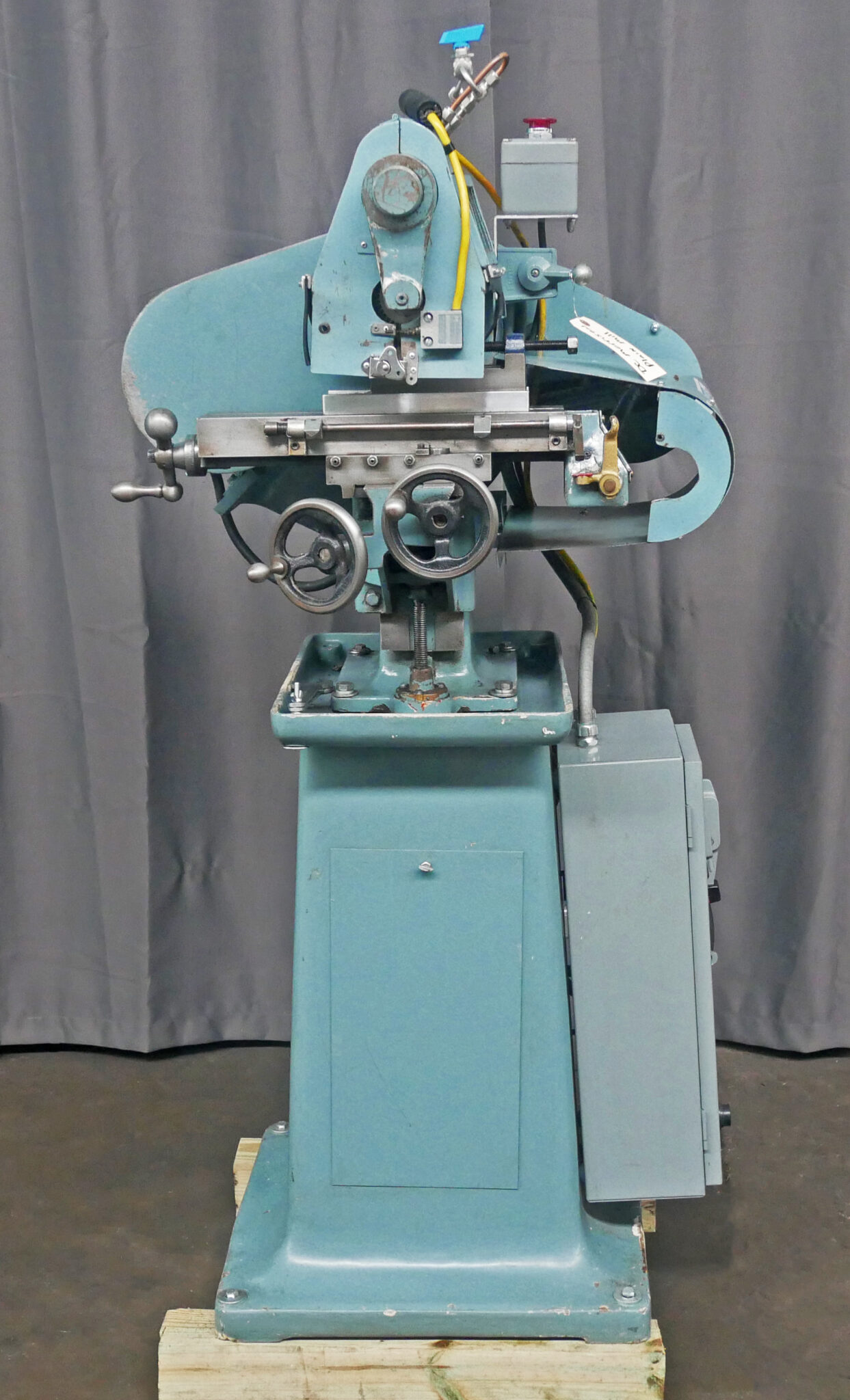

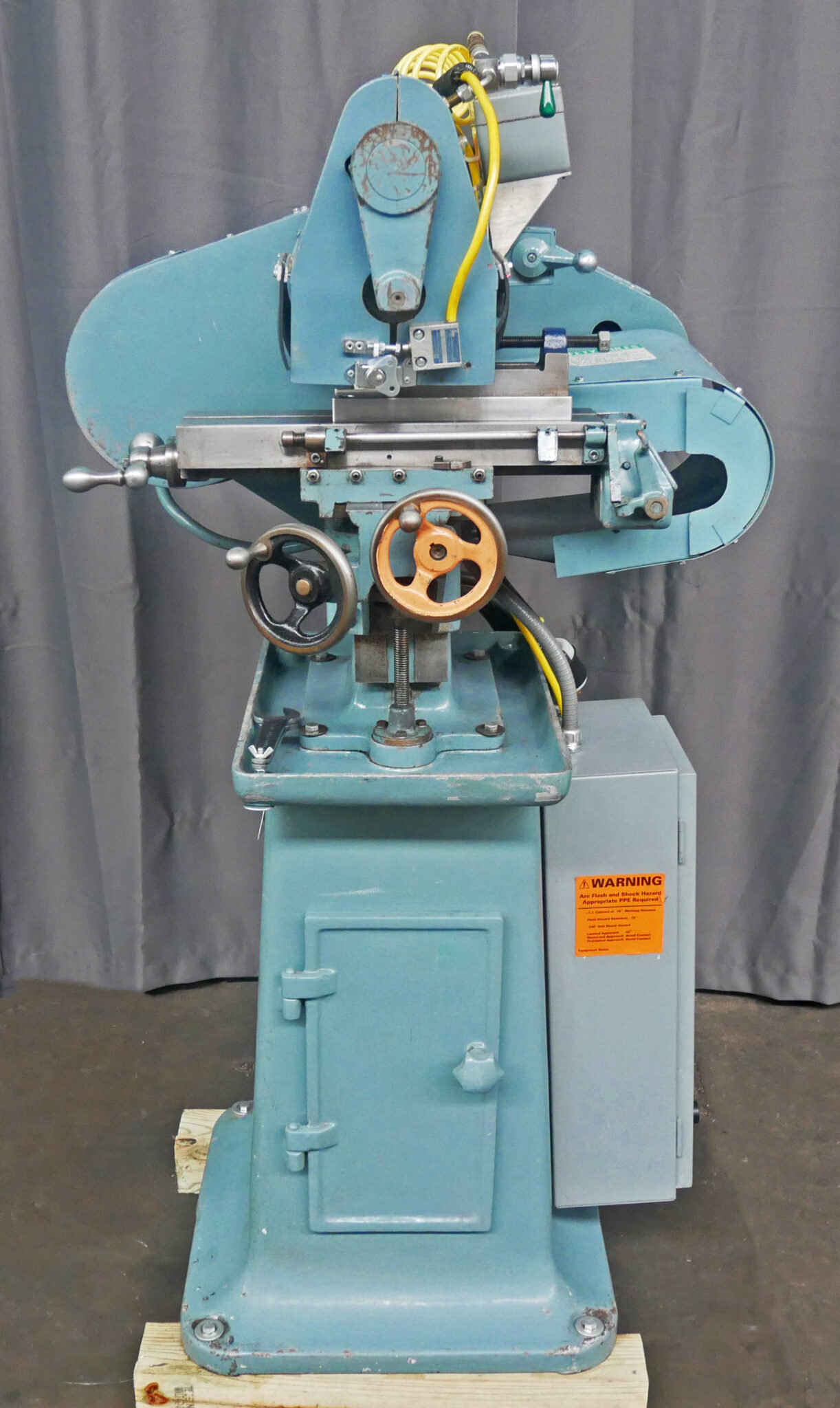

D.C. MORRISON / BURKE NO. 4 PLAIN MILLING MACHINE
MODEL: NO. 4, S/N: B-9541-M,  MFG: 1995

SPECIFICATIONS:
WORKING SURFACE OF TABLE: ...... 3 3/4" X 16"
LONGITUDINAL FEED: ............. 8"
TRAVERSE FEED: ................. 3"
VERTICAL FEED: ................. 8"
MAX. DISTANCE BETWEEN CENTER
-OF SPINDLE AND TABLE: ......... 8"
WIDTH OF T-SLOT: ............... 1/2"
SPINDLE TAPER: ................. BS #9
SPINDLE SPEEDS: (3) ............ 66 - 2,875 RPM
MOTOR: ......................... 1/2 HP / 208-230V, 460V / 3PH

EQUIPMENT INCLUDED:
BALDOR 1/2 HP, 3PH MOTOR

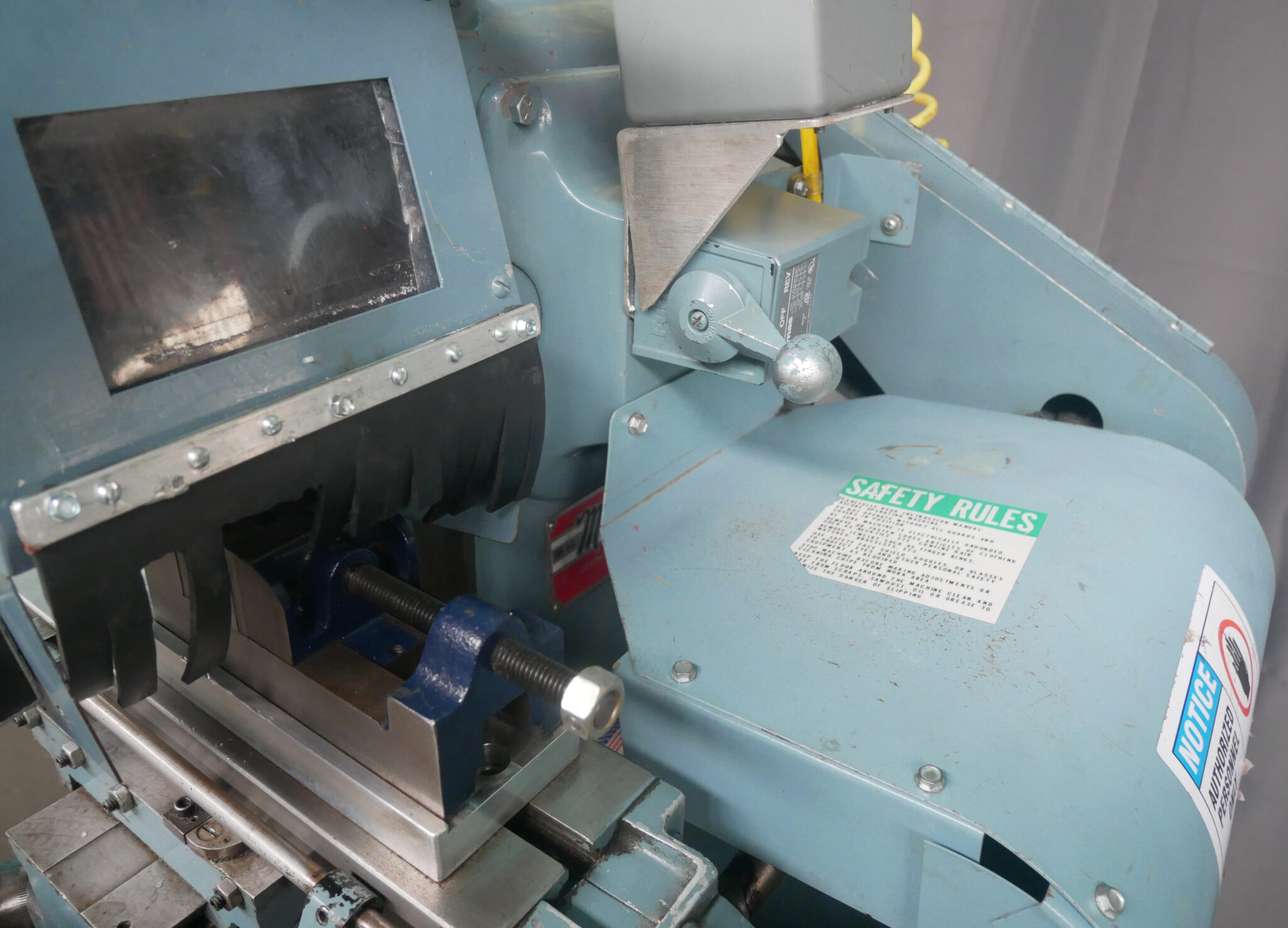

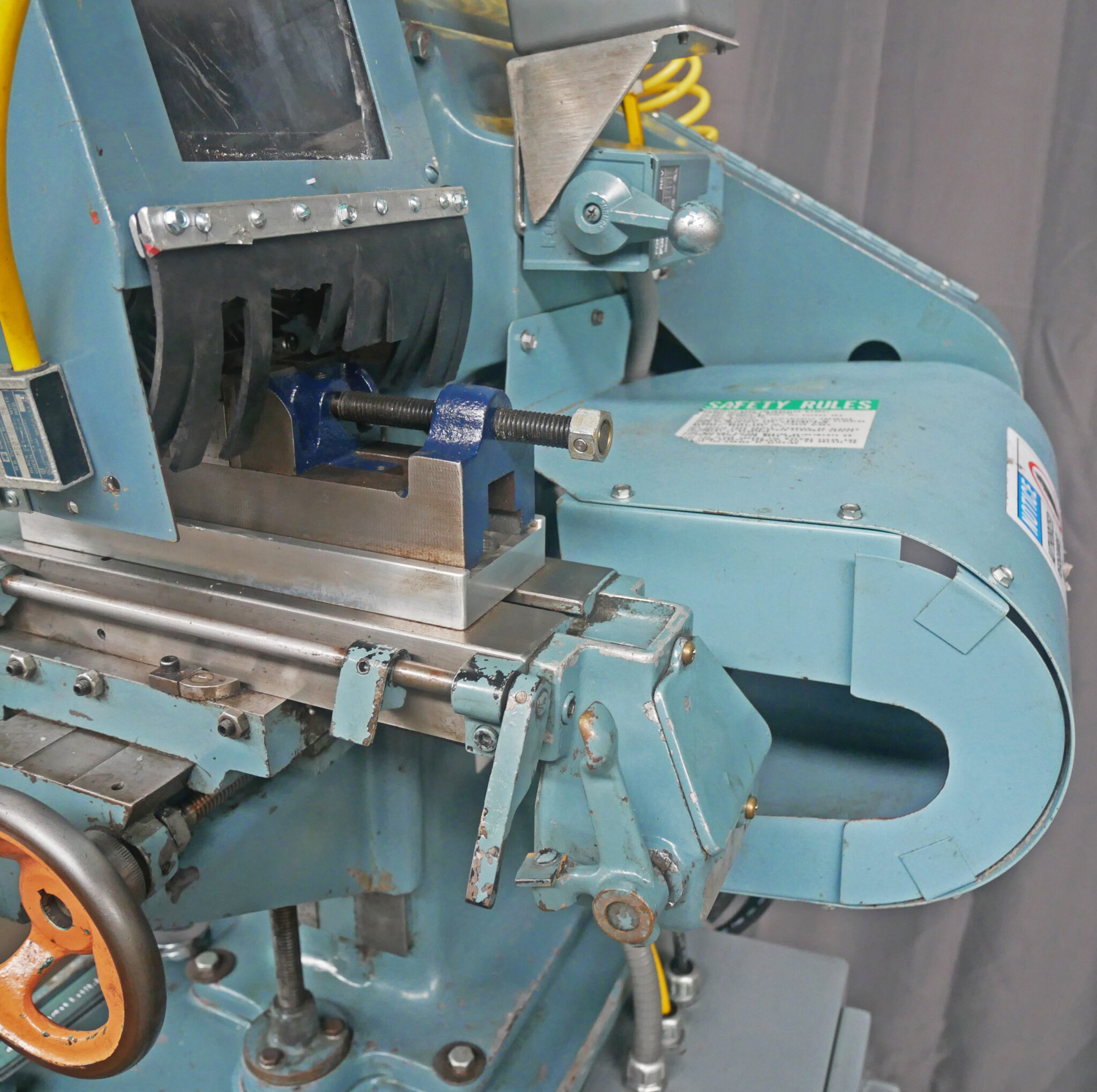

PLAIN VISE
BELT AND CUTTER GUARDING WITH SAFETY INTERLOCK
PNEUMATIC CHIP BLOWER
LONGITUDINAL TABLE FEED (2)
