Chevalier FDG-700, NEW, UNUSED, MAX. DIA. WORKPIECE 9.5" DOUBLE DISC GRINDERS

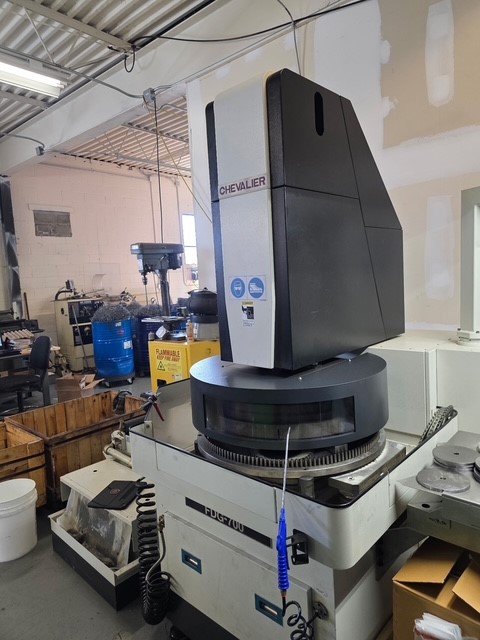

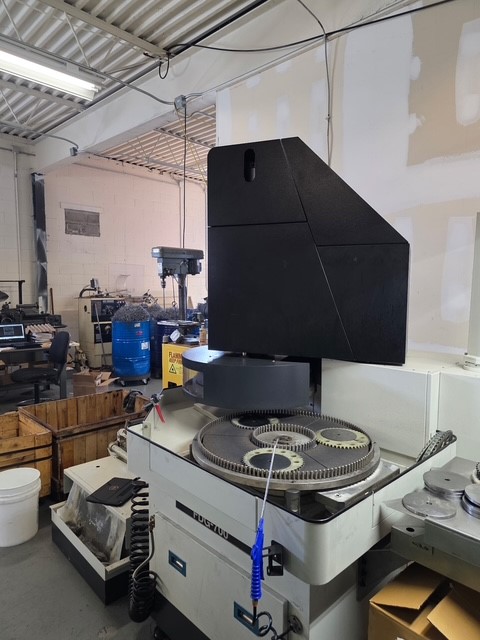

• Chevalier  Model FDG-700 Double Sided Disc
• Grinder (New, Unused), Manufactured in 2024
•
• Equipped with the latest technology
•   in graphic controls, engineering
•   and ergonomics, Chevalier’s new
•   FDG-700 is loaded with the features
•   that make the innovative double-sided
•    grinder the ideal machine for a
•    variety of workpieces.

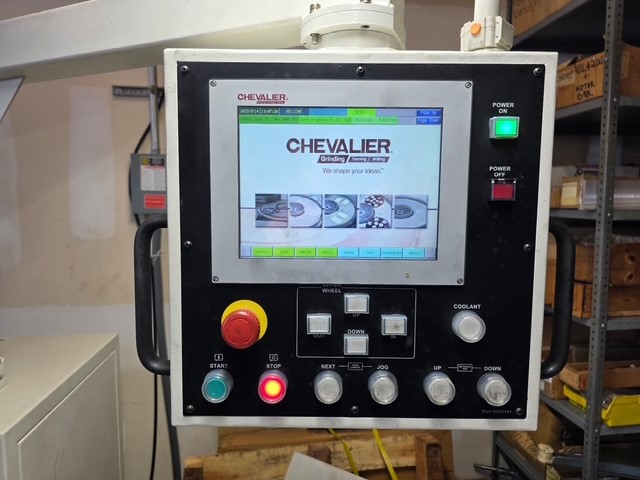

• The FDG-700 features our proprietary
•   PC-based graphic control with a 10.4”
•   touch screen monitor, making it
•   possible to intuitively operate
•   the machine entirely by conversational
•    graphic control.
• The new machine also features a
•   high-precision digitally controlled
•    pneumatic system that automatically
•    adjusts according to the selected
•    pressure. The high-precision contact
•    measuring system includes grinding
•    height control and dressing monitoring.
• The FDG-700 is perfect for mass
•   production of small and medium size
•    work pieces that demand high-precision
•    and high efficiency within a small
•    footprint. The new machine has been
•    ergonomically designed for greater
•    efficiency and productivity.
• Variable speed spindle coupled with
•    a high-torque gearbox provide the
•   flexibility needed to machine all
•   types of work pieces. Optimum surface
•    finishes, flatness and parallelism
•   with a narrowest of tolerances provide
•   superior results for a wide range
•    of applications, including precision
•    grinding for crystals, ceramics,
•    optical glass, semiconductors,
•    tungsten carbide, metal and other
•    hard and brittle materials.

SPECIFICATION

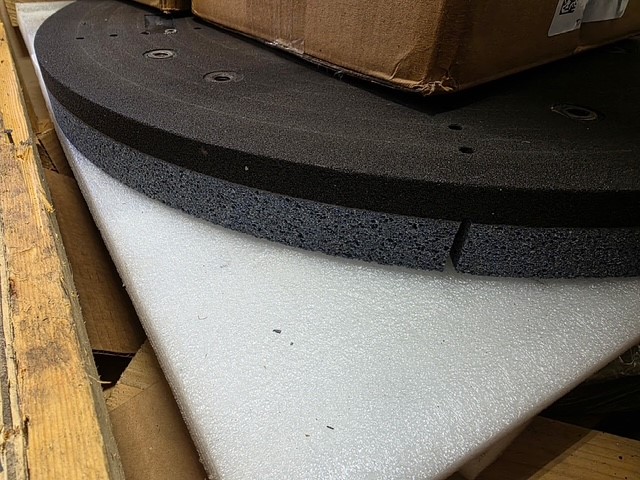

• Capacity: Wheel diameter, 27.5-inches

• Control system: SMART PC Based
• Upper disk: power 7.5 HP / speed 125 rpm
• Lower disk: power 7.5 HP / speed 125 rpm
• Inner disk: power 7.5HP / speed 75rpm
• Dimensions: 67”W x 59”D x 98”H
•
•
• High-precision digitally controlled
•     pneumatic system automatically
•     adjusts to set pressure
• High-precision contact measuring system,
•     grinding height control and dressing monitoring
• Over-stroke protection measuring system
• 10.4" touch-screen monitor, user-friendly
•    with intuitive operations
• Compliant with freely programmable process
•    parameters for excellent machining results
• Easy to operate, set-up and maintain
•   resulting in labor cost savings
• Multiple processing conditions:
•    grinding mode, coolant system control
•    and upper disk control
