Chevalier FSG-618M, 2017, ROLLER BEARING TABLE, SURFACE GRINDERS, HAND FEED

Price on Request

Make:

Chevalier

Model:

FSG-618M, 2017, ROLLER BEARING TABLE,

Year:

2017

Ref #:

168882

Get a quote

Get financing

Or call us for a quote at (973) 497-7500 or send us an email at grinders@machineryvalues.com

---

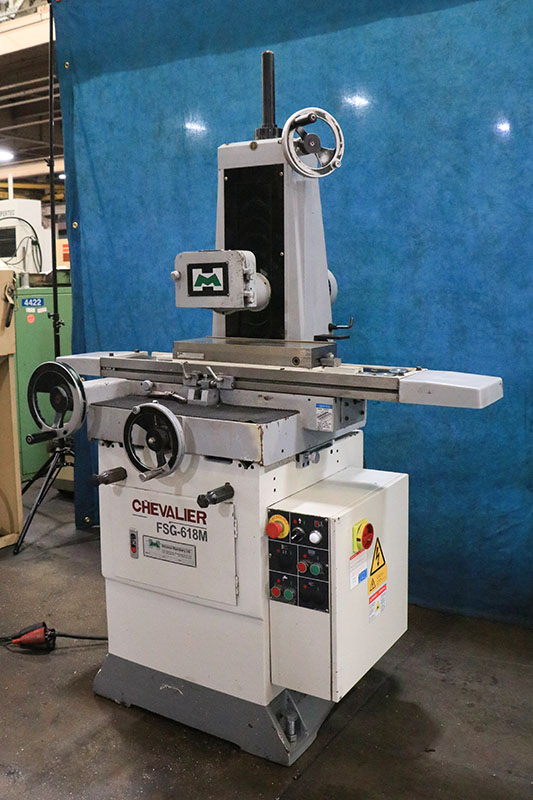

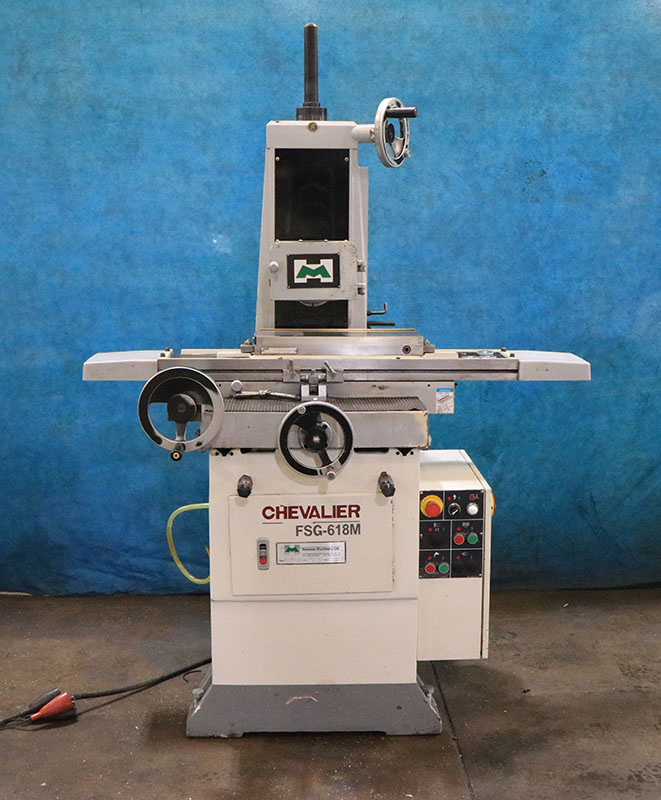

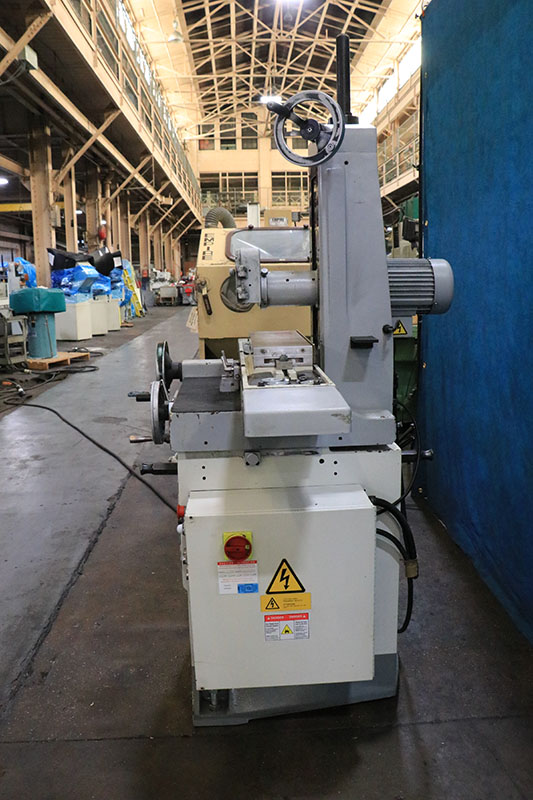

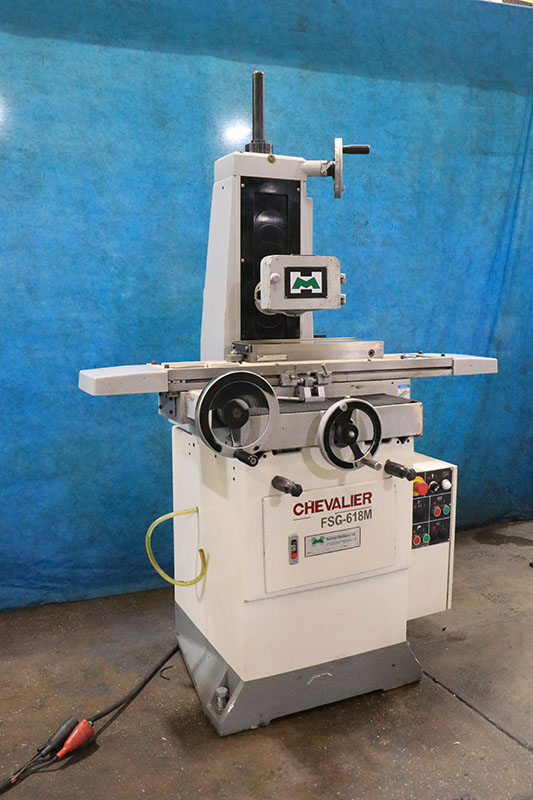

 6" x 18" Chevailer Hand Feed Surface Grinder

          with Roller Bearing Table

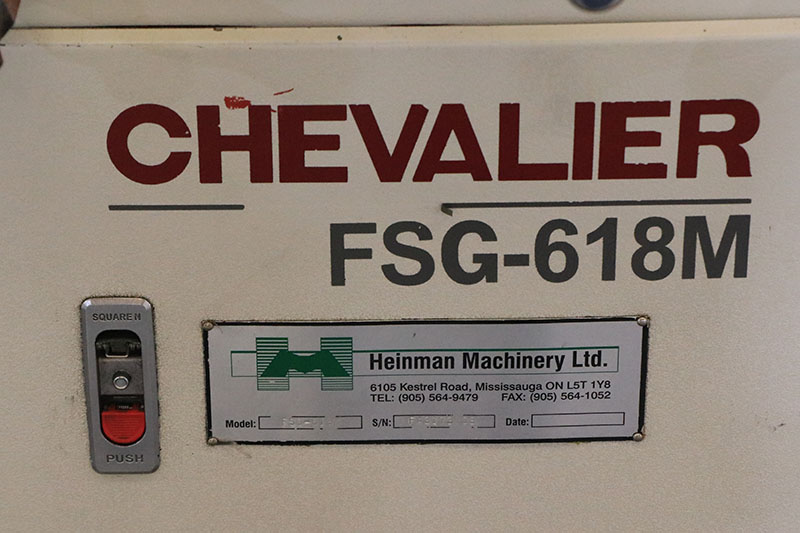

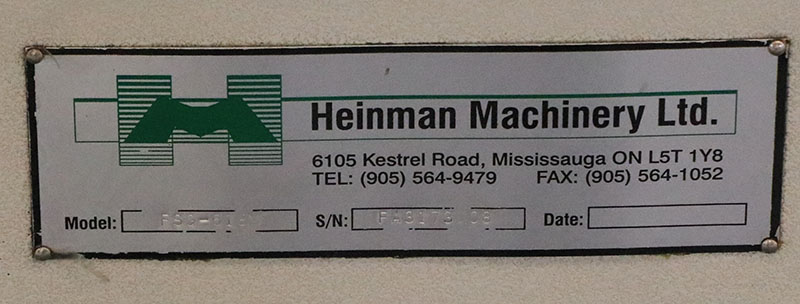

Model: FSG-618M     S/N: FA3173008    New: 2017



Maximum grinding length:............... 18"

Maximum grinding width:................ 6"

Maximum table travel,

 longitudinal: ........................ 19"

 cross: ............................... 7"

Maximum distance from table

 working surface to spindle center .... 18"



Cross handwheel graduations: .......... 0.0005"

Cross handwheel per rev. .............. 0.100"

Downfeed handwheel graduations ........ 0.0001"

Vertical handwheel per rev. ........... 0.050"

Spindle speed:......................... 3,450 RPM

Wheel size:...................... 8" x 1/2"W x 1-1/4"B



Approximate weight: ................... 1,500 lbs

Approximate Dimensions: ......... 41"W x 47"D x 76"H





Equipped with:

All meehanite cast iron construction

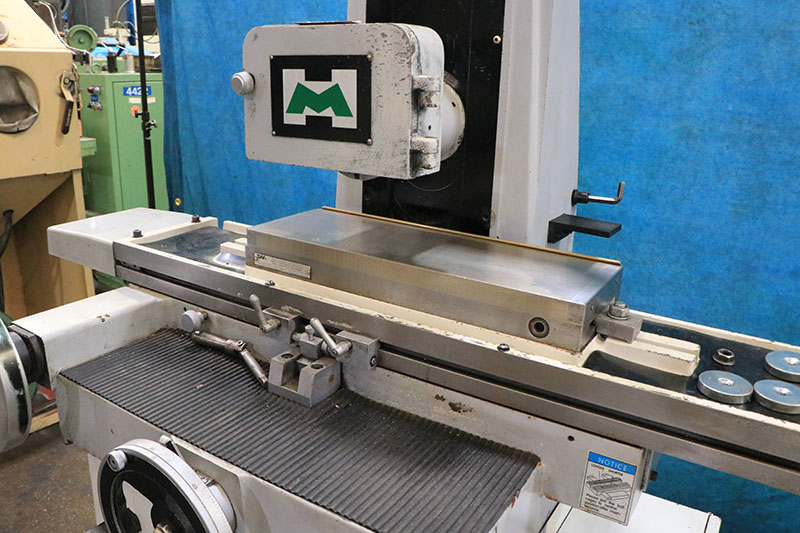

Hardened and ground table guideways with steel balls

Double V Guideways laminated with Turcite-B for saddle travel

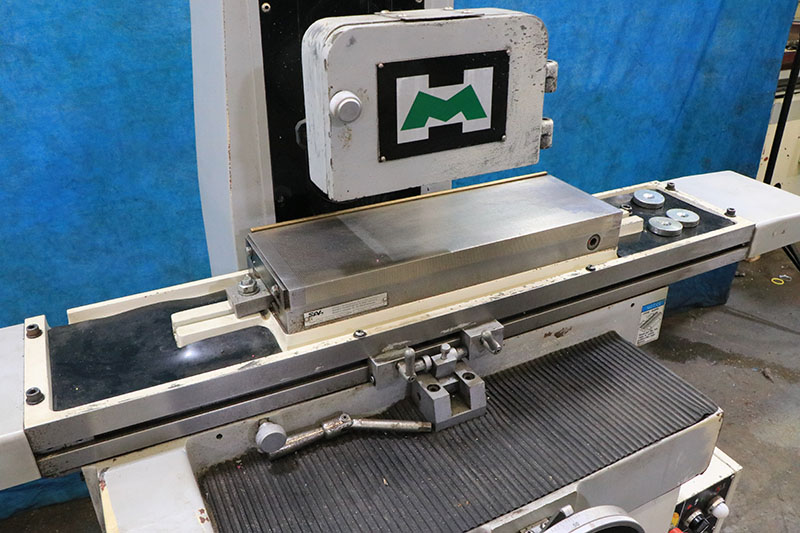

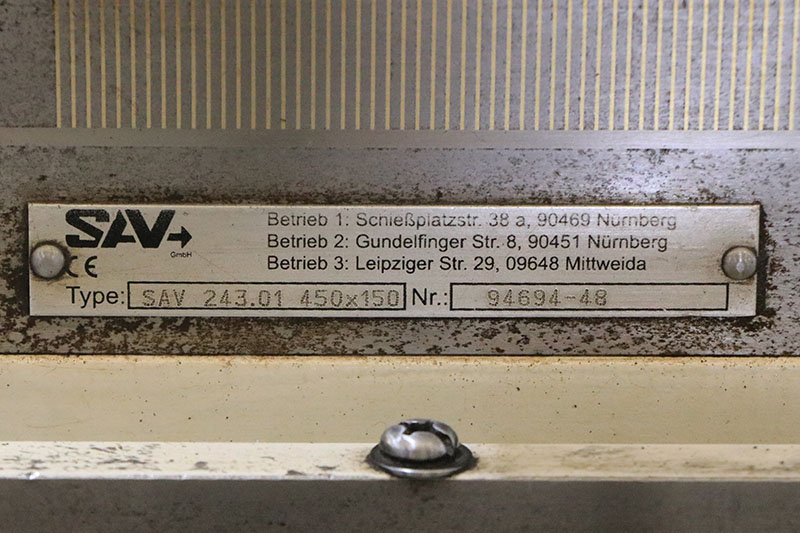

6" x 18" "Ultra Fine Division" permanent magnetic chuck

Work light

Automatic lubrication of leadscrews and ways

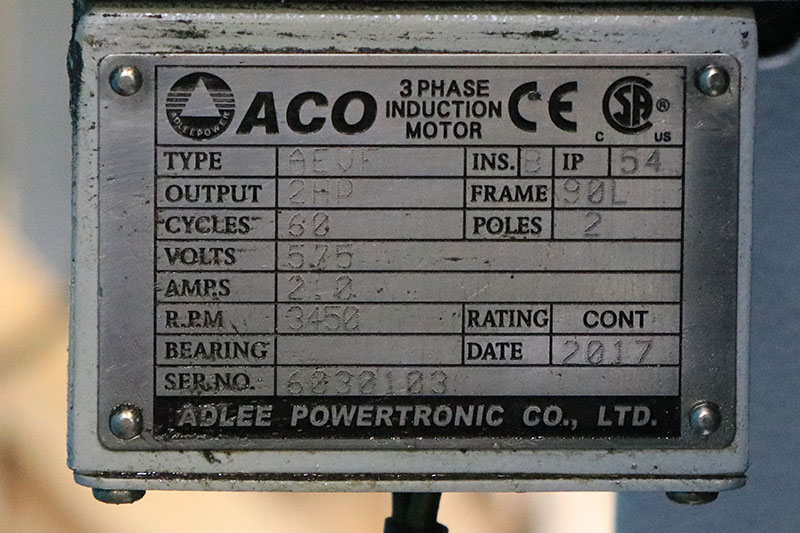

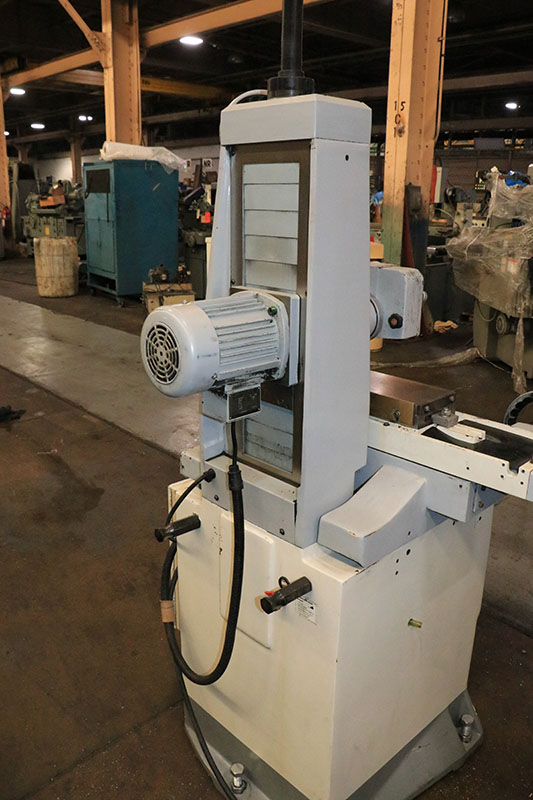

2 HP 3/60/575 volt spindle motor





** "Near New"  Condition & Appearance (Original Paint) **

** Inspect Under Power in our Harrison, NJ Warehouse **
