Cincinnati-Heald 261, 1979, COOLANT, ROTARY SURFACE GRINDERS, HZ SPDL (ARTER TYPE)

Price on Request

Make:: Cincinnati-Heald

Model:: 261, 1979, COOLANT,

Year:: 1979

Ref #:: 164315

Or call us for a quote at (973) 497-7500 or send us an email at grinders@machineryvalues.com

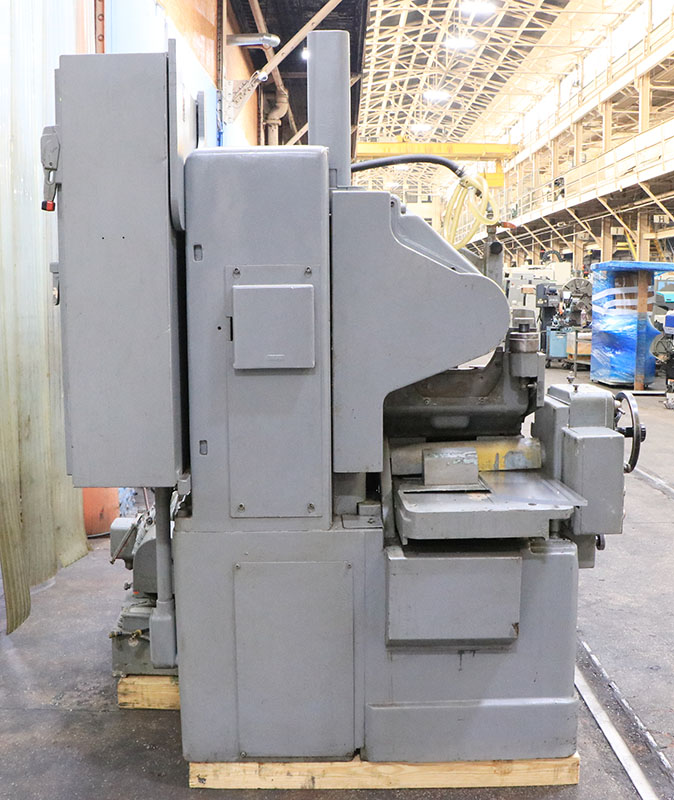

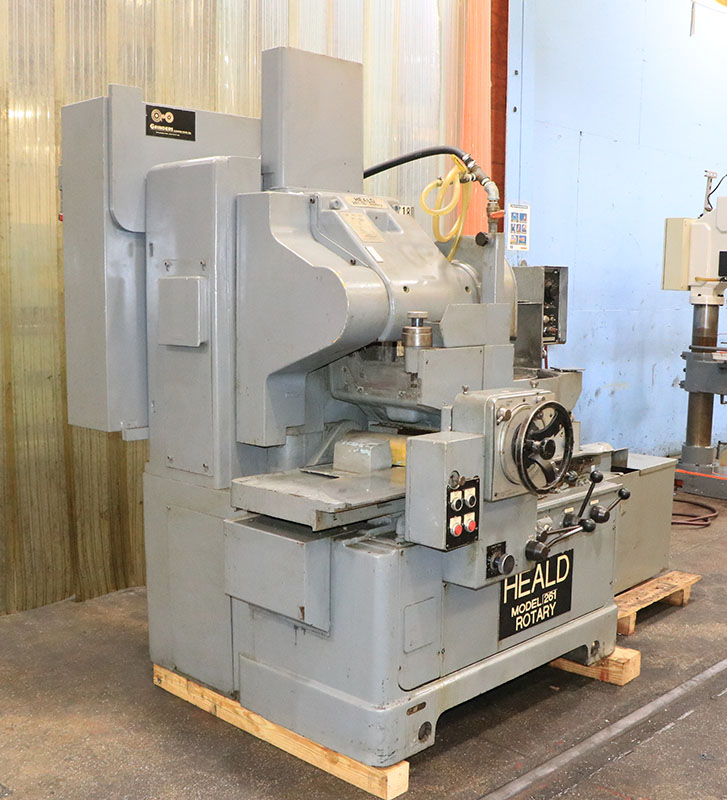

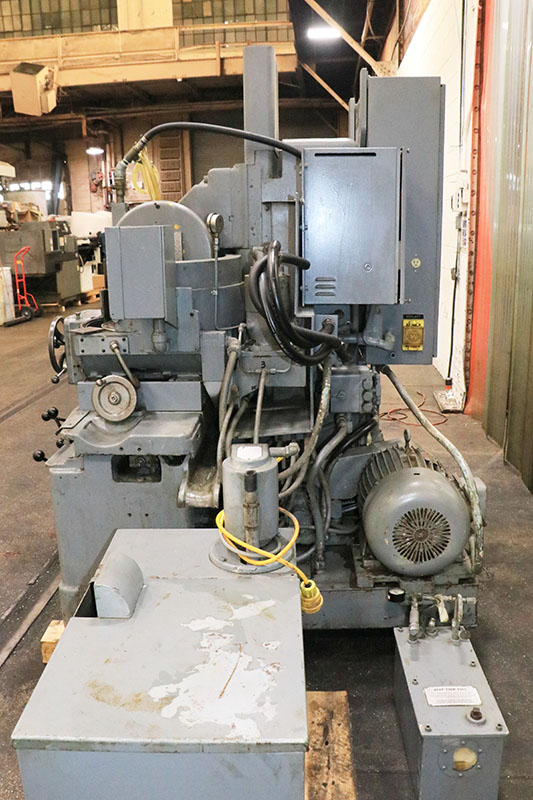

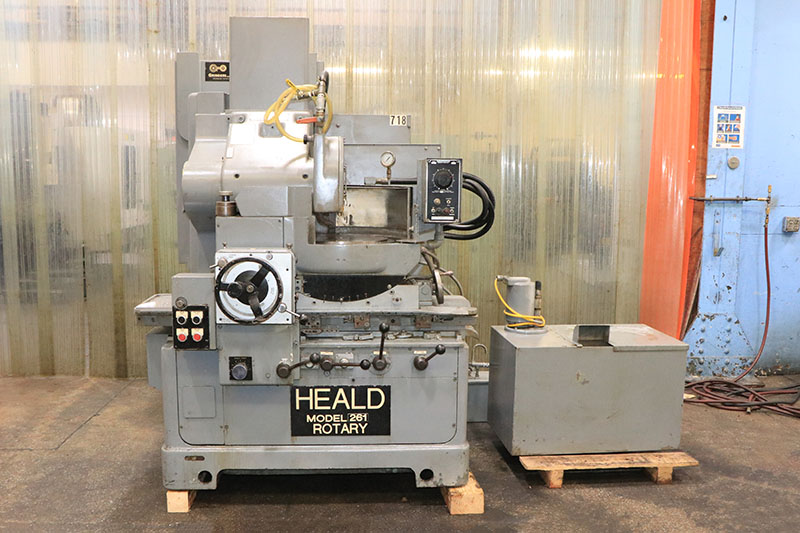

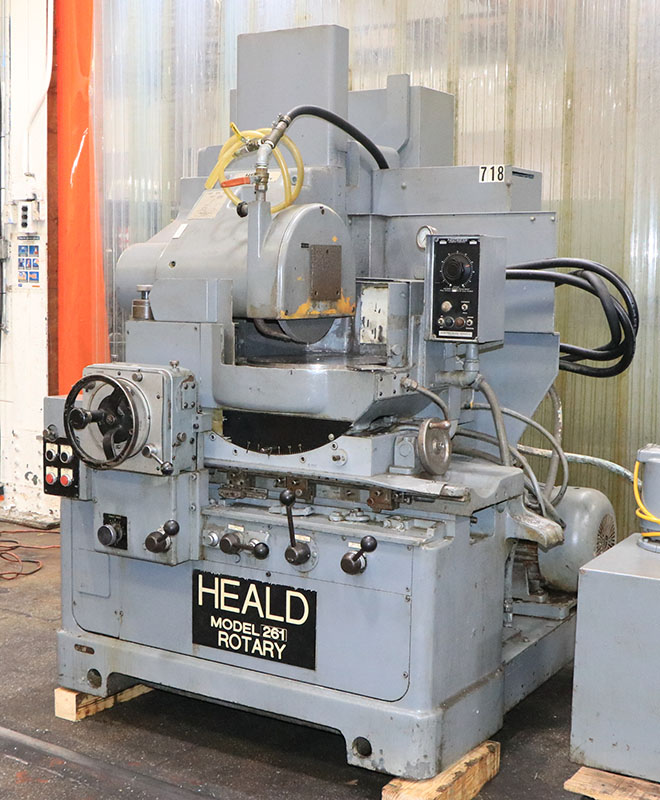

17" Cincinnati-Milacron Heald Rotary Surface Grinder

Model No. 261     S/N: 47313      New: 1979


 SPECIFICATIONS:

Chuck Face Diameter ............ 16- 7/8"
Max. Swing Inside Guards ....... 18- 1/2"
Std. Wheel Size .......... 14" Dia. X 1"W x 5"B
Max. Distance From Top
 of Chuck to Wheel Center ...... 17-3/4"
Min. Distance From Top of
  Chuck to Wheel Center ........ 4-1/4"
Max. Height Under a New Wheel... 10-1/2"
Total Table Slide Travel ....... 12"
Table Grinding Stroke .......... 8"
Table Tilt Adjustment, Convex .. 17 Degrees
Table Tilt, Concave ............ 10 Degrees
Table Speeds for Grinding ...... 0 to 12' FPM
Table Speeds for Run-Out ....... 35' FPM
Chuck Speeds, Variable ......... 50 - 225 RPM
Chuck Feed Rates ............... 0 - 20 FPM
Auto Power Downfeed
 Of Spindle ................ 0.0001" to .0006"

Machine Weight, Approx. .....8,350 Lbs
Approx Dims. ............... 78" x 60" x 80"H


Equipped With:

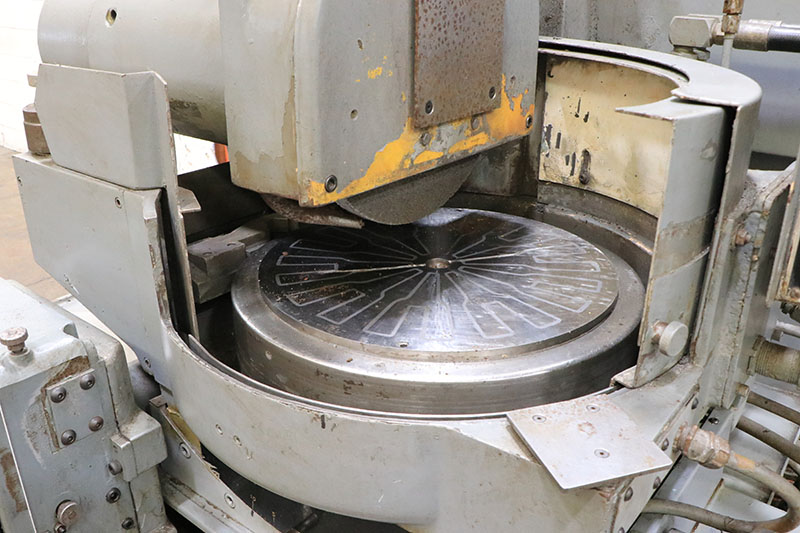

* 17" Diameter Electro-Magnetic Chuck, "Tuning Fork Top"

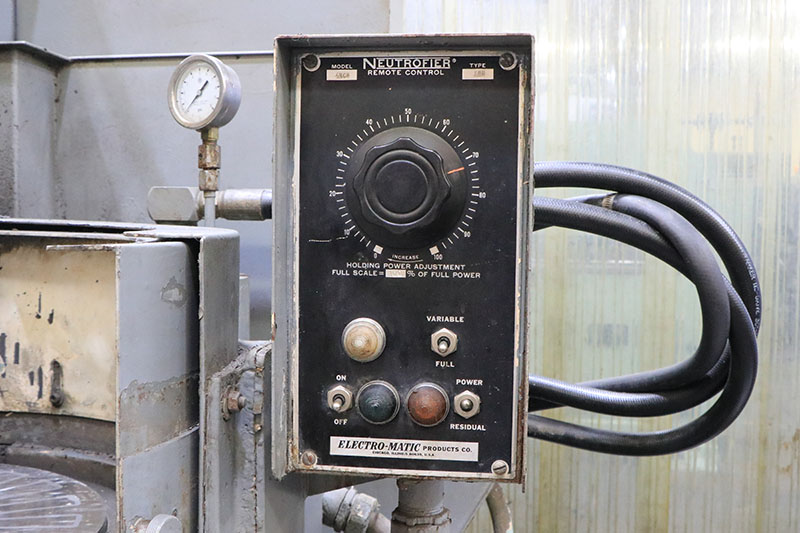

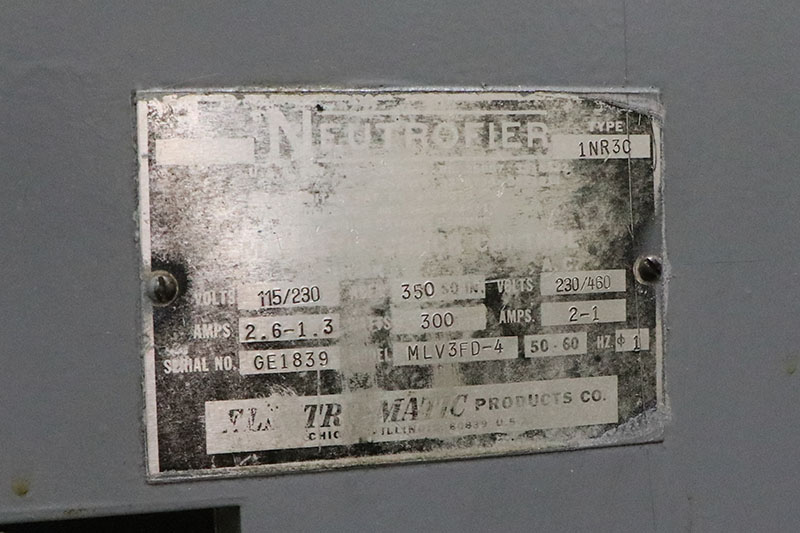

* "Electro-Matic" Neutrofier with Variable Power Control
* Wheel Retraction Knob
* Automatic Lubrication Through Hydraulic Reservoir
   for the Table Ways & Vertical Ways
* Separate Lubrication System for the Chuck

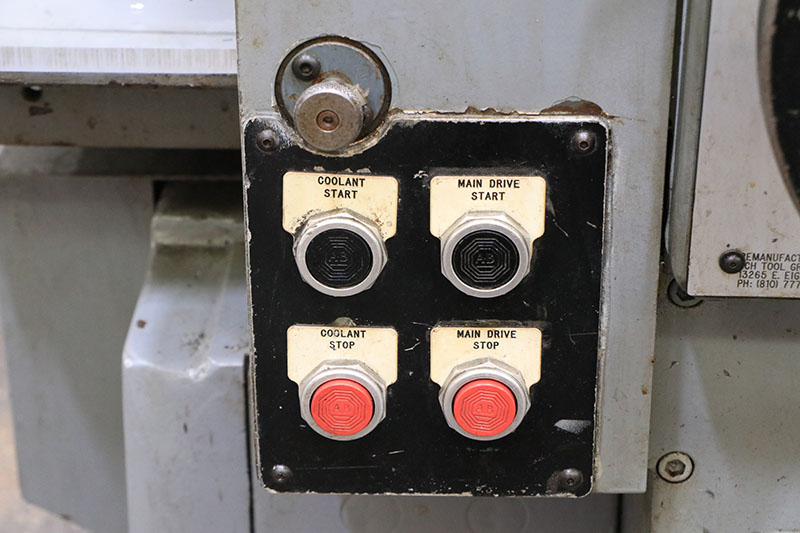

* Coolant Pump & Tank

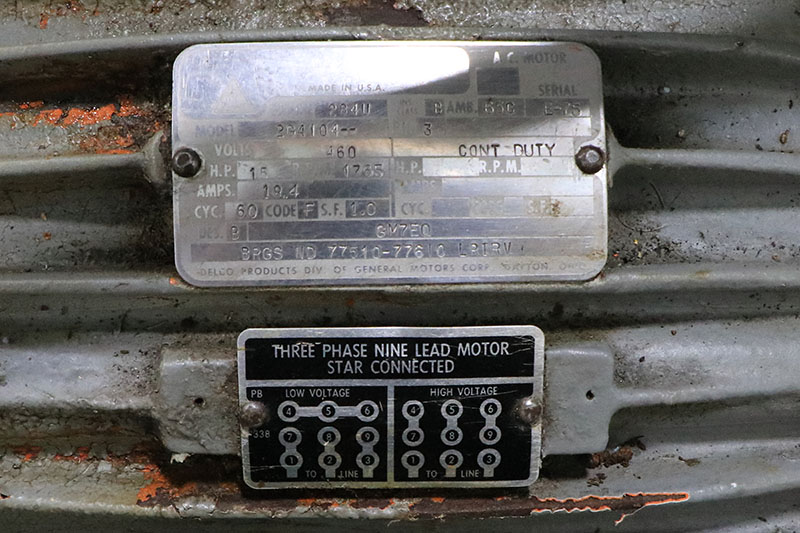

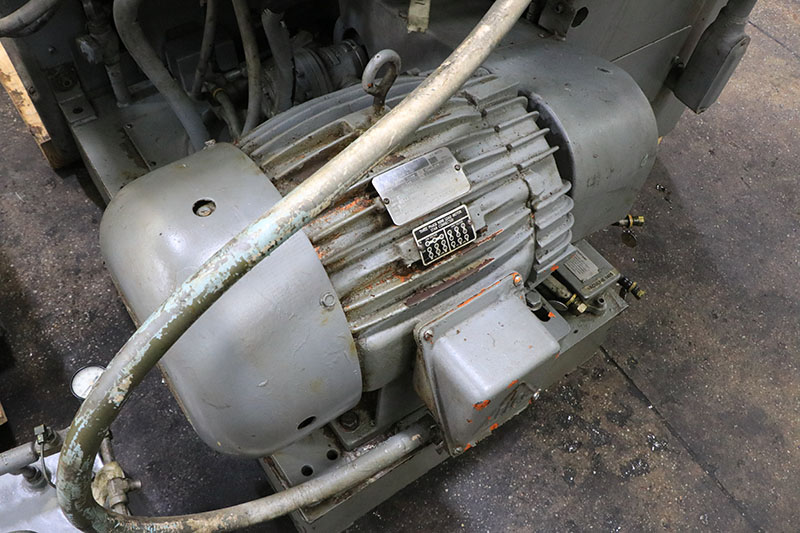

* 15 HP Spindle Motorm 3/60/230-460 Volts
* 3 HP Hydraulic Pump
* 3/60/220-440 Volt Motors

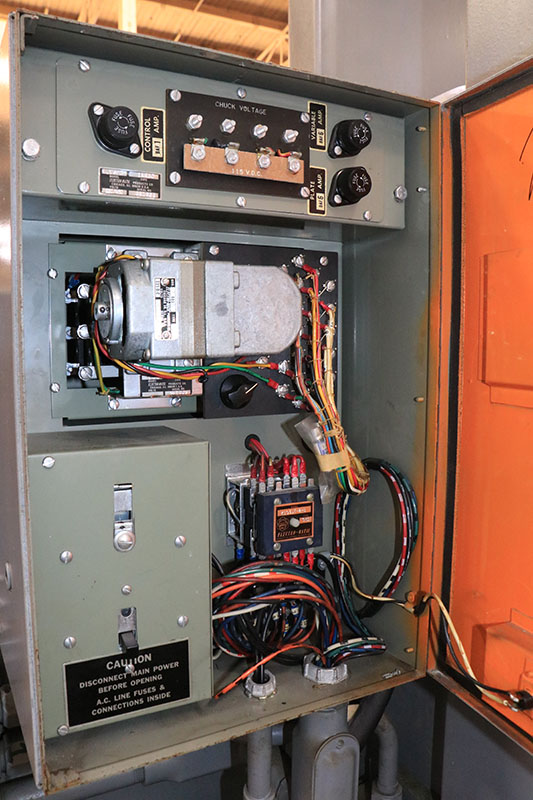

* Machine is Presently Wired for 3/60/460 Volts, 23 FLA

** Inspect Under Power in our Harrison, NJ Warehouse **
** Superb Condition & Appearance **
