Cincinnati HYPRO VERTICAL BORING MILLS & VERTICAL TURRET LATHES

$42,500

Make:
Cincinnati
Model:
HYPRO
Year:
Ref #:
160937

Or call us for a quote at (973) 497-7500 or send us an email at boringmills@machineryvalues.com

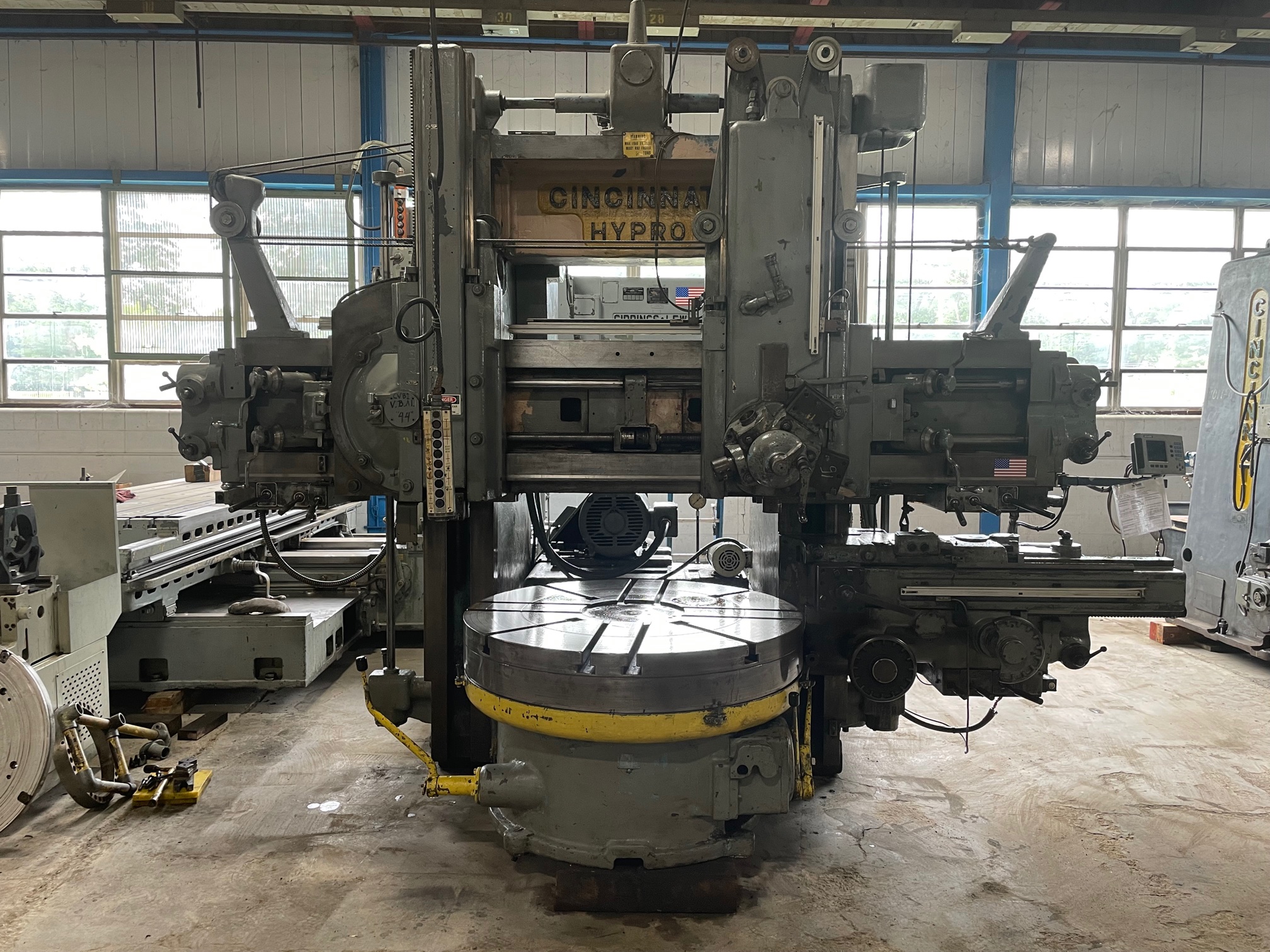

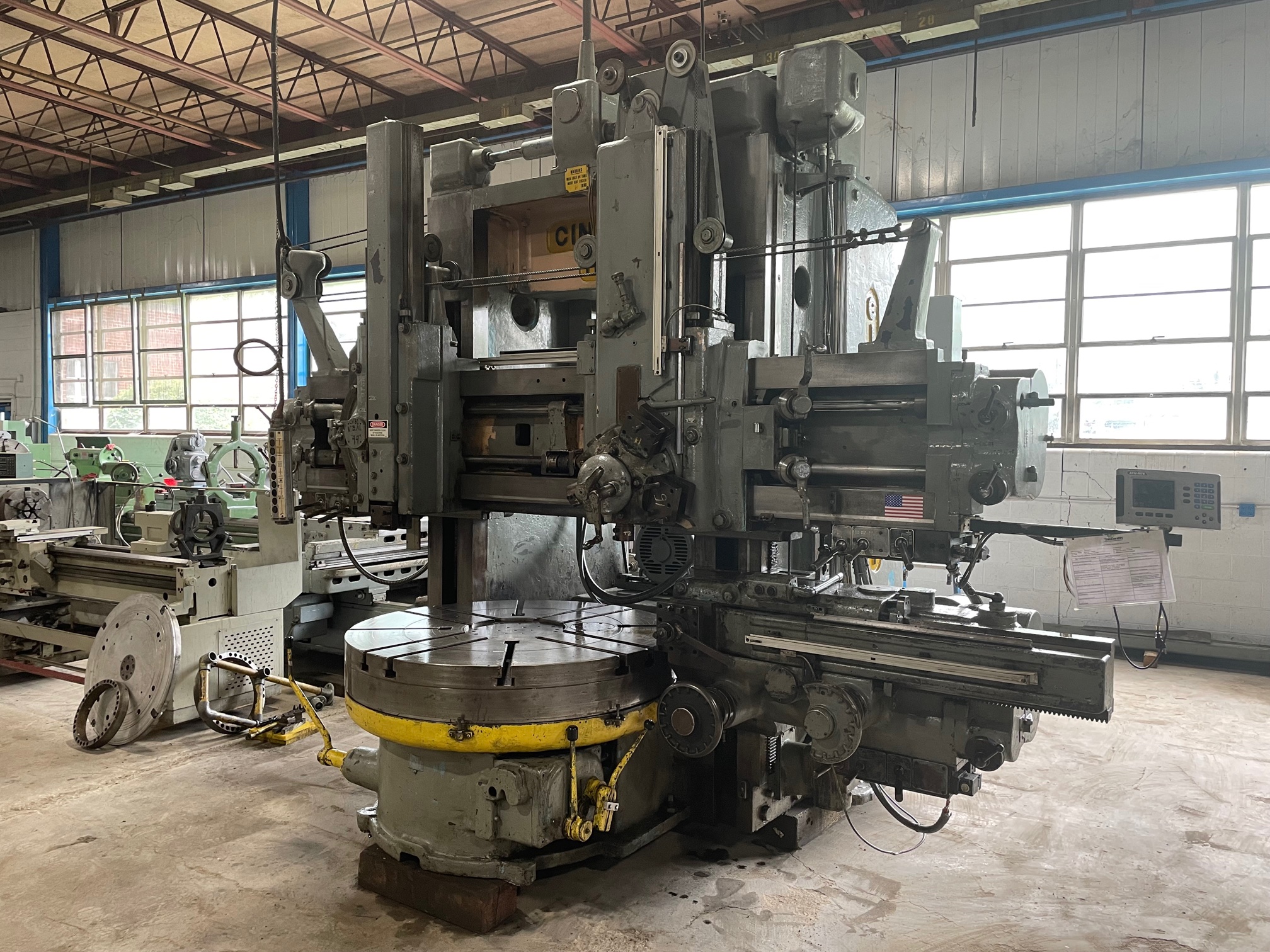

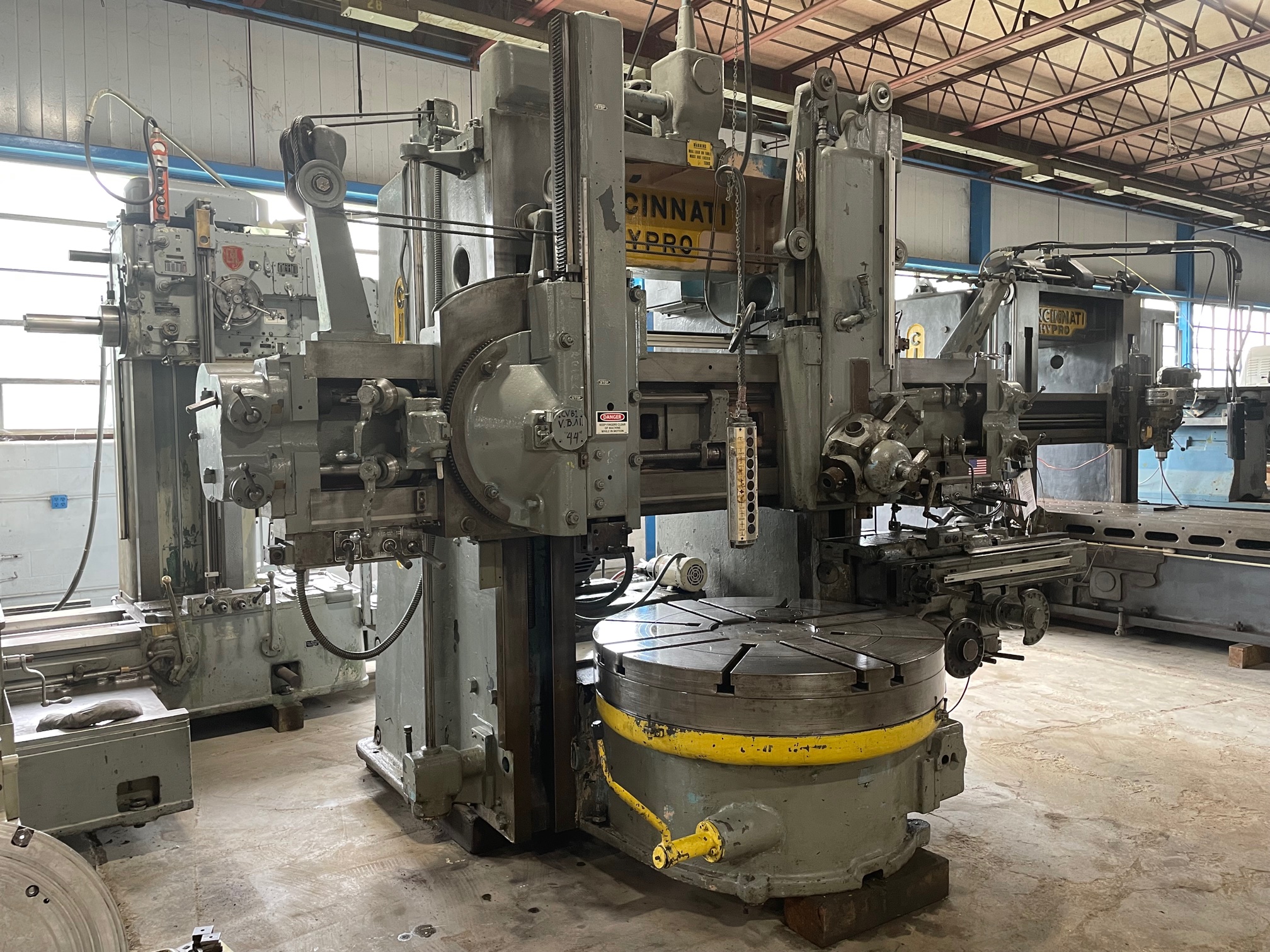

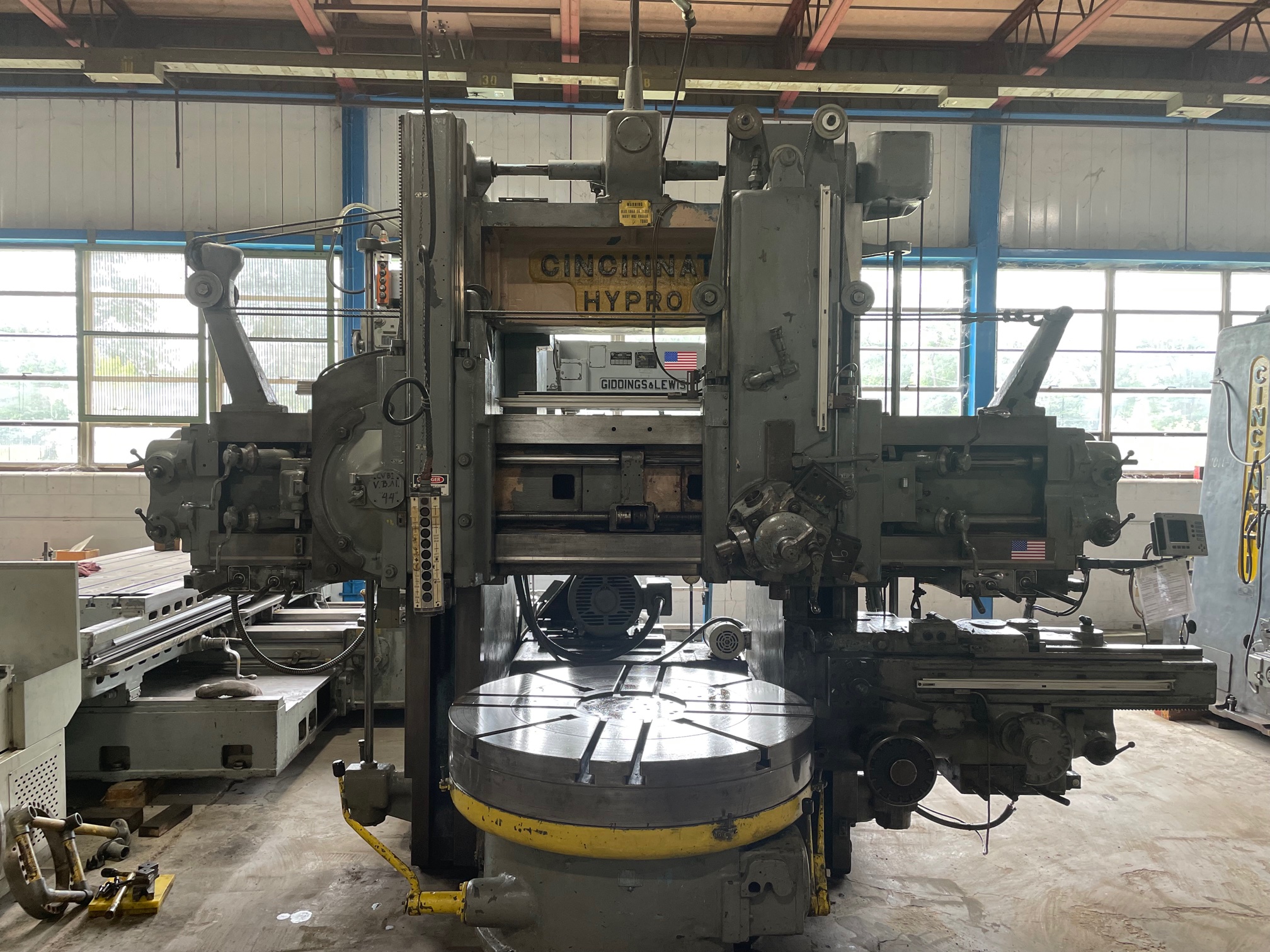

52" CINCINNATI VERTICAL BORING MILL,
MODEL: HYPRO

SPECIFICATIONS:
DIAMETER OF TABLE .................. 52"
MAX. SWING ......................... 56"
MAX. HEIGHT UNDER CROSS RAIL ....... 44"
RAM HEAD VERTICAL TRAVEL ........... 32"
TURRET HEAD VERTICAL SLIDE TRAVEL .. 27"
SWIVEL OF RAM HEAD ................. ±60º
TRAVEL OF SIDE HEAD RAM ............ 26"
VERTICAL TRAVEL OF SIDE HEAD ....... 36"
TABLE SPEEDS (16) .................. 2 TO 72 RPM

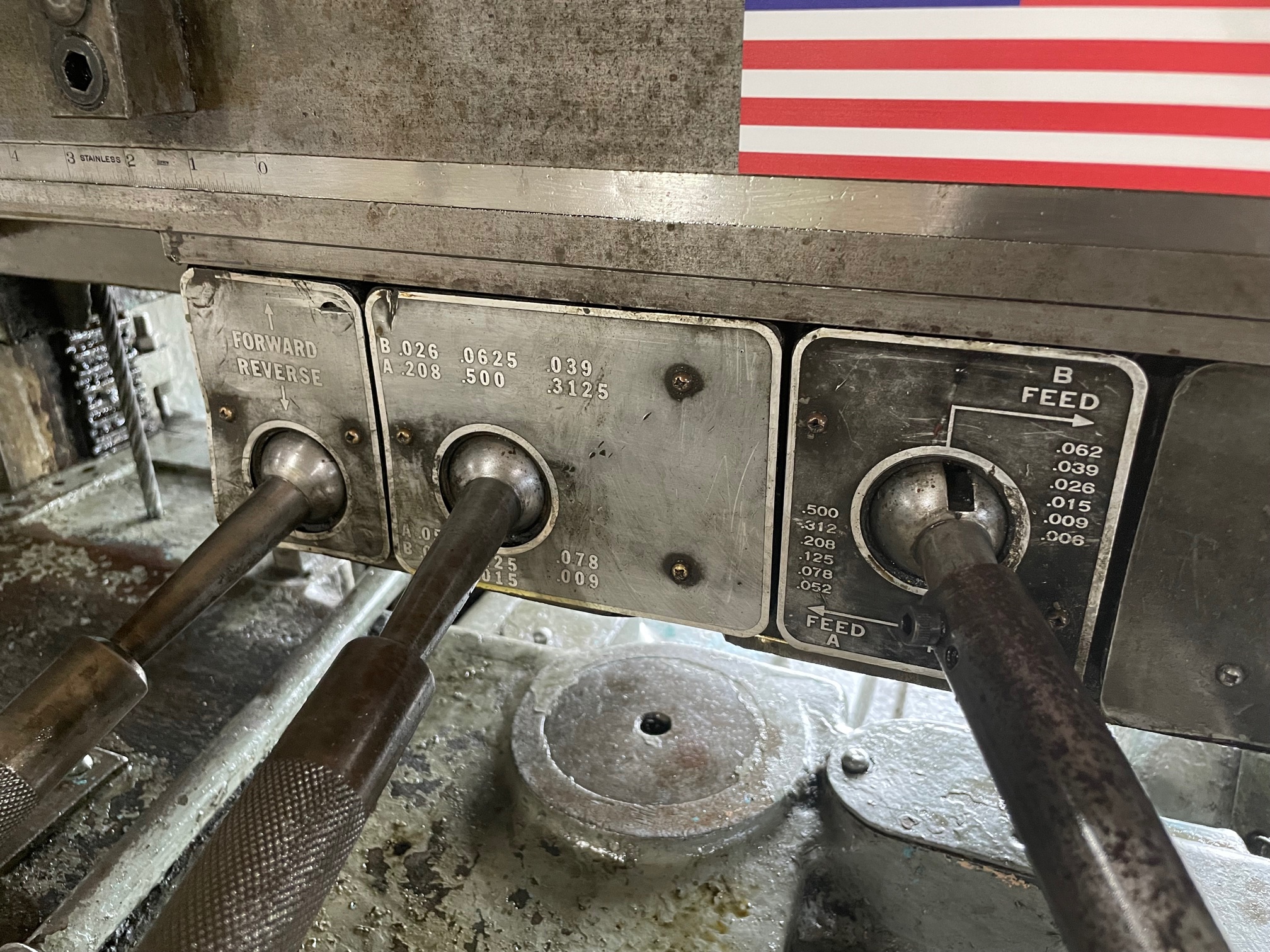

FEEDS (16) ......................... .003 - .500 IPR
APPROX. WEIGHT ..................... 47,500 LBS
HEIGHT TO TOP OF MACHINE ........... 10'9"

EQUIPPED WITH:

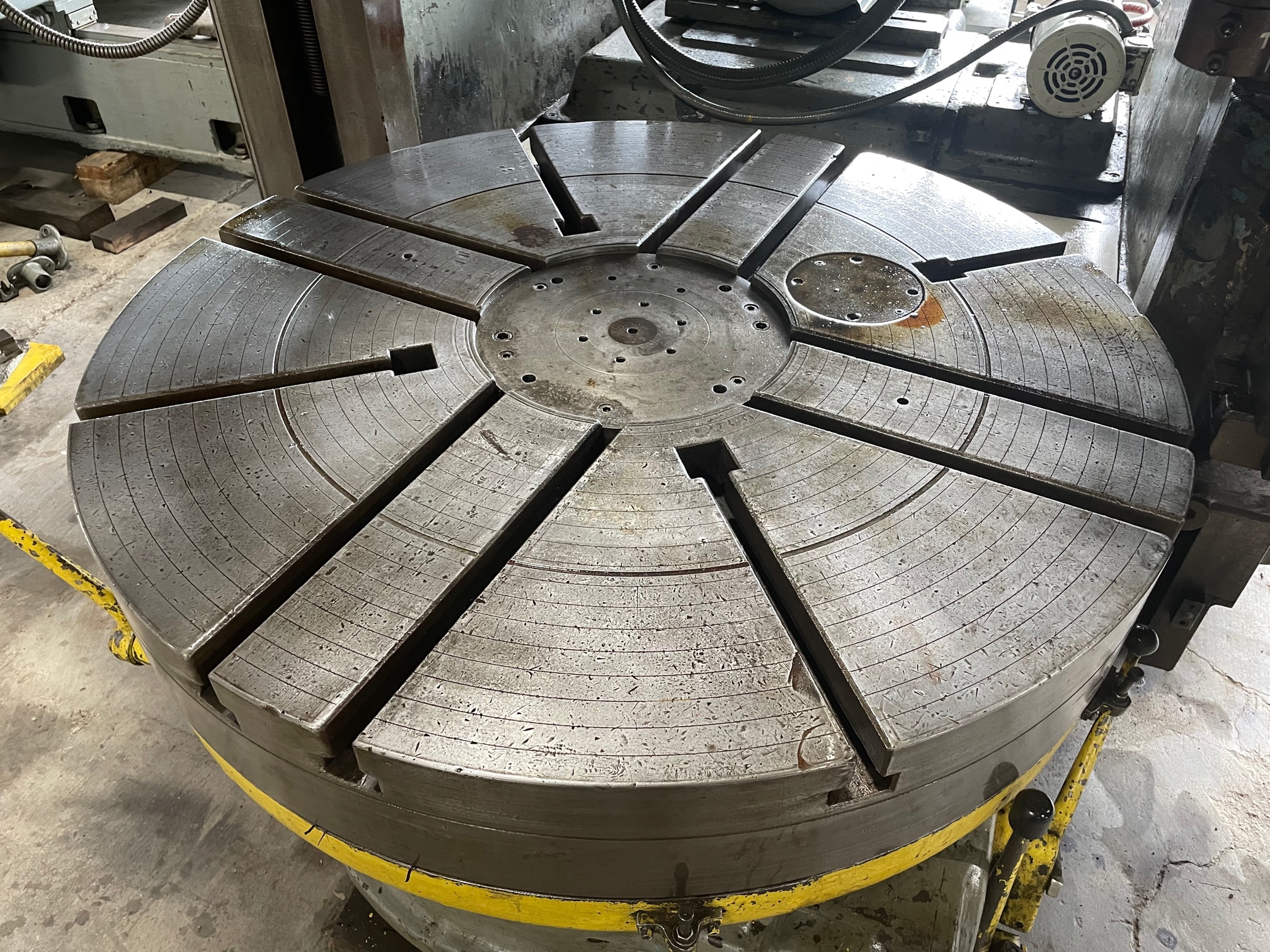

- T-SLOTTED TABLE W/ SET

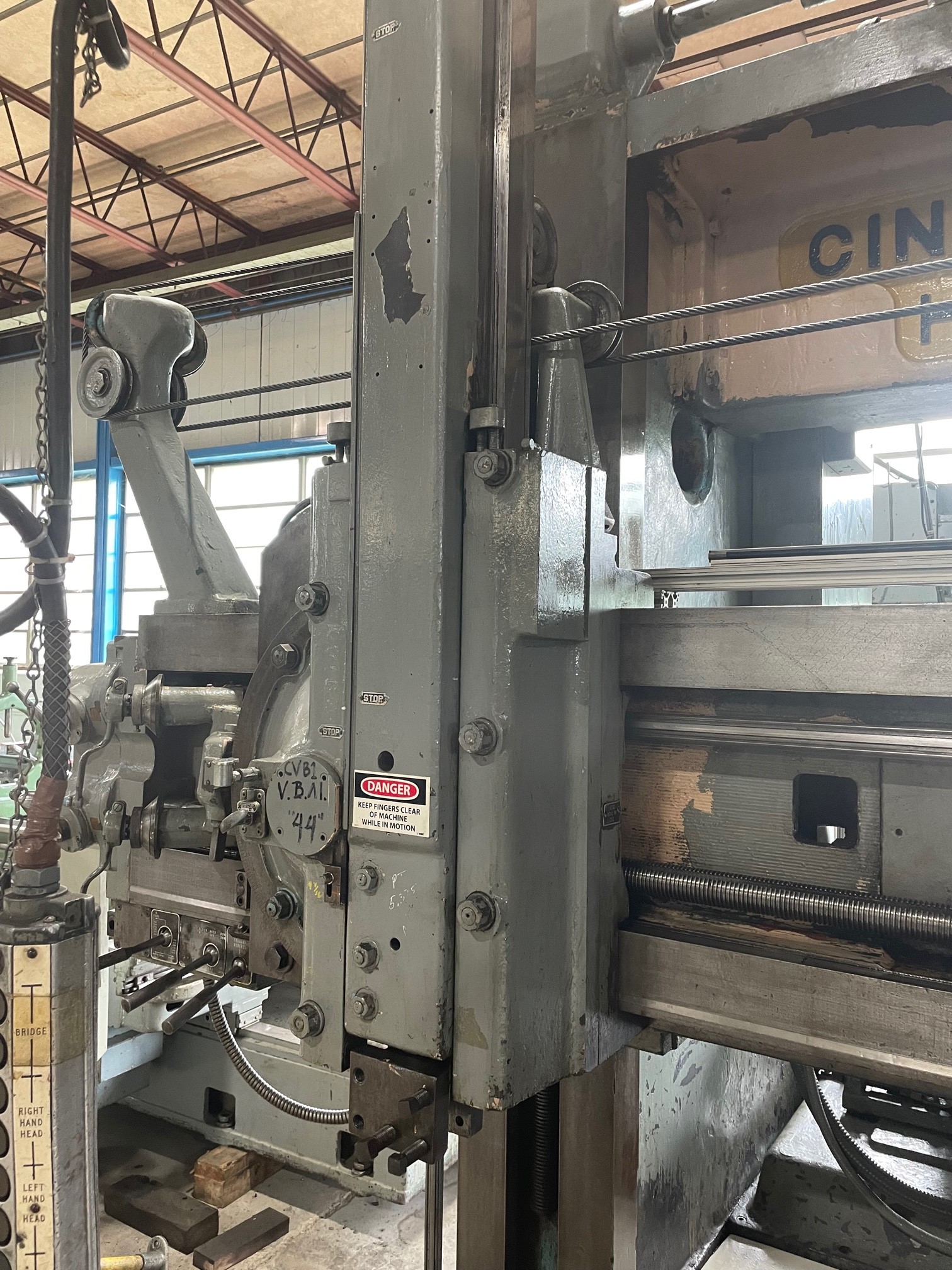

- L.H. SWIVEL RAM HEAD

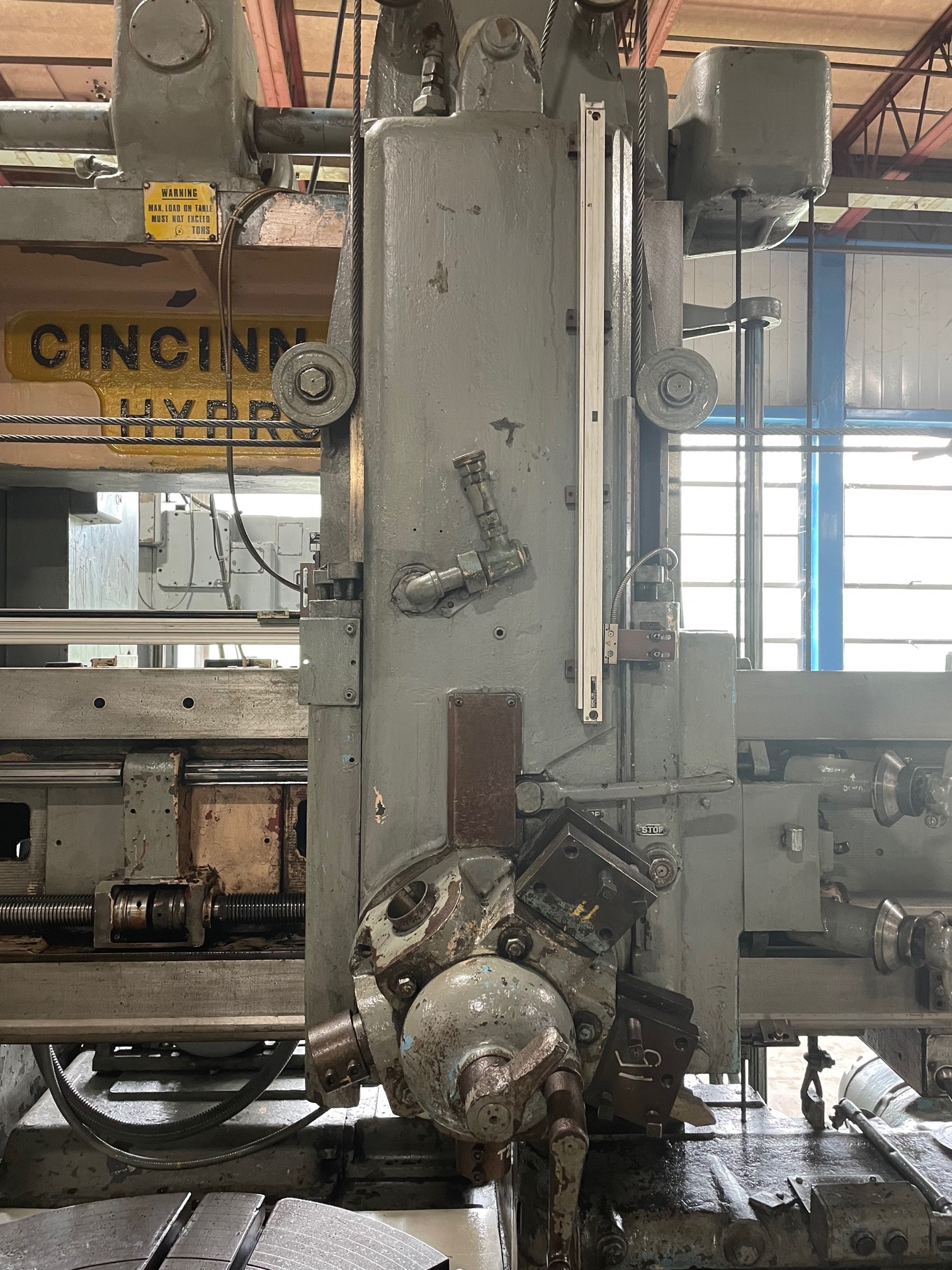

- R.H. PENTAGON TURRET HEAD WITH MANUAL INDEXING

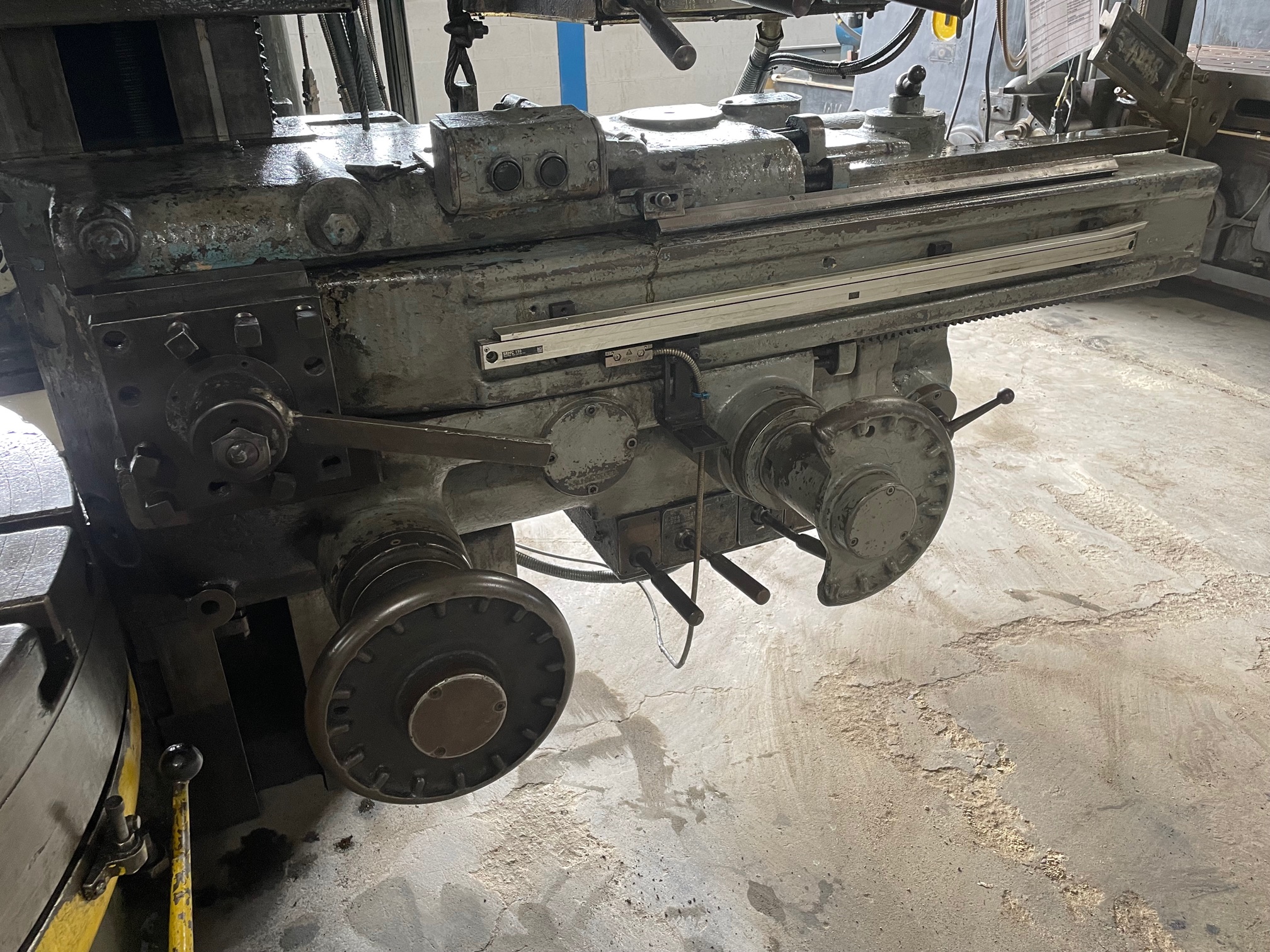

- SIDE HEAD
- POWER RAPID TRAVERSE
- HORSE POWER MAIN DRIVE MOTOR
- FLUSH FLOOR DESIGN
- 30 HORSE POWER MOTOR
