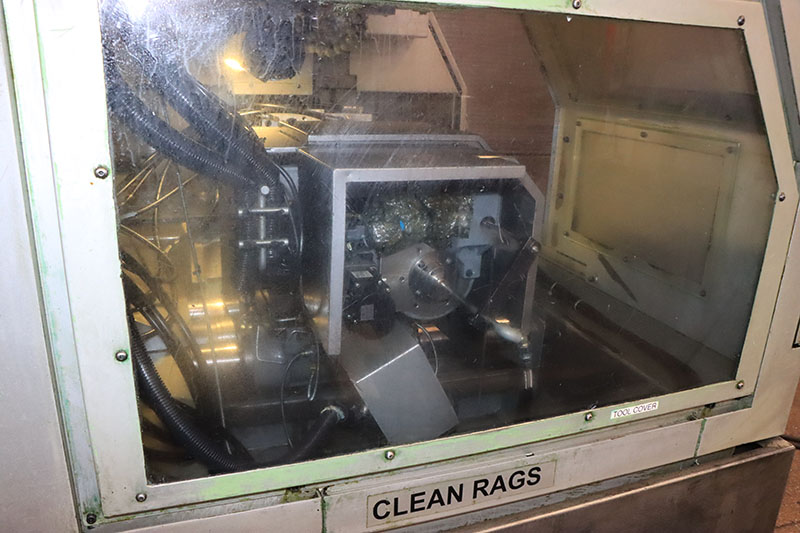

Citizen L-20 Type VIII CNC SWISS TYPE MULTI-AXIS LATHES

$39,500

Make:: Citizen

Model:: L-20 Type VIII

Year:: 2006

Ref #:: 164233

Or call us for a quote at (973) 497-7500 or send us an email at automatics@machineryvalues.com

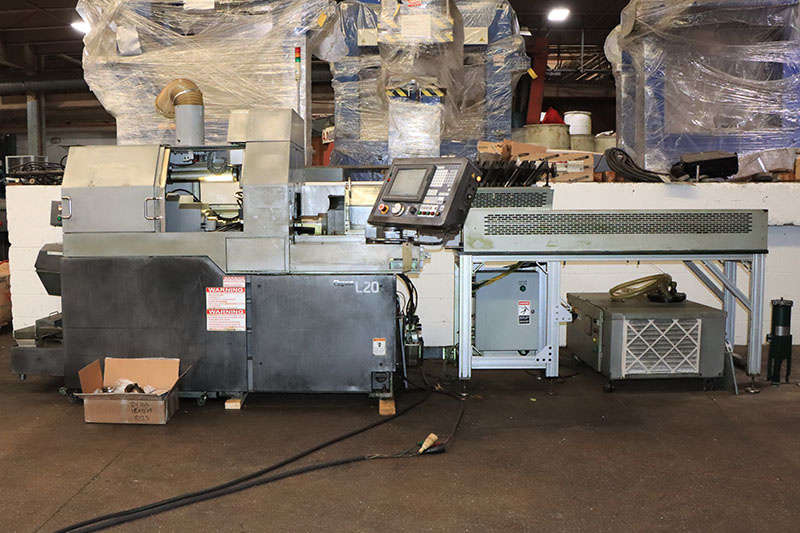

CITIZEN MODEL: L-20 TYPE VIII SWISS TYPE CNC LATHE
NEW: 2006

Specifications:
Main Spindle
 Max. machining diameter ....................... 3/4" (.79")
 Max. machining length per one chuck ........... 7.87"
 Max. drilling diameter ........................ up to .394"
 Speed ......................................... 200 - 10,000 rpm
 Min. spindle input increment .................. 0.01 Full C-axis
 Motor ......................................... 2.2/3.7 KW
 Tooling ....................................... 1/2" (T01 5/8")

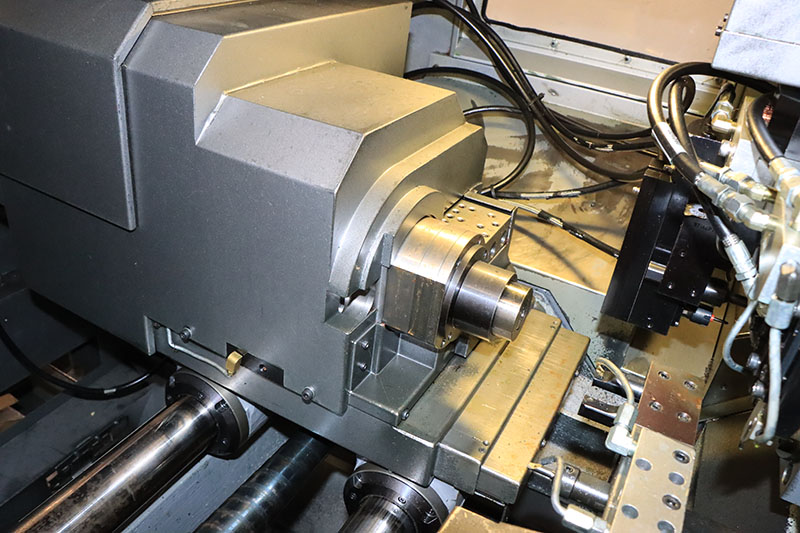

Back-work:
 Max. chucking dia. of pick-off spindle ........ .79"
 Pick-off spindle speed ........................ 200 - 8,000 rpm
 Pick-off spindle motor ........................ .75/1.5 KW
 Min. spindle increment ........................ 0.01 Deg. Full C-axis
Rotary tool:
 Rotary spindle speed .......................... 200 - 5000 rpm
 Rotary tool motor ............................. 1.0 KW
Number of tools mounted ........................ 18-21
   Turning / Front ID / Back ID / Live tools ... 5 / 3 / 3 / 5
Power consumption:  ............................ 6 KVA
Approx. Machine Dims. .......................... 83.5" x 48" x 81"
Approx. Weight ................................. 5,000 lbs

Equipped With:

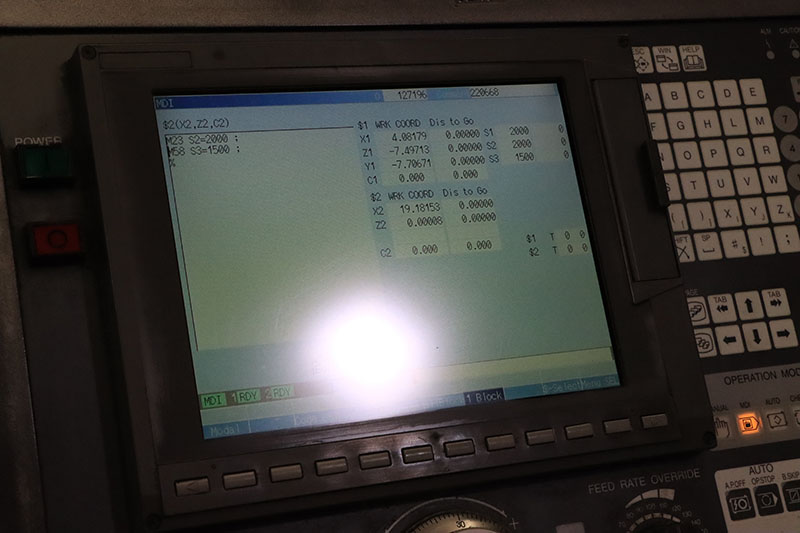

 - Cincom CNC Control

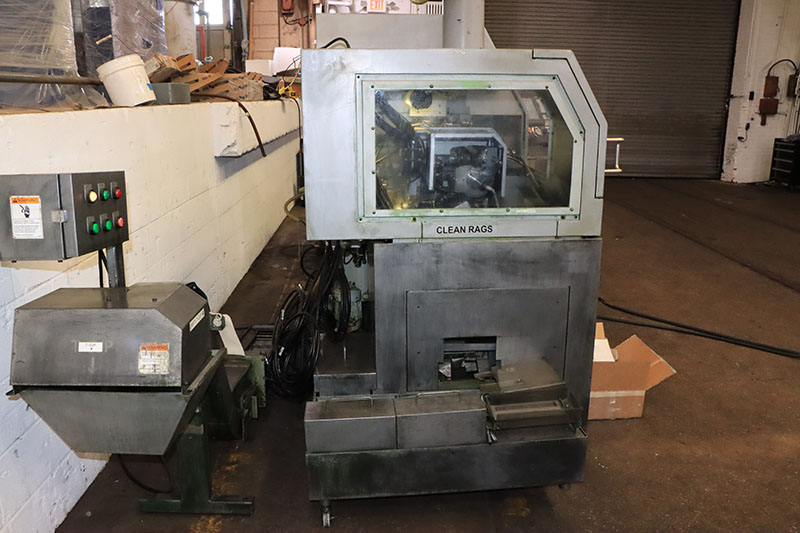

 - Chip Conveyor
 - CoolBlaster High Pressure Coolant
 - 3Nine Clara Mist Collector

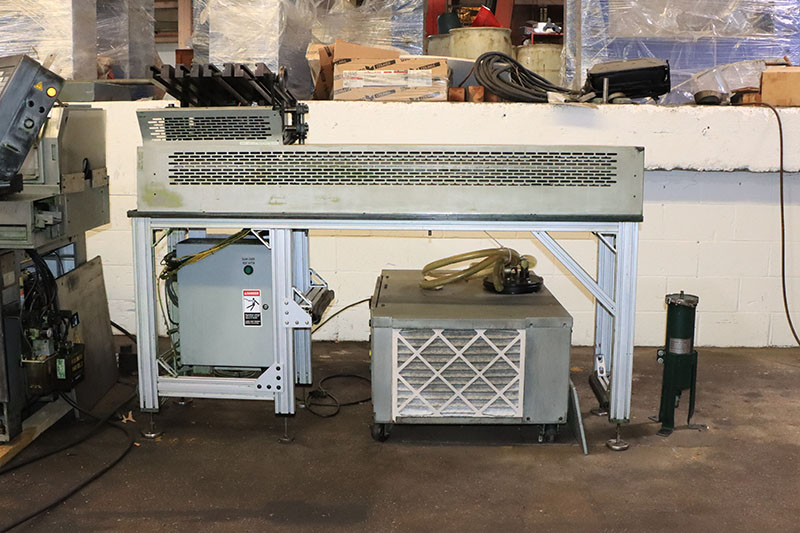

 - CAV 20IS Barloader

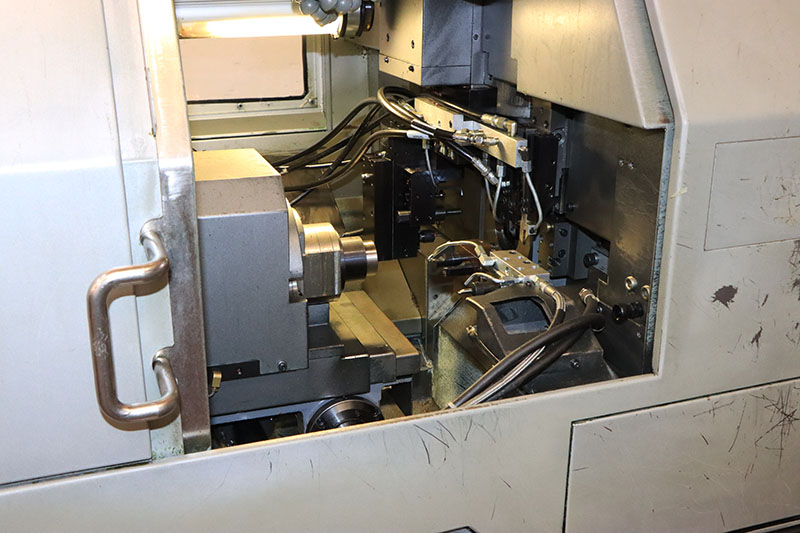

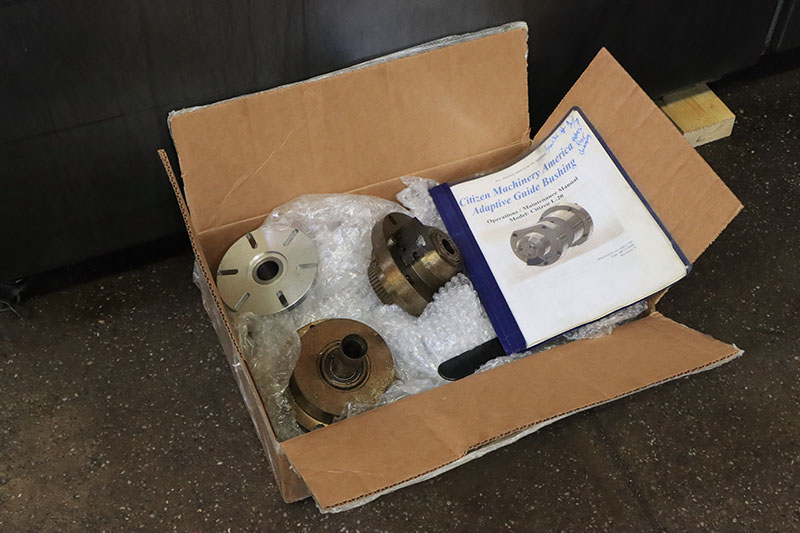

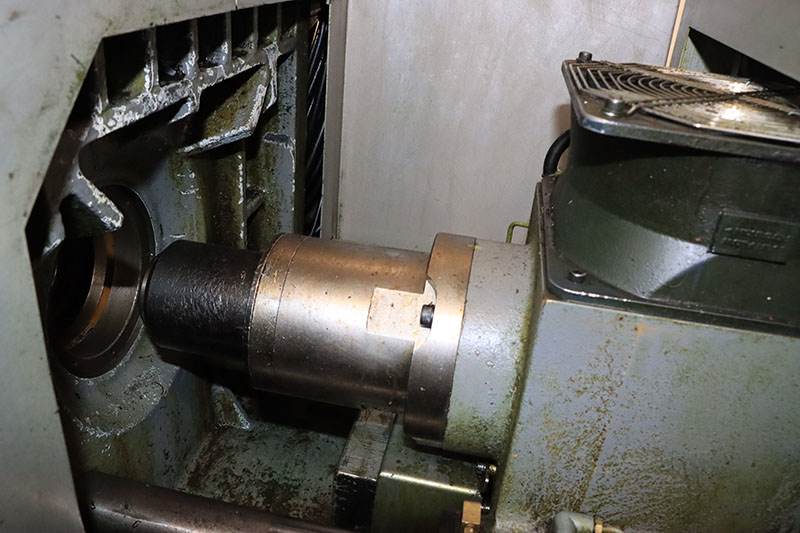

Machine does not have a guide bushing installed. It was machining blanks.
