Citizen M-32V CNC SWISS TYPE MULTI-AXIS LATHES

Price on Request

Make:: Citizen

Model:: M-32V

Year:: 2007

Ref #:: 178197

Or call us for a quote at (973) 497-7500 or send us an email at automatics@machineryvalues.com

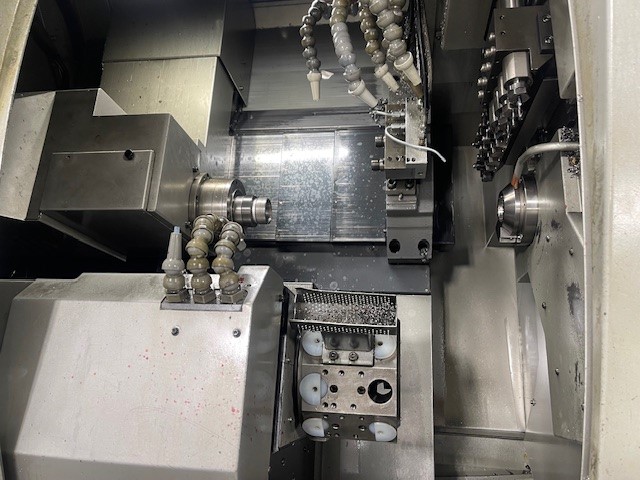

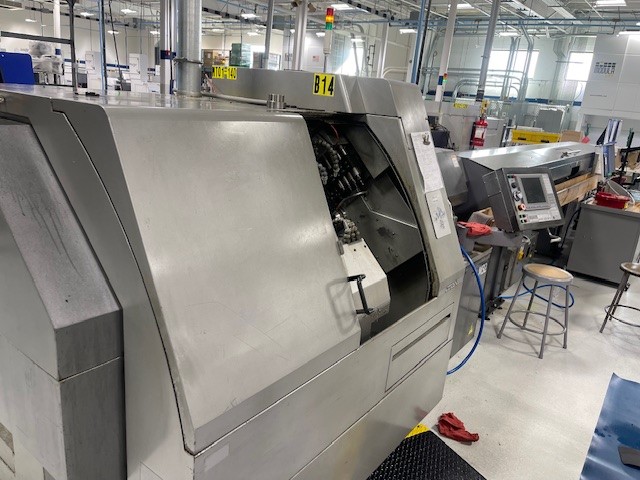

Citizen M-32V 10-Axis CNC Swiss Type Lathe
New: 2007

All details must be confirmed by the buyer
General Specifications per the Manufacturers Brochure
Max. machining diameter (D) 32mm dia
Max. machining length (L) 320mm/1 chucking
Spindle through-hole diameter 36mm diam.
Main spindle speed 8000 rpm
Spindle speed of the gang rotary tool 5000 rpm
Spindle speed of the
turret rotary tool 5000 rpm
Sub spindle speed 7000 rpm
Max. chuck dia of the back spindle 32mm diam
Number of tools to be mounted 31+a
Gang tool post 5
Gang rotary tool 4
Number of turret station 10
Back tool post 3
Tool size
Tool (gang tool post) 16mm square
Sleeve 24.5mm diam
Chuck and bushing
Main spindle collet chuck F37
Back spindle collet chuck F37
Guide bushing N229
Motors
Spindle drive 3.8/7.5 kW
Sub spindle drive 1.7/3.7 kW
Gang tool post rotary tool drive 1.0 kW
Turret rotary tool drive 0.75/1.5 kW
Coolant oil 0.4 kW
Lubricating oil 0.003 kW
Centre height 1150mm
Rated power consumption 14.5 kVA
Full-load current 53A
Main braker capacity 75A
Weight 3550 kg (7825 lbs)
Dimensions (approx) 3065mm x 1410mm x 1900mm

Equipped With:

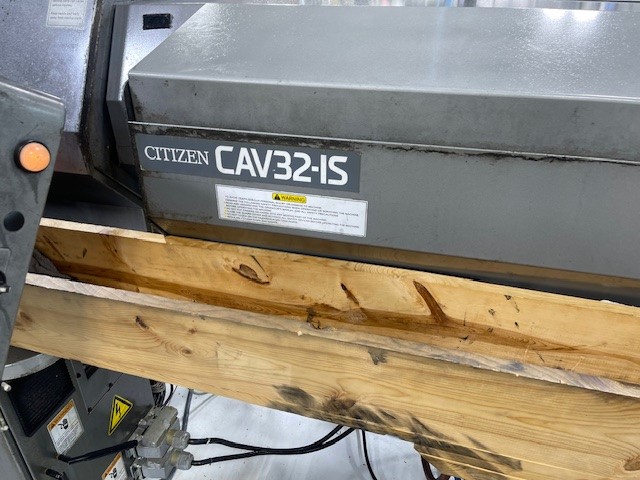

  CAV32-IS Magazine Barfeed
  Coolblaster High Pressure Coolant
