Clausing 20" 4-Spindle Drill MULTI-SPINDLE & PRODUCTION DRILLS

$3,950

Make:
Clausing
Model:
20" 4-Spindle Drill
Year:
1980's
Ref #:
159043

Or call us for a quote at (973) 497-7500 or send us an email at boringmills@machineryvalues.com

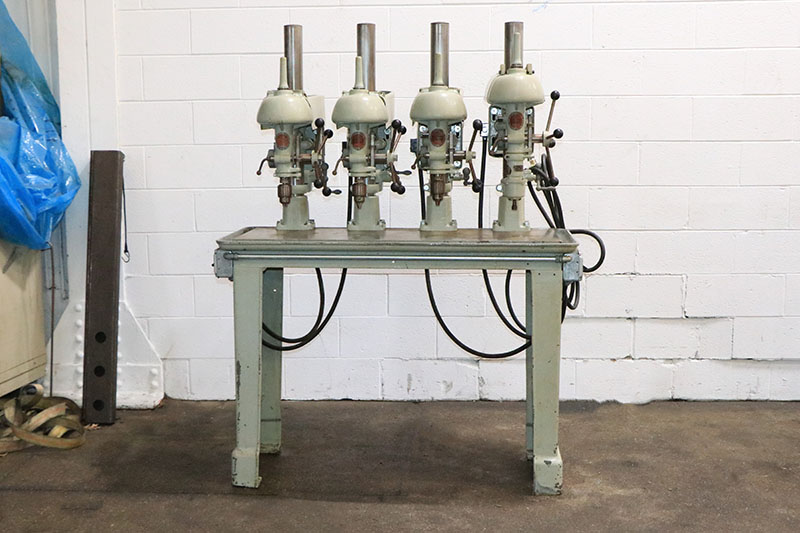

20" CLAUSING FOUR SPINDLE DRILL PRESS
S/N's: 108080, 106009, 107779 & 106007, NEW: 1980'S

SPECIFICATIONS:
DRILLING CAPACITY ................. 1-1/4"
DRILLS TO CENTER OF CIRCLE ........ 20"
SPINDLES TRAVEL ................... 6-1/2"
QUILL DIAMETERS ................... 2-1/2"
SPINDLE TAPERS .................... #3MT
SPINDLE SPEEDS(5) ................. 300, 500, 800,
                                   1,200 & 2,000 RPM
TABLE WORKING SURFACE ............. 24" X 80"
OVERALL SIZE OF TABLE ............. 29-1/2" X 85-1/2"
APPROXIMATE HEIGHT ................ 85"
APPROXIMATE WEIGHT ................ 2,800 LBS.

EQUIPPED WITH:
PRODUCTION TABLE WITH TROUGH
RACK FOR RAISING & LOWERING HEAD POSITION
(2) SPINDLE GEAR DRIVEN POWER FEED UNITS
      FOUR FEEDS .004", .006", .009" & .012" IPR
(3) 1.5 HORSEPOWER MOTORS FOR SPINDLES
(1) 1 HORSEPOWER SPINDLE MOTOR

INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE
