Clausing 2276 SINGLE SPINDLE DRILL PRESSES

$2,450

Make:: Clausing

Model:: 2276

Year:: 1970's

Ref #:: 169150

Or call us for a quote at (973) 497-7500 or send us an email at boringmills@machineryvalues.com

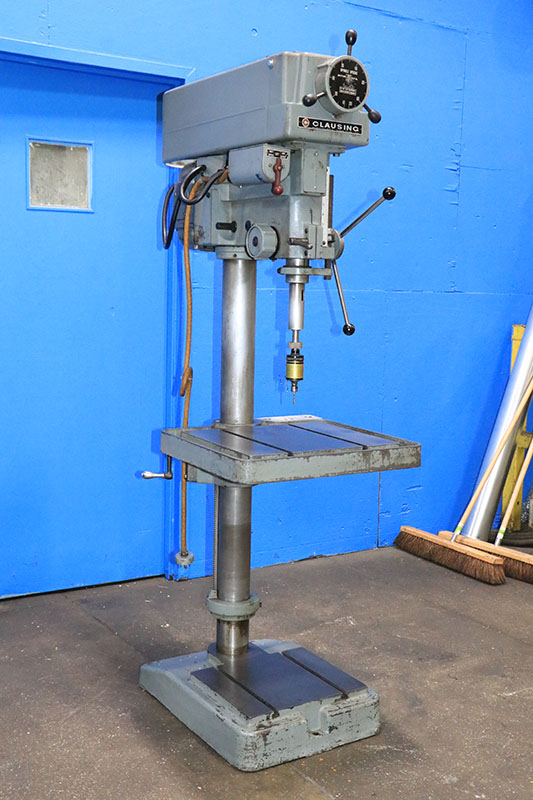

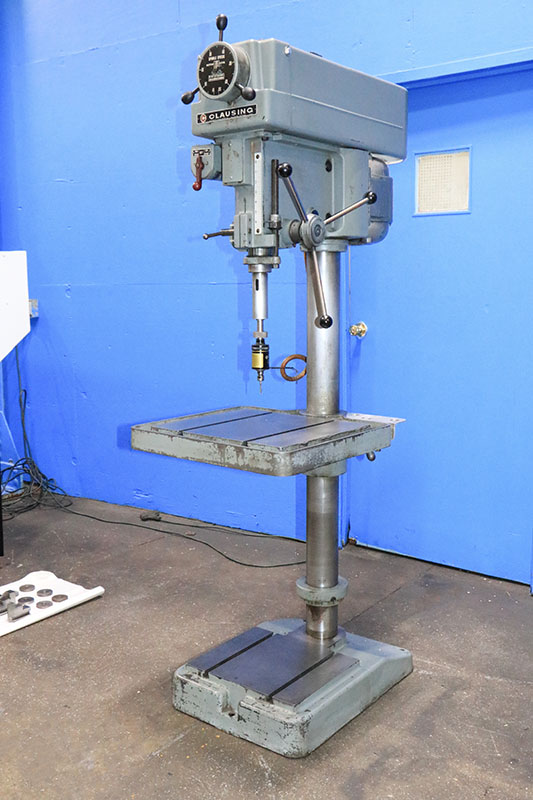

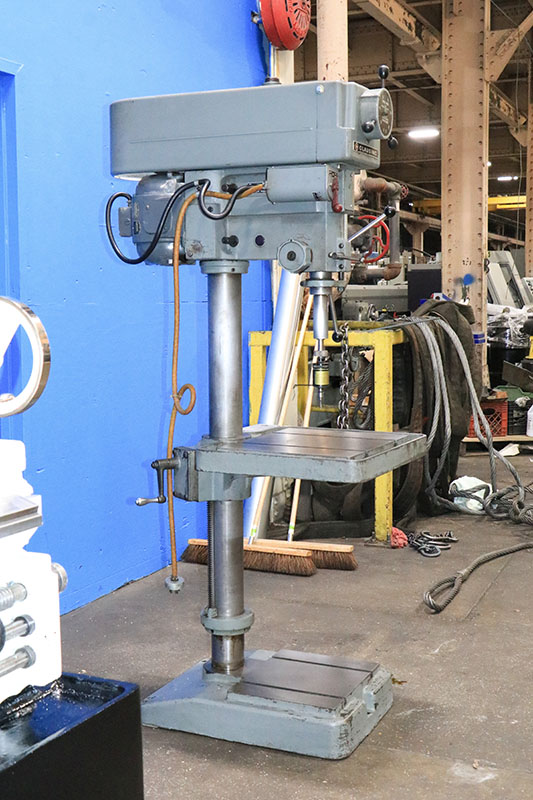

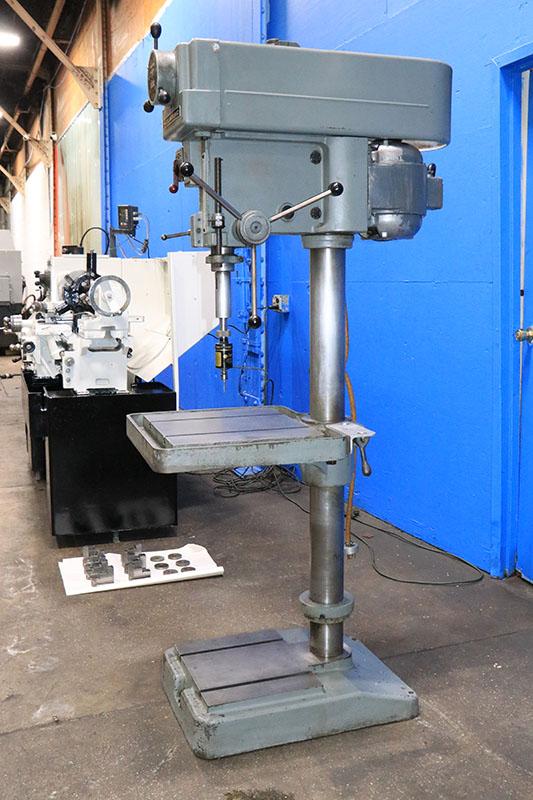

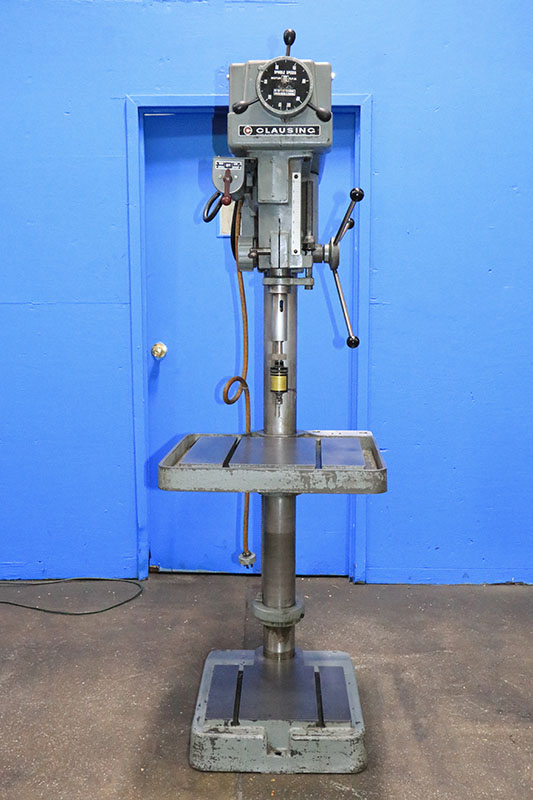

20" CLAUSING VARIABLE SPEED DRILL PRESS,

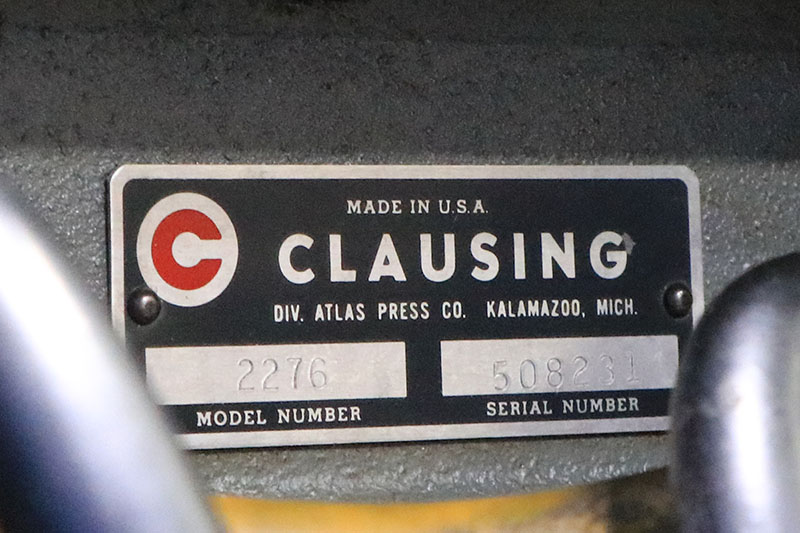

MODEL: 2276, S/N: 508231, NEW: 1970's

SPECIFICATIONS:
CAPACITY, HAND FEED ................... 1-1/4" DIA
DRILLS TO CENTER OF CIRCLE ............ 20" DIAMETER
OVERALL SIZE OF TABLE ................. 19-1/2" X 22"
WORKING SURFACE OF TABLE .............. 15-1/2" X 18"
SPINDLE TAPER ......................... #3 MORSE
SPINDLE TRAVEL ........................ 6-1/2"
MAX DISTANCE SPINDLE TO TABLE ......... 33-1/8"
MAX DISTANCE SPINDLE TO BASE .......... 43-3/8"
BASE WORKING SURFACE .................. 13" X 15-1/2"

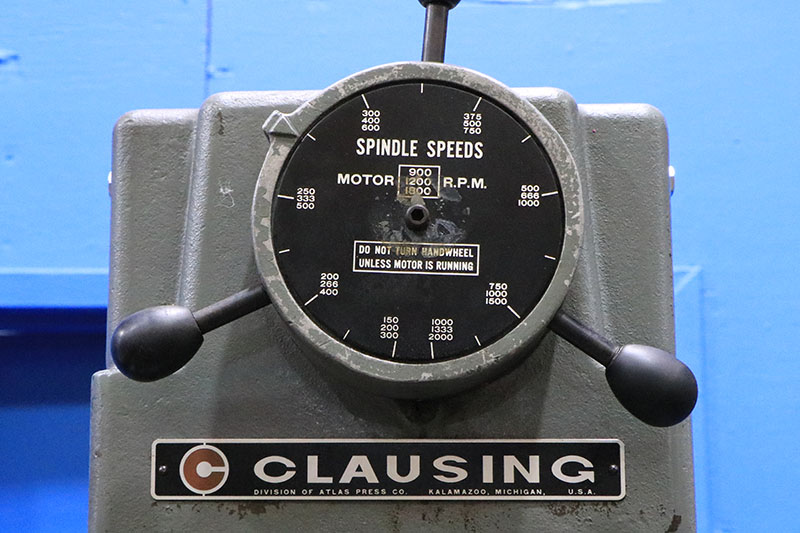

SPINDLE SPEEDS INFINITELY VARIABLE:
  LOW RANGE ........................... 150 - 1000 RPM
  HIGH RANGE .......................... 300 - 2000 RPM
APPPROXIMATE WEIGHT ................... 640 LBS.

EQUIPPED WITH:
* MANUALLY OPERATED RATCHET-TYPE MECHANISM FOR RAISING/LOWERING OF TABLE

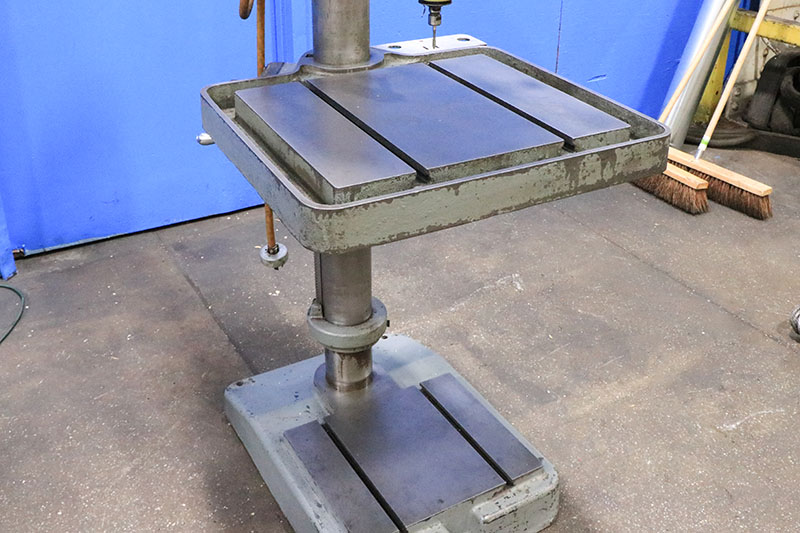

* T-SLOTTED TABLE & BASE

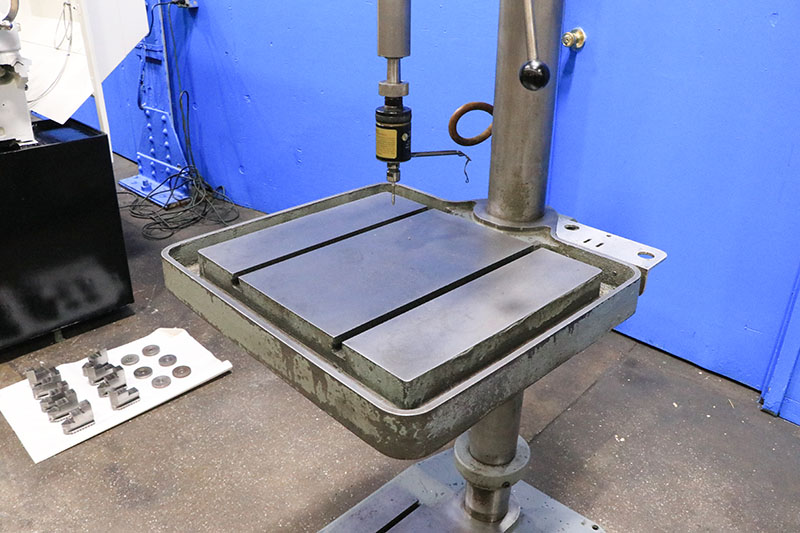

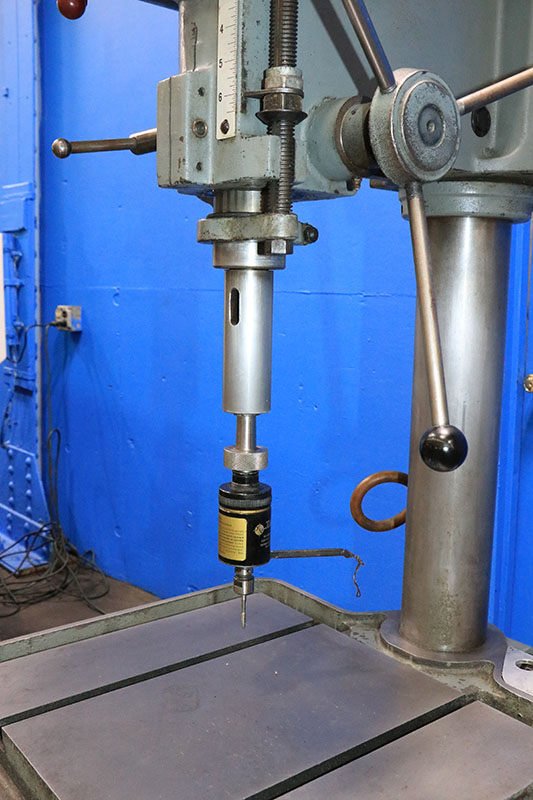

* TAPMATIC 30X TAPPING HEAD

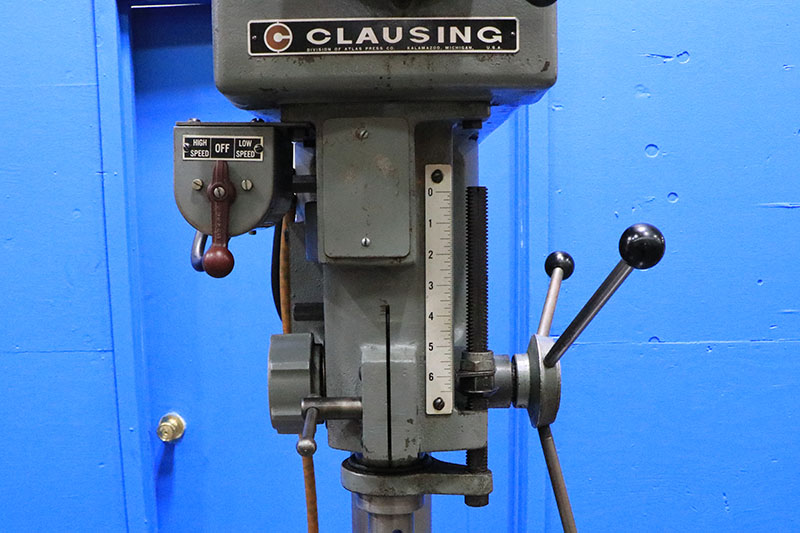

* 1.5 / .75 HORSE POWER TWO SPEED MOTOR


INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE
