Clausing CL1100 RADIAL ARM DRILLS

$12,500

Make:: Clausing

Model:: CL1100

Year:: 2015

Ref #:: 179707

Or call us for a quote at (973) 497-7500 or send us an email at boringmills@machineryvalues.com

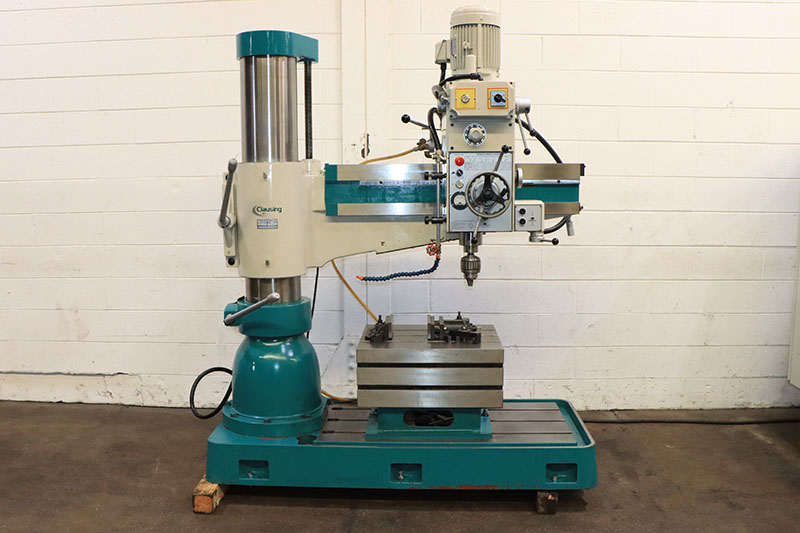

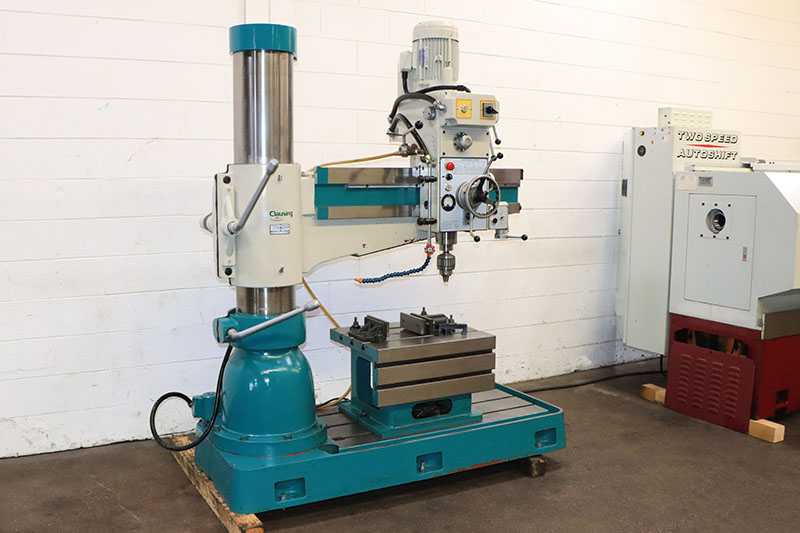

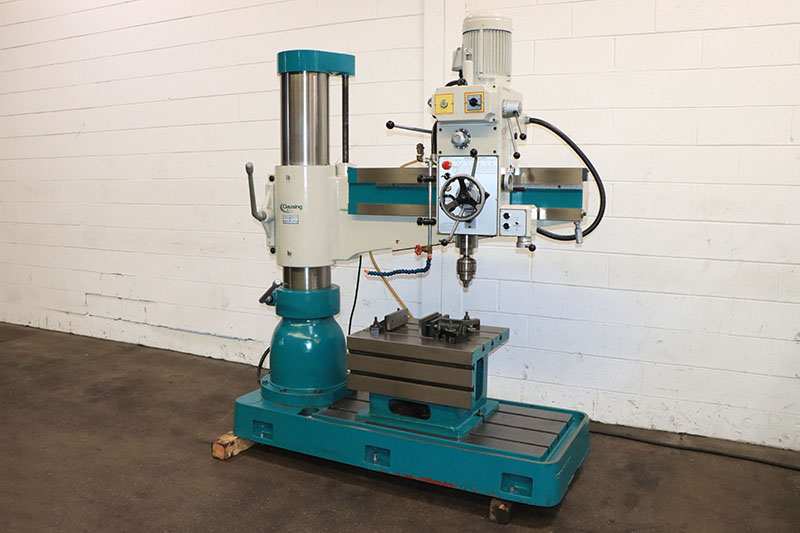

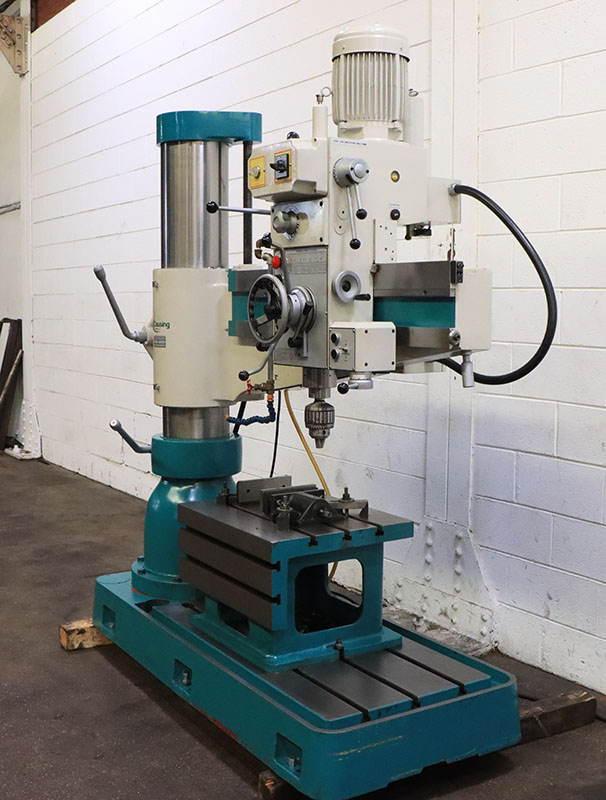

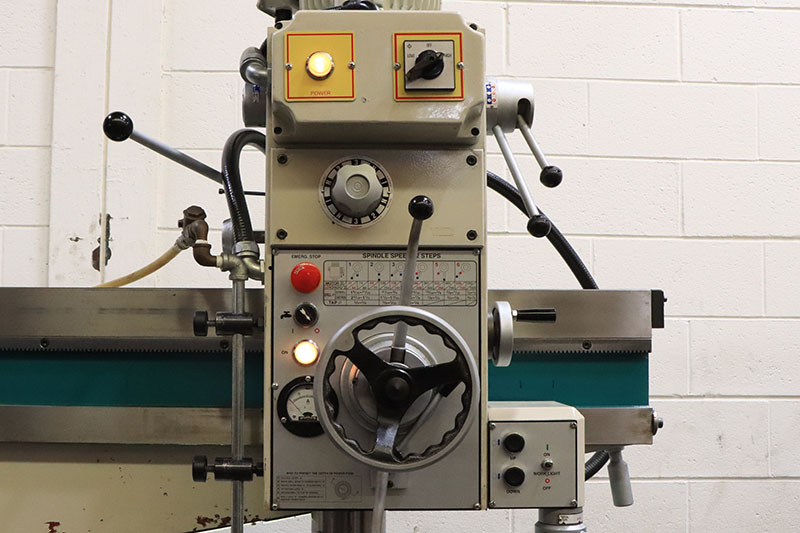

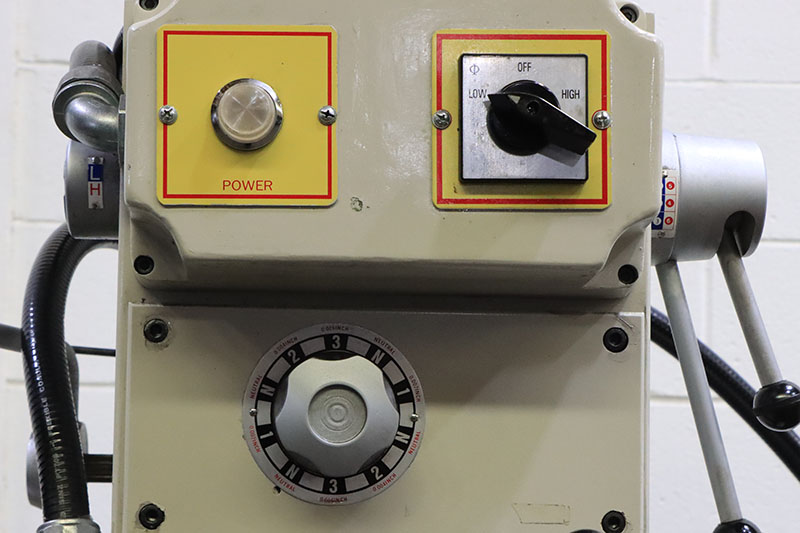

3'6" CLAUSING RADIAL DRILL
MODEL: CL1100,  S/N: 15292,  MFG: 2015

SPECIFICATIONS:
COLUMN DIAMETER ....................... 10.24"
DISTANCE SPINDLE TO COLUMN ............ 11" - 43.3" MIN/MAX
TRAVEL OF SPINDLE HEAD ................ 32.3"
DISTANCE SPINDLE TO BASE  ............. 18.5" - 50" MIN/MAX
VERTICAL TRAVEL OF ARM ................ 31.5"
VERTICAL TRAVEL OF SPINDLE IN HEAD .... 9.05"
TAPER IN SPINDLE ...................... #4 MT
SPINDLE FEEDS (3) ................ .002, .0368 & .006 IPR

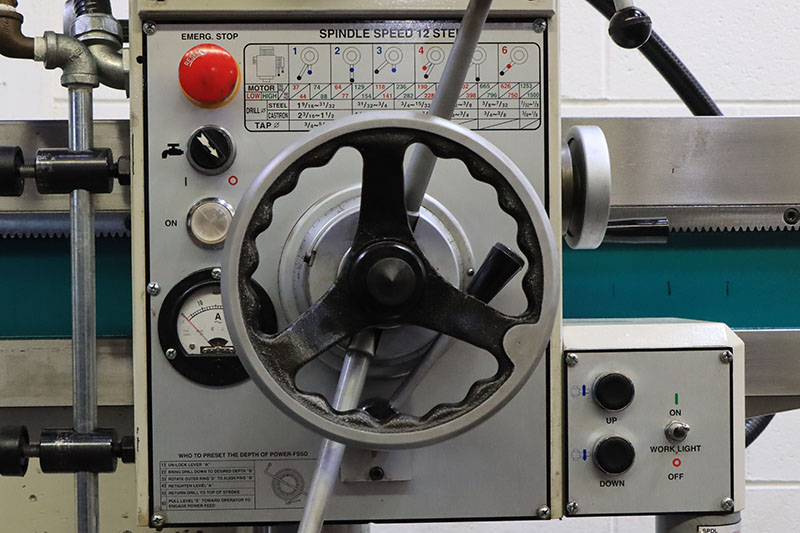

SPINDLE SPEEDS (12) ................... 44 TO 1500 RPM
BASE WORKING SURFACE .................. 48" x 29.1"
DRILLING CAPACITY:
MILD STEEL ............................ 1.65"
CAST IRON ............................. 2.16"
APPROXIMATE WEIGHT .................... 4,500 LBS
OVERALL DIMENSIONS HEAD DOWN ...... 34.2"W x 74.4"W x 87"H


EQUIPPED WITH:

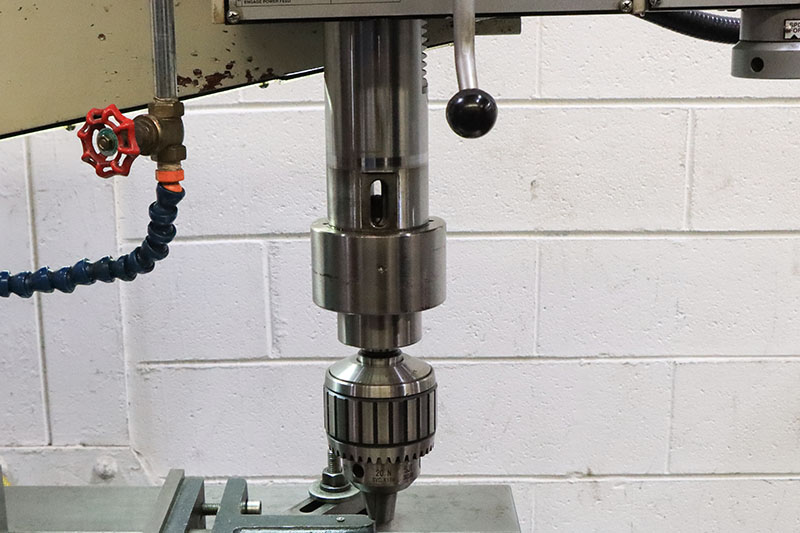

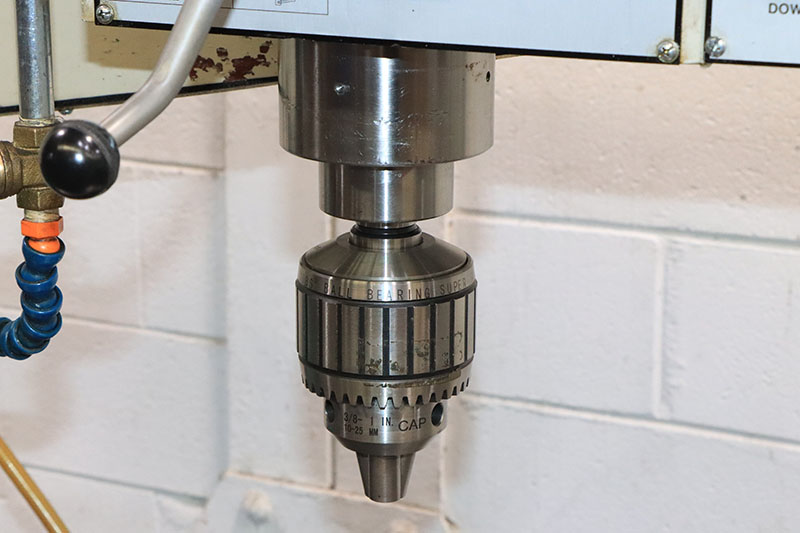

- JACOBS 1" CAPACITY DRILL CHUCK

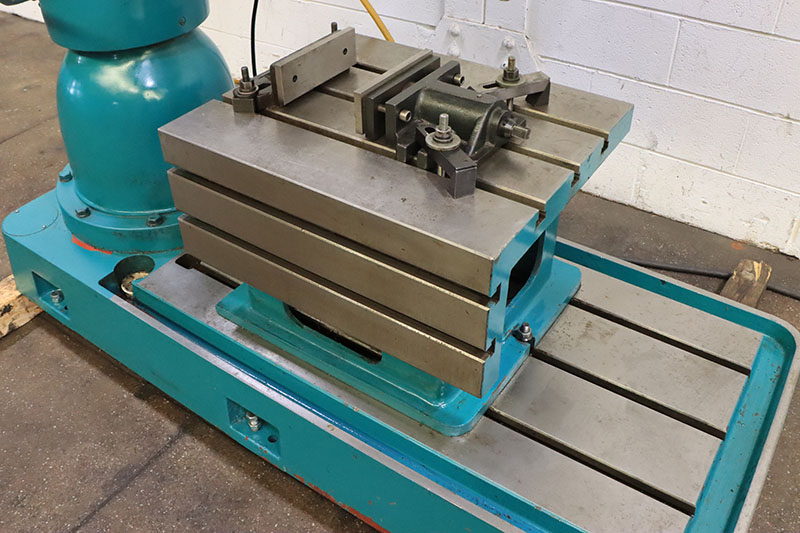

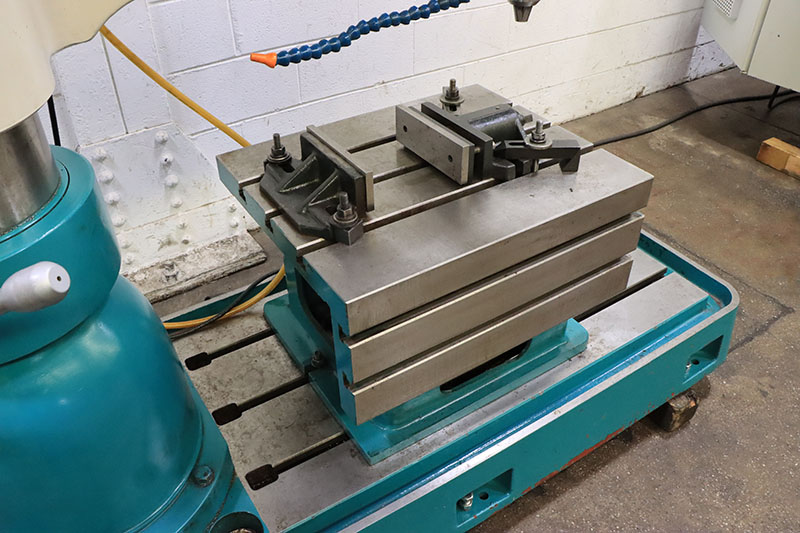

- T-SLOTTED BOX TABLE
- T-SLOTTED BASE
- POWER CLAMPING OF ARM ON COLUMN

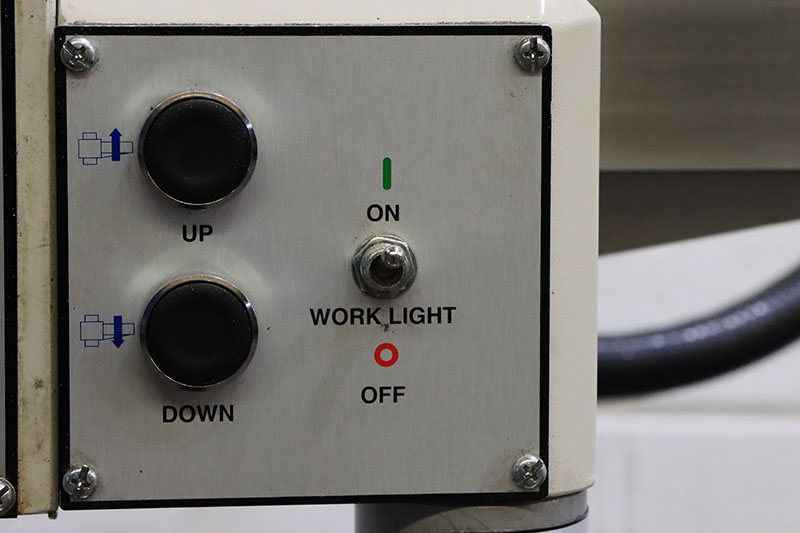

- POWER ELEVATION OF ARM ON COLUMN

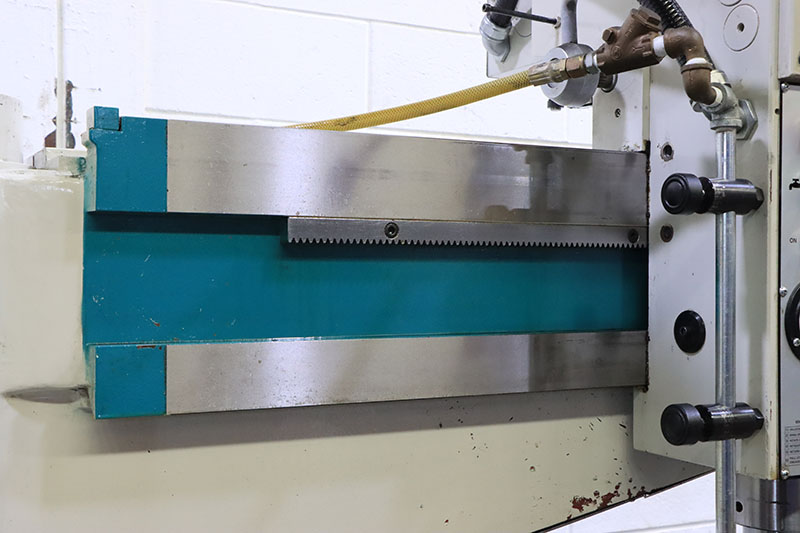

- PRECISION HARDENED COLUMN AND ARM WAYS
- COOLANT SYSTEM
- 3 HORSE POWER SPINDLE MOTOR

INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE
