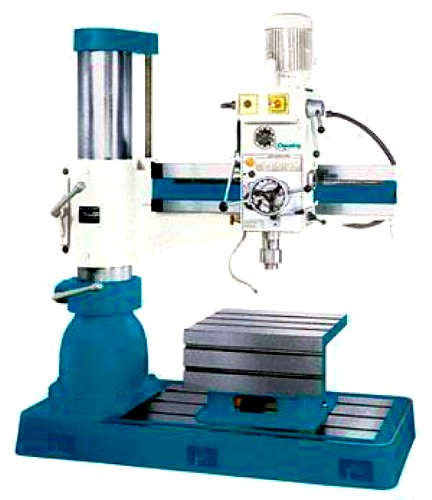

Clausing CLC2500 NEW RADIAL DRILLS
Price on Request
- Ref #:
98" ARM, 39 x 31 x 22 TABLE, 10 HP
Column Sleeve Dia.: 21.65"
Column Face to Spindle Center:
Spindle Head Travel: 78.7"
Base Surface to Spindle End:
Arm Vertical Travel: 39.4"
Arm Rotation (Right & Left): 180 degrees
Baseplate Working Surface: 86.8" x 43.4"
Box Table Area:
Floor Area: 138.6" x 55.1"
Drilling In Steel 3.15"
In Cast Iron 3.94"
Tapping In Steel 2.56"
In Cast Iron 2.95"
Boring In Steel 6"
In Cast Iron 10"
Spindle Taper: 6MT
Spindle Stroke: 17.7"
Quill Diameter 3.94"
Number of Spindle Speeds: 16
Spindle Speeds (rpm): 25-1250
Number of Feeds: 16
Spindle Feed Rate (in/rev.): 0.0015-0.126"
Spindle Drive Motor: 10 hp
Elevating Motor: 5 hp
Coolant Pump Motor: 1/4 hp
Maximum Machine Height: 157"
Base & Column Height: 151.6"
Shipping Dimensions (L x W x H): 158" x 63" x 151.6"
STANDARD FEATURES & EQUIPMENT:
-Equipped with hydraulic SEPARATE clamping unit. Vertical movement of the arm is coordinated by an IC Timer.
With a single touch on the push button switch, you can have arm unclamped then move vertically, or stop then clamp
automatically. Very easy to operate and tools will always stay at the same point after tool shifting.
-Gears are cooled by an oil pump to minimize gear wear.
-Friction type disc clutch absorbs impact force caused by vertical movement of spindle and protects all transmission
units inside gear-box. With quick spindle return, the clutch will help speed-up the tapping operation.
-Special arm elevating device is provided to prevent arm from dropping abruptly after years of usage.
-Tool kit and manuals
OPTIONAL EQUIPMENT (CALL FOR PRICING):
-Large Table, 32 x 28 x 24
-Small Tilt Table, 20 x 20 x 23
-Box Table, 39 x 31 x 19
-CE Electrics w/Spindle Guarding
-Auto Reversing Tapping Feature
Clausing warrantees the machine and control for a period of one year from the date of installation. This warranty does not
cover normal wear items such as filters and belts or damage that results from the misuse or abuse of this equipment.
**Due to continual improvements, prices and specifications subject to change without notice**
