Clausing-Colchester 8052 17" ENGINE LATHES

$16,500

Make:: Clausing-Colchester

Model:: 8052 17"

Year:: 1970's

Ref #:: 178219

Or call us for a quote at (973) 497-7500 or send us an email at toolroom@machineryvalues.com

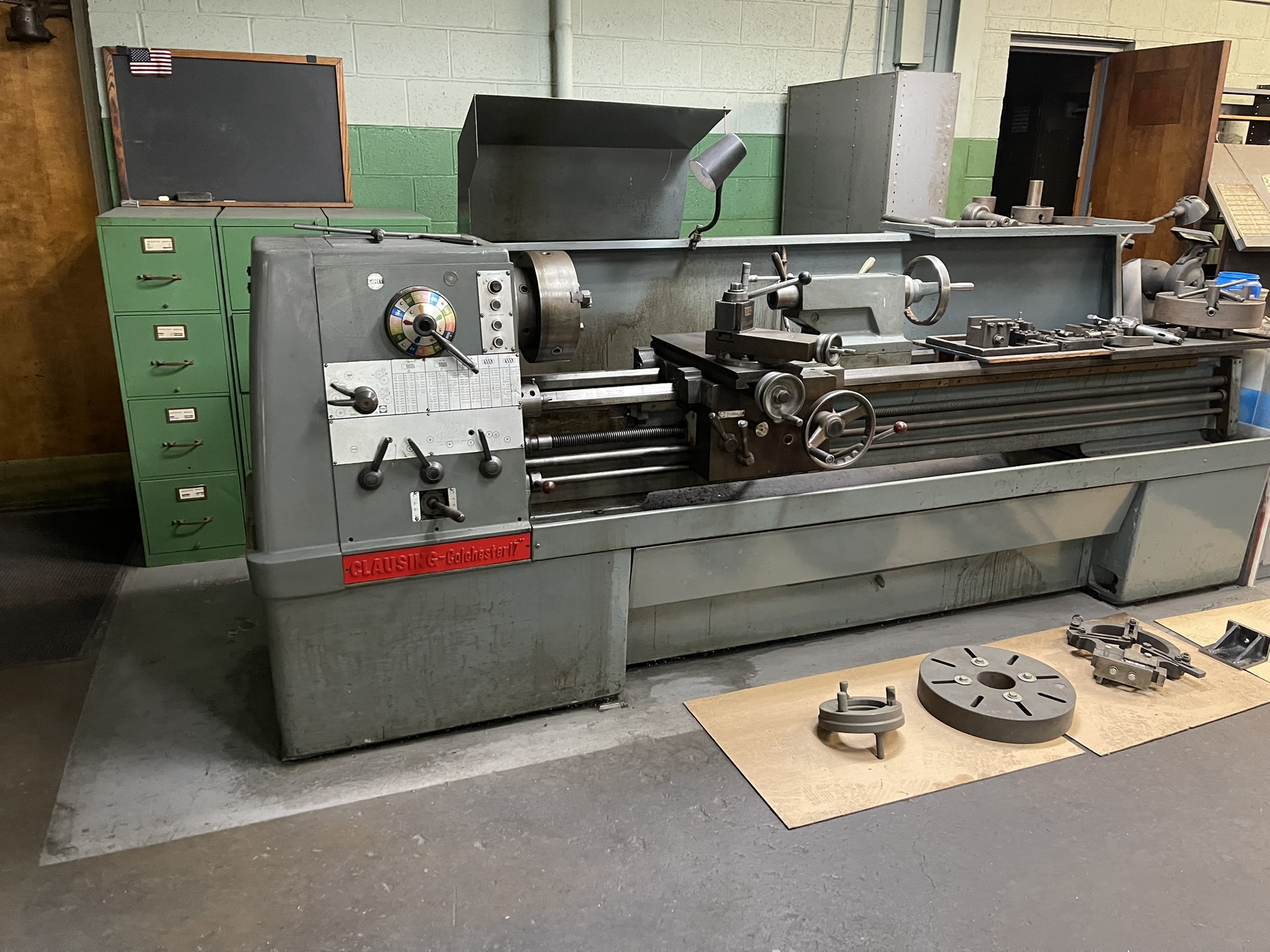

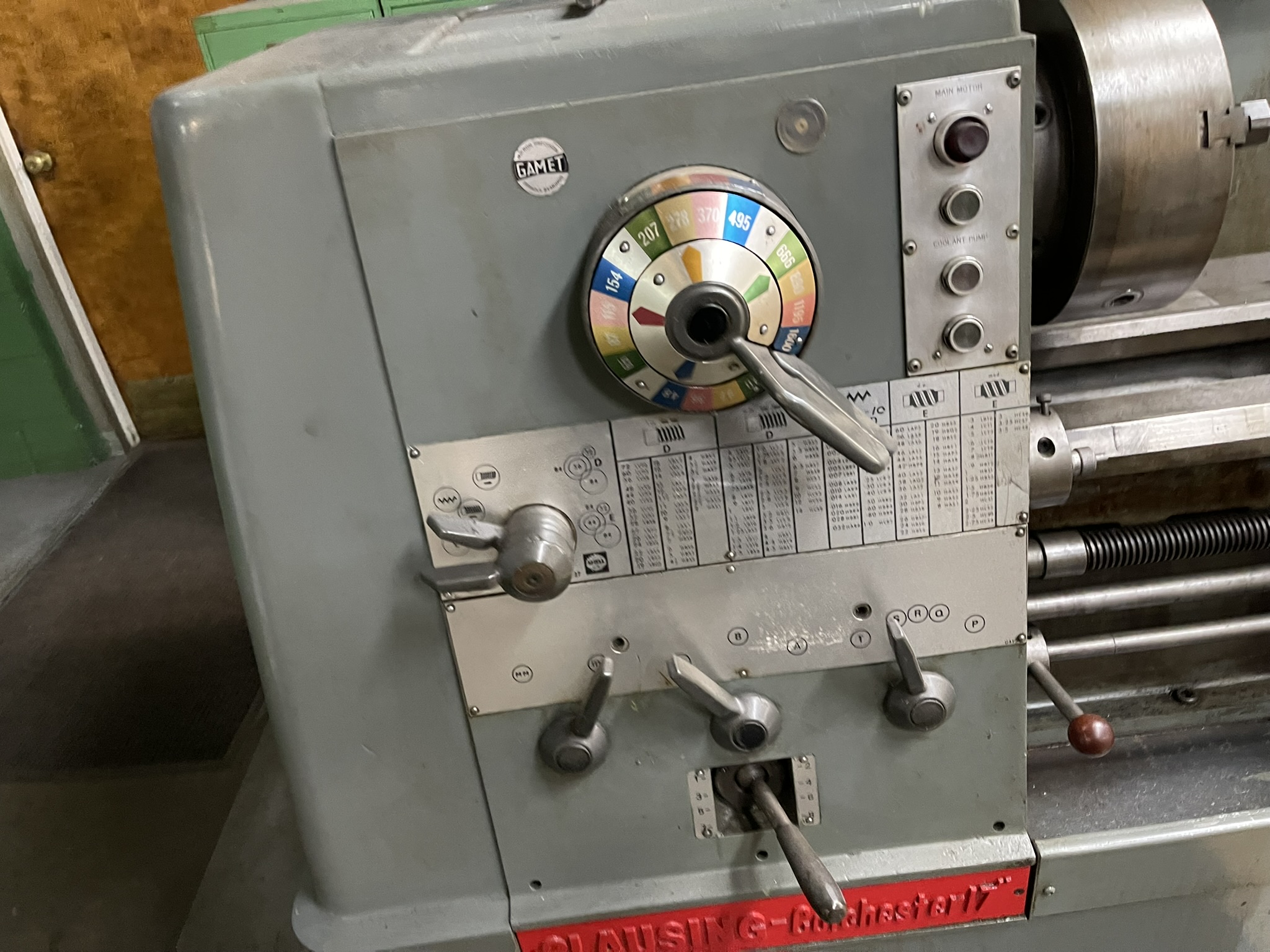

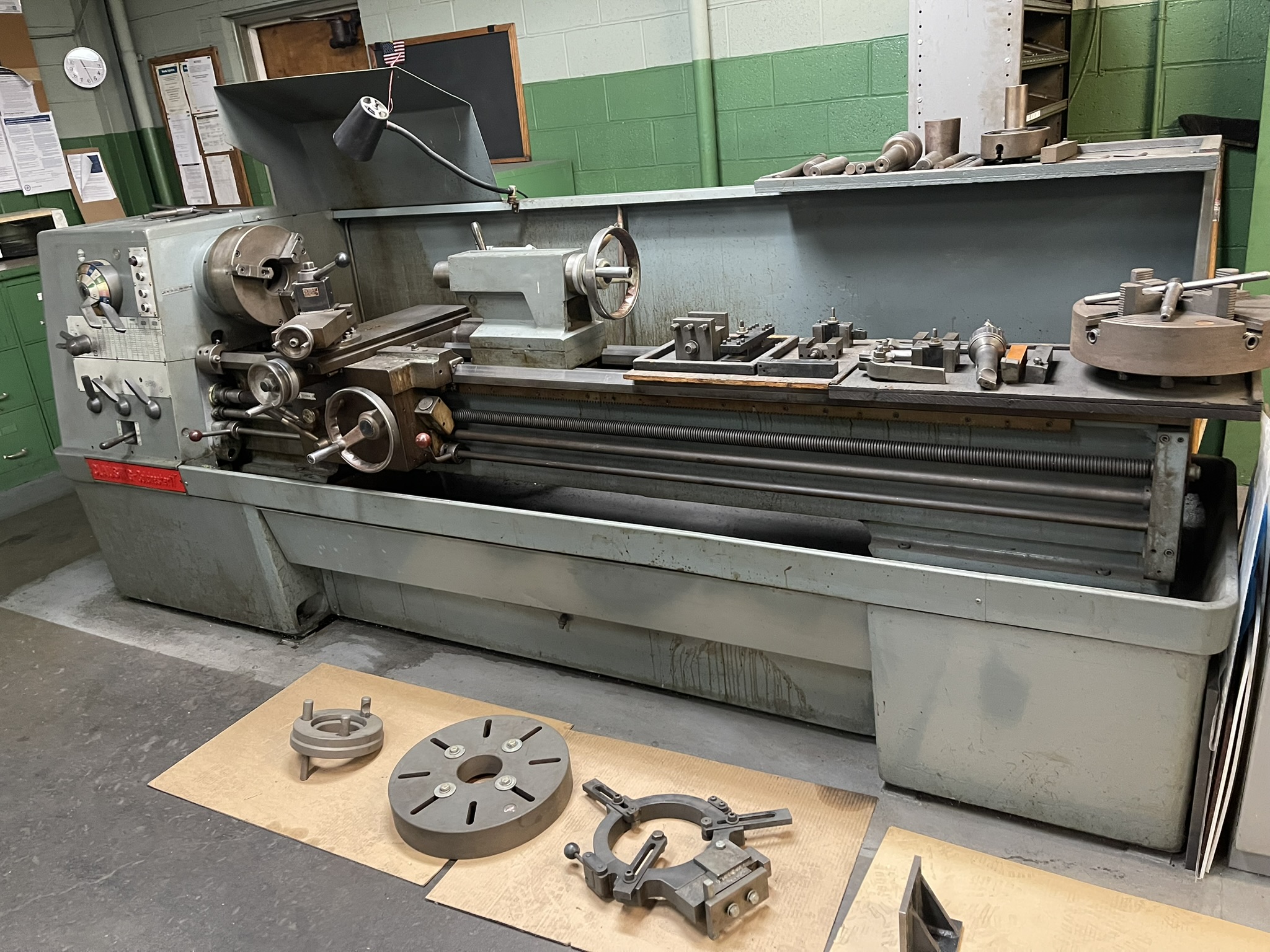

17"/28" x 80" CLAUSING-COLCHESTER GAP BED ENGINE LATHE

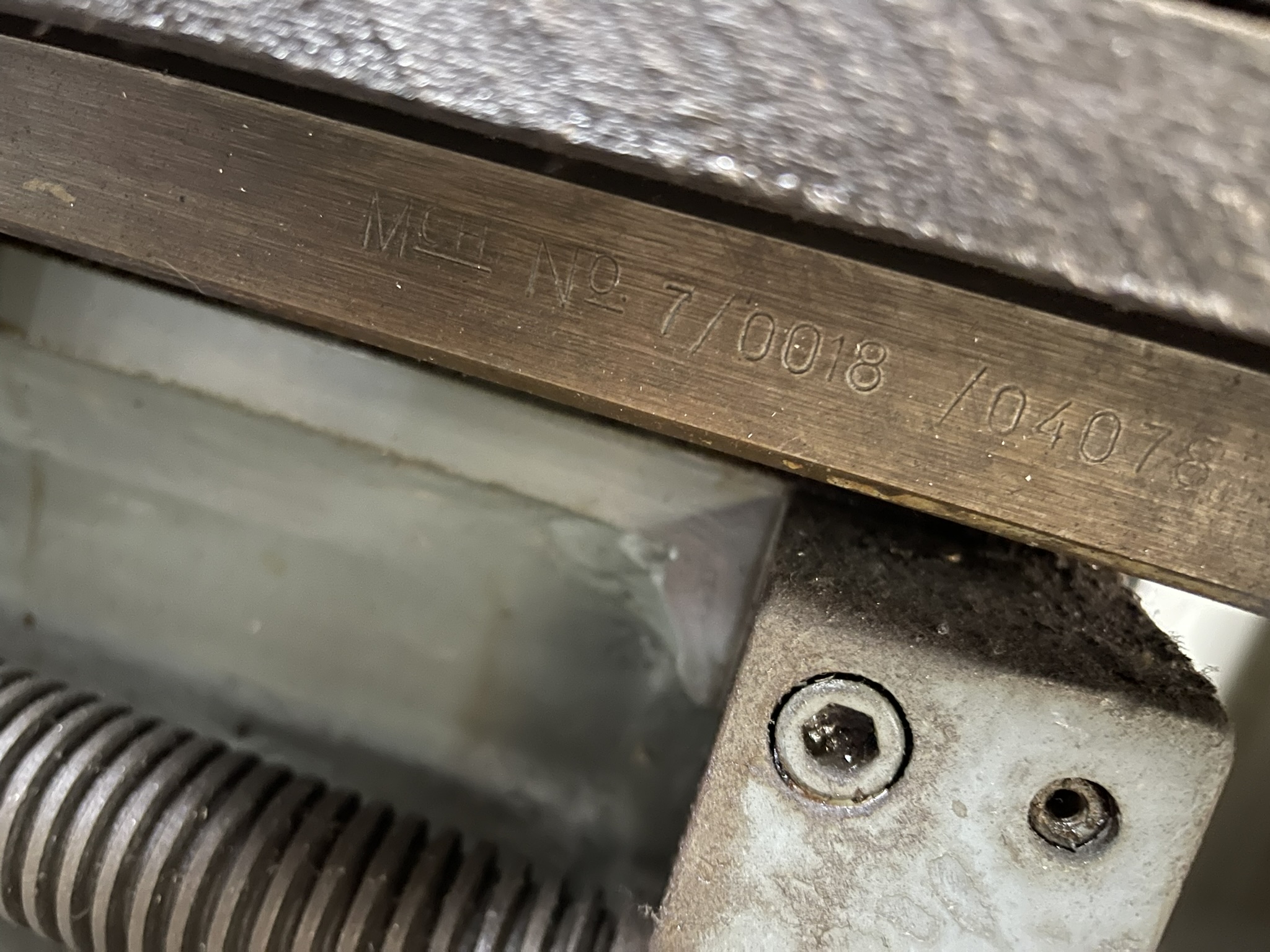

MODEL: 8052,  S/N:7/0018/04078,  NEW: 1970's

SPECIFICATIONS:
SWING OVER BED ...................... 17-1/4"
SWING IN REMOVABLE GAP .............. 28"
SWING OVER CROSS SLIDE .............. 10-1/2"
DISTANCE BETWEEN CENTERS ............ 80"
SPINDLE NOSE CAMLOCK ................ D1-8"
HOLE THRU SPINDLE ................... 3-1/16"
SPINDLE SPEED RANGE (16) ............ 20 - 1,600 RPM
ENGLISH THREADING RANGE (38) ........ 2 - 72 TPI
METRIC THREADING RANGE (40) ......... .4 - 14 MM
LONGITUDINAL FEED RANGE (45) ........ .002" -. 032" IPR
CROSS FEED RANGE (45) ............... .001"-.016" IPR
TAILSTOCK SPINDLE TAPER ............. #5 MT
TAILSTOCK SPINDLE TRAVEL ............ 7"
APPROX DIMENSIONS ................... 140"L x 42"W x 52"H
APPROX WEIGHT ....................... 6,000 LBS

EQUIPPED WITH:
NEW GAMET SPINDLE BEARINGS
INCH AND METRIC THREADING CAPABILITY

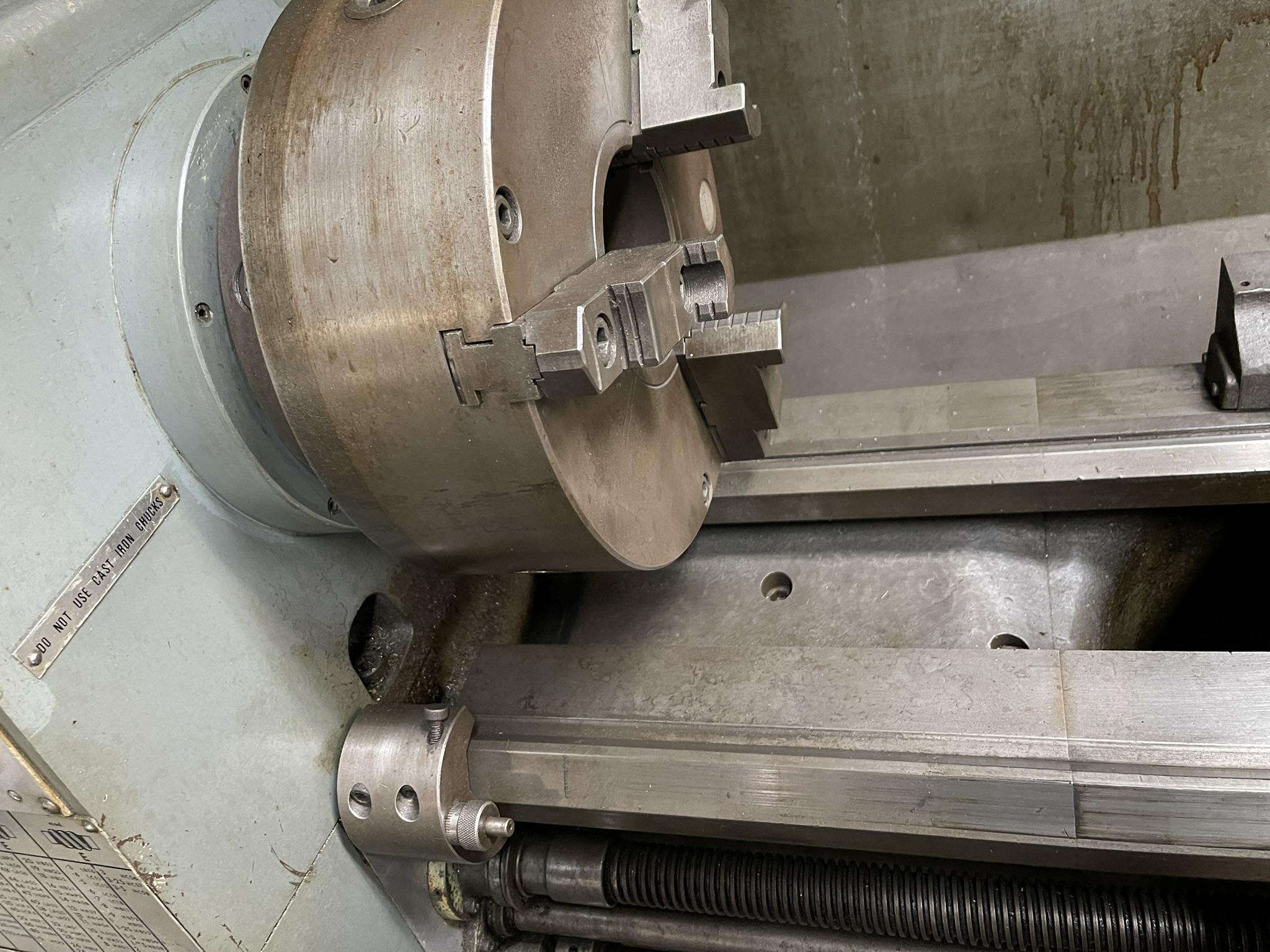

3-JAW CHUCK
4-JAW CHUCK

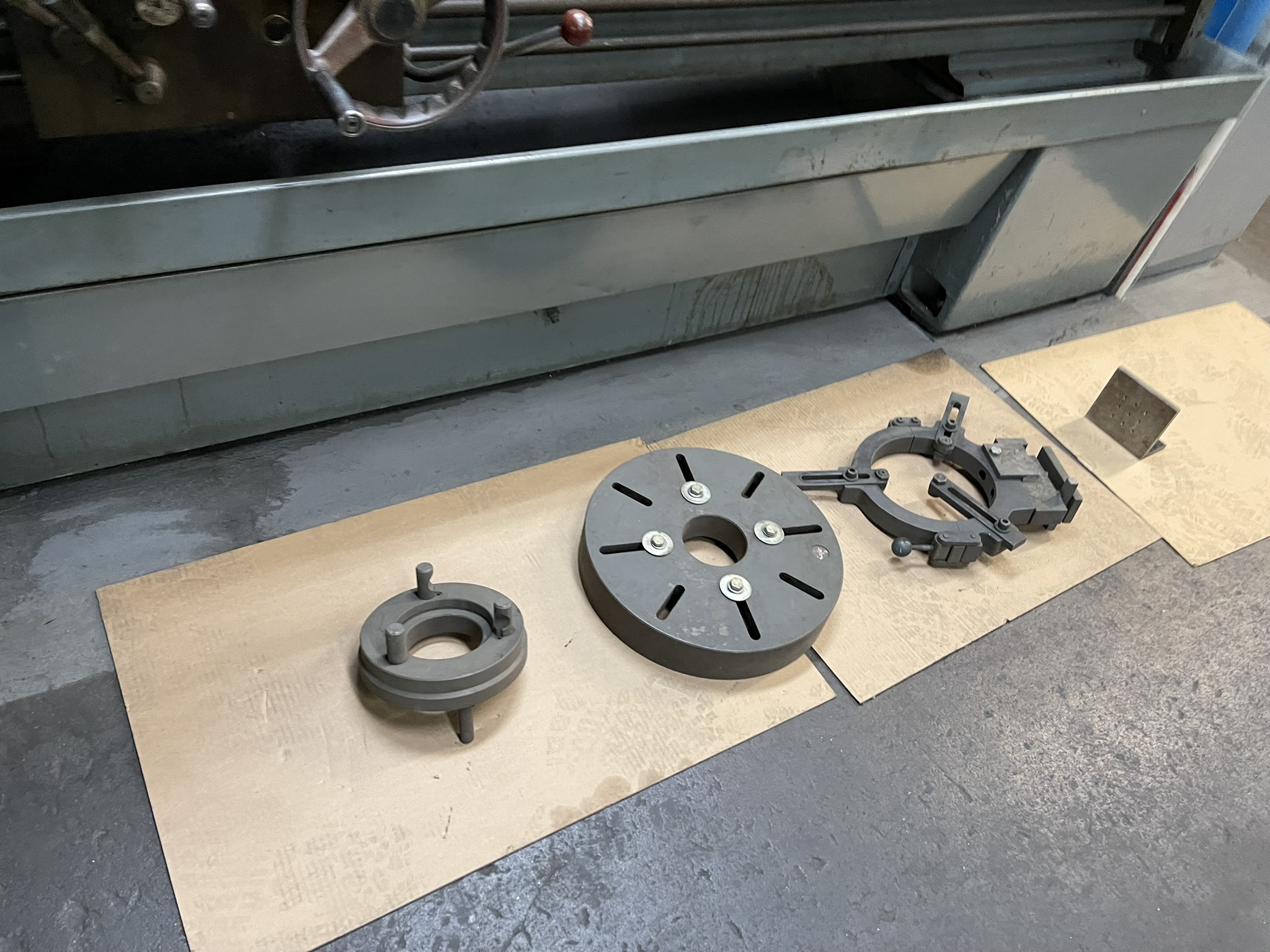

FACEPLATE
STEADY REST

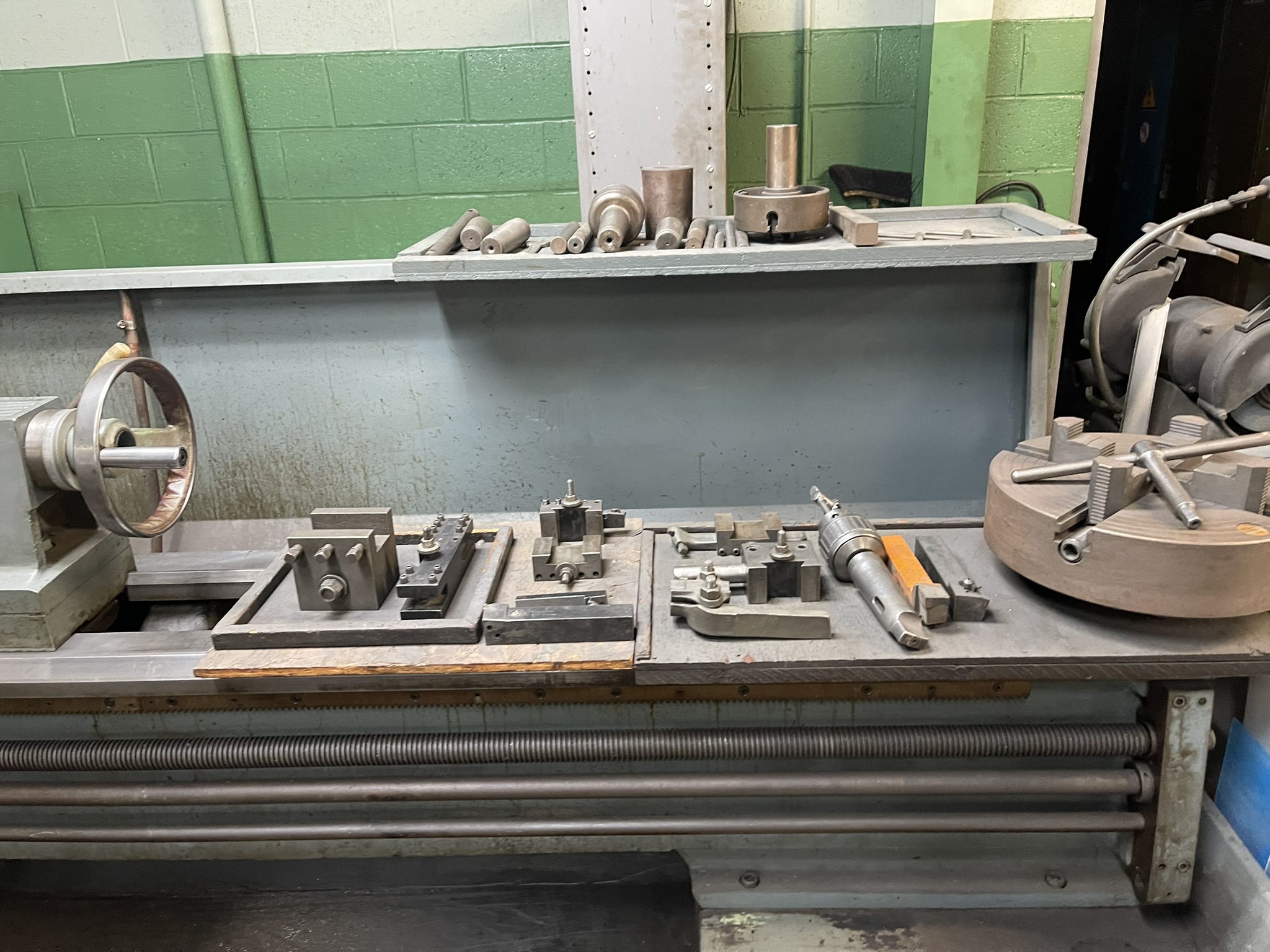

ALORIS QUICK CHANE TOOLPOST
LIVE CENTER FOR TAILSTOCK
JACOBS DRILL CHUCK FOR TAILSTOCK
THREAD DIAL INDICATOR
COOLANT SYSTEM w/ REMOVEABLE CHIP PAN & SPLASH GUARD
HARDENED BED WAYS
10 HORSE POWER MAIN DRIVE MOTOR
