Clausing-Metosa C1340S ENGINE LATHES

$9,950

Make:
Clausing-Metosa
Model:
C1340S
Year:
2000's
Ref #:
167520

Or call us for a quote at (973) 497-7500 or send us an email at toolroom@machineryvalues.com

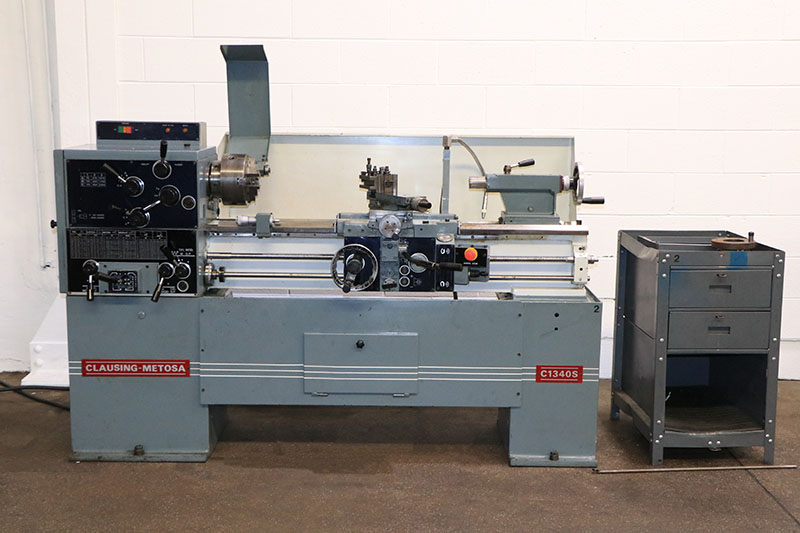

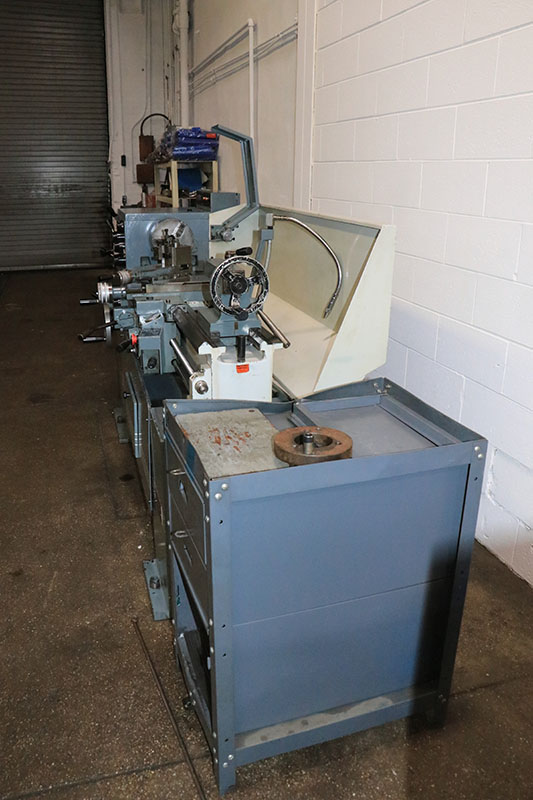

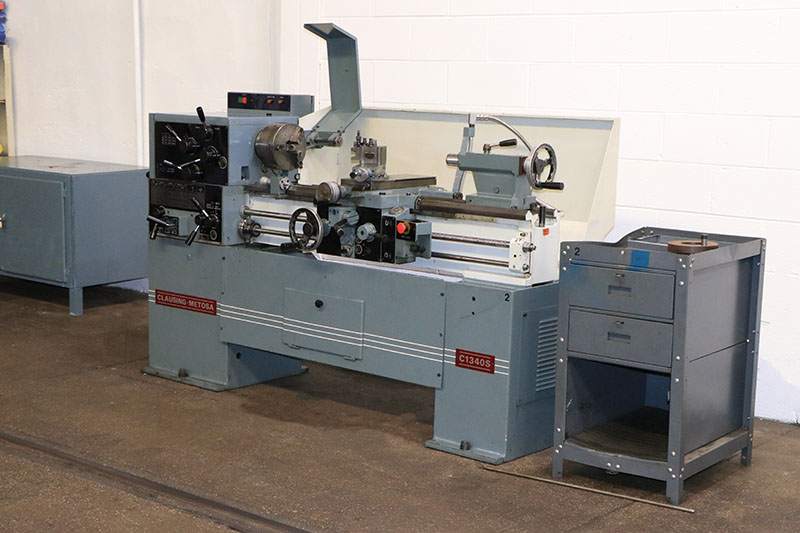

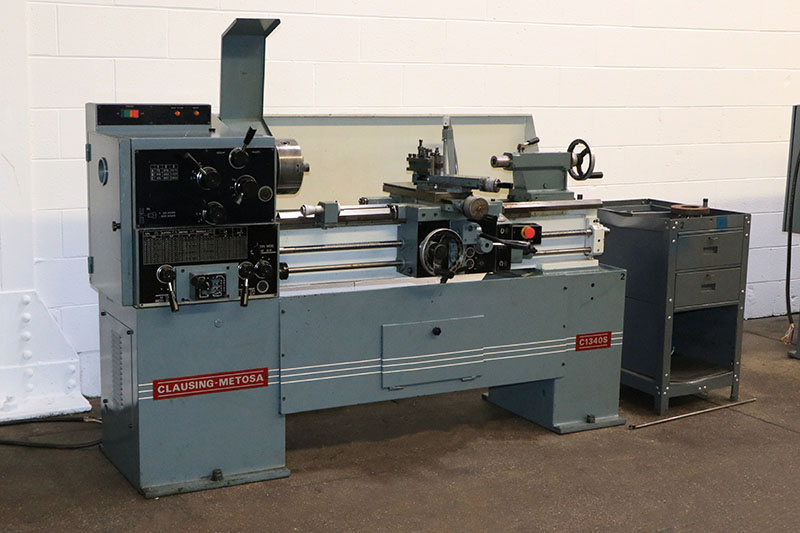

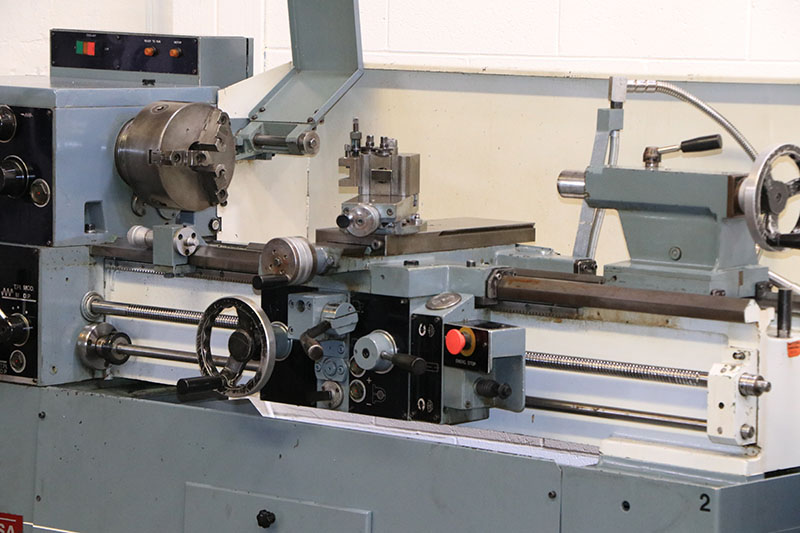

13" X 40" CLAUSING-METOSA ENGINE LATHE

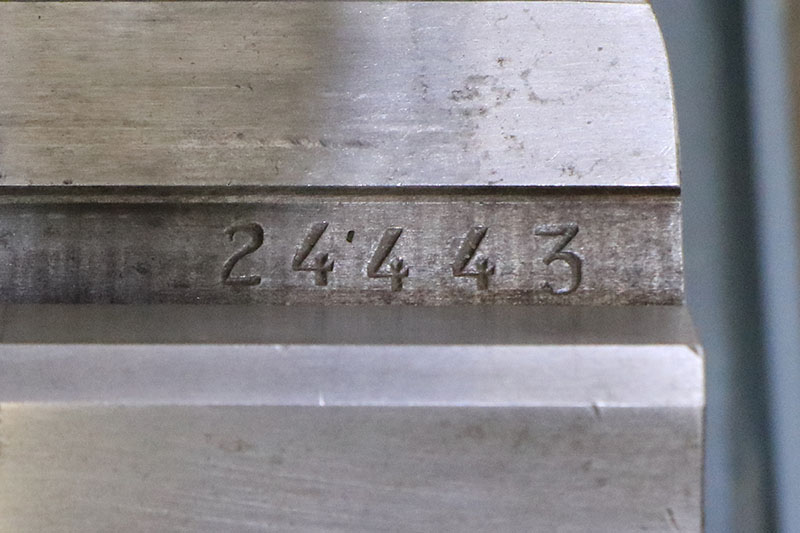

MODEL: C1340S, S/N: 24443, NEW: 2000's

SPECIFICATIONS:
SWING OVER BED........................ 13"
SWING OVER CROSS SLIDE................ 6-3/4"
DISTANCE BETWEEN CENTERS ............. 40"
SPINDLE BORE.......................... 1-5/8"
SPINDLE NOSE.......................... D1-5"
SPINDLE TAPER......................... #4 MORSE
WIDTH OF BED ......................... 10"

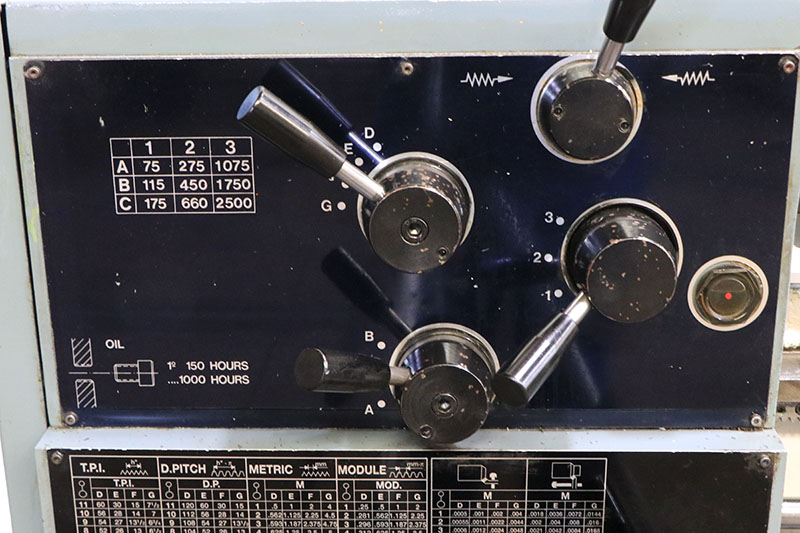

SPINDLE SPEEDS (9) ................... 75 - 2500 RPM
LONGITUDINAL FEED RANGE (44) ......... 0.0018 - 0.026 IPR
CROSS FEED RANGE (44)................. 0.0005 - 0.0076 IPR
THREADING RANGE ENGLISH (44) ......... 4 - 60 TPI
THREADING RANGE METRIC (44) .......... .5 - 7.5 MM

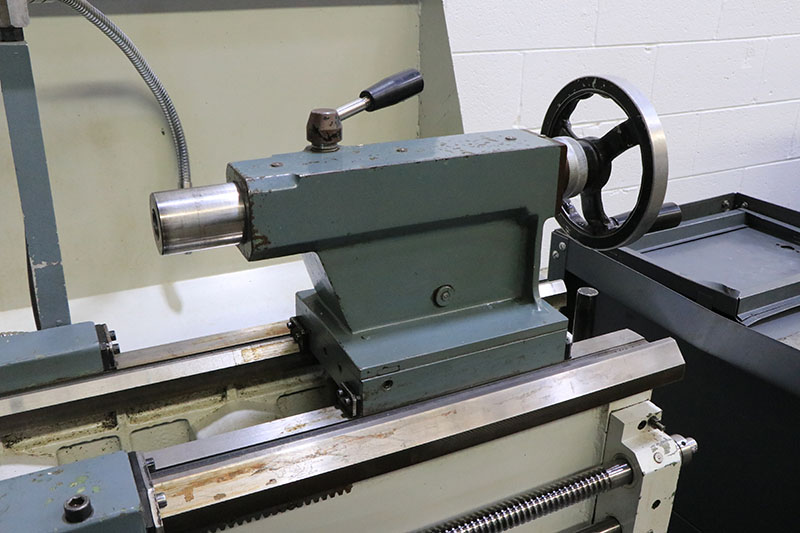

TAILSTOCK SPINDLE TRAVEL ............. 5-1/2"
TAILSTOCK SPINDLE TAPER .............. #3 MORSE
APPROXIMATE DIMENSIONS ............... 85"L x 34"W x 48"H
APPROXIMATE WEIGHT ................... 2,290 LBS

EQUIPPED WITH:

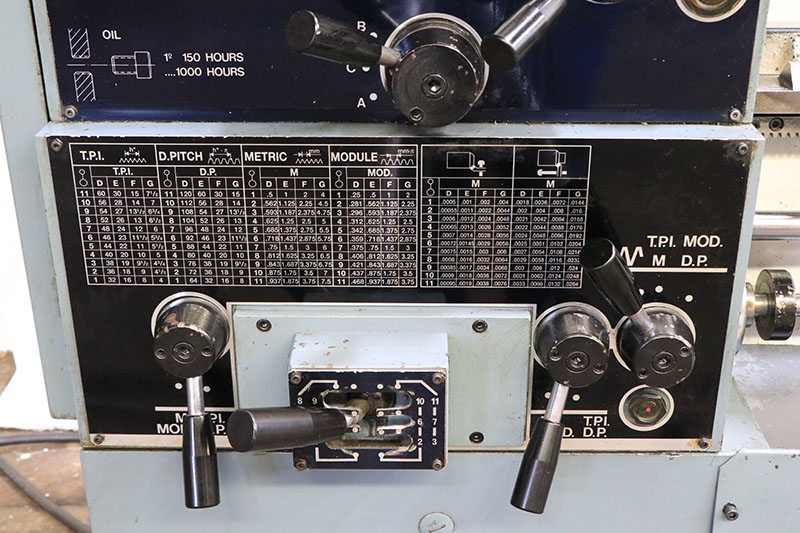

- INCH & METRIC THREADING CAPABILITY

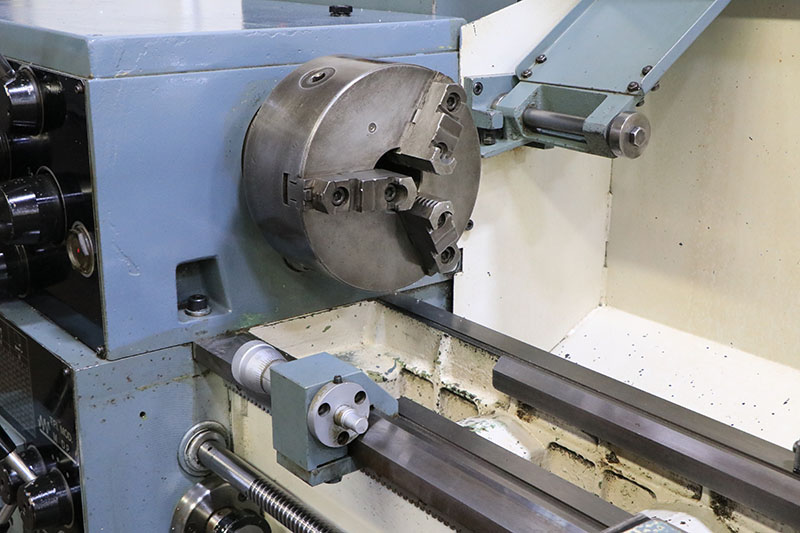

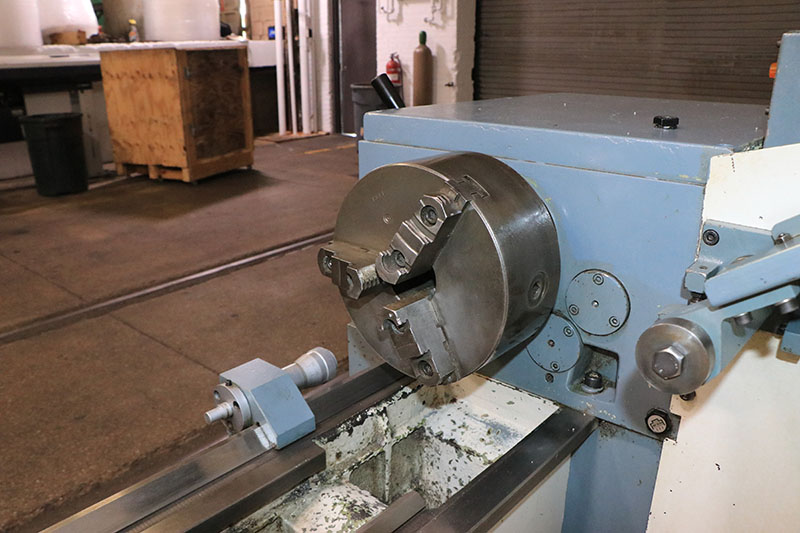

- 8" 3-JAW BISON CHUCK
- DOG PLATE

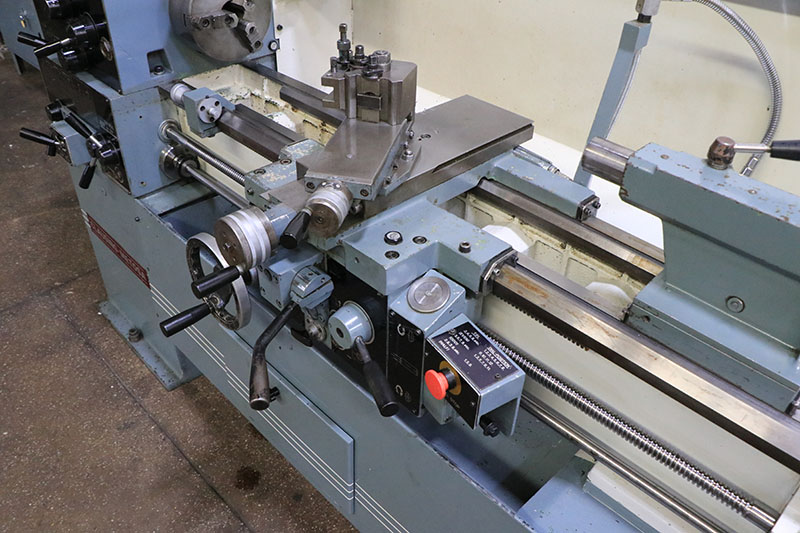

- QUICK CHANGE TOOLPOST
- THREAD DIAL INDICATOR

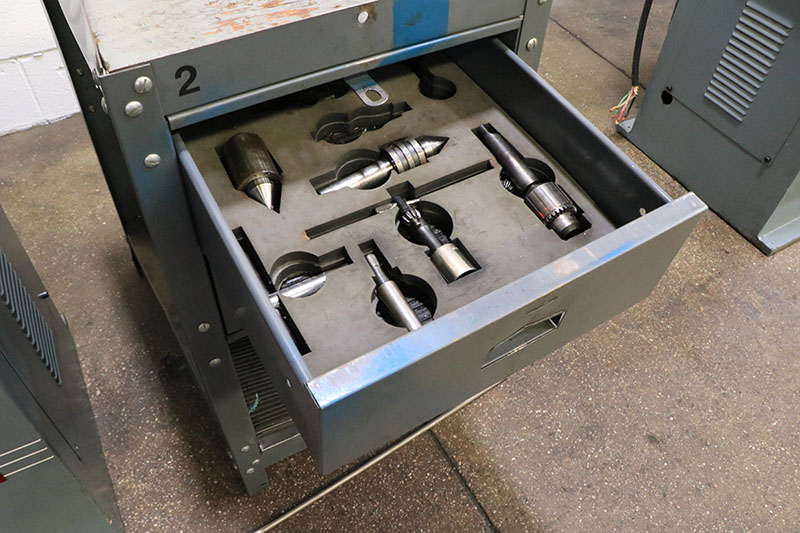

- CENTER SLEEVE FOR HEADSTOCK WITH CENTER
- LIVE CENTER FOR TAILSTOCK
- MICROMETER CARRIAGE STOP
- FULL LENGTH BACK SPLASH GUARD
- COOLANT PUMP AND TANK
- ELECTRO-MAGNETIC BRAKE

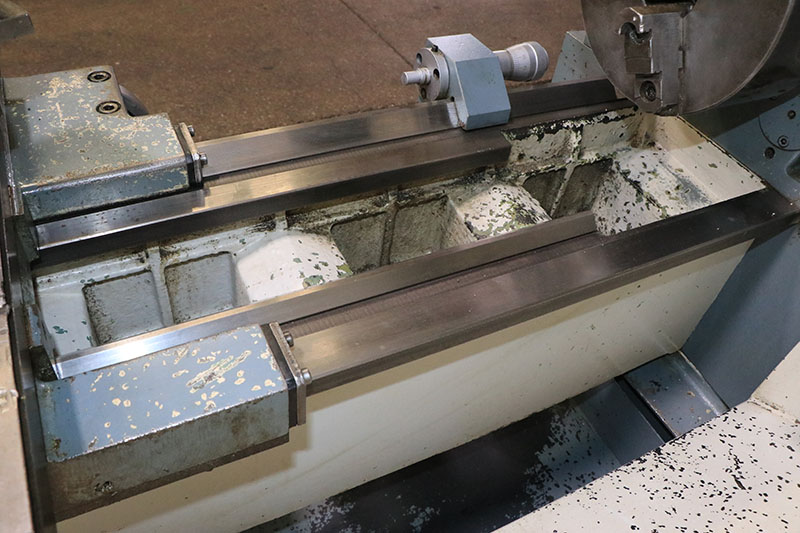

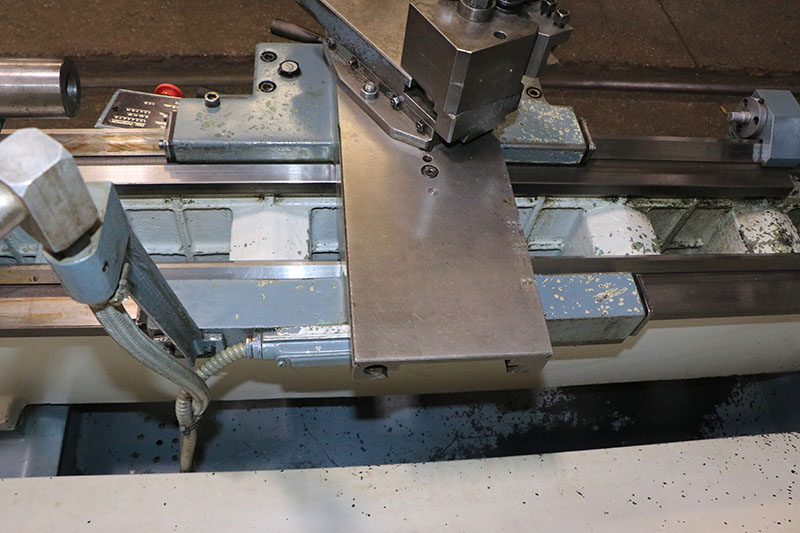

- HARDENED & GROUND BEDWAYS
- 3 HORSE POWER MAIN MOTOR

INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE


DISCLAIMER: The information presented in the write ups and the photographic representations of the equipment are believed to be accurate at the time the pages are created. The information presented on the web site should not be used for formal quotation. Price and information presented in the write ups on the web site are subject to change without notice. Machinery Values claims no responsibility for inaccuracies of the information presented on the pages of this website. Please contact one of our sales representatives if you require more information or a current formal quotation.
