Clausing-Metosa C1545VS ENGINE LATHES

$10,950

Make:: Clausing-Metosa

Model:: C1545VS

Year:: 2006

Ref #:: 178917

Or call us for a quote at (973) 497-7500 or send us an email at toolroom@machineryvalues.com

15"/23.6" X 45" CLAUSING-METOSA
GAP BED ENGINE LATHE
MODEL: C1545VS, S/N: 51455, NEW: 2006

SPECIFICATIONS:
SWING OVER BED ....................... 15.75"
SWING INSIDE REMOVABLE GAP ........... 23.62"
SWING OVER CROSS SLIDE ............... 8.26"
SWING OVER CARRIAGE WINGS ............ 14.57"
DISTANCE BETWEEN CENTERS ............. 45"
SPINDLE BORE ......................... 2.05"
SPINDLE NOSE ......................... D1-6"
SPINDLE TAPER ........................ #4 MORSE
WIDTH OF BED ......................... 12"
SPINDLE SPEED VARIABLE (3 RANGES) .... 0 - 2300 RPM
LONGITUDINAL FEED RANGE (44) ......... 0.0018 - 0.0264 IPR
CROSS FEED RANGE (44) ................ 0.0005 - 0.0076 IPR
THREADING RANGE ENGLISH (44) ......... 4 - 60 TPI
THREADING RANGE METRIC (44) .......... .5 - 7.5 MM
TAILSTOCK SPINDLE TRAVEL ............. 6"
TAILSTOCK SPINDLE TAPER .............. #4 MORSE
APPROXIMATE DIMENSIONS ............... 80"L x 40"W x 54"H
APPROXIMATE WEIGHT ................... 3,450 LBS

EQUIPPED WITH:

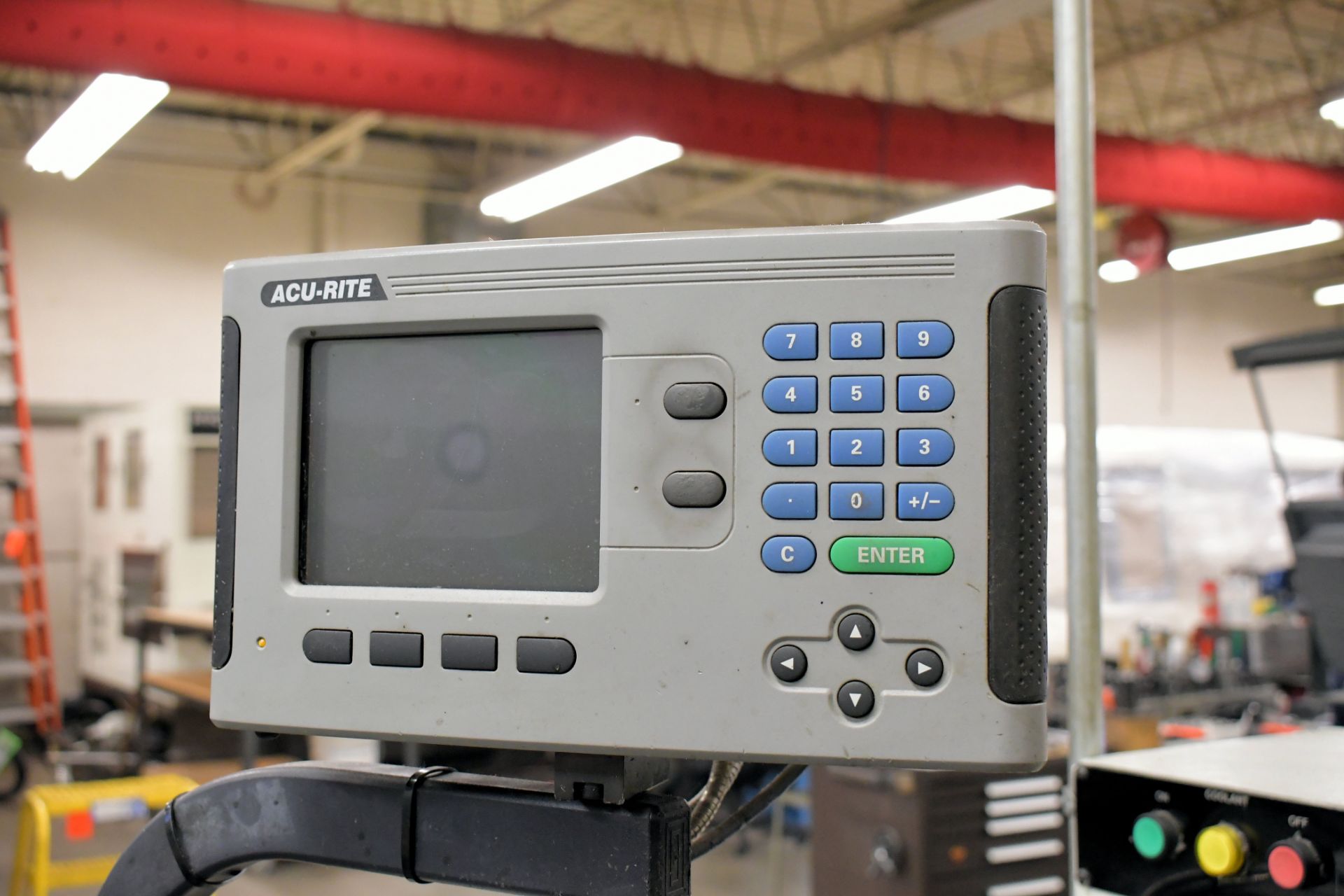

- ACU-RITE TWO AXIS DIGITAL READOUT

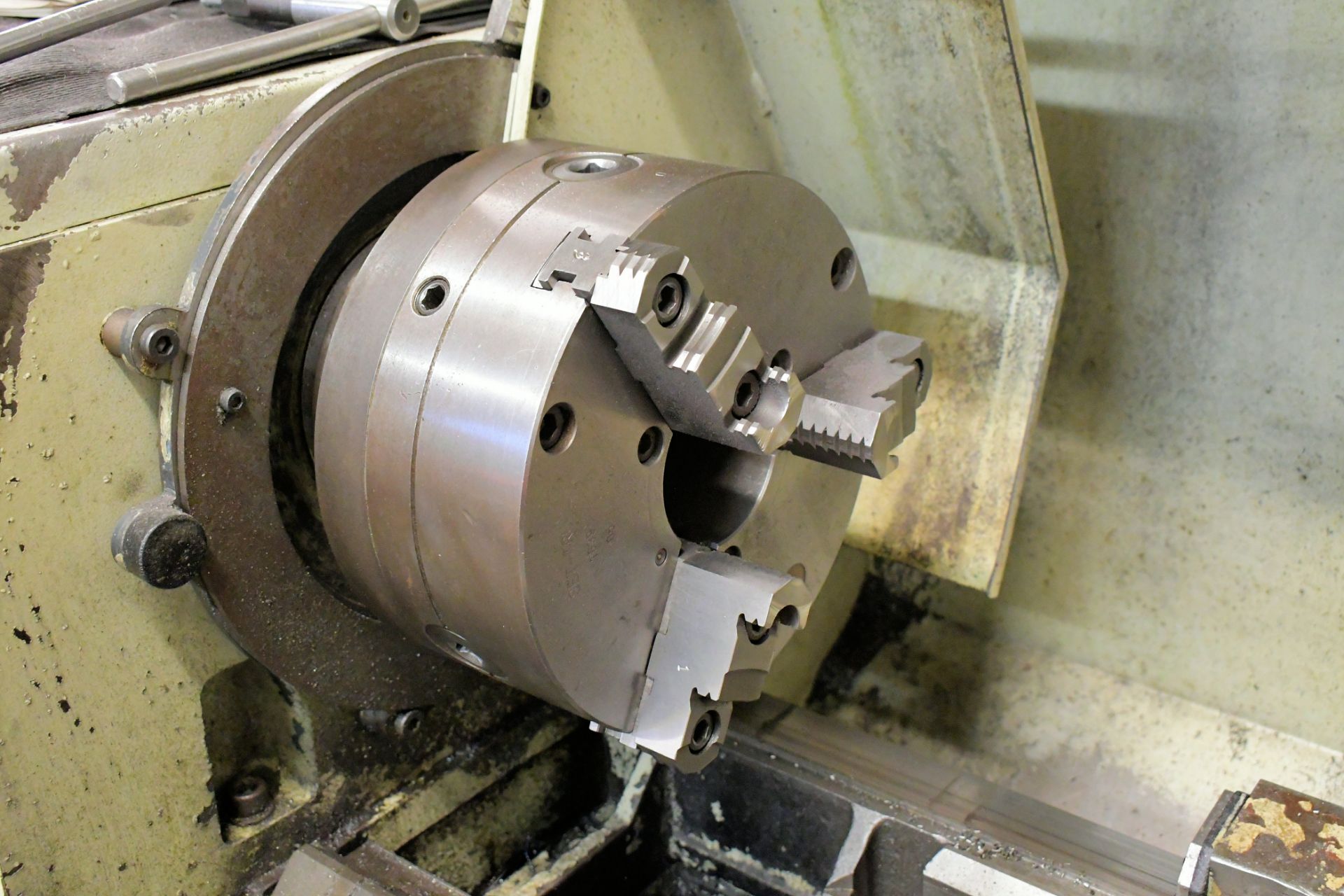

- 10-1/2" 3-JAW SET-TRU CHUCK
- STEADY REST

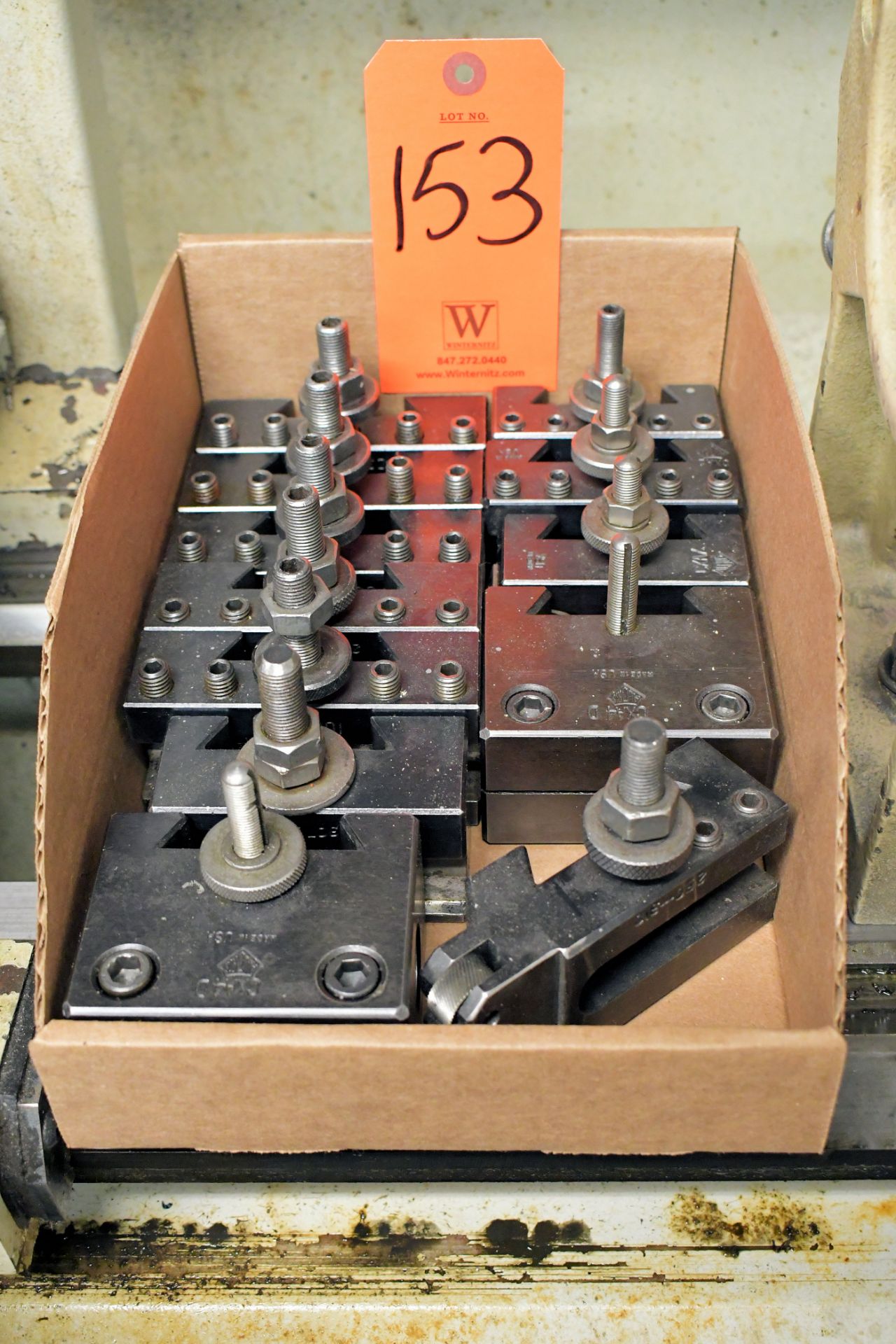

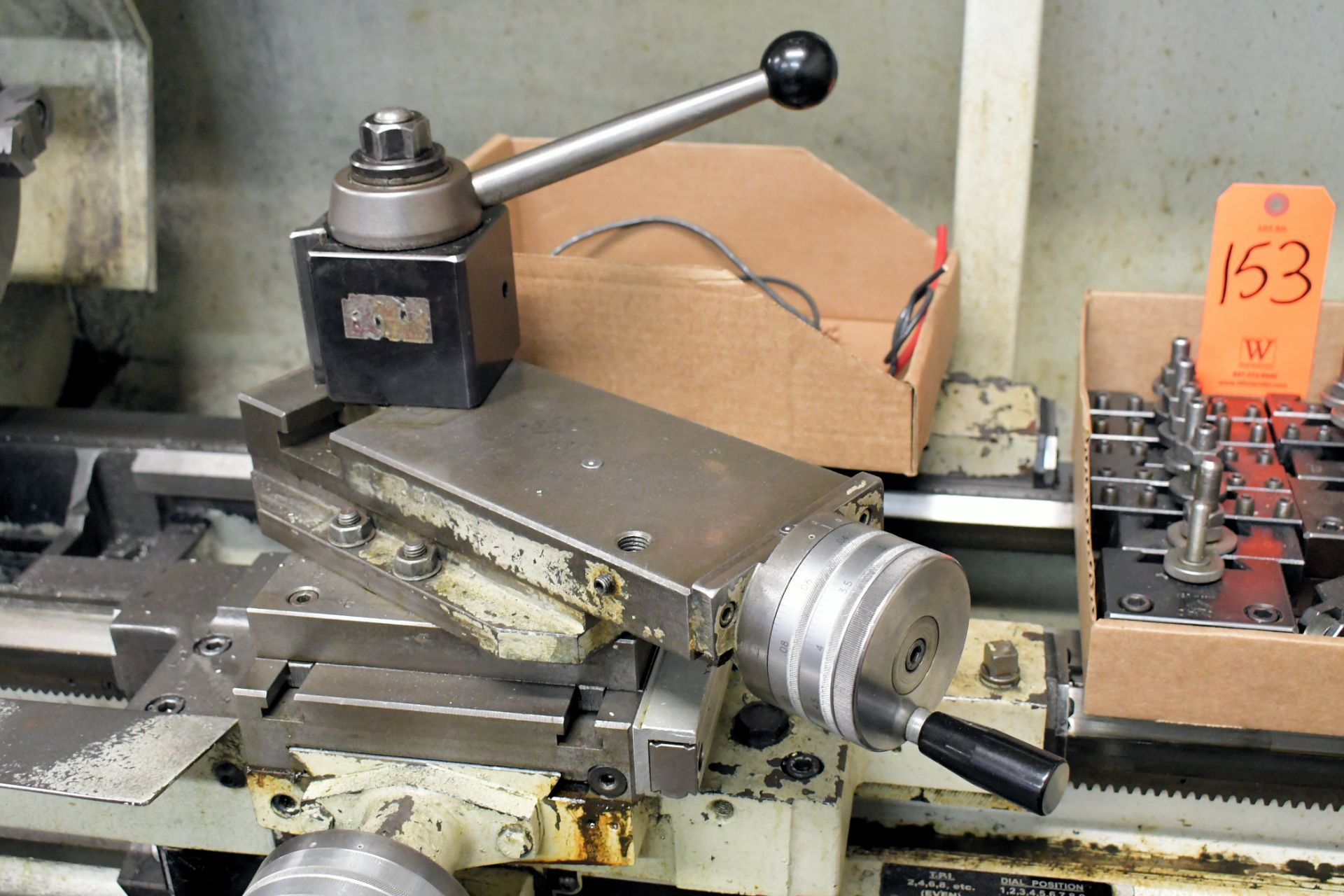

- ALORIS QUICK CHANGE TOOLPOST w/HOLDERS
- JACOBS DRILL CHUCK
- MICROMETER CARRIAGE STOP
- FULL LENGTH BACK SPLASH GUARD
- COOLANT PUMP AND TANK
- 7.5 HORSE POWER MAIN MOTOR

INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE
