Current EDM CT300, CNC, 1998, MADE IN JAPAN, EDM HOLE DRILLER / POPPER

Price on Request

Make:: Current EDM

Model:: CT300, CNC, 1998, MADE IN JAPAN,

Year:: 1998

Ref #:: 160513

Or call us for a quote at (973) 497-7500 or send us an email at edms@machineryvalues.com


    CURRENT (Made in Japan)
"High Accuracy" CNC EDM Hole Driller

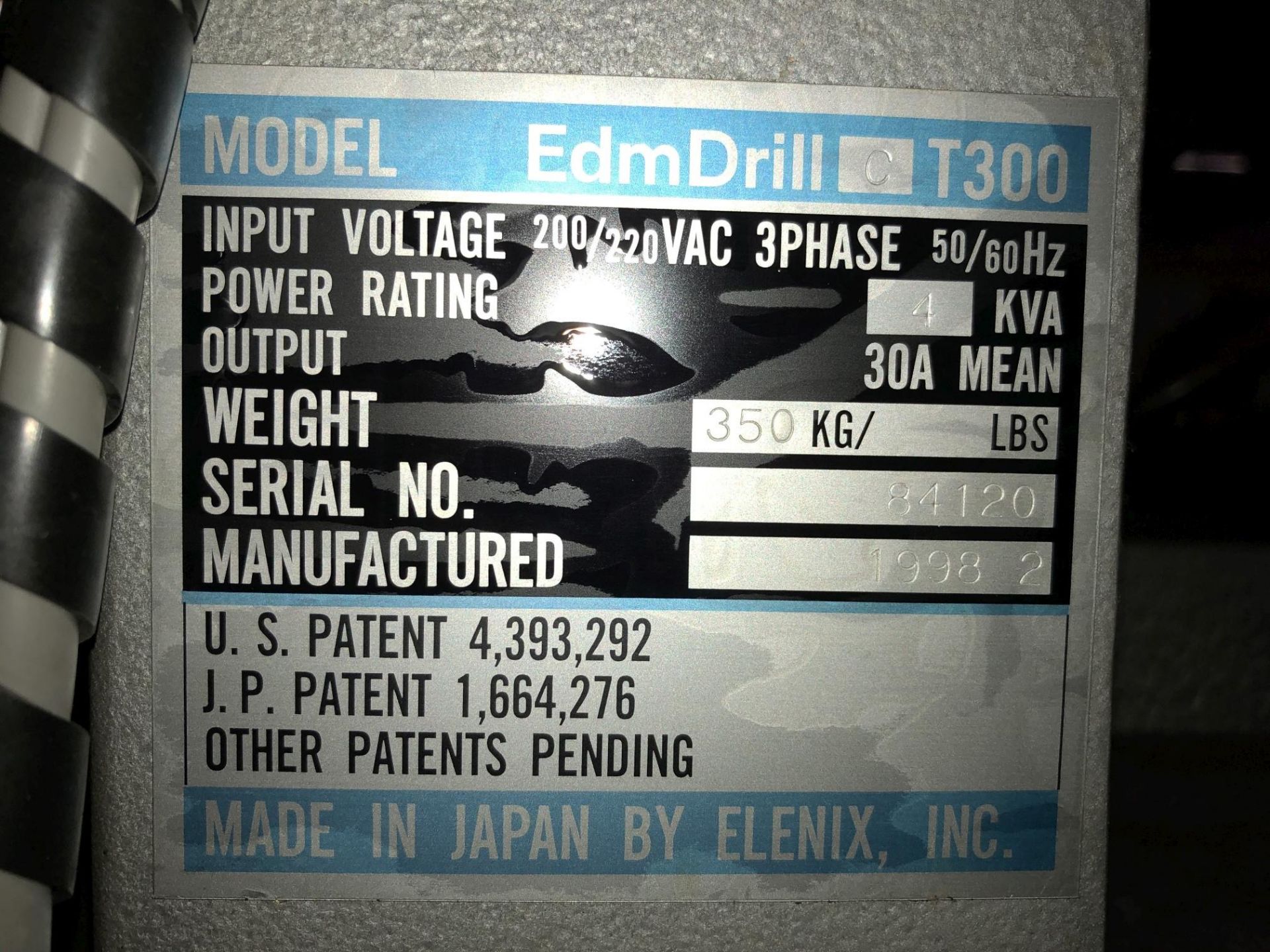

Model: CT300       S/N: 84120      Year: 1998

X-axis travel 300 mm (12")
Y-axis travel 200 mm (8")
Z-axis travel 300 mm (12")
Guide axis travel (G-axis) 250 mm (10")
Throat distance (min) 10 mm (0.4")
Throat distance (max) 210 mm (8.3")
Work table size 300 mm x 300 mm (12" x 12")
Max workpiece weight 310 kg (682 lbs)
Feedback X/Y axis rotary encoders
Feedback Z axis encoder, direct shaft
Inch/metric display
RS232 machine input
200/230 volt three phase, 60 HZ, 3 KVA

Machine weight: (2,000 Lbs.)

Machine Features:
Single-cast, bridge construction with
 stainless steel head and precision ball screws
 provide years of reliable, accurate machining.
Predictable and consistent results using
 economical water dielectric fluid.
57 peak amp power supply effectively
 operates with electrode diameters
 from .004" to .256".   User friendly
 control programs 5-axis, giving you 9
 coordinate systems, canned cycle routines
 and electrode wear compensation cycles
 for blind hole applications.

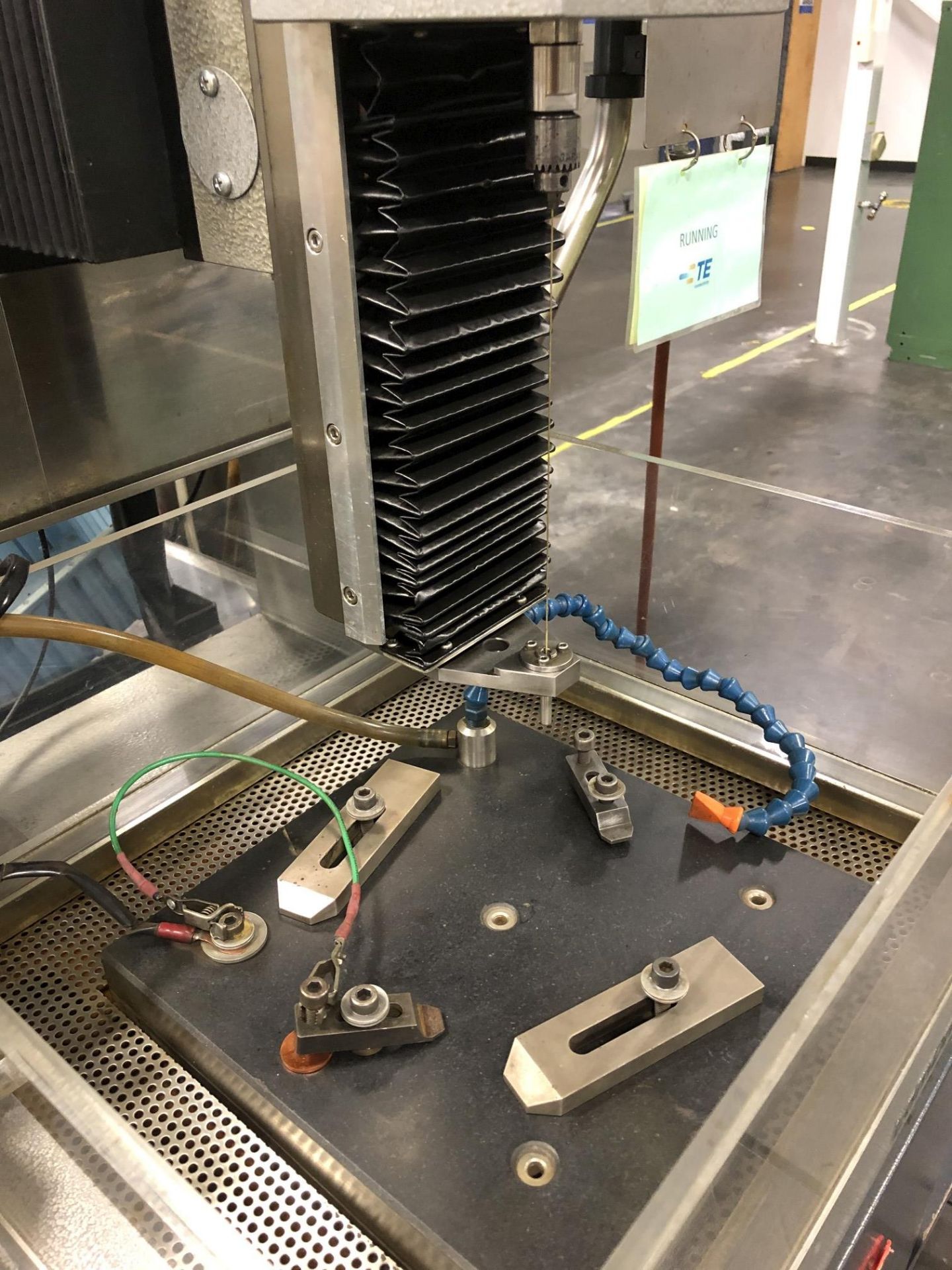

Granite Table with Tapped Insert Holes


Equipped With:

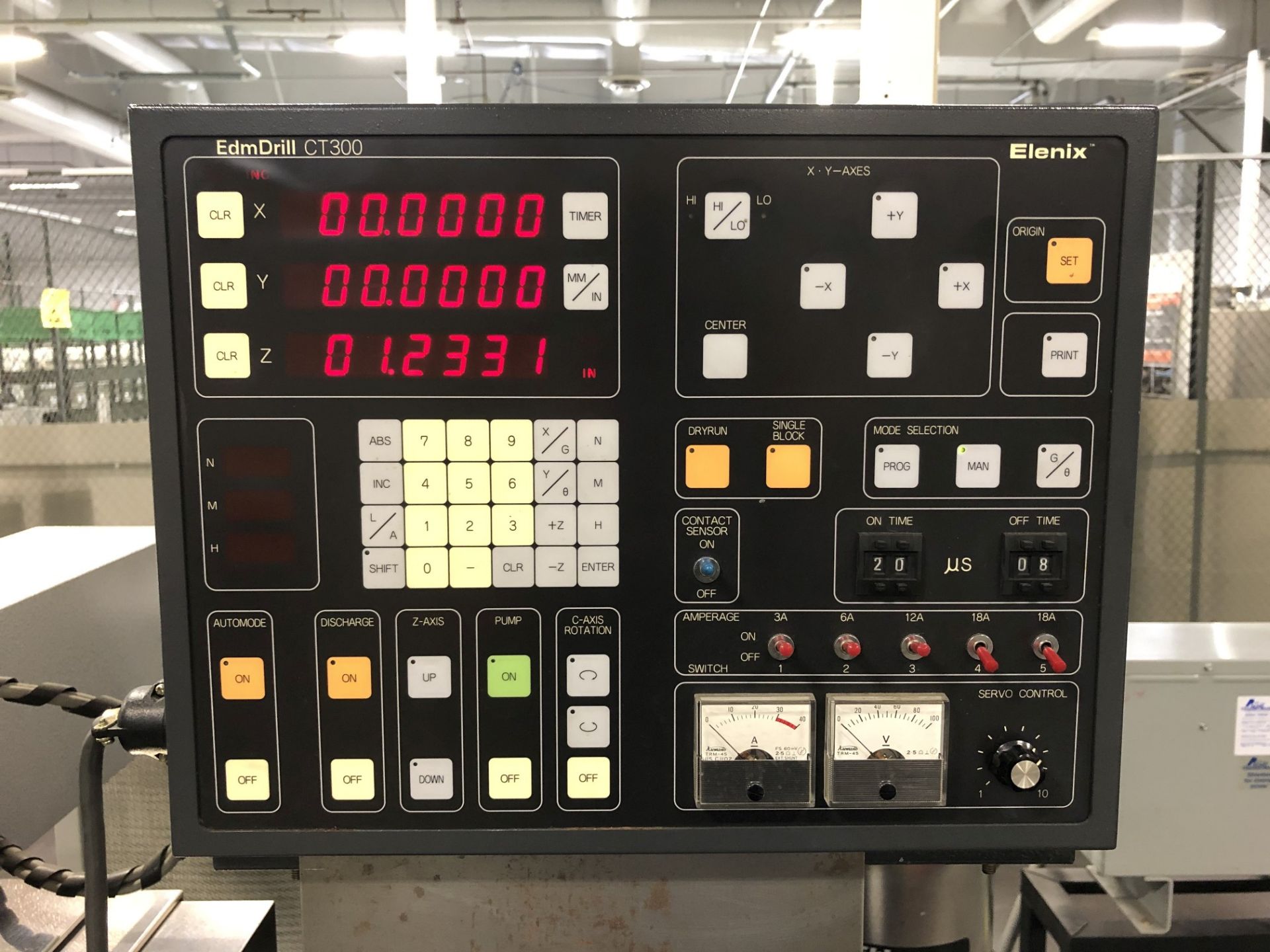

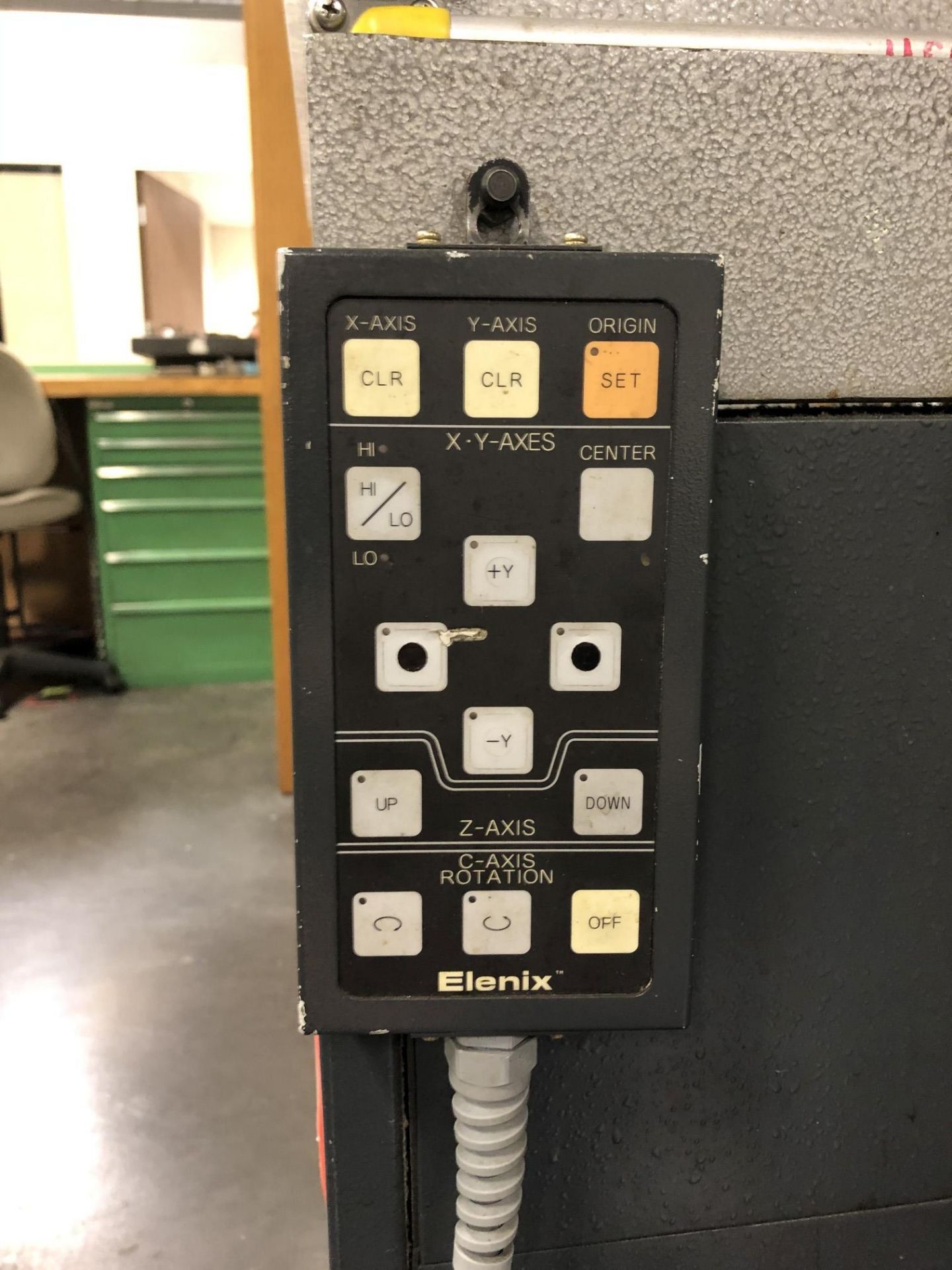

Current EDM CNC Control

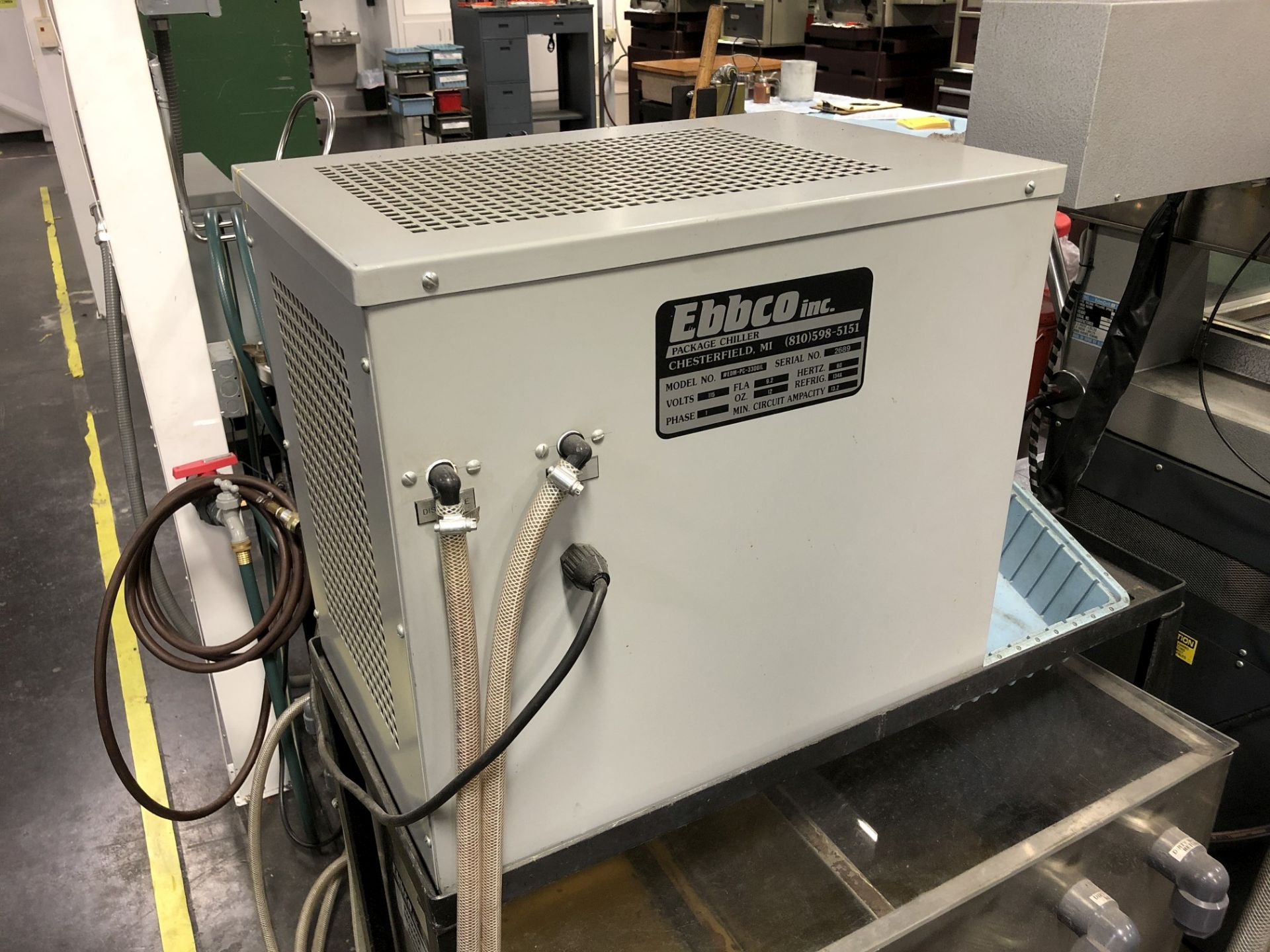

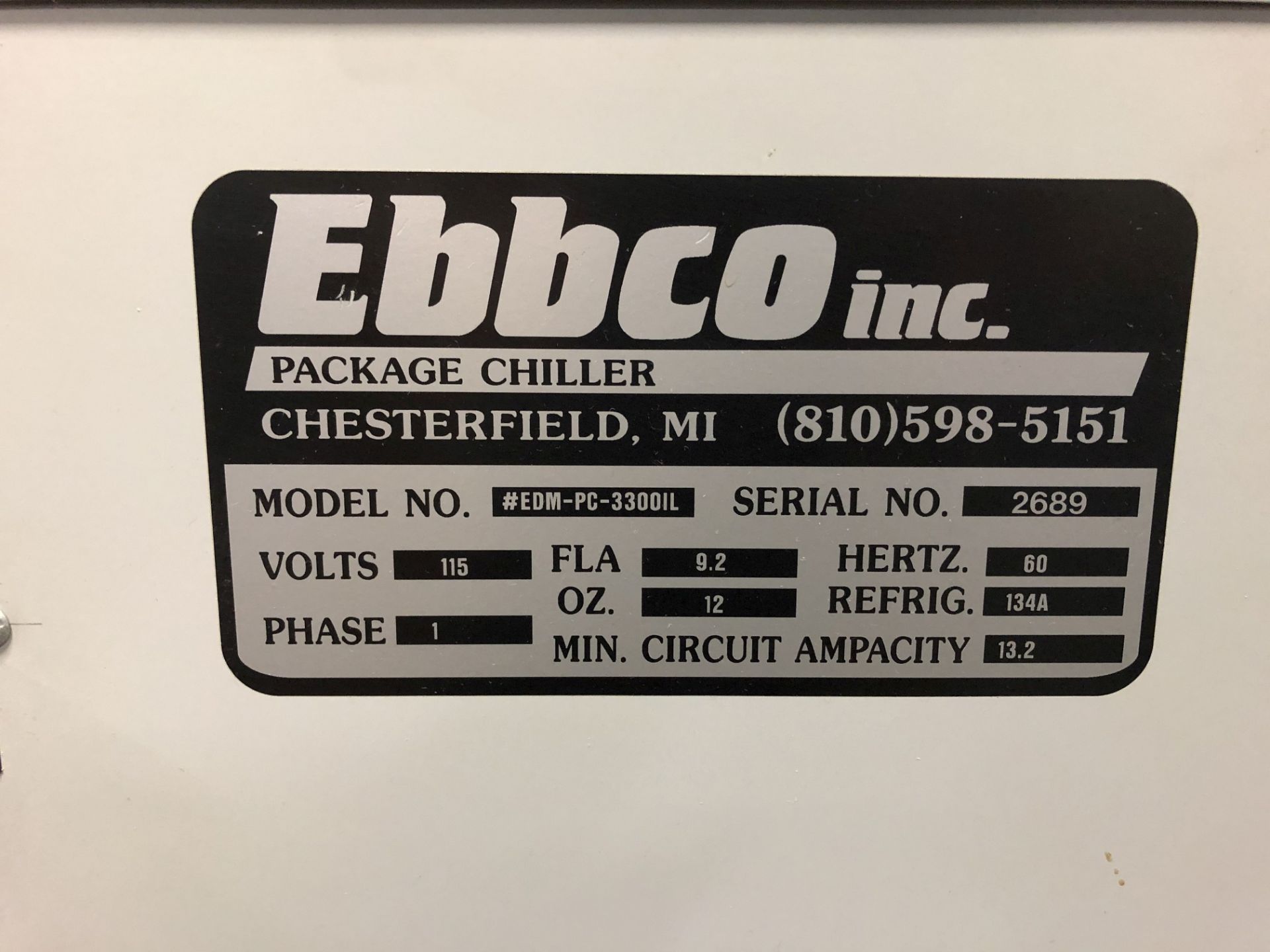

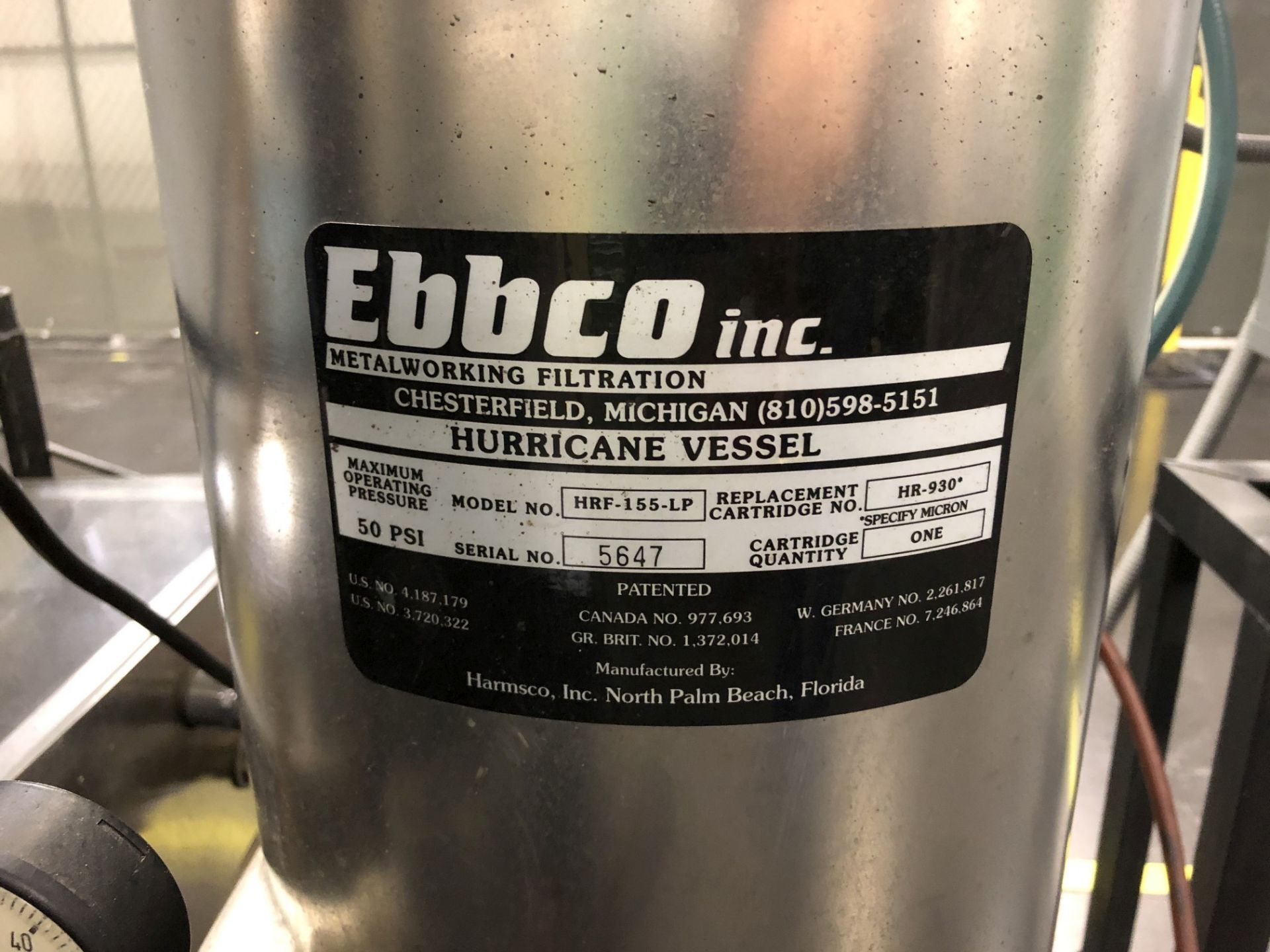

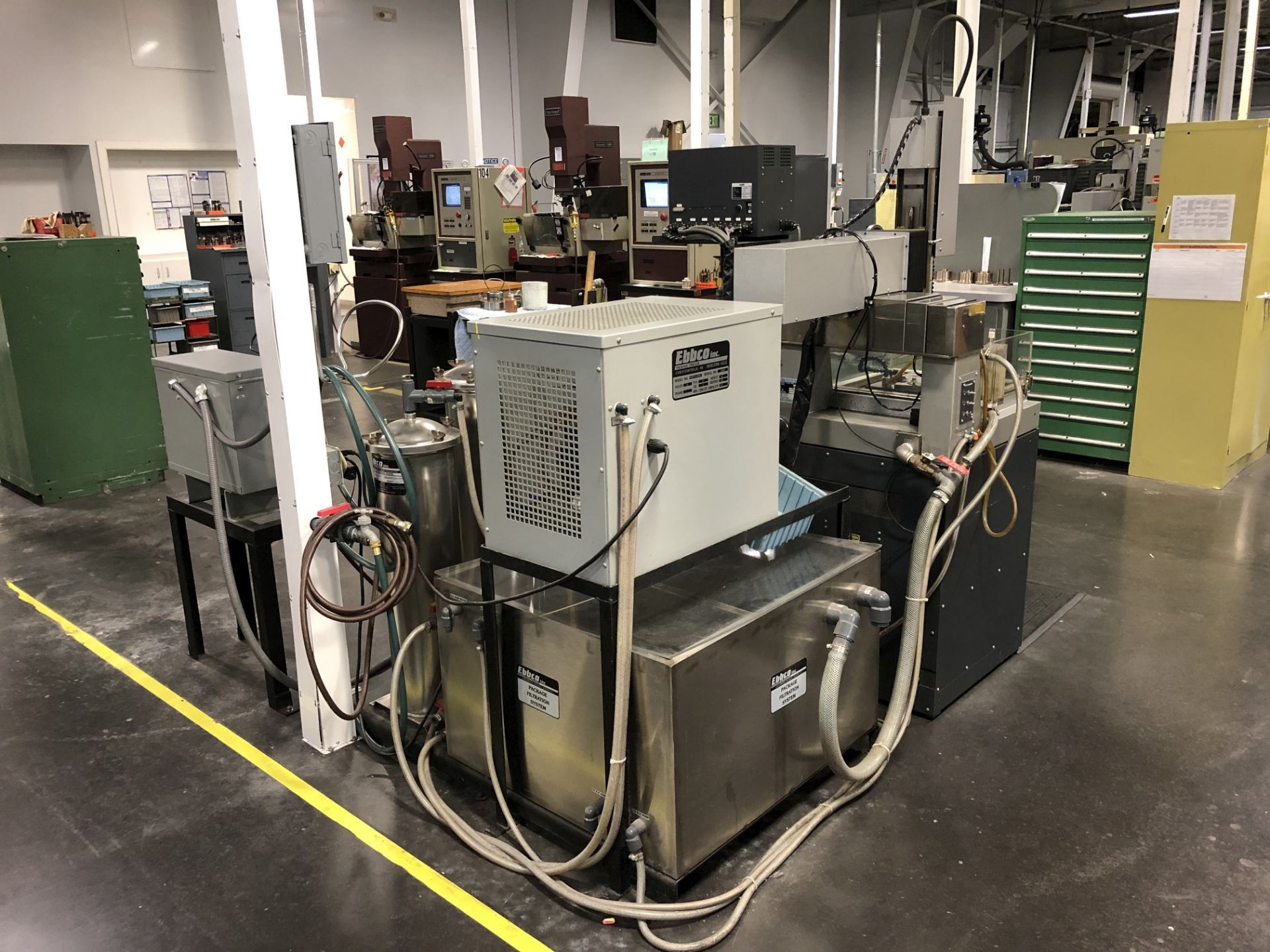

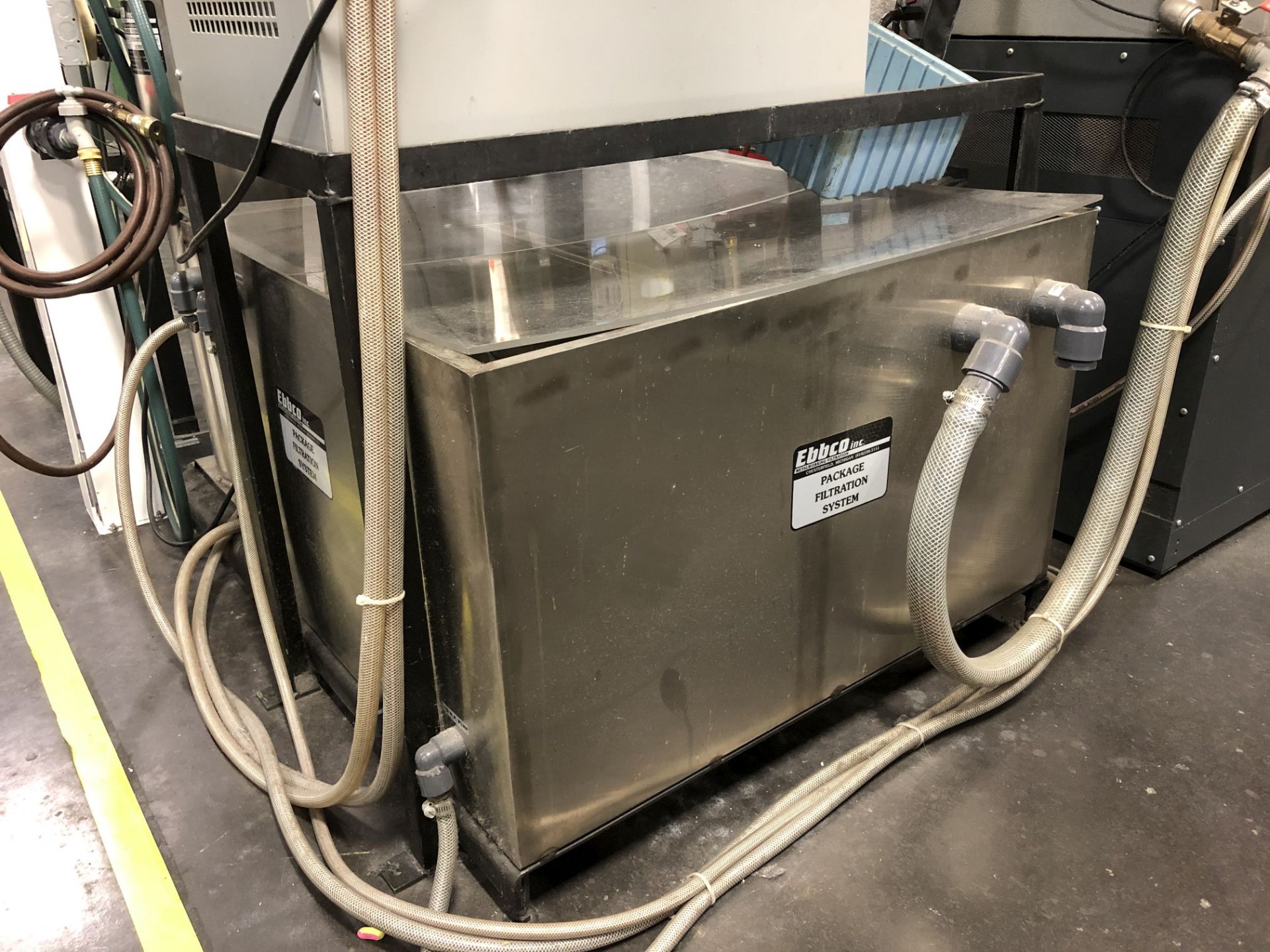

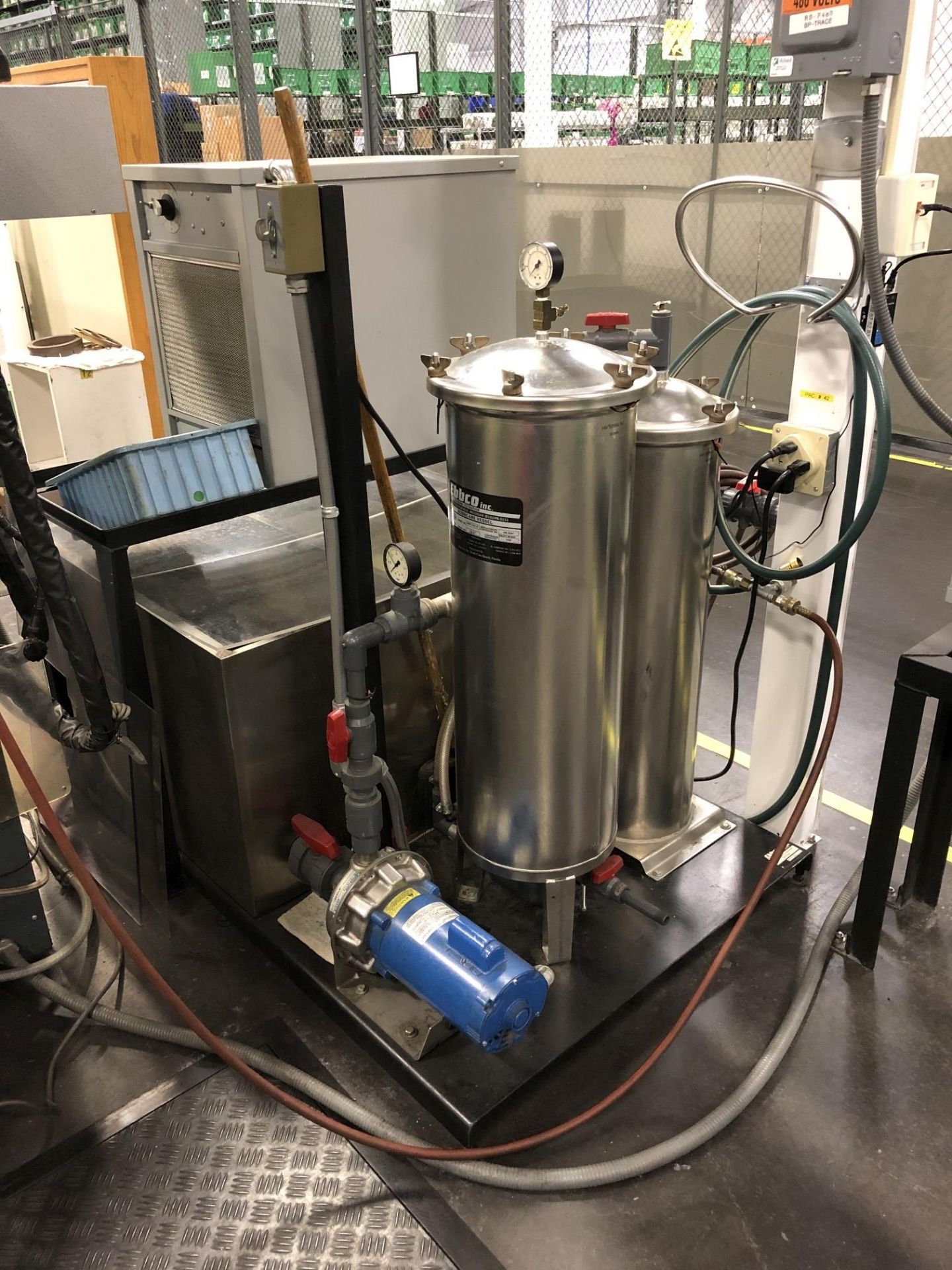

"Ebbco" filtration system, sits behind the machine
Transformer to Allow use for 460 Volts

** Superb Condition & Appearance **
** From Fortune 500 Company - Just Beautiful **
** Inspect in our Harrison, NJ Warehouse **
** Link to Video: https://youtu.be/9BwQlK79D0E **
