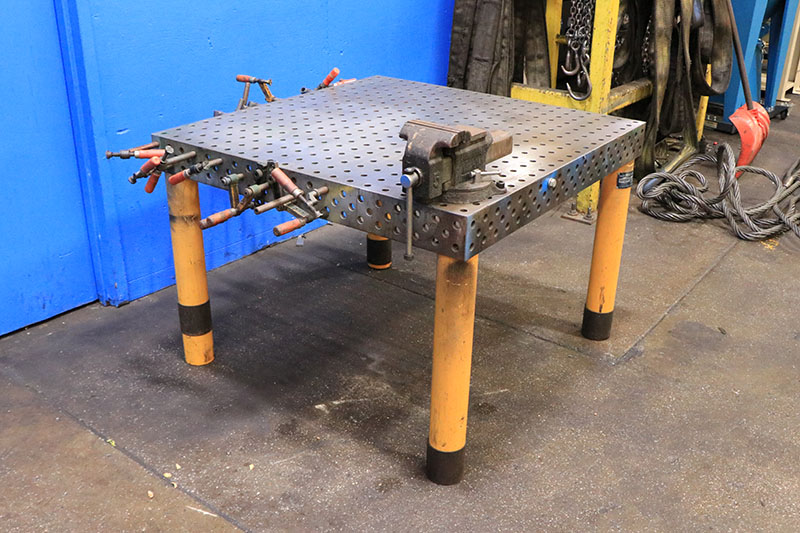

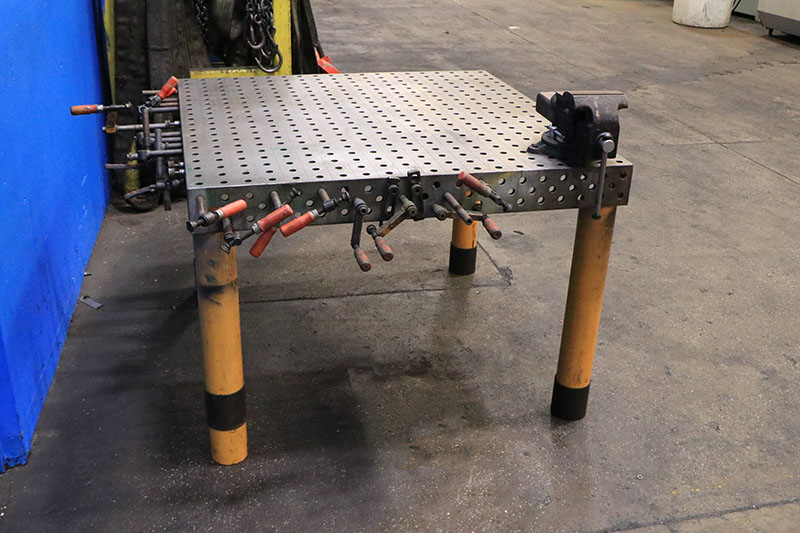

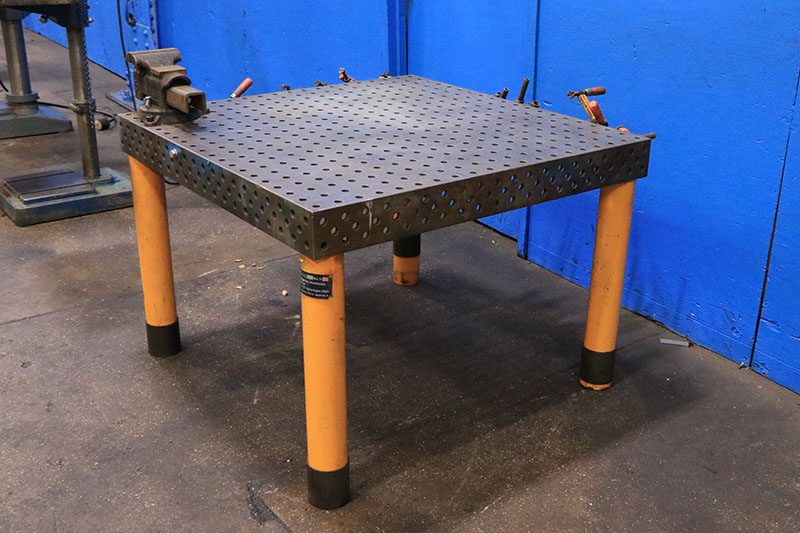

Demmeler D16 1000 X 1000 MM WELDING TABLE

$1,950

Make:

Demmeler

Model:

D16 1000 X 1000 MM

Year:

Ref #:

178530

Get a quote

Get financing

Or call us for a quote at (973) 497-7500 or send us an email at rl@machineryvalues.com

---



DEMMELER 3D 1000 MM x 1000 MM WELDING TABLE

MODEL D16



TABLE SIZE ......(L-R)......... 1000 mm (39.37")

TABLE SIZE ......(F-B)......... 1000 mm (39.37")

TABLE HEIGHT .................. 850 mm (33.46")



WEIGHT: 803 LBS.



Equipped With:

- Worktop with D16 system bores in a 50 x 50 mm grid

- 3-hole drilling pattern in the table side plates with D16 system bores, 25 mm grid in the top and bottom row with additional 50 mm grid in the middle, which nearly doubles the expansion and clamping options

- All system bores with protective countersink, perfect design and ultimate functionality

- Improved table reinforcement through additional cross-ribs

- Continuous gridlines in X and Y-direction, 50 mm spacing

- Clamping Fixtures (As Shown)

- Vise
