Diacro 6 PIPE, TUBE & BAR BENDERS

Price on Request

Make:: Diacro

Model:: 6

Year:

Ref #:: 147813

Or call us for a quote at (973) 497-7500 or send us an email at rl@machineryvalues.com

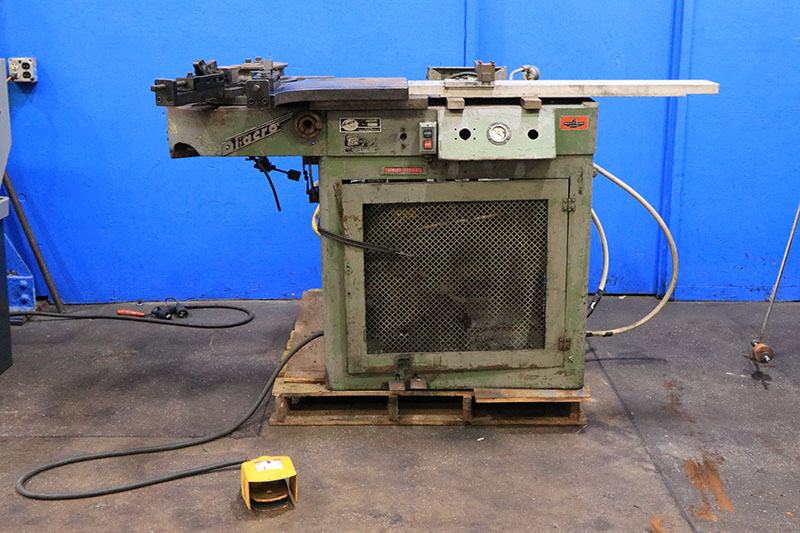

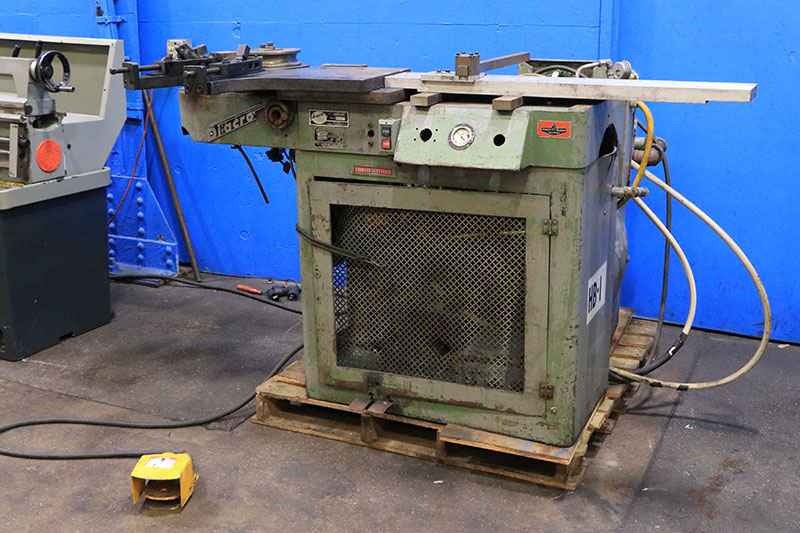

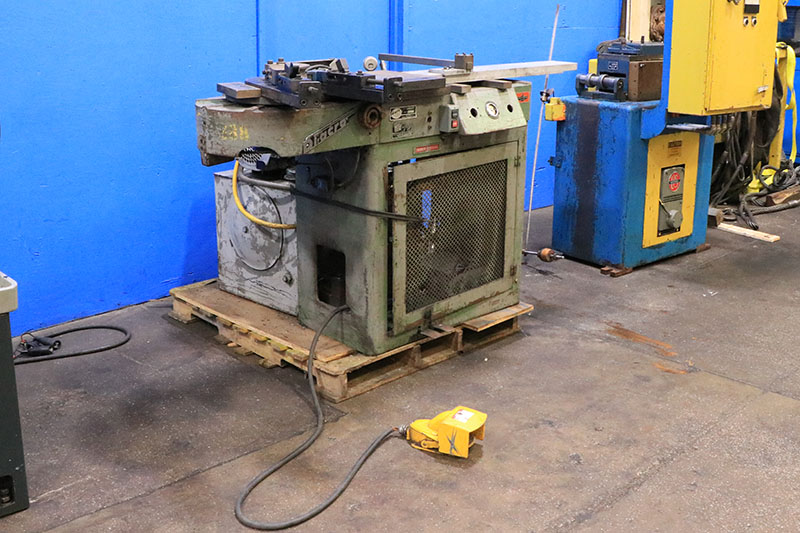

1-1/4" DIACRO HORIZONTAL TUBE BENDER
MODEL 6

STEEL TUBING (O.D. X WALL) .......... 1-1/4" X 16 GA.
STANDARD PIPE ....................... 3/4" O.D.
ROUND MILD STEEL BAR ................ 5/8" O.D.
SQUARE MILD STEEL BAR ............... 1/2"
FLAT STEEL BAR (BENT FLAT) .......... 1/4" X 2"
FLAT STEEL BAR (BENT EDGEWISE) ...... 1/4" X 1"
ANGLE ............................... 1/8" X 1" X 1"
CHANNEL ............................. 1/8" X 1/2" X 1"
MAXIMUM RADIUS ...................... 9"
MAIXMUM DEGREE OF BEND .............. 280 DEGREES
MAXIMUM HYDRAULIC PRESSURE .......... 1,000 PSI
HYDRAULIC CYLINDER BORE ............. 3-1/2"
OVERALL SIZE ........................ 54"L X 20"D X 40"H
WEIGHT .............................. 1,150 LBS
