DoAll 3613-1 VERTICAL BAND SAWS

Price on Request

Make:: DoAll

Model:: 3613-1

Year:: 1988

Ref #:: 178137

Or call us for a quote at (973) 497-7500 or send us an email at boringmills@machineryvalues.com

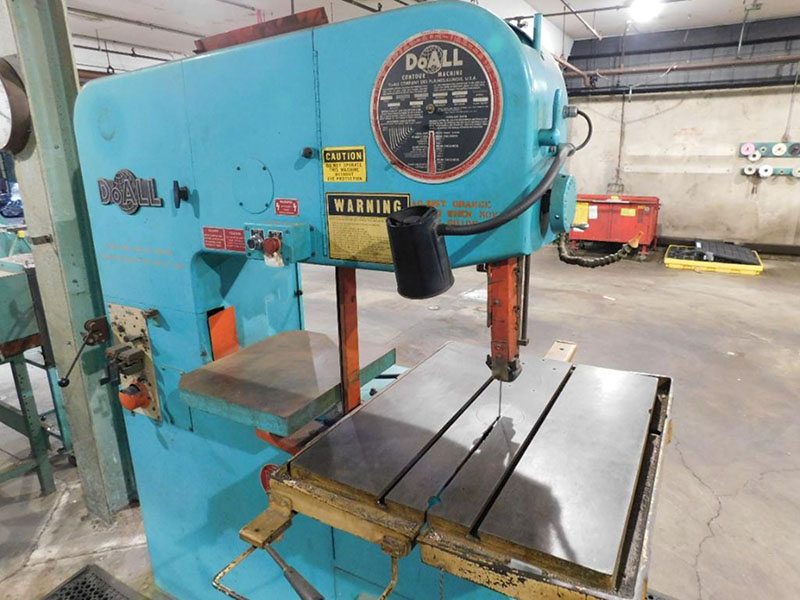

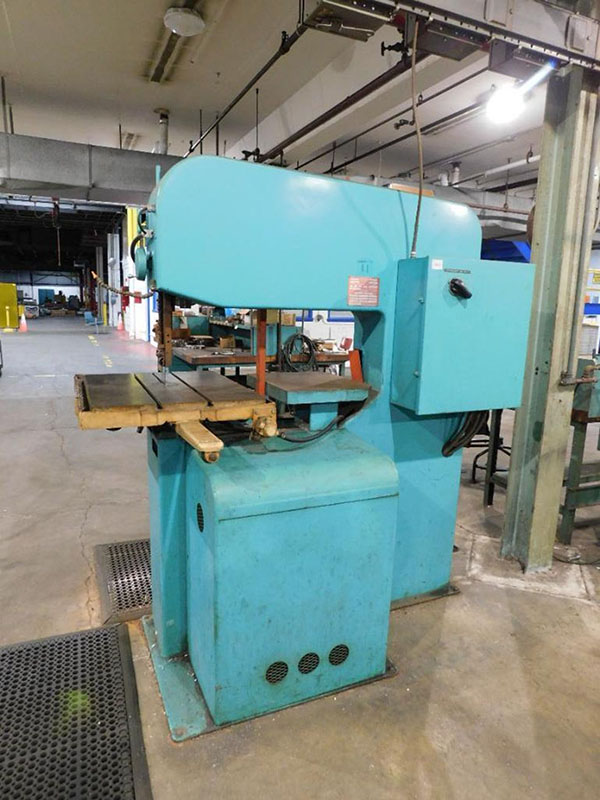

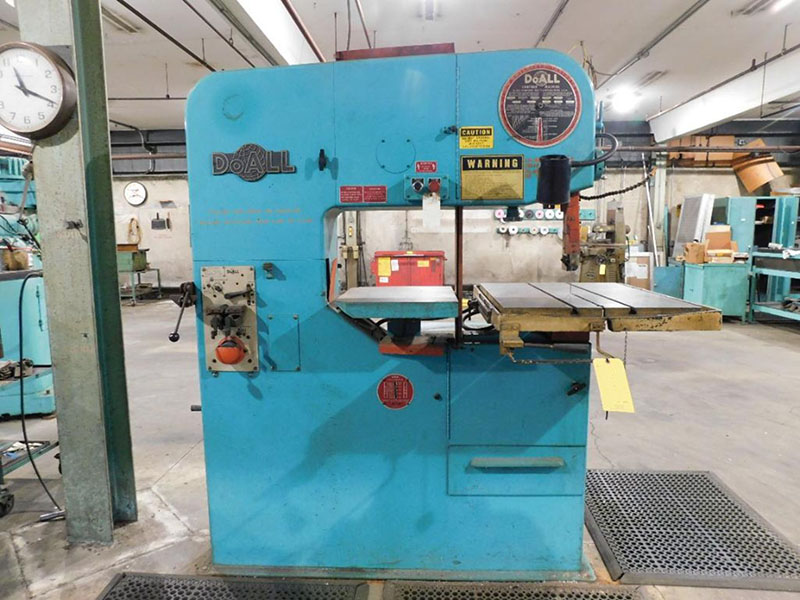

36" DOALL VERTICAL BANDSAW

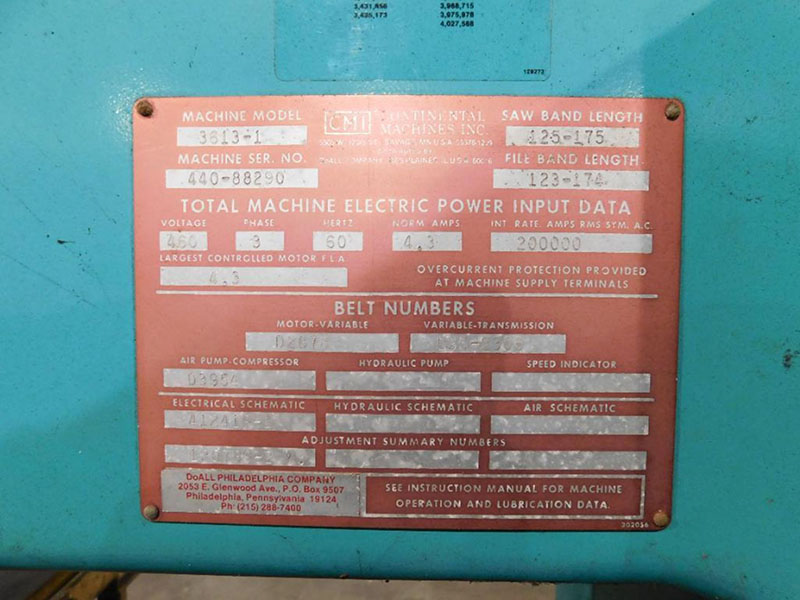

MODEL: 3613-1, S/N:440-88290, NEW: 1988

SPECIFICATIONS:
THROAT CAPACITY ......................... 35-1/2"
WORK HEIGHT ............................. 13"
BAND WIDTH .............................. 1/16" - 1"
TABLE WORKING SIZE ...................... 24" x 30-1/2"
TABLE OVERALL w/COOLANT TROUGH .......... 27" x 33-3/4"
TABLE TILT .............................. 45 DEG R, 10 DEG L
BLADE SPEED RANGE INFINITELY VARIABLE:
    LOW RANGE ........................... 50 - 300 FPM
    HIGH RANGE .......................... 850 - 5,200 FPM
BAND LENGTH 2 WHEEL ..................... 125"
BAND LENGTH 3 WHEEL ..................... 175"
APPROXIMATE FLOOR SPACE ................. 76" X 39" X 78"H
APPROXIMATE WEIGHT ...................... 1,750 LBS

EQUIPPED WITH:
AIR ACTUATED POWER TABLE FEED

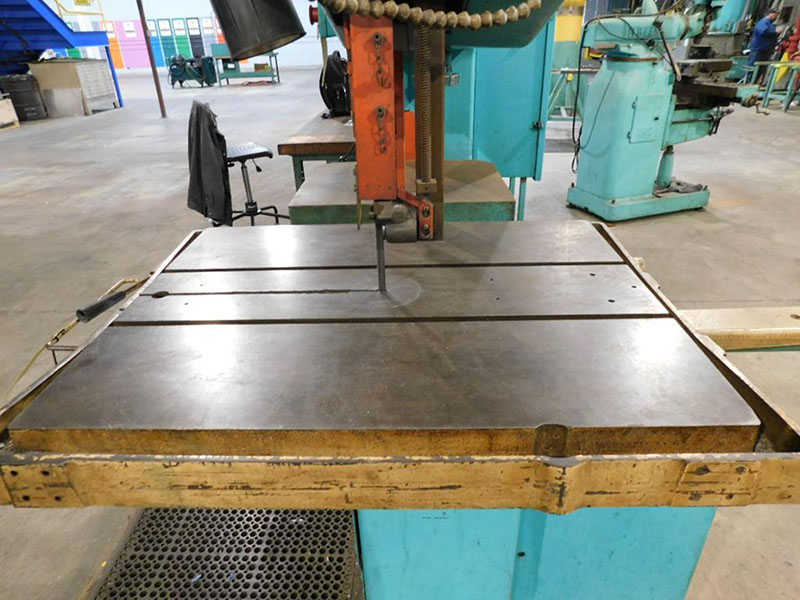

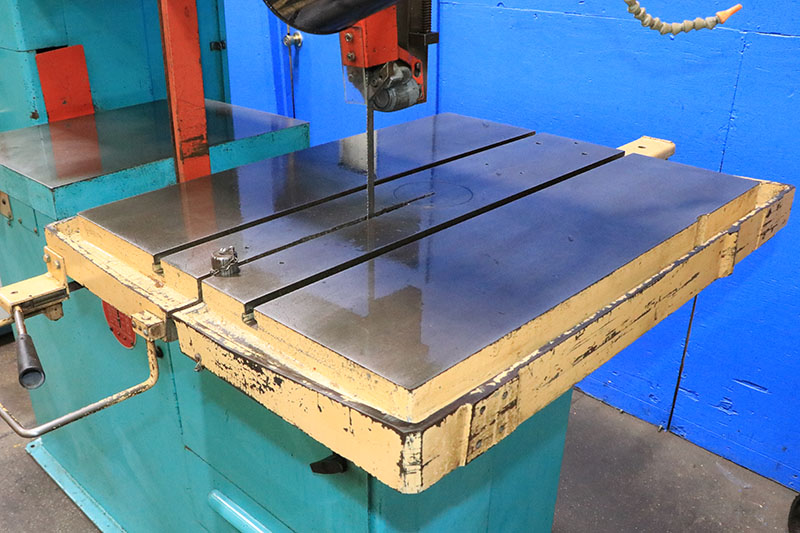

T-SLOTTED TABLE
AUXILIARY
AIR BLOWER

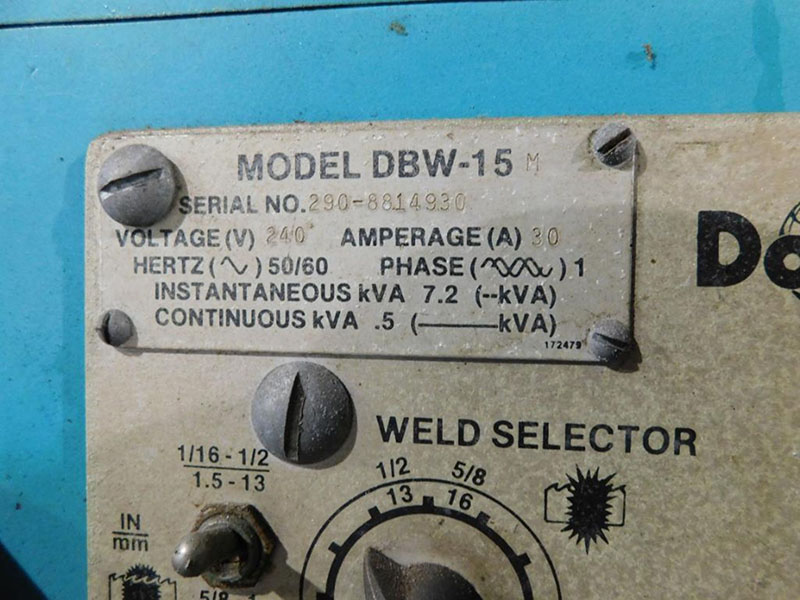

DOALL MODEL:DBW-15 BLADE WELDER GRINDER & SHEAR
3 HORSE POWER MAIN MOTOR

INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE
