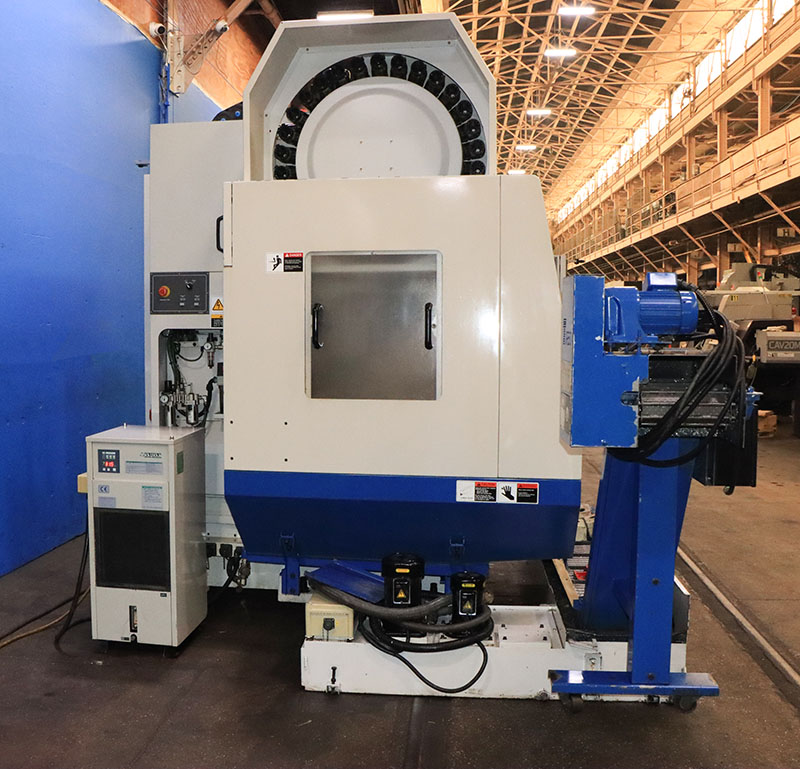

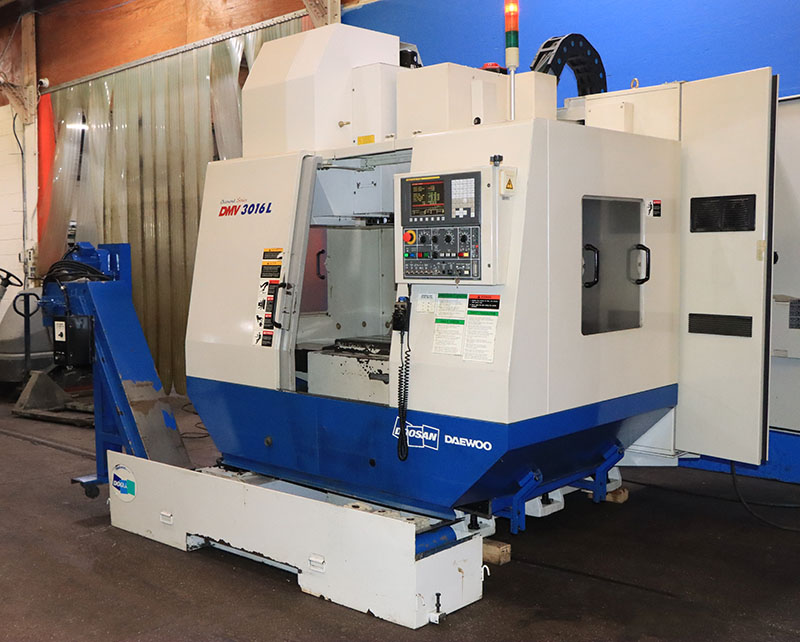

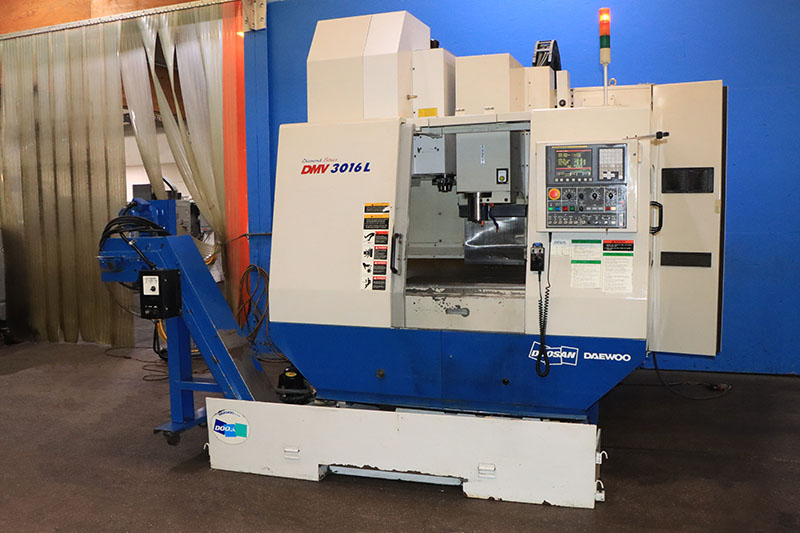

Doosan DMV 3016L VERTICAL MACHINING CENTERS. VMC's

Price on Request

Make:: Doosan

Model:: DMV 3016L

Year:: 2006

Ref #:: 179253

Or call us for a quote at (973) 497-7500 or send us an email at cncmachines@machineryvalues.com

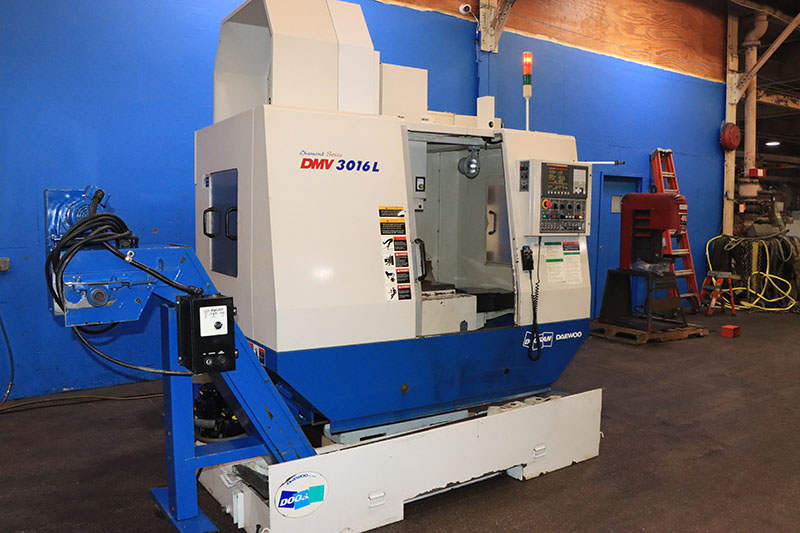

DAEWOO VERTICAL MACHINING CENTER

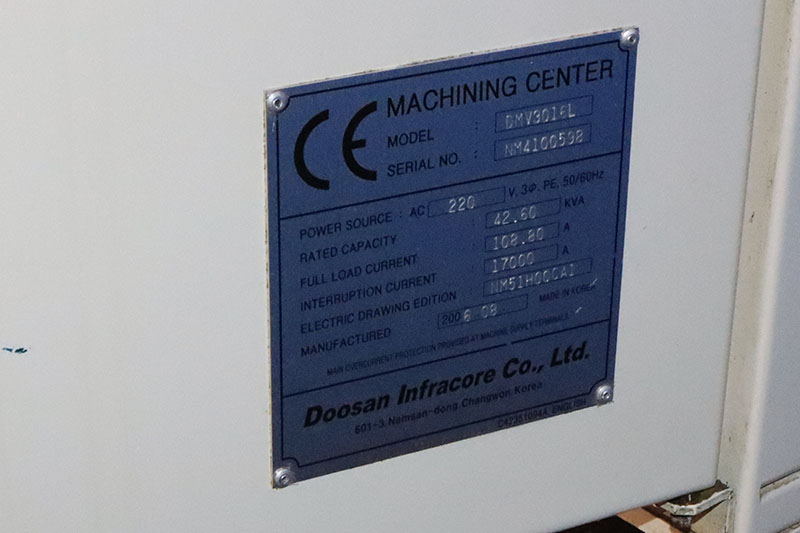

MODEL: DMV-3016L, S/N: NM 4100598, NEW: 2006

SPECIFICATIONS:
X-AXIS TRAVEL........................... 30"
Y-AXIS TRAVEL........................... 16"
Z-AXIS TRAVEL........................... 20"
SPINDLE NOSE TO TABLE TOP............... 5.9" TO 26"
DISTANCE FROM SPINDLE CENTER TO COLUMN.. 18"

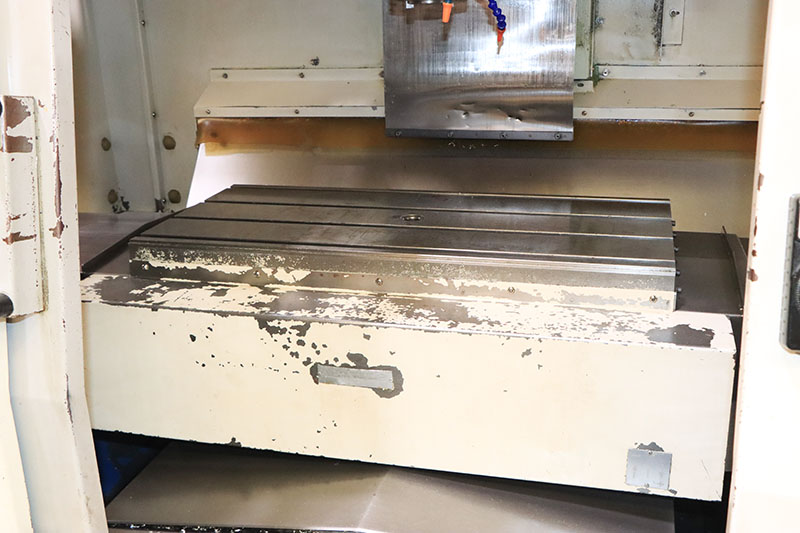

TABLE SIZE.............................. 16.9" X 36"
MAX TABLE LOAD.......................... 1,320 LBS
RAPID TRAVERSE RATES (X & Y/ Z)......... 1,400 / 1200 IPM
SPINDLE SPEEDS.......................... TO 8,000 RPM
SPINDLE MOTOR........................... 15 HP
SPINDLE TAPER........................... CAT 40
SIDE MOUNT AUTOMATIC TOOL CHANGER....... 24 POSITIONS
APPROX FLOOR SPACE REQUIRED....... 85" X 96" X 108.1" H
APPROX MACHINE WEIGHT................... 12,250 LBS

EQUIPPED WITH:

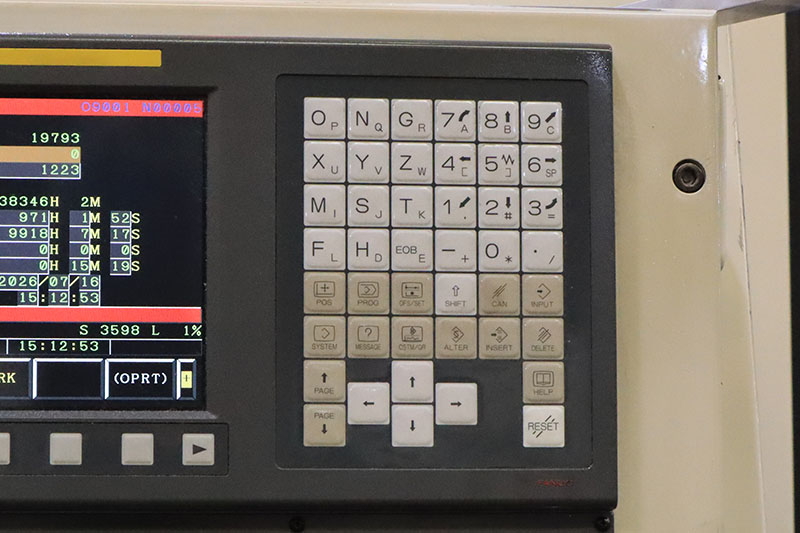

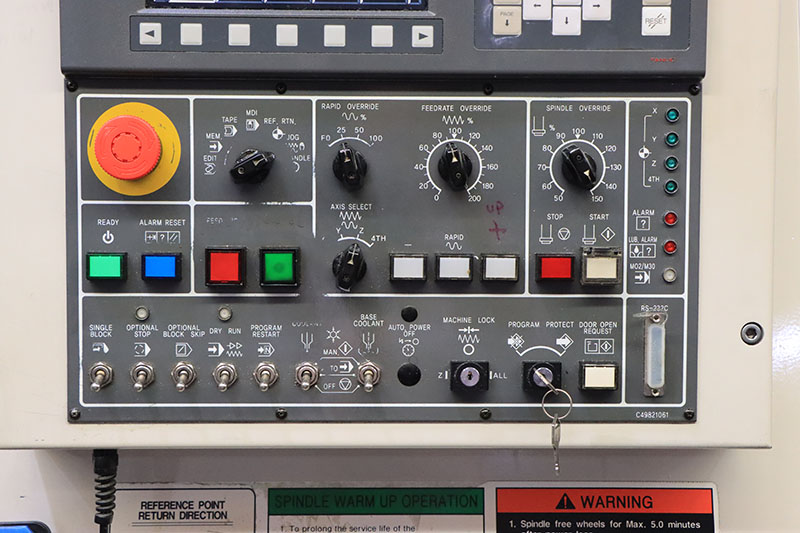

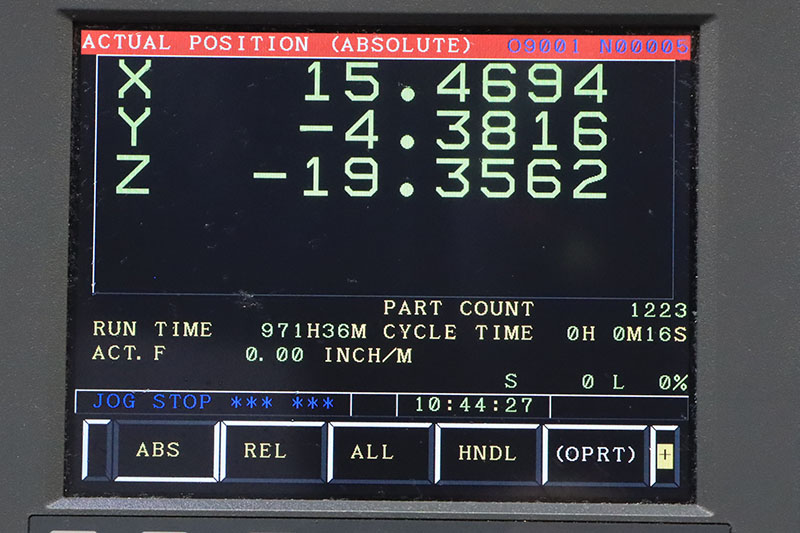

* FANUC i SERIES CNC CONTROL

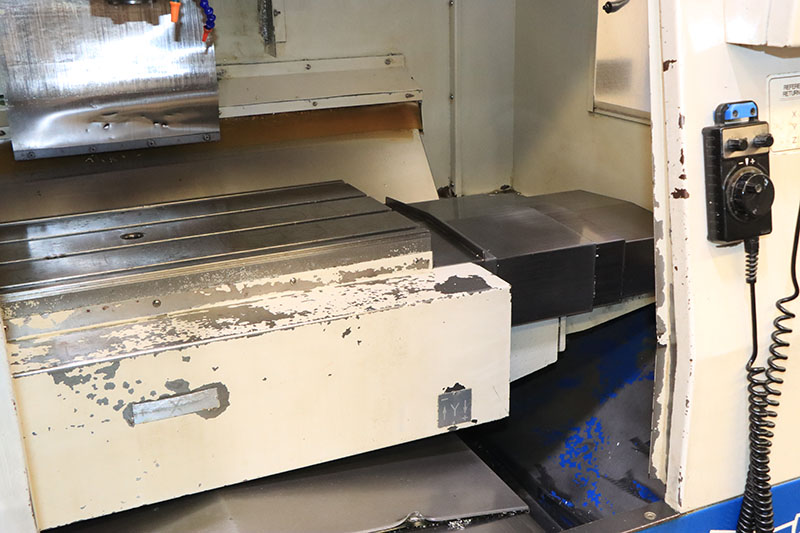

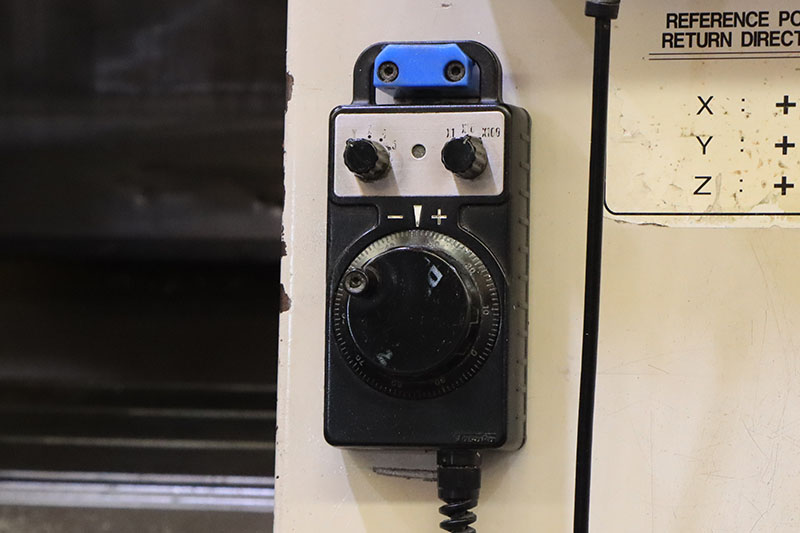

* PORTABLE MPG
* 24 TOOL SIDE MOUNTED AUTOMATIC TOOL CHANGER

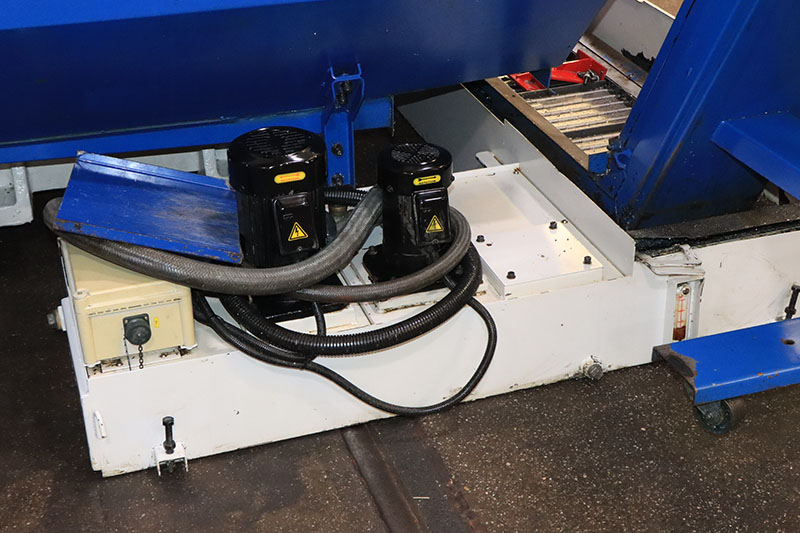

* COOLANT TANK AND CHIP PAN
* FLOOD COOLANT
* 15 HORSE POWER SPINDLE MOTOR

INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE
