Doosan HC400II HORIZONTAL MACHINING CENTERS (HMC's)

$99,500

Make:
Doosan
Model:
HC400II
Year:
2014
Ref #:
164302

Or call us for a quote at (973) 497-7500 or send us an email at cncmachines@machineryvalues.com

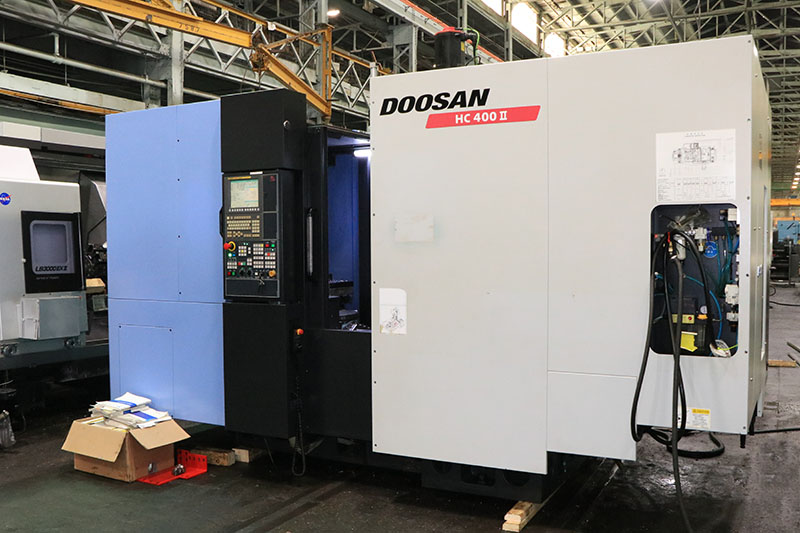

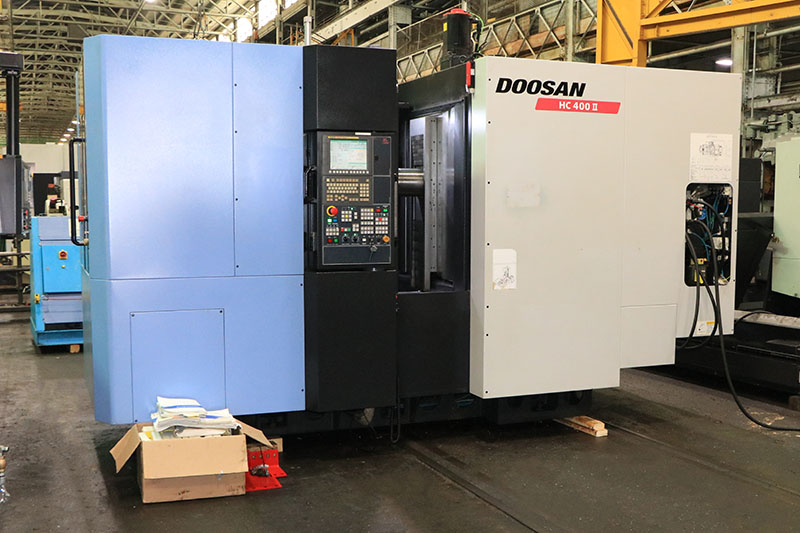

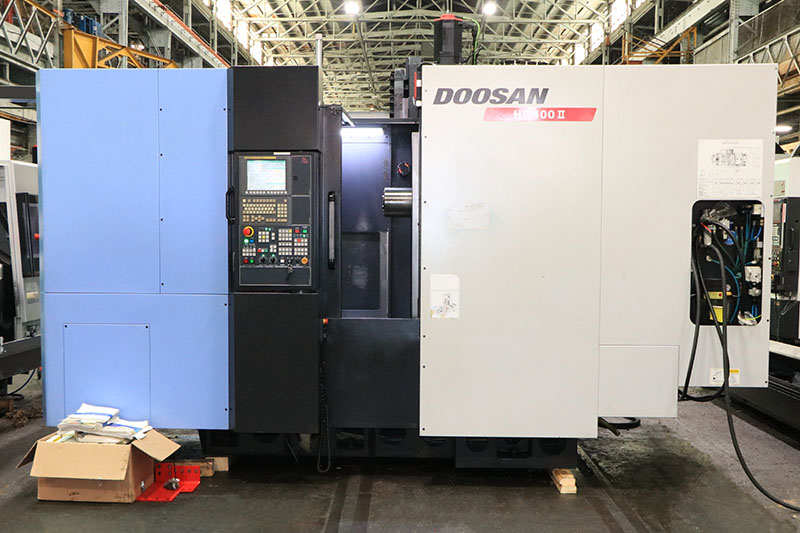

DOOSAN HORIZONTAL MACHINING CENTER
MODEL: HC 400II,  S/N: MH0001-000804,  NEW: 2014

SPECIFICATIONS:
PALLET SIZE .......................... 15.75" X 15.75" (400MM)
MACHINE TRAVELS:
  X-AXIS TRAVEL ...................... 23.6"
  Y-AXIS TRAVEL ...................... 22.0"
  Z-AXIS TRAVEL ...................... 22.2"
NUMBER OF PALLET STATIONS ............ 2
PALLET INDEXING ...................... 1 DEGREE
RAPID TRAVERSE RATE (X/Y/Z) .......... 1,575 IPM

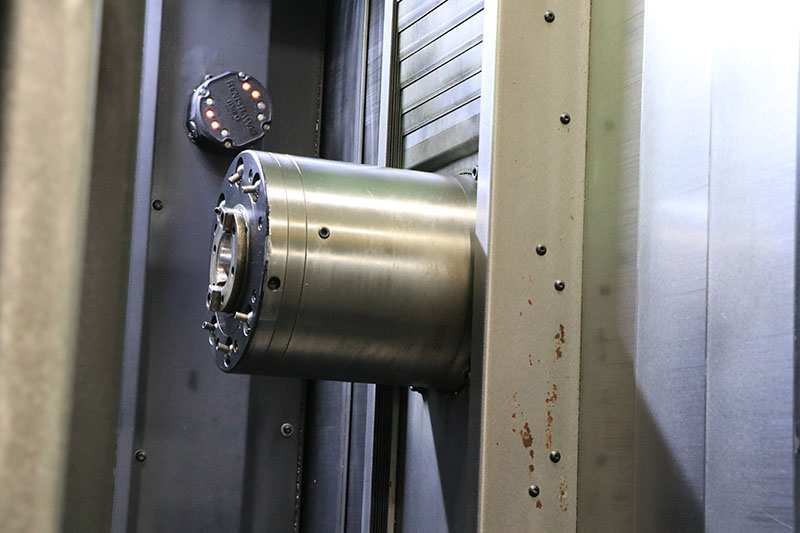

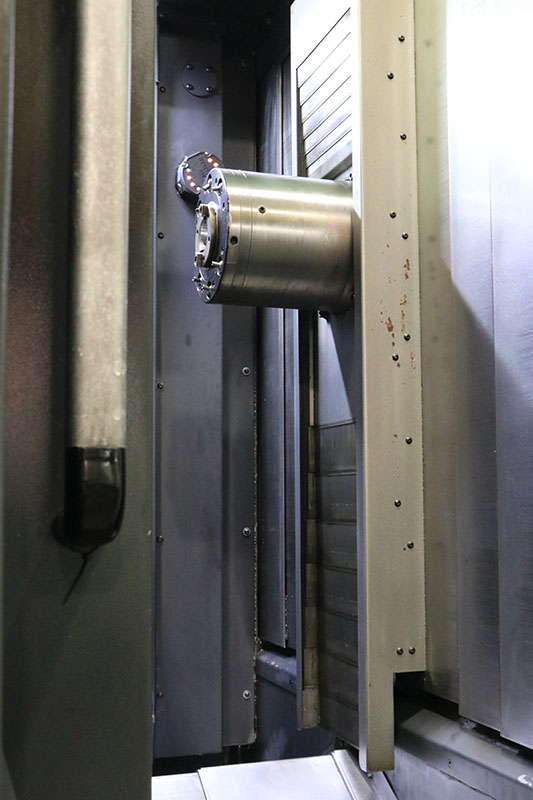

SPINDLE TAPER ........................ CAT #40 BIG PLUS
SPINDLE SPEED RANGE MAXIMUM .......... 12,000 RPM
TOOLCHANGER CAPACITY ................. 60 STATIONS
MAXIMUM TOOL DIAMETER ................ 3"
MAX. TOOL DIA. WITHOUT ADJACENT TOOLS. 5.5"
MAXIMUM TOOL WEIGHT .................. 22 LBS
SPINDLE DRIVE ........................ 30 HP
APPROXIMATE DIMENSIONS ............... 189" x 90" x 111"
APPROXIMATE WEIGHT ................... 27,000 LBS.

EQUIPPED WITH:

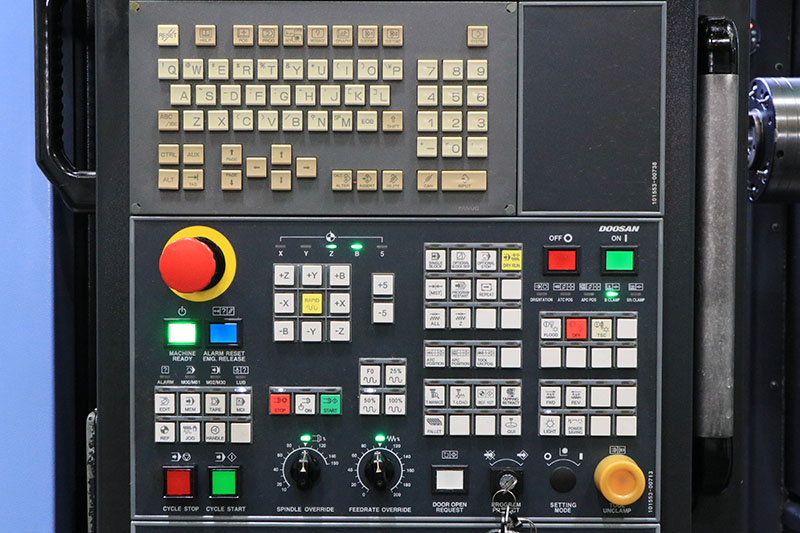

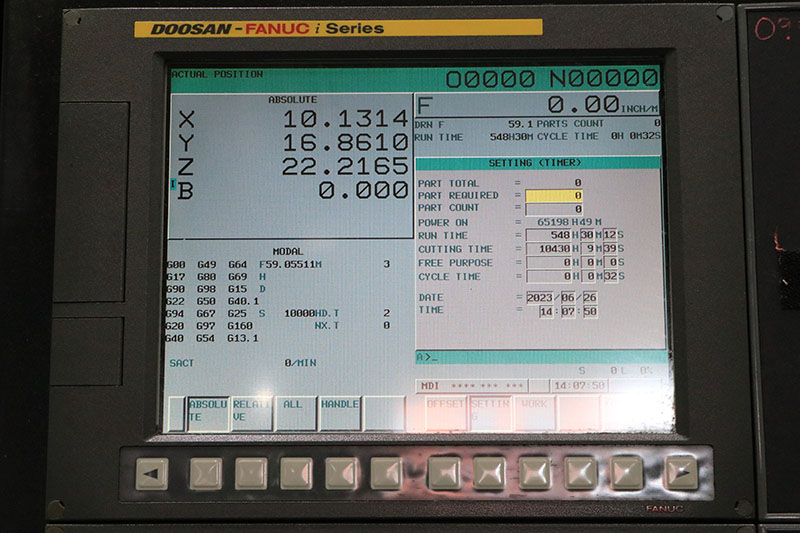

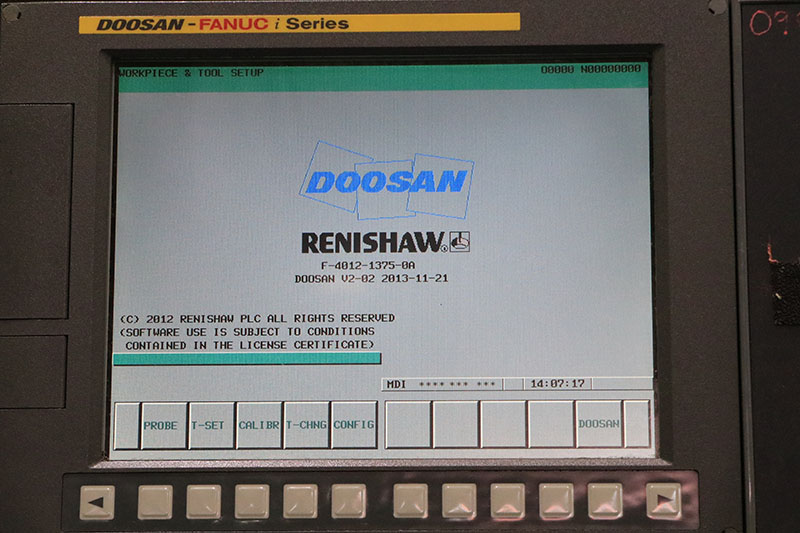

- FANUC MODEL: 0i-M CONTROL
- THRU-SPINDLE COOLANT, 230 PSI

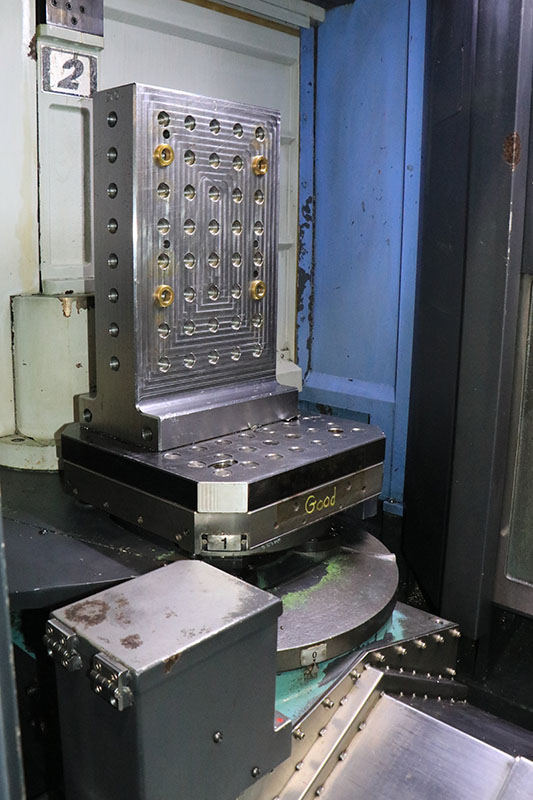

- 2 PALLETS

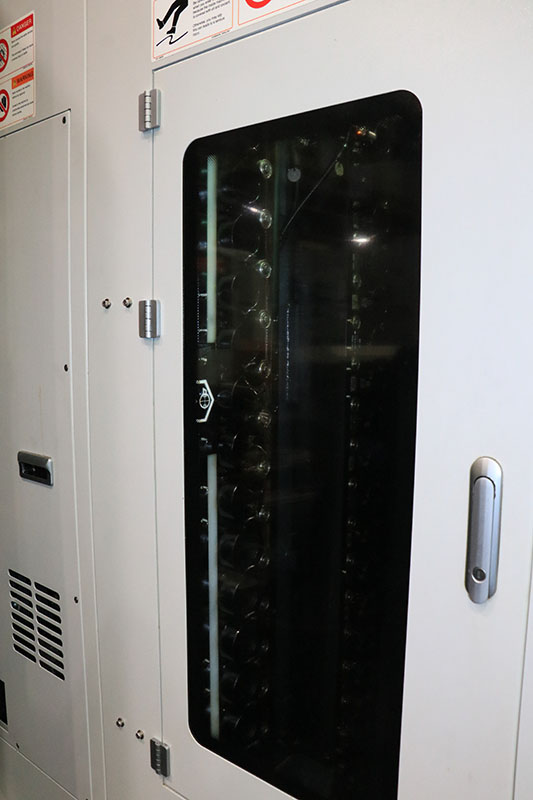

- 60 STATION AUTOMATIC TOOL CHANGER
- SPINDLE CHILLER
- CHIP CONVEYOR
- 25 HP HIGHPOWER SPINDLE DRIVE, 12,000 RPM SPINDLE

INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE


DISCLAIMER: The information presented in the write ups and the photographic representations of the equipment are believed to be accurate at the time the pages are created. The information presented on the web site should not be used for formal quotation. Price and information presented in the write ups on the web site are subject to change without notice. Machinery Values claims no responsibility for inaccuracies of the information presented on the pages of this website. Please contact one of our sales representatives if you require more information or a current formal quotation.
