Doosan LYNX 220LC CNC TURNING CENTERS - CNC LATHES

Price on Request

Make:: Doosan

Model:: LYNX 220LC

Year:: 2012

Ref #:: 179256

Or call us for a quote at (973) 497-7500 or send us an email at cncmachines@machineryvalues.com

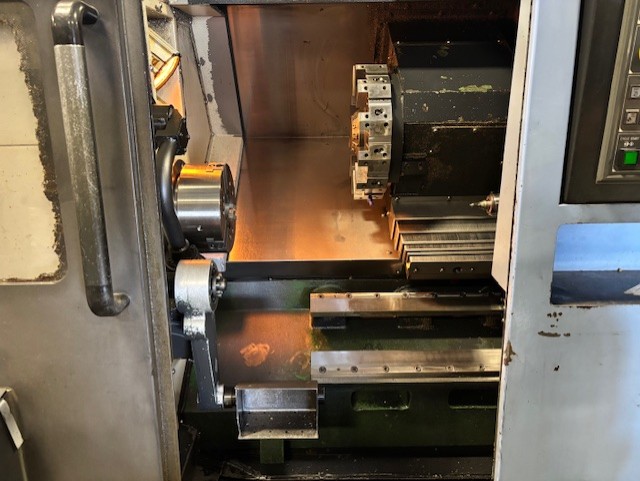

DOOSAN LYNX 220LC CNC TURNING CENTER
NEW 2012

VIDEO LINK:

SPECIFICATIONS:
SWING OVER BED .................... 20.08"
SWING OVER SADDLE ................. 11.42"
MAX. TURNING DIAMETER ............. 12.6"
MAX. TURNING LENGTH ............... 20.7"
MAX. BAR WORK DIAMETER ............ 2.625"
SPINDLE SPEED ..................... 4000 RPM
SPINDLE NOSE ...................... A2-6
SPINDLE BORE ...................... 2.99"
X-AXIS TRAVEL ..................... 6.9"
Z-AXIS TRAVEL ..................... 21.7"
RAPID TRAVERSE X/Z ................ 1181/1417 IPM
NUMBER OF TOOLS ................... 12
OD TOOL SIZE ...................... 1" X 1"
BORING BAR DIAMETER ............... 1.5"
MAIN SPINDLE MOTOR ................ 20 HP
APPROX. MACHINE WEIGHT ............ 7,716 lbs.

EQUIPPED WITH:

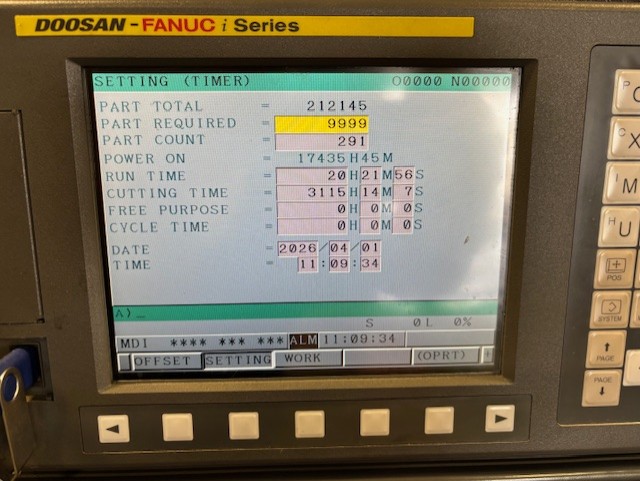

 - FANUC "i" SERIES CNC CONTROL

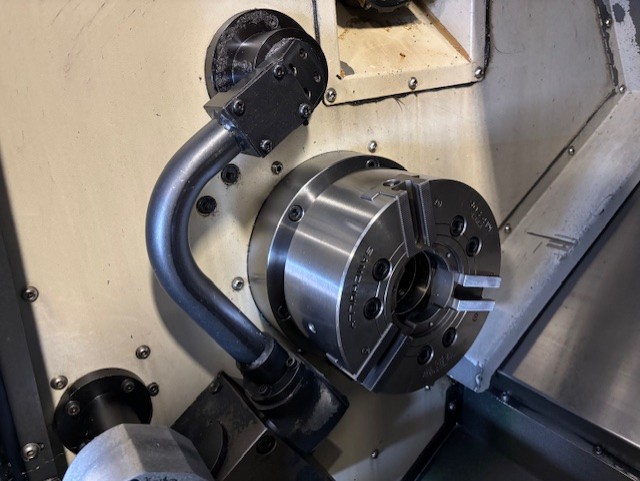

 - 8" 3-JAW HYD. CHUCK
 - TOOLSETTER
 - PARTS CATCHER

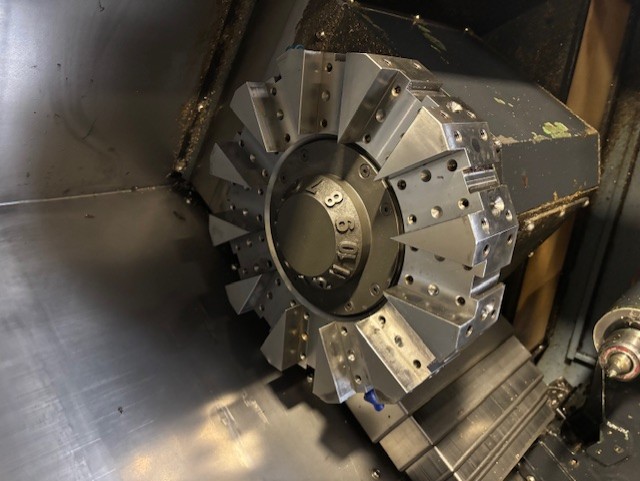

 - 12 POSITION TURRET

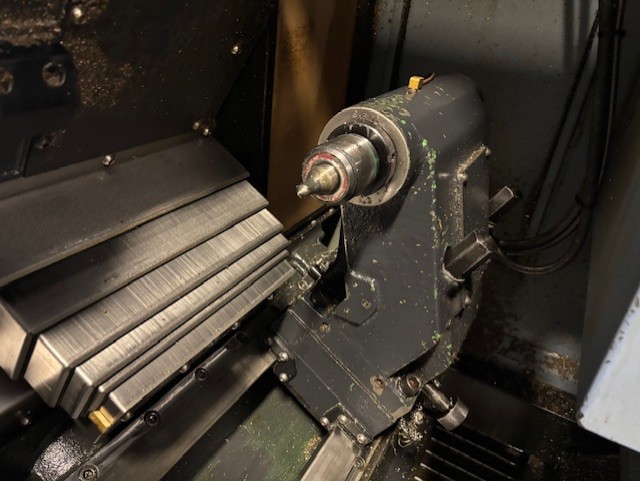

 - TAILSTOCK
 - CHIP CONVEYOR
 - ALL AVAILABLE TOOLHOLDERS AND MANUALS
