Doosan MYNX 5400 VERTICAL MACHINING CENTERS. VMC's

$49,500

Make:
Doosan
Model:
MYNX 5400
Year:
2015
Ref #:
177970

Or call us for a quote at (973) 497-7500 or send us an email at cncmachines@machineryvalues.com

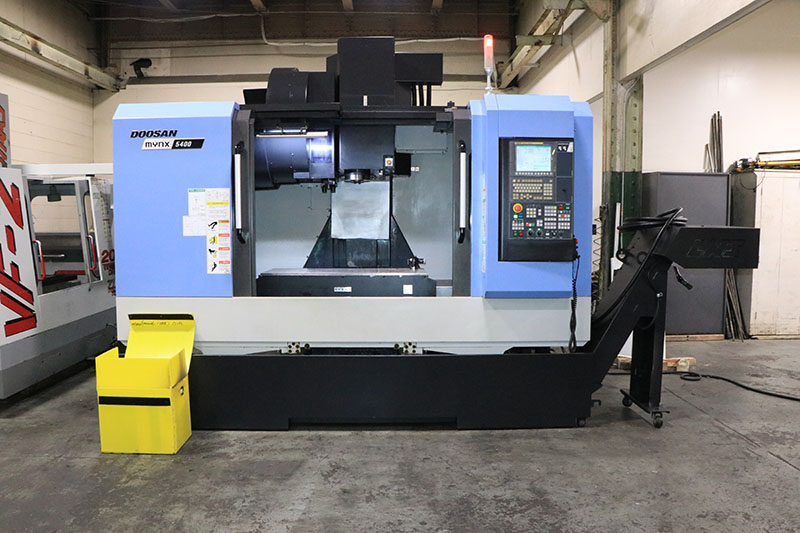

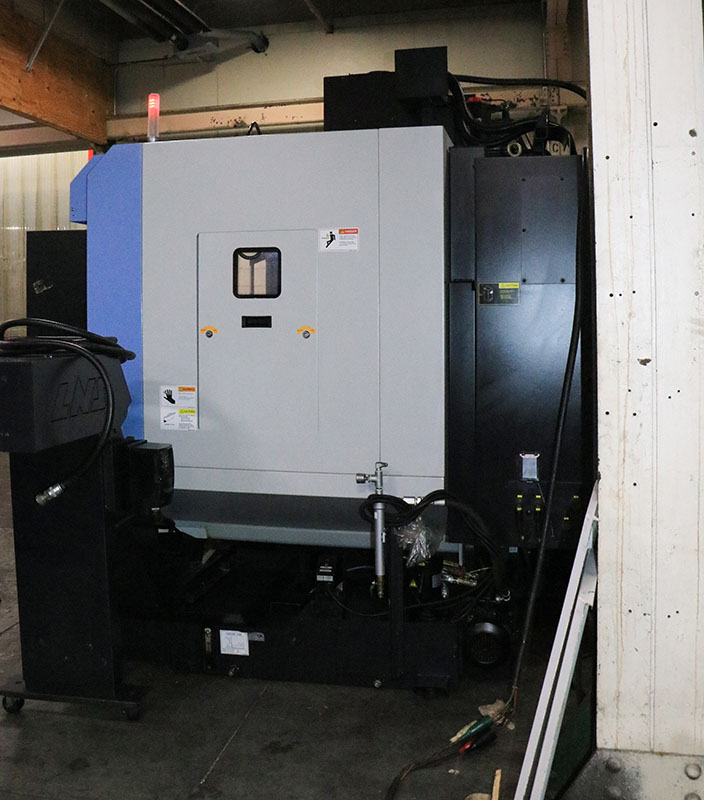

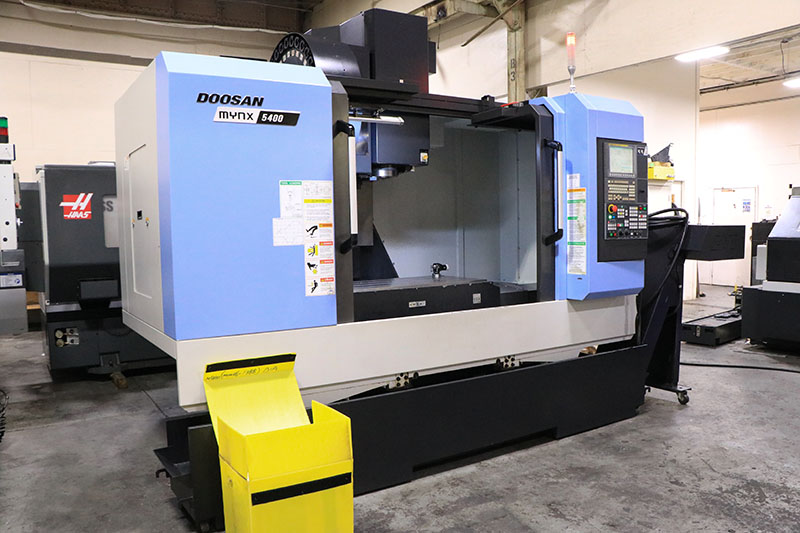

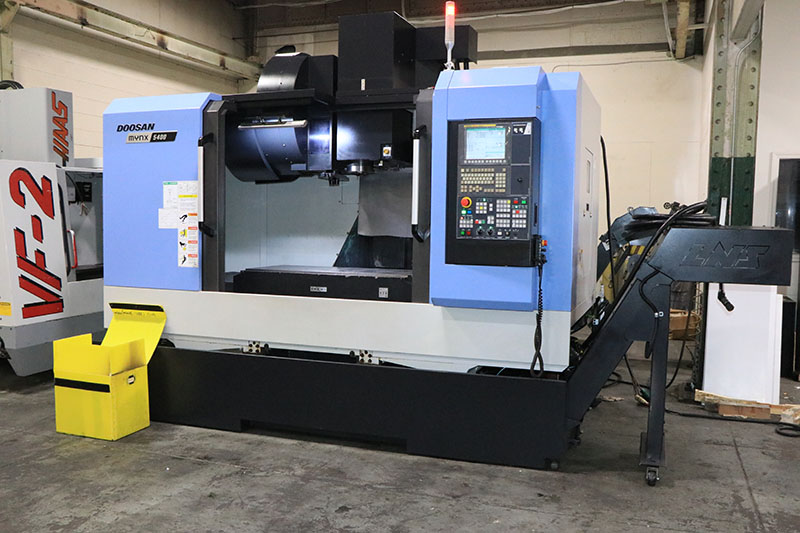

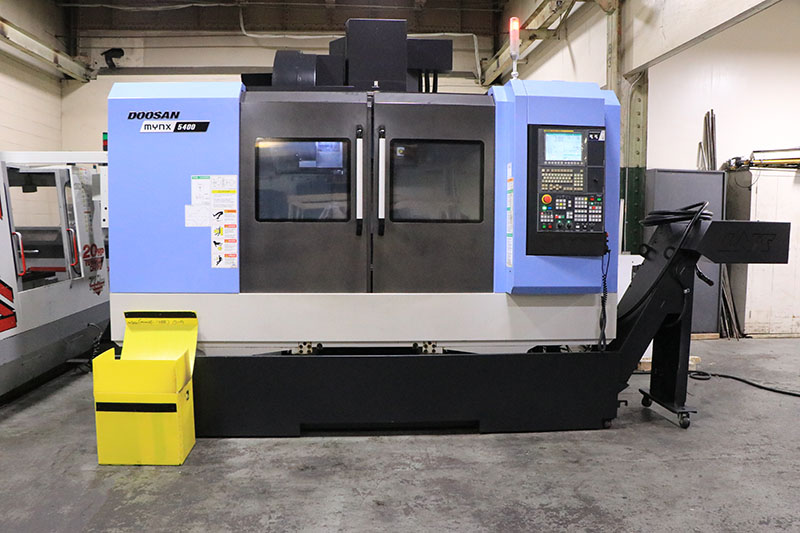

DOOSAN CNC VERTICAL MACHINING CENTER
MODEL: MYNX 5400,  NEW: 2015

SPECIFICATIONS:
X-AXIS TRAVEL ............................. 40.2" / 1020mm
Y-AXIS TRAVEL ............................. 21.3" / 540mm
Z-AXIS TRAVEL ............................. 20.9" / 530mm

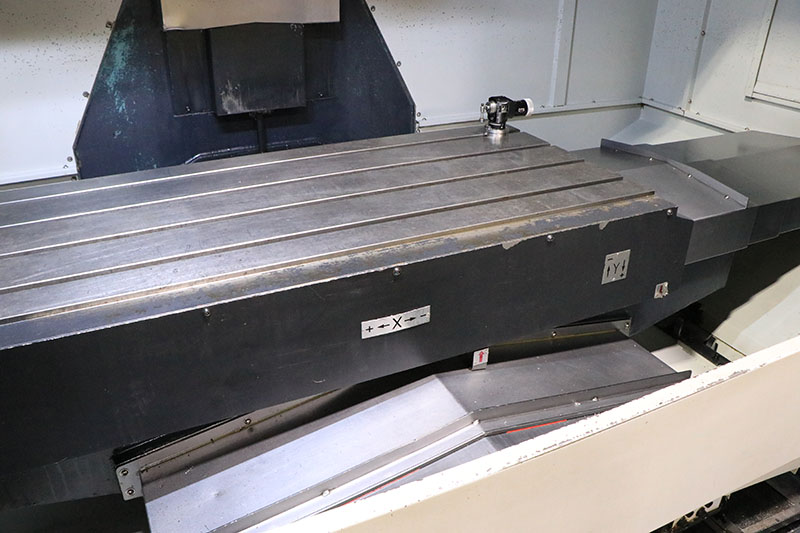

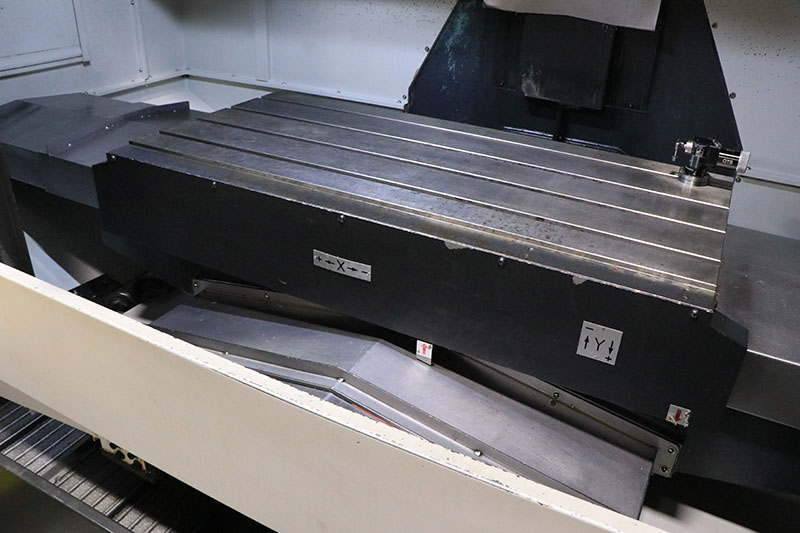

TABLE SIZE ................................ 47.2" x 21.3"
TABLE LOAD CAPACITY ....................... 1764 LBS
TABLE TOP TO SPINDLE NOSE ................. 5.9" - 26.8"

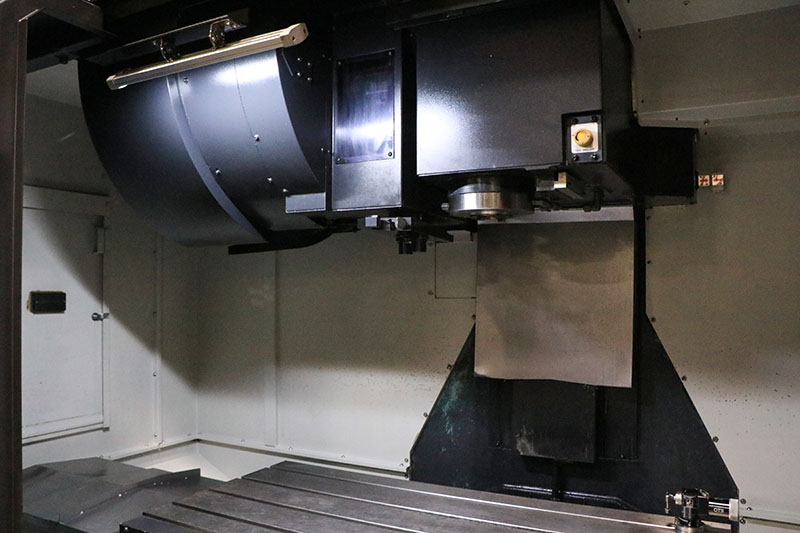

SPINDLE TAPER ............................. CAT-40 BIG PLUS
SPINDLE SPEED ............................. 8,000 RPM
SPINDLE MOTOR ............................. 30 HP
SIDE MOUNT TOOLCHANGER .................... 30 ATC
RAPID TRAVERSE RATE (X,Y/Z) ............... 1181/945 IPM
CUTTING FEED RATES ........................ .04 - 472 IPM
APPROXIMATE FLOOR SPACE ............... 96.2" x 132" x 108"H
APPROXIMATE MACHINE WEIGHT ................ 15,500 Lbs.

EQUIPPED WITH:

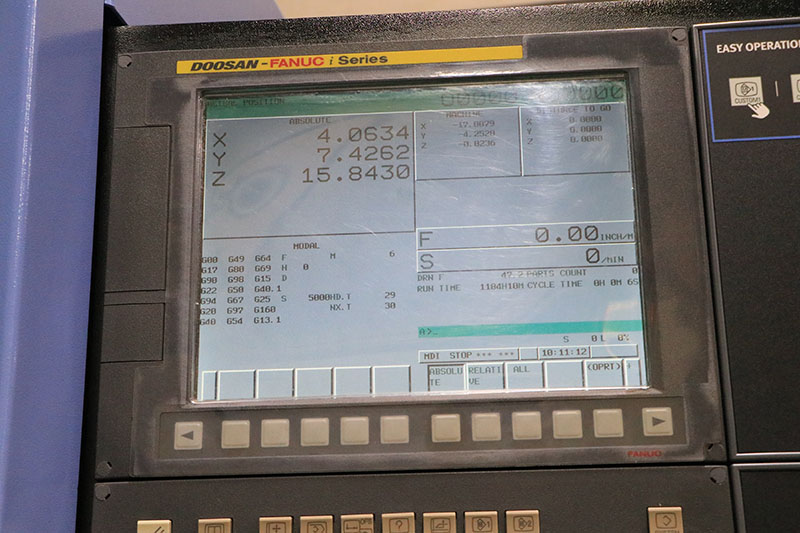

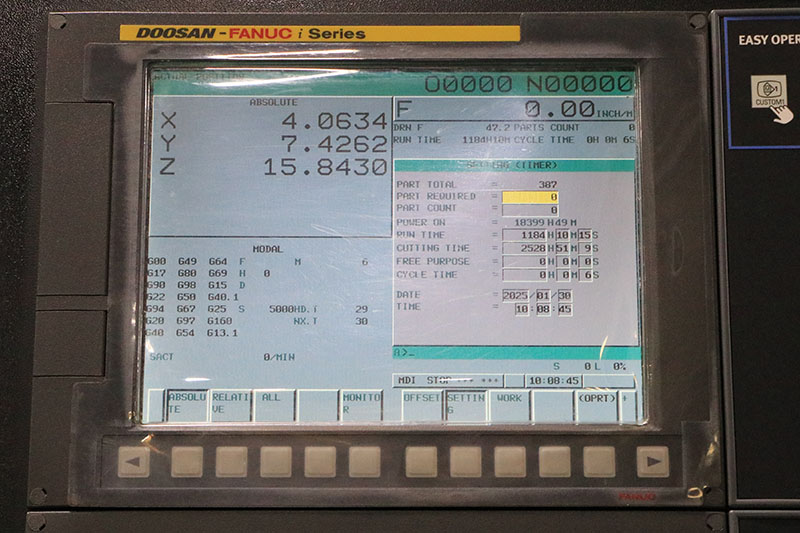

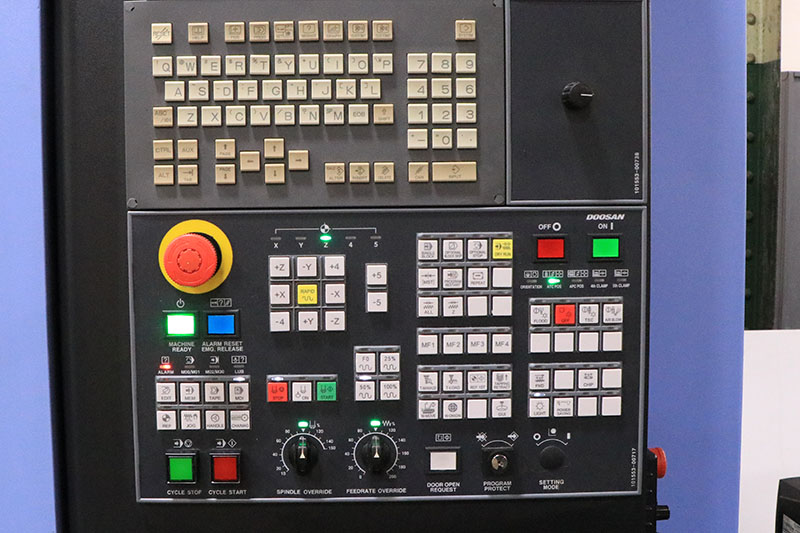

- FANUC SERIES 0I-MD CONTROL
- M-CODE CAPABILITY

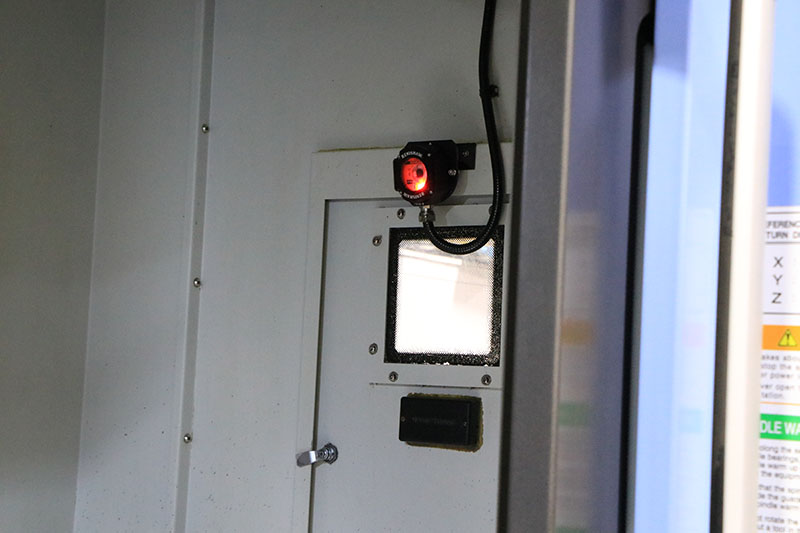

- RENISHAW MODEL: OMP60 SPINDLE PROBE STYLUS & HARDWARE
- RENISHAW TOOL SETTER & STYLUS
- BOX WAY CONSTRUCTION
- COOLANT THROUGH SPINDLE 230 PSI
- DOUBLE ARM, SIDE MOUNT AUTOMATIC TOOL CHANGER

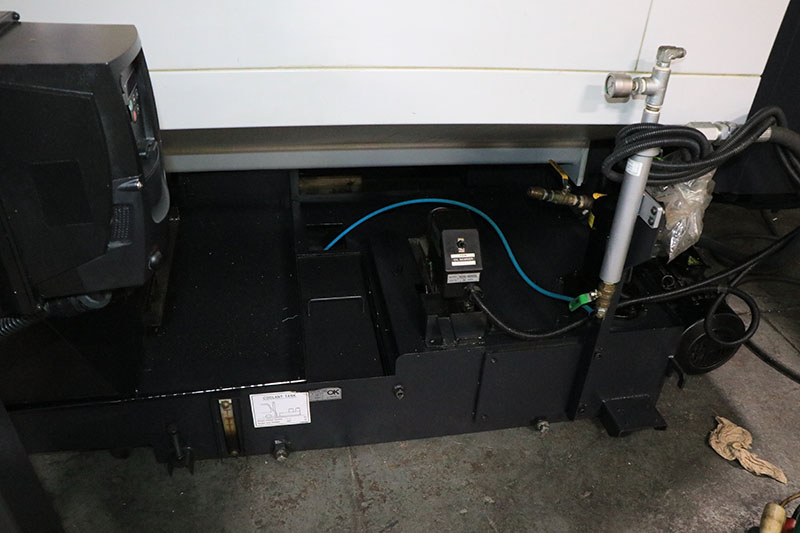

- DUAL AUGERS
- LEFT HAND HINGE BELT TYPE CHIP CONVEYOR
- 20 HORSE POWER SPINDLE MOTOR

INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE
