Ecotech VR50-H70, NEW 2021, 51" SWING ROTARY SURFACE GRINDERS, VT SPDL (BLANCHARD TYPE)

Price on Request

Make:: Ecotech

Model:: VR50-H70, NEW 2021, 51" SWING

Year:: 2021

Ref #:: 164402

Or call us for a quote at (973) 497-7500 or send us an email at grinders@machineryvalues.com

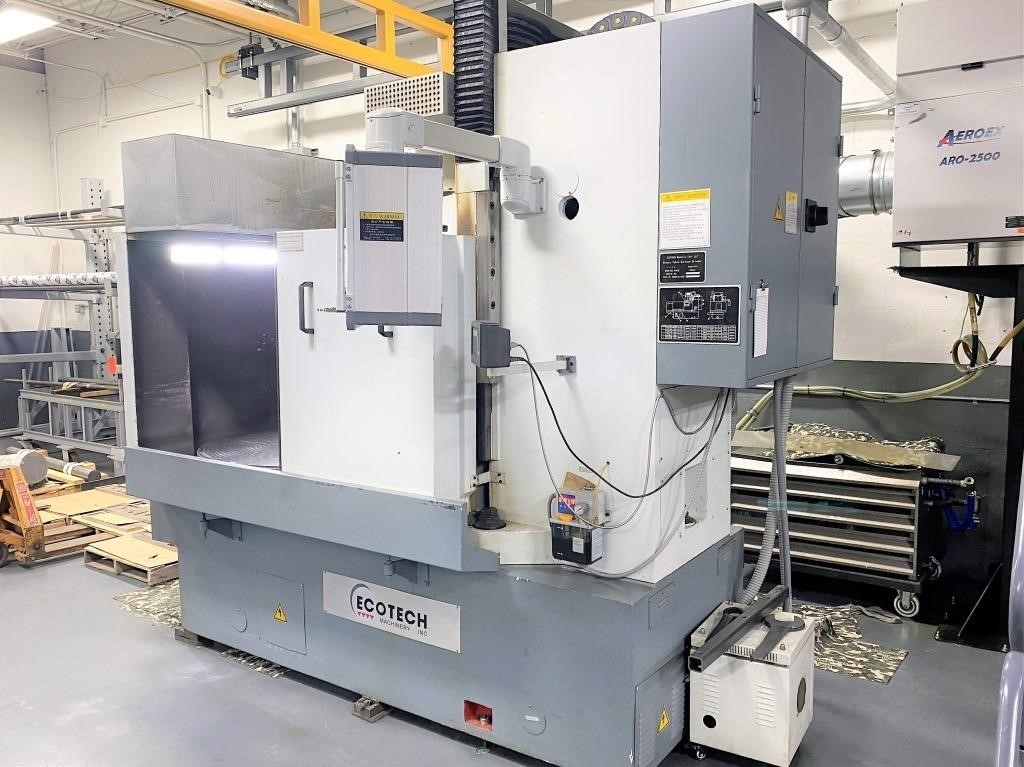

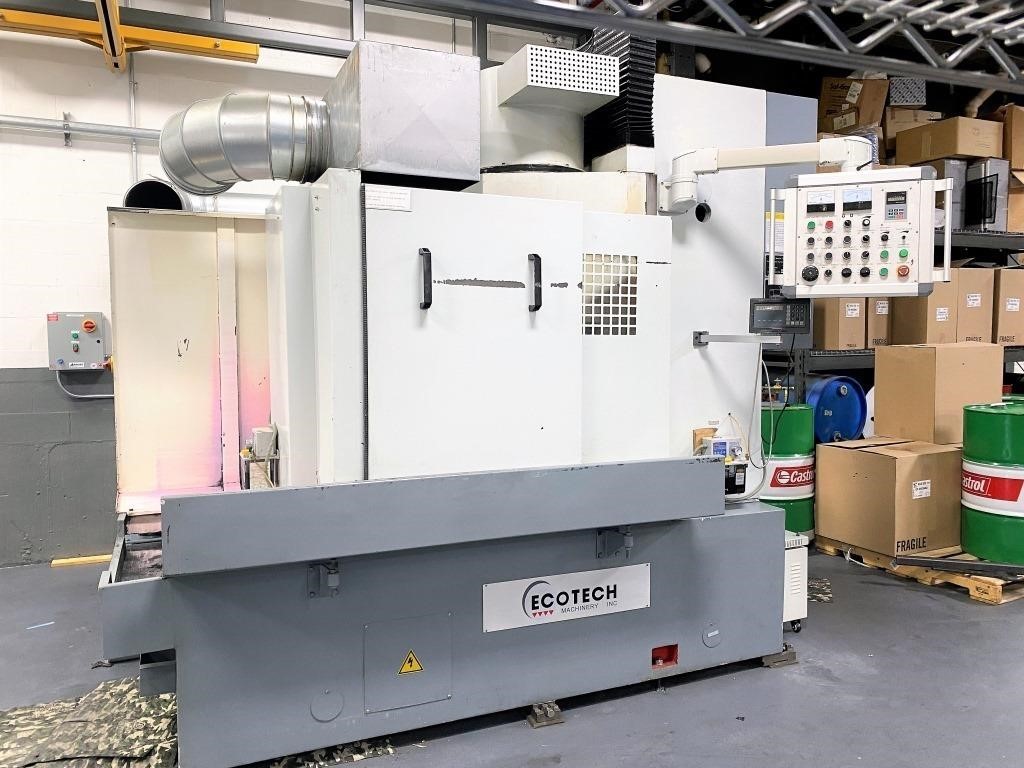

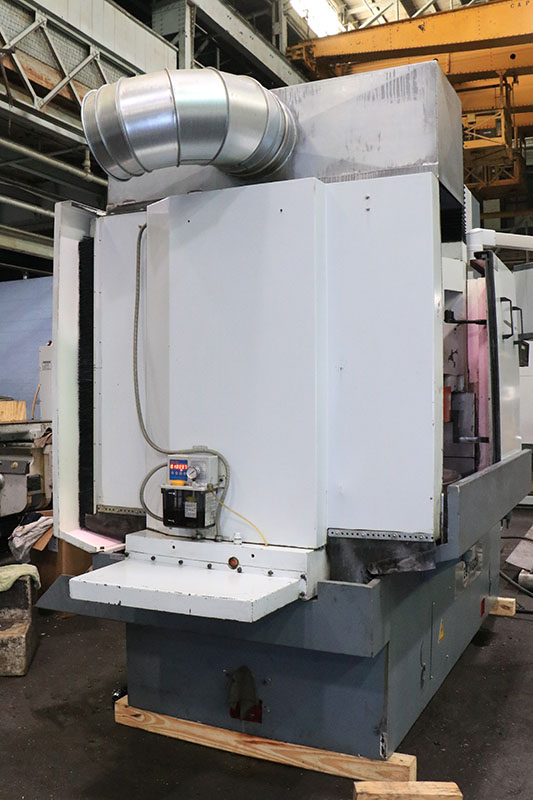

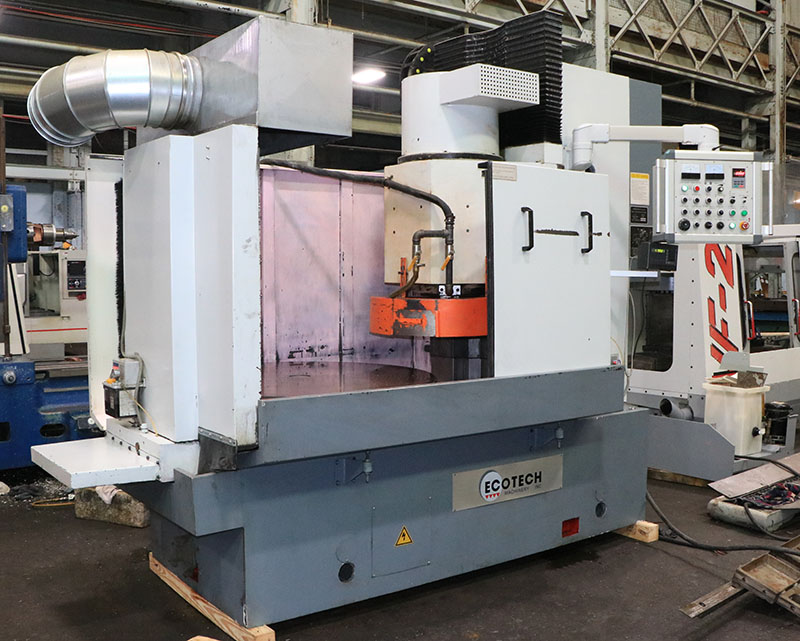

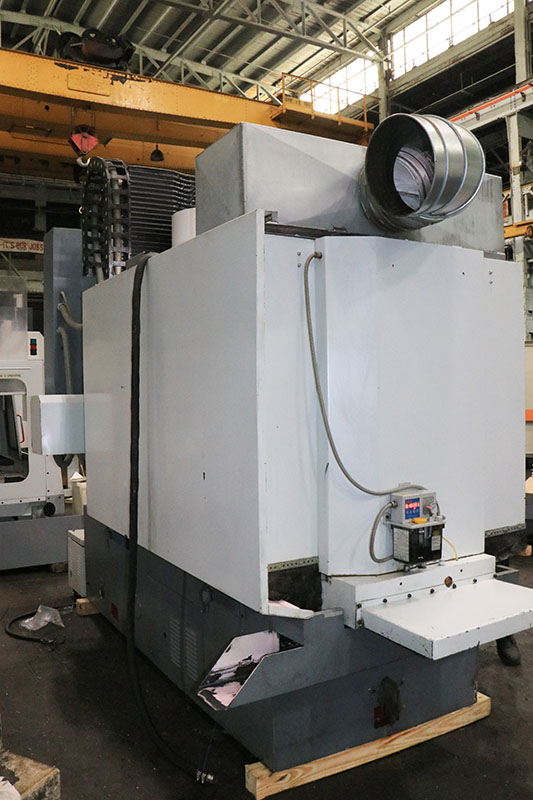

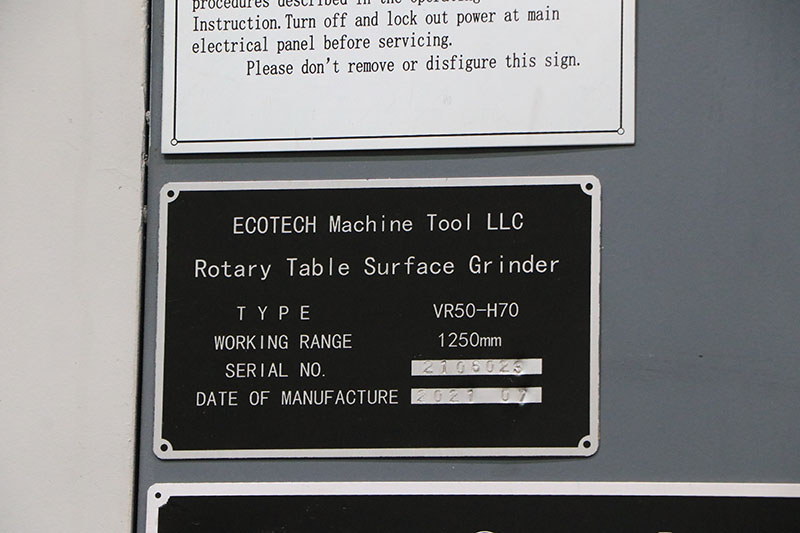

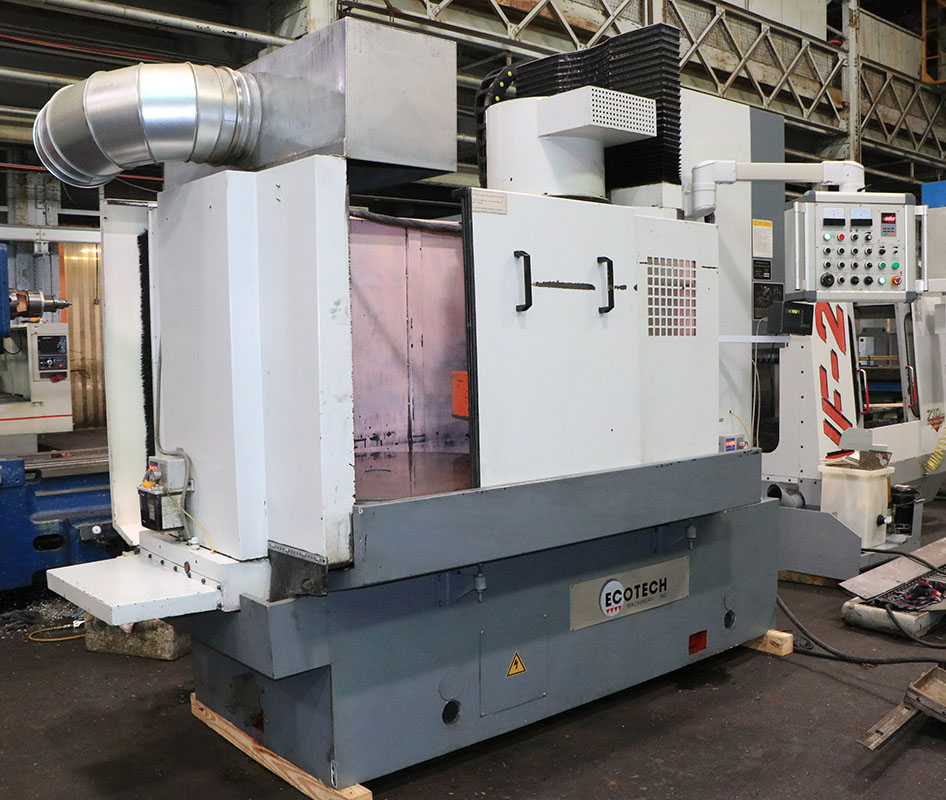

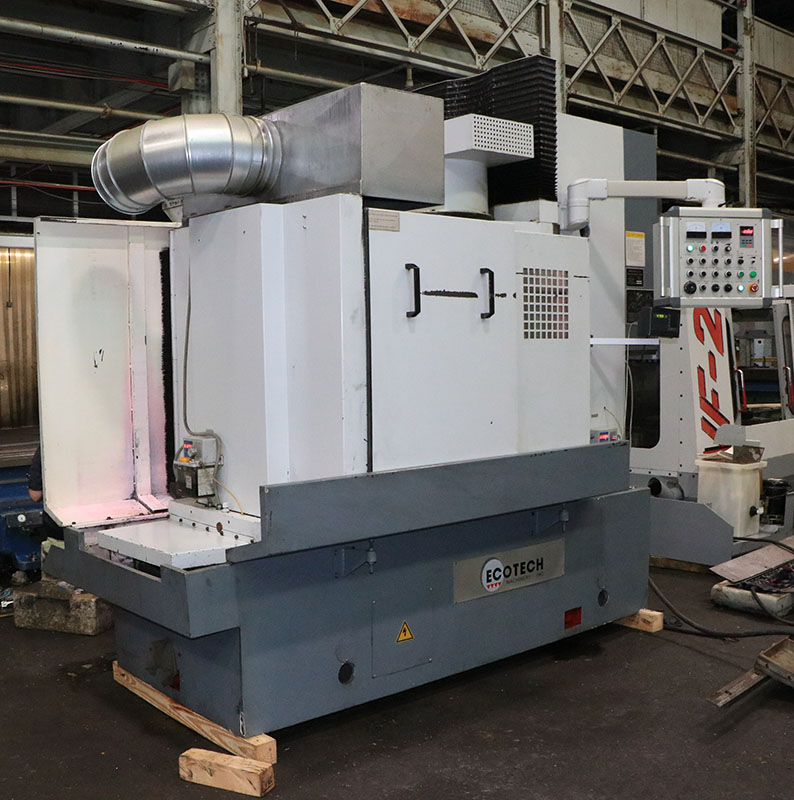

49" Ecotech Model No. VR50-H70
 "Blanchard-Type"
 Rotary Surface Grinder

S/N: 2108028      New July 2021

Pendant Control for Machine’s Operation
Digital Automatic Grinding Wheel Downfeed
Auto or Manual Selector Switch, for Feed
Electronic Manual Pulse Generator Handwheel
Digital AC Servo Motor, Providing Auto Downfeed
  in 12 steps,  from  0.000197" - 0.197"

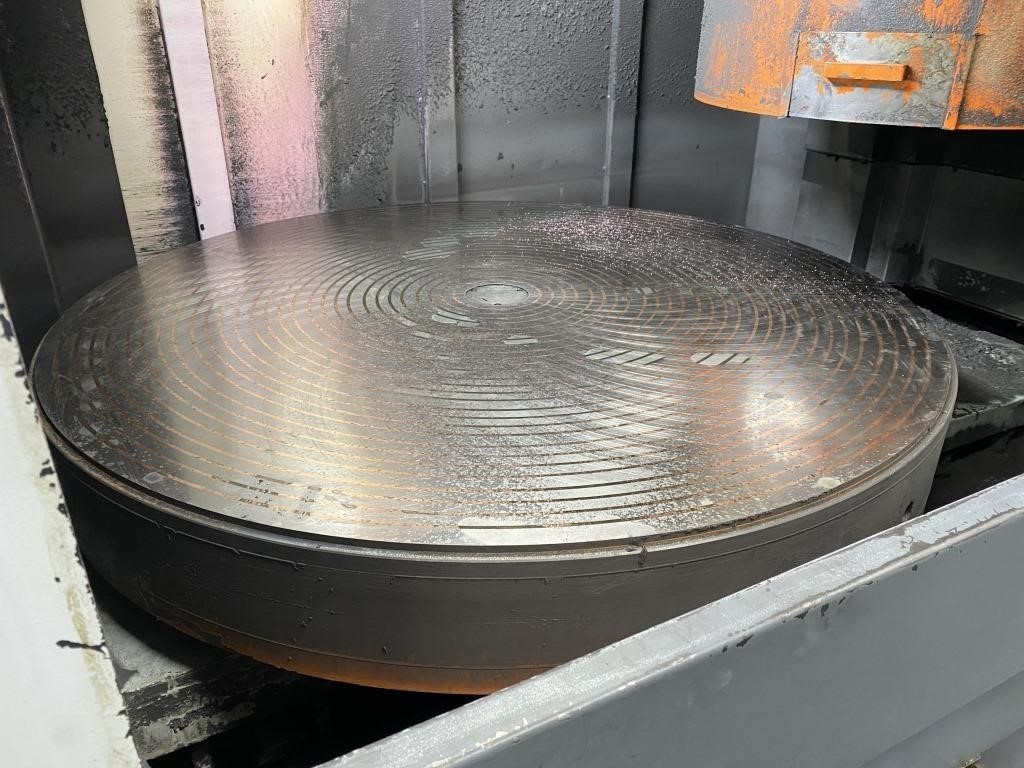

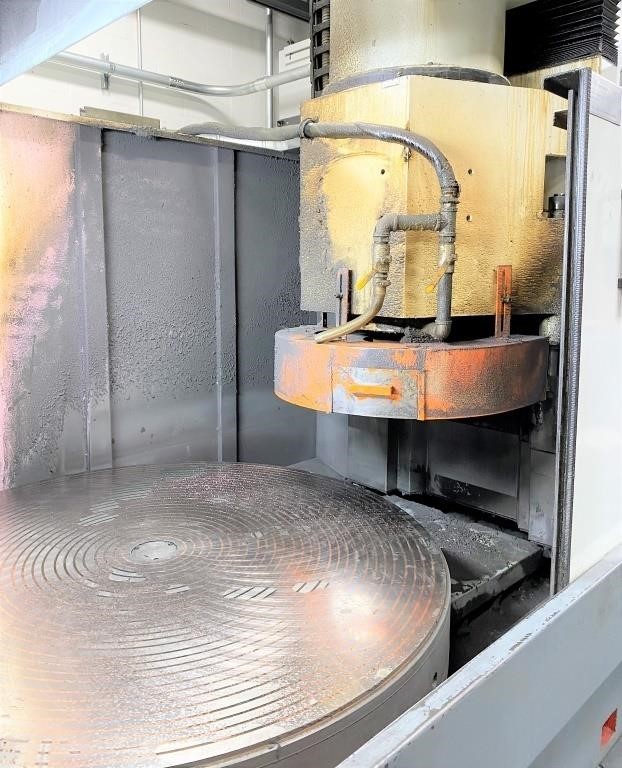

49.21” Electro-Magnetic Chuck
Variable Hold Neutrofier Control
51.18” Maximum Swing
27.55” Maximum Grinding Height
3,300 Lbs. Maximum Workpiece Weight
75 H.P. Spindle Motor

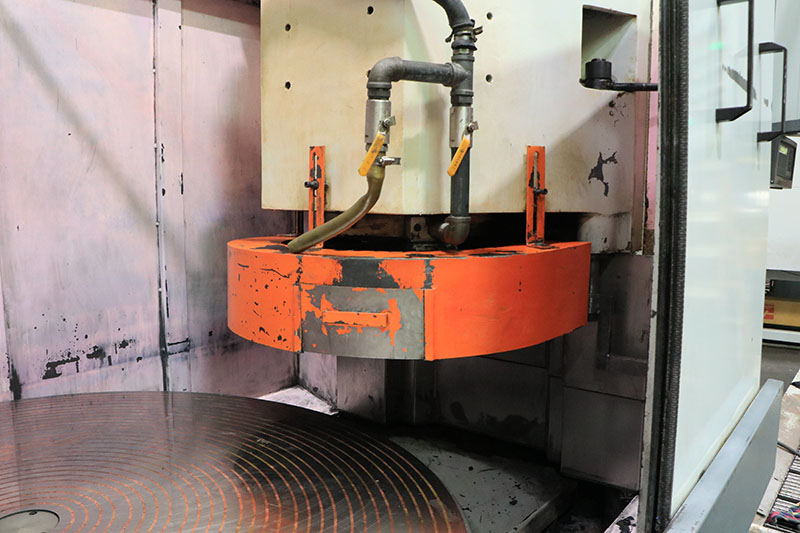

26" Diameter Cortland Segmented Grinding Wheel
740 RPM Grinding Wheel Speed
Infinitely Variable Chuck Speeds by Rheostat Control,
  Speeds from 5 to 25 RPM
3-Point Column Adjustment

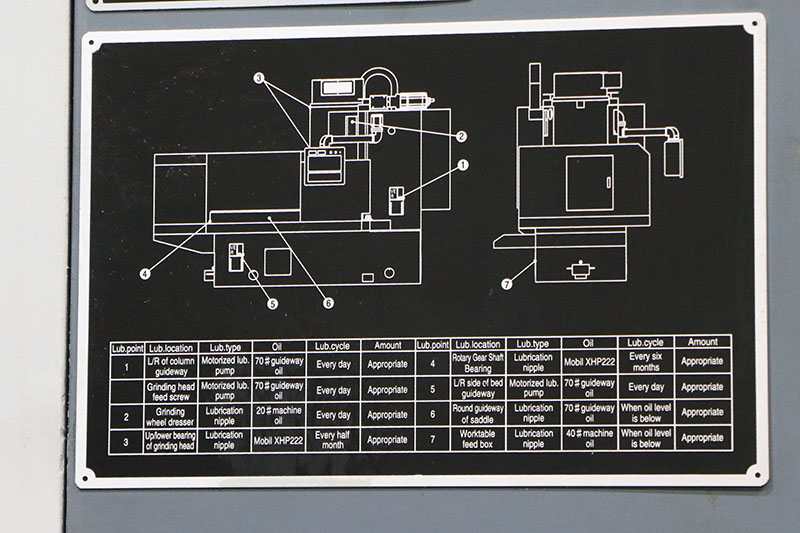

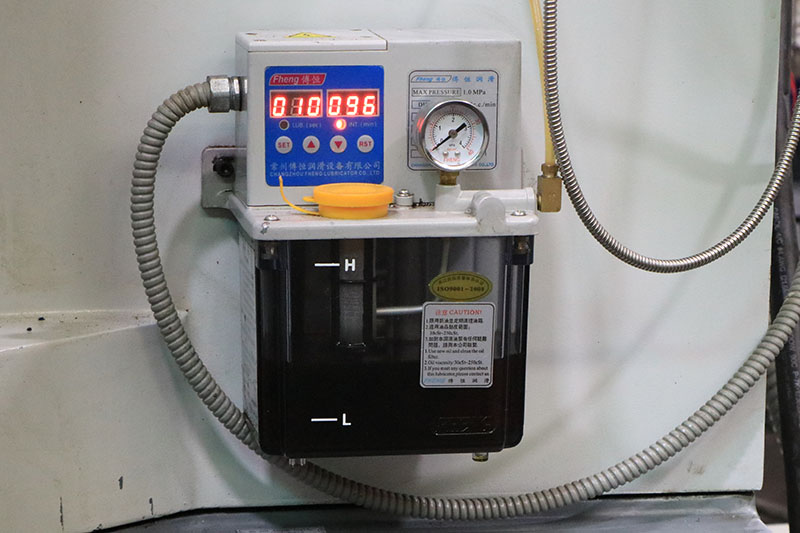

Automatic Lubrication System

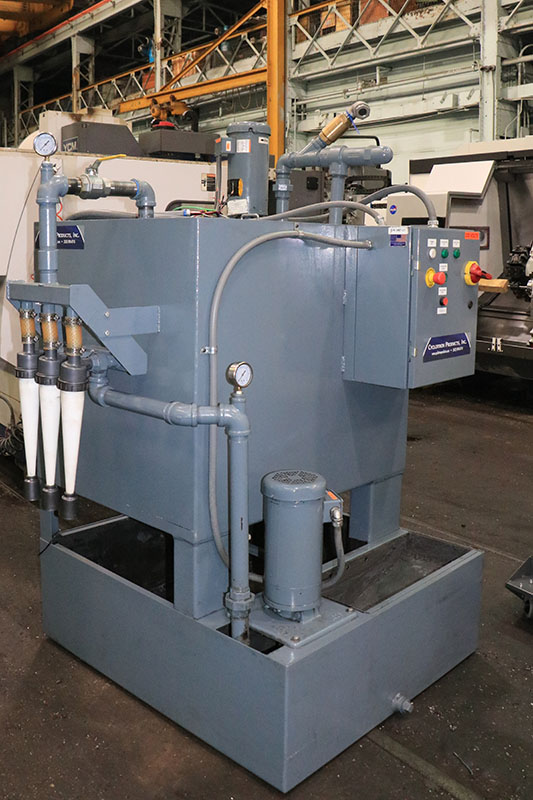

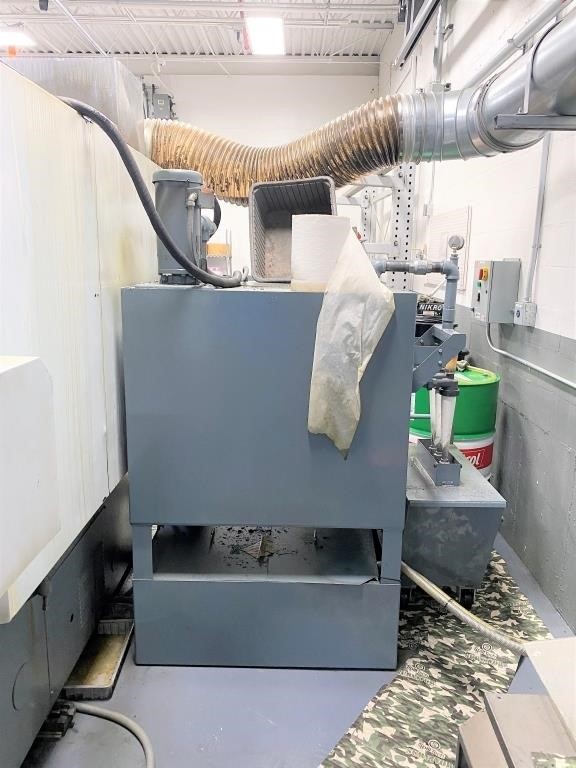

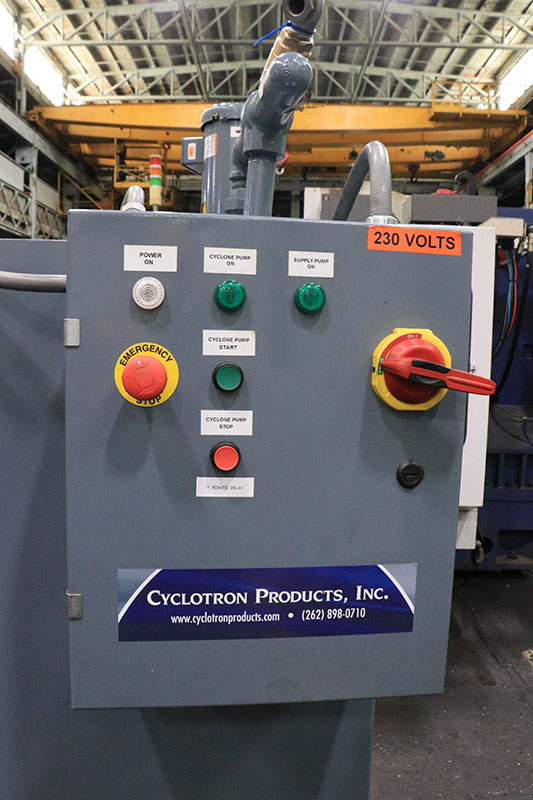

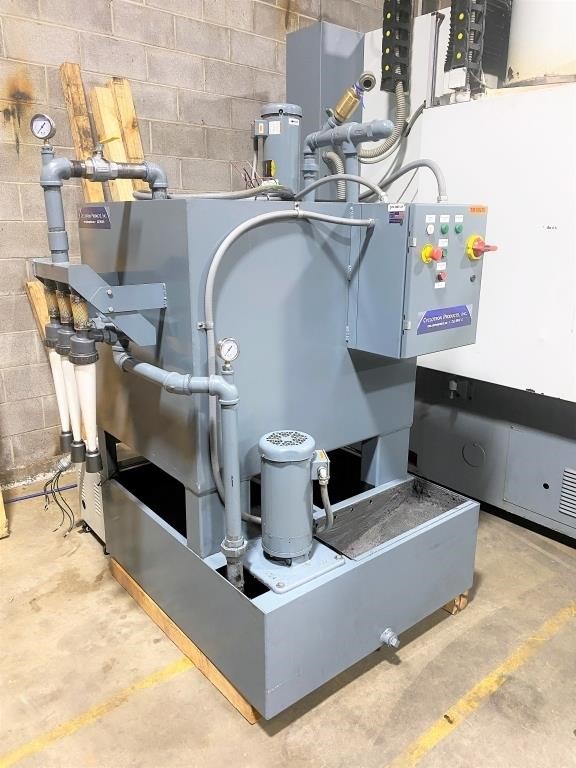

“Cyclotron” External Coolant System with Cyclonic Filtration
Half Enclosure for Machine
“Newall” 1-Axis Digital Readout Display

Approximate weight: 22,000 lbs.

Machine is Wired for 3/60/220 Volts
70 KW Total Power
Quiet Machine, Less than 80 Decibals Sound


Link To Video: https://youtu.be/oa8rqvuXKrg

Special Note:  Original Acquisition Cost is Over $200,000

Inspect Under Power in our Harrison, N.J. Waehouse
** "As New” Condition & Appearance **
