Eisele VAL-560 NC-H COLD SAWS & CARBIDE SAWS (Ferrous)

Price on Request

Make:: Eisele

Model:: VAL-560 NC-H

Year:: 2005

Ref #:: 163868

Or call us for a quote at (973) 497-7500 or send us an email at boringmills@machineryvalues.com

BEHRINGER / EISELE FULLY AUTOMATIC
NON-FERROUS CIRCULAR SAW
MODEL VAL-560 NC-H, NEW: 2005

CAPACITIES:
CUTTING RANGE: .................. 90 DEGREES
MAX SAWBLADE DIAMETER: .......... 22"
SOLID ROUND CAPACITY: ........... 6.6"
ROUND TUBE CAPACITY: ............ 7.8"
RECTANGLE TUBE CAPACITY: ........ 11.8" X 5.9"
SQUARE TUBE CAPACITY: ........... 6.6"
SAWBLADE STROKE: ................ HYDRAULIC
SINGLE STROKE FEED: ............. 0.4" - 38.1"
MULTI STROKE MAX FEED: .......... 393.6"
BLADE SEPARATION: ............... LEFT & RIGHT
BLADE MOTOR: .................... 32.4 H.P.
BLADE SPEEDS: ................... 4,610 - 18,440 SFM
DIMENSIONS: ..................... 87" X 105" X 108"
WEIGHT: ......................... 4,620 LBS.

EQUIPPED WITH:
FREQUENCY DRIVE
MATERIAL SEPARATION
SAW FEED WITH ELECTRONIC POSITIONING CONTROL
VARIABLE VISE PRESSURE
SERVO & BALLSCREW MATERIAL FEED
SPRAY MIST LUBRICATION
ELECTRONIC DECELERATION BRAKE
CUTTING PRESSURE CONTROLLED BY SAWBLADE

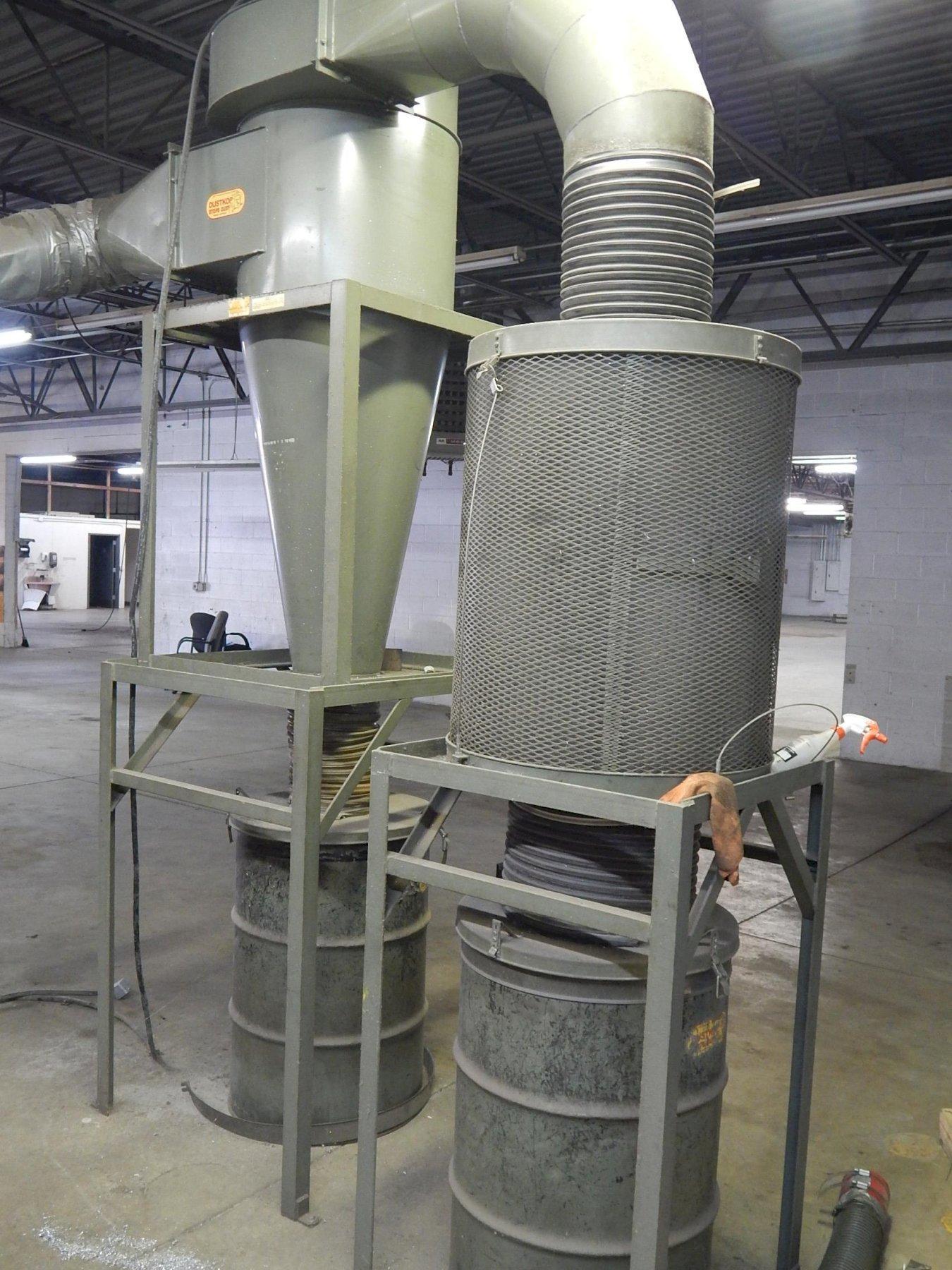

CHIP COLLECTOR
EXTRA SAWBLADES
