Eldorado M75, 1" Cap, 30" Stroke, 7.5 HP Pump, GUN DRILLS & DEEP HOLE DRILLS

Price on Request

Make:: Eldorado

Model:: M75, 1" Cap, 30" Stroke, 7.5 HP Pump,

Year:: 1979

Ref #:: 179546

Or call us for a quote at (973) 497-7500 or send us an email at boringmills@machineryvalues.com

1"X30" ELDORADO SINGLE SPINDLE GUN TYPE DEEP HOLE DRILLING MACHINE
MODEL M75, S/N: 492, NEW: 1979

SPECIFICATIONS:
WORKING SURFACE OF TABLE ............. 22"X22"
DRILLING CAPACITY .................... .055 UP TO 1" (IN MOST MATERIAL)
SPINDLE TRAVEL BALL SCREW FEED ....... 30"
CENTERLINE OF SPINDLE TO TOP OF TABLE. 8"
VARIABLE SPEEDS ...................... 1440 TO 11,740 RPM
VARIABLE FEED RATE ................... .1 TO 99.9 IPM
RAPID TRAVERSE AND RETURN RATE ....... 200 IPM

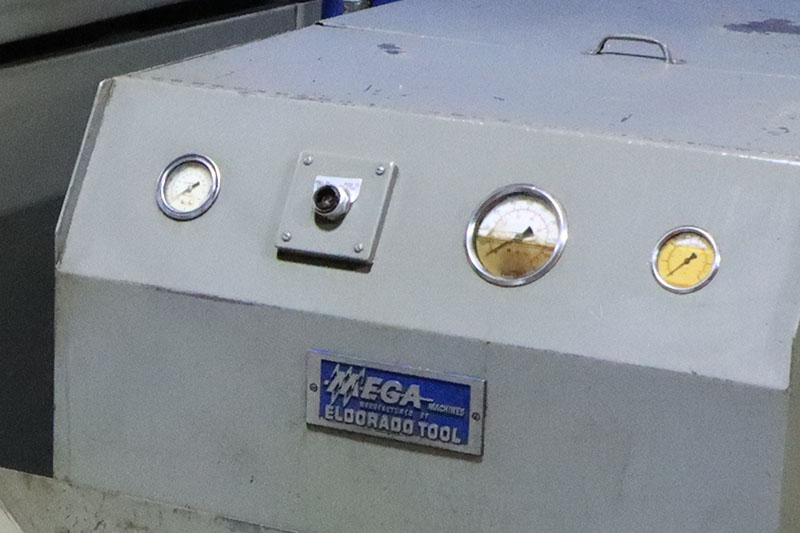

F-18 HIGH PRESSURE COOLANT SYSTEM .... 1500 PSI AND
18 GPM, 90 GALLON TANK, 7.5 H.P. PUMP MOTOR
MACHINE DIMENSIONS, APPROXIMATELY .... 3'X7'X5' HIGH
COOLANT SYSTEM, APPROXIMATELY ........ 74"X36"X41: HIGH
WEIGHT APPROXIMATELY ................. 4,000 LBS. TOTAL

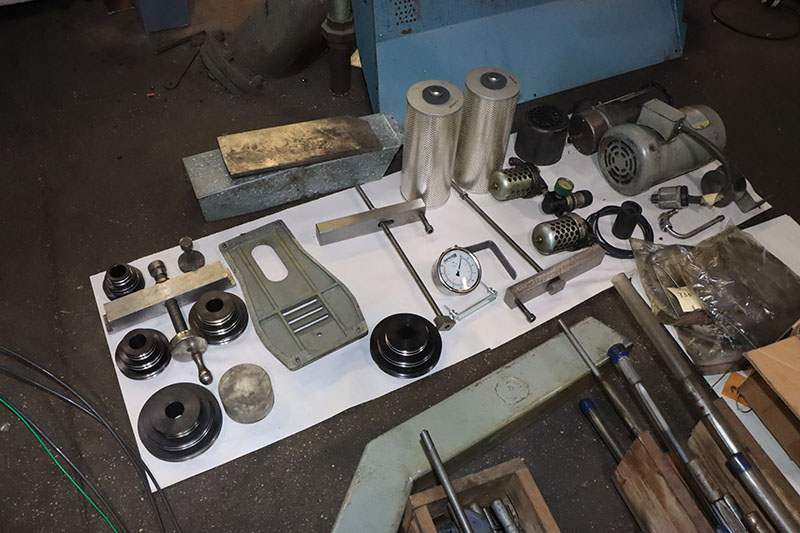

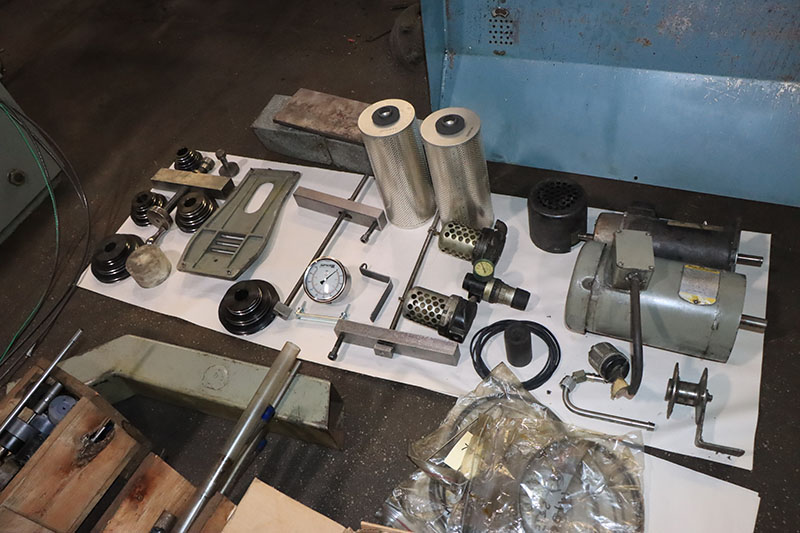

EQUIPMENT:
WHIP GUIDE,
FLO-MINDER,
FEED THRUST METER,
AUTOMATIC LUBRICATION SYSTEM
HARDENED AND GROUND BEDWAYS.
3HP MAIN MOTOR

INSPECT UNDER POWER.
