Electro Arc 10DVHK, 2017, "Q" HEAD& AUTO FEED, 440V SINGLE PH TAP / METAL DISINTEGRATORS

Price on Request

Make:: Electro Arc

Model:: 10DVHK, 2017, "Q" HEAD& AUTO FEED, 440V SINGLE PH

Year:: 2017

Ref #:: 160305

Or call us for a quote at (973) 497-7500 or send us an email at sales@machineryvalues.com

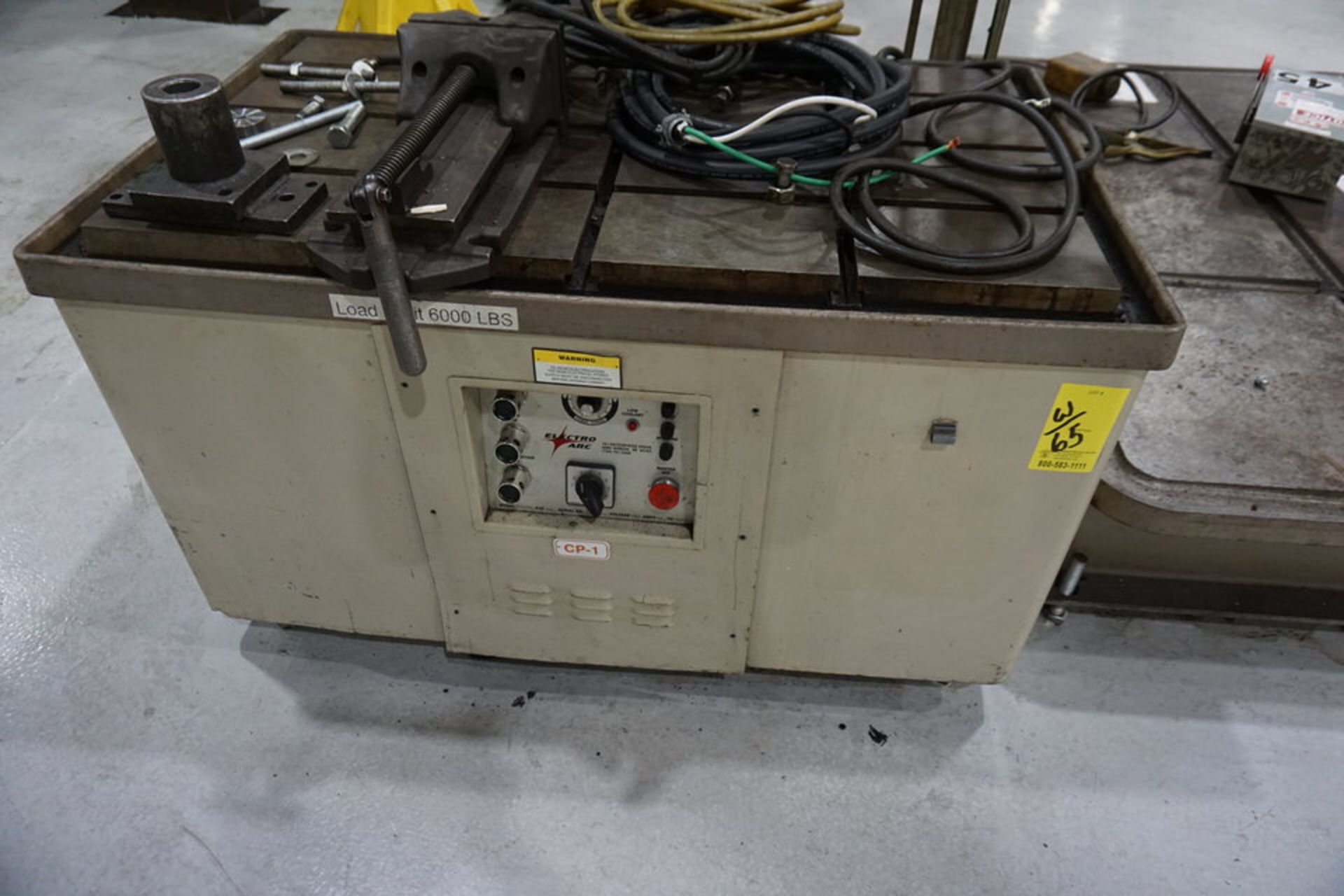

   ELECTRO-ARC TAP DISINTEGRATOR

 WITH AUTOMATIC DOWNFEED, "Q" HIGH-PRECISION HEAD,

MODEL: 10DVHK     S/N: 15046      NEW: 2017


TABLE WORK SURFACE .... 50.5" X 39.5"
TABLE CAPACITY ........ 6,000 LBS.
CROSSARMS LENGTH ...... 48"
COLUMN HEIGHT ......... 60"

CUTTING SPEEDS:
1/4".............1 MIN.
5/16"............1-1/2 MIN.
3/8".............1-3/4 MIN.
1/2".............2 MIN.
5/8".............3-1/2 MIN.
3/4".............4 MIN.

  EQUIPPED WITH:

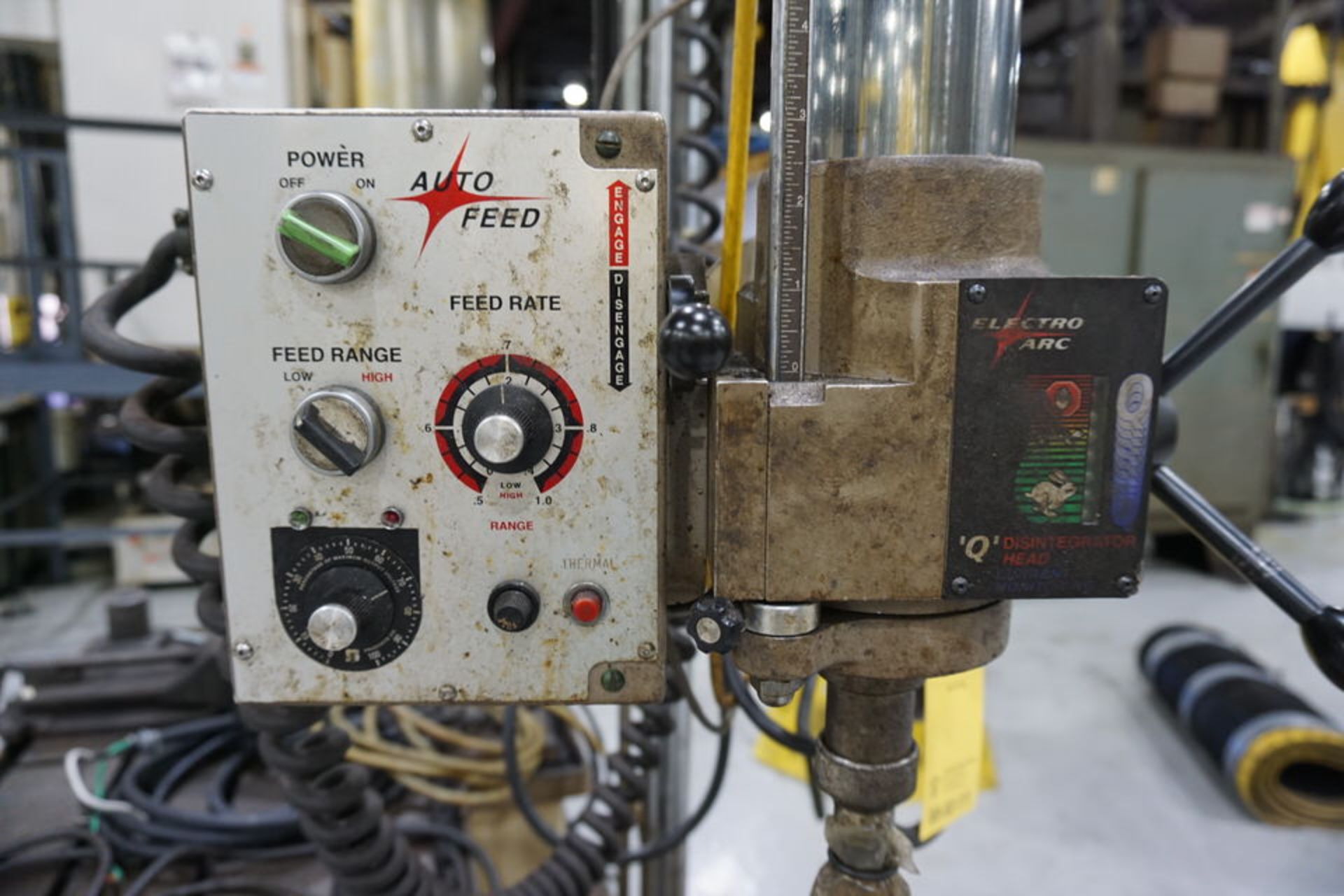

“HEAVY DUTY” "IN-THE-QUILL" “Q’ DISINTEGRATOR HEAD
POWER ELECTRIC AUTOMATIC DOWNFEED UNIT
RADIAL CROSSARM, DOUBLE BARREL DESIGN WITH LINEAR BALL BEARINGS
ARM CARRIAGE ROTATES 360 DEGREES AROUND COLUMN,
  MANUALLY LOCKS INTO POSITION
PULL-OUT COOLANT TANK
MACHINE IS PORTABLE ON 4-HEAVY DUTY CASTERS
SCREW DOWN LEGS, ADJUSTABLE

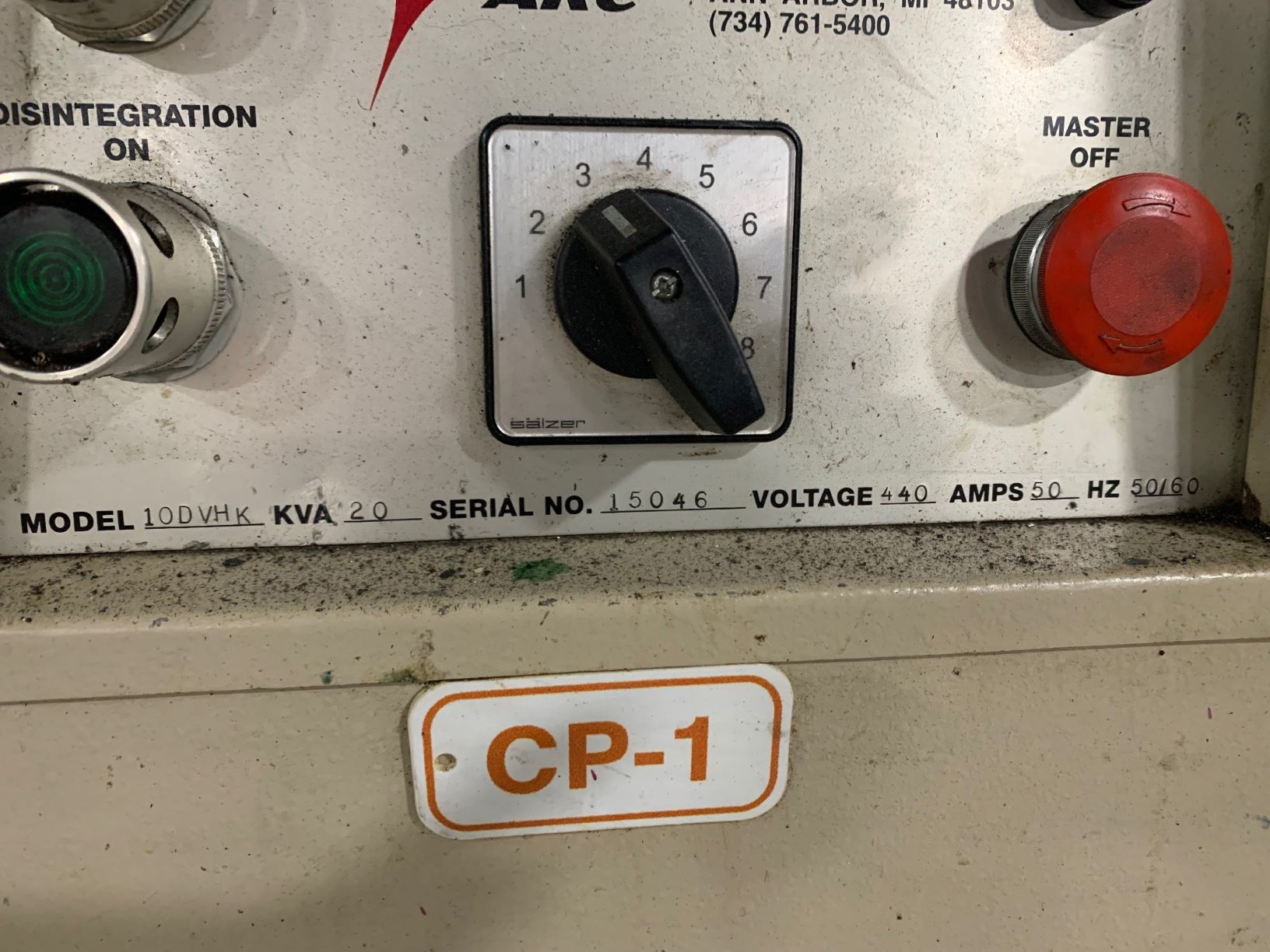

20 KVA POWER RATING, 10 CUTTING HEAT SETTINGS
WIRED FOR 440 VOLTS/SINGLE PHASE/60 CYCLE ELECTRICS, 20 AMPS

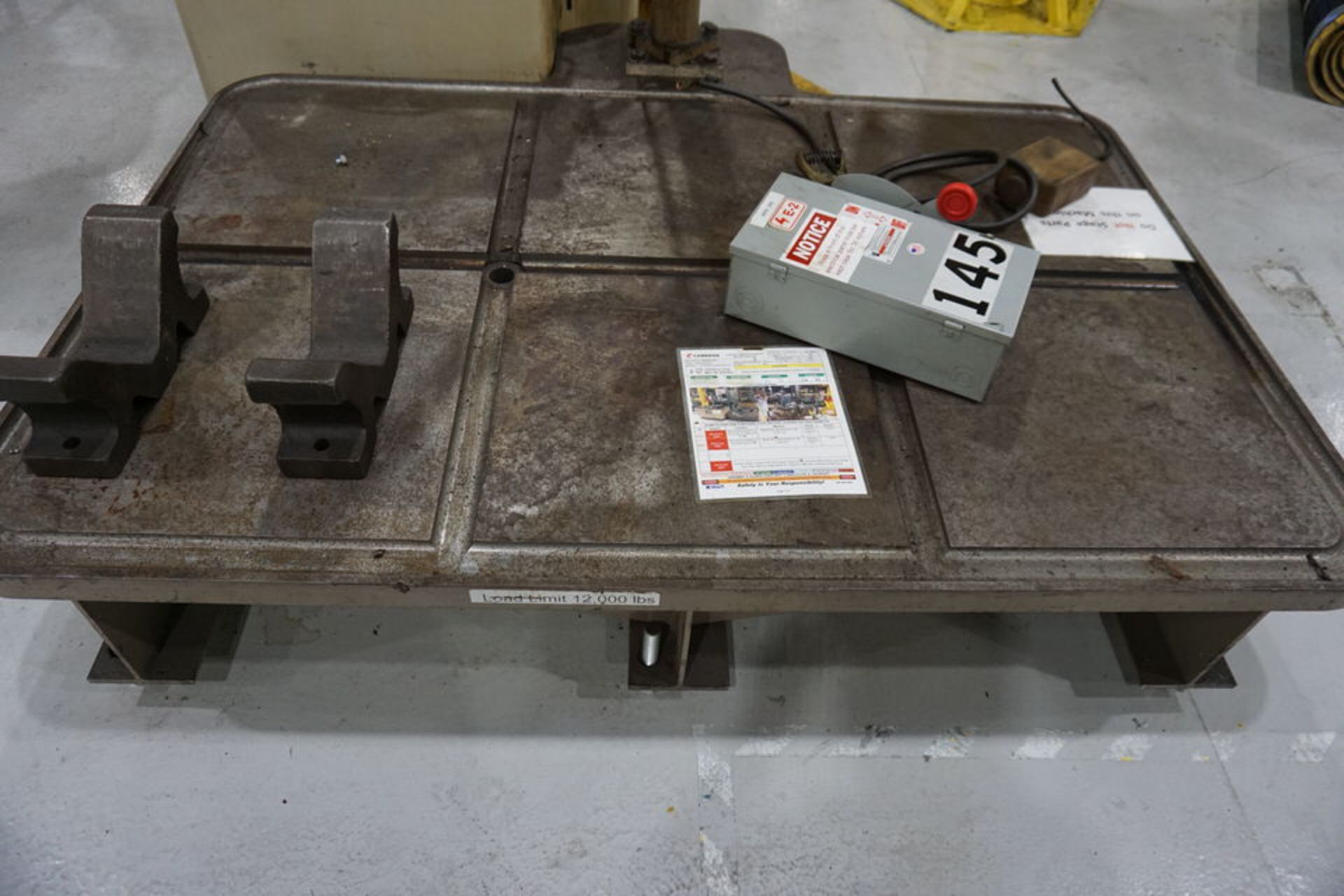

AUXILLARY TABLE INFO:
EACH QUADRANT (6) 21" X 20.5"
WORK SURFACE 67"L-R x 43"F-B




** INSPECT UNDER POWER IN OUR HARRISON, N.J. WAREHOUSE **
*** LIKE NEW CONDITION & APPEARANCE **
** - ORIGINAL TAN/BROWN COLOR SCHEME ***
