Elumatec SBZ 122/33 VERTICAL MACHINING CENTERS. VMC's

Price on Request

Make:

Elumatec

Model:

SBZ 122/33

Year:

Ref #:

163994

Get a quote

Get financing

Or call us for a quote at (973) 497-7500 or send us an email at cncmachines@machineryvalues.com

---

ELUMATIC PROFILE MACHINING CENTER

MODEL: SBZ 122/33



SPECIFICATIONS:

TRAVELLING DISTANCE:

-X-AXIS .................... 3850 MM V-MAX. 60 M / MIN (2360 IPM)

-Y-AXIS .................... 350 MM V-MAX. 30 M / MIN (1180 IPM)

-Z-AXIS .................... 280 MM V-MAX. 30 M / MIN (1180 IPM)

ROUTING CAPACITY TOP: ...... 9"

ROUTING CAPACITY FRONT: .... 7"

RAPID POSITIONING:

-Y-Z AXES: ................. 196 FPM MAX.

-X AXIS: ................... 98 FPM MAX.

TOOL HOLDER FOR ATC: ....... 6

SPINDLE SPEED: ............. 24000 RPM

TOOL HOLDER: ............... HSK-F63

DIMENSIONS: ................ 183" X 81" X 100"

WEIGHT: .................... 4500 LBS

ROUTING SPINDLE COOLING DEVICE

S1 ROUTING SPINDLE

TOUCH SCREEN WINDOWS OPERATING SYSTEM

15" FLAT SCREEN DISPLAY, USB PORTS AND NETWORK CONNECTION

LIGHT BARRIER FOR OPERATOR PROTECTION

(4) HORIZONTAL MATERIAL CLAMPS

PULSED COOLANT SYSTEM



EQUIPPED WITH:

RIGHT ANGLE HEAD

TRANSFORMER

SPINDLE COOLING UNIT

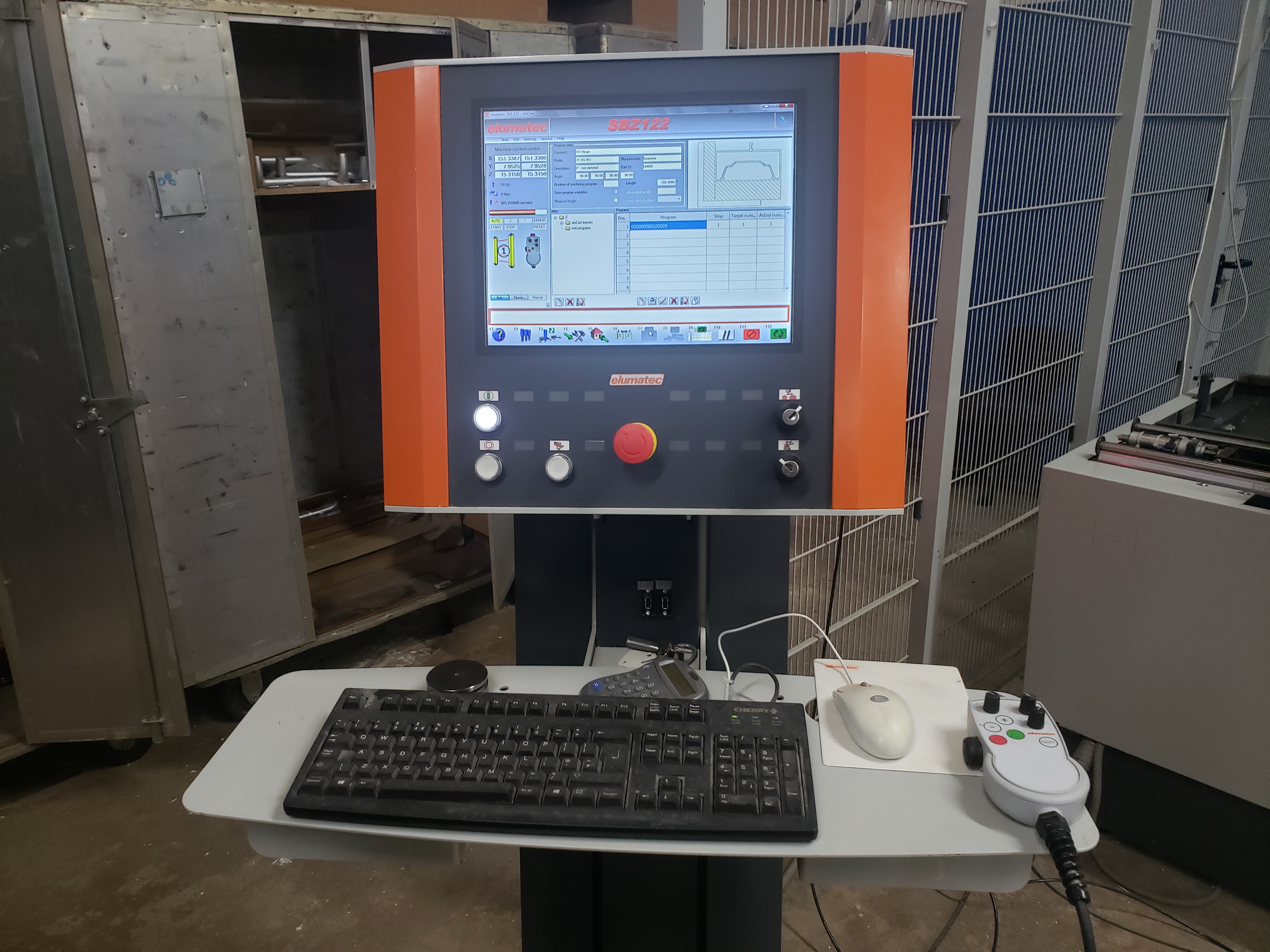

PC BASED CONTROL WITH ELUCAM SOFTWARE AND HANDHELD PENDENT CONTROL

PNEUMATIC RETRACTABLE MATERIAL STOP

AIR CONDITIONED ELECTRICAL ENCLOSURE

MACHINING FOR 3 SIDES OF PROFILE

LINEAR GUIDES FOR X, Y, Z TRAVEL

PROFILE IS HELD BY ADJUSTABLE PNEUMATIC CLAMPS

AUTOMATIC TOOL CHANGER

PULSE SPRAY MIST COOLANT

TOOL HEIGHT GAUGE

LIGHT CURTAINS



TEMPLATE-FREE CNC PROFILE COPY ROUTER DESIGNED FOR MACHINING ALUMINUM AND THIN-WALLED STEEL PROFILES AND EXTRUSIONS, ALUMINUM, PVC, LIGHT ALLOYED STEEL. IT IS PARTICULARLY SUITABLE FOR COMPANIES WHO ARE AUTOMATING THEIR WINDOW AND DOOR PRODUCTION PROCESSES



THE TURNING DEVICE IS INTEGRATED IN THE SPINDLE WHICH ENABLES THE ADJUSTMENT OF THE ROTATING ANGLE HEAD TO 0°, 90°, 180°, AND 270°, THEREBY THE PROFILE CAN BE PROCESSED FROM THE FRONT, REAR AND BOTH ENDS WITH TWO DIFFERENT TOOLS
