EMCO EM15D ENGINE LATHES

$7,950

Make:: EMCO

Model:: EM15D

Year:: 1990'S

Ref #:: 179029

Or call us for a quote at (973) 497-7500 or send us an email at toolroom@machineryvalues.com

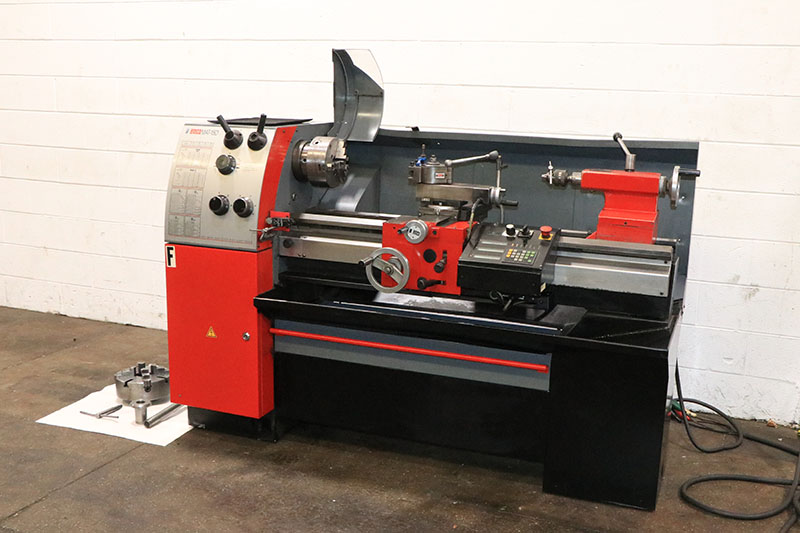

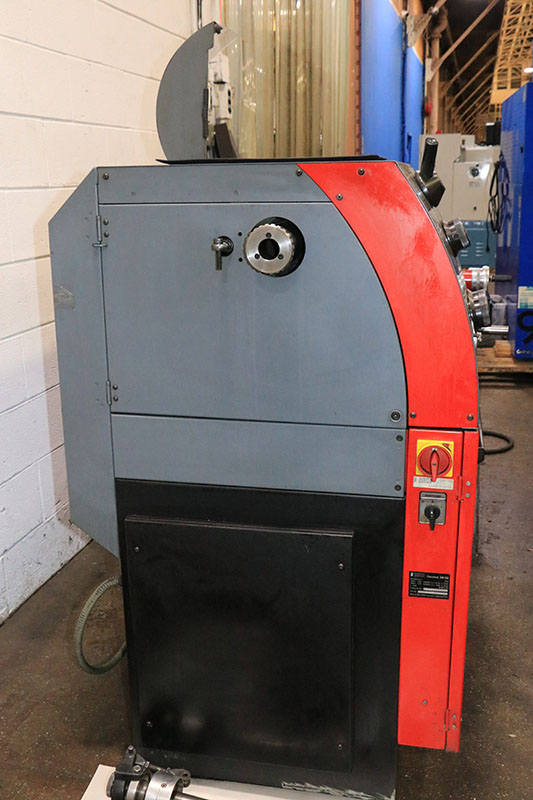

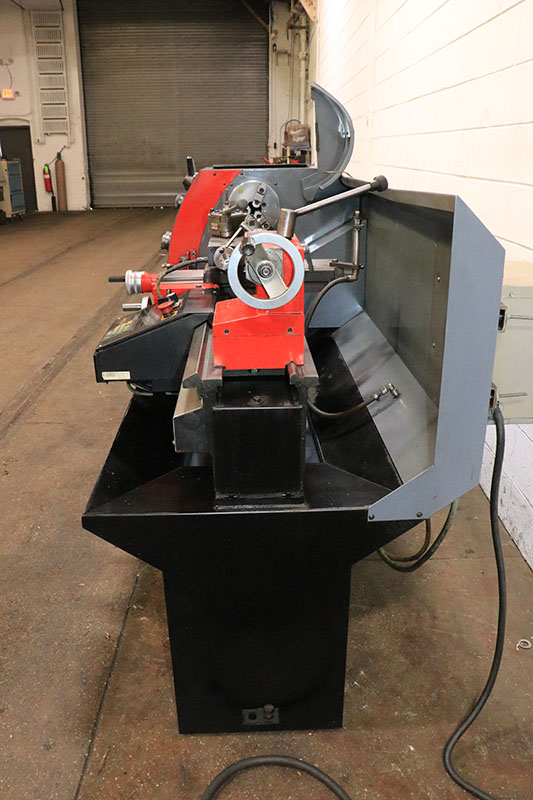

15" x 40" EMCO VARIABLE SPEED ENGINE LATHE
MODEL: EM15D, V3VS 2212, MFG: 1990'S

SPECIFICATIONS:
SWING OVER BED ......................... 15.8" / 400mm
SWING OVER CROSS SLIDE ................. 9.8" / 250mm
DISTANCE BETWEEN CENTERS ............... 39.4" / 1000mm
HOLE THRU SPINDLE ...................... 1.9" / 50mm
SPINDLE NOSE ........................... D1-5" CAMLOCK
SPINDLE SPEEDS INFINITELY VARIABLE:
    FOUR GEARED RANGES ................. 40 - 3,000 RPM
TAILSTOCK SPINDLE CENTER TAPER ......... #3 MORSE
TAILSTOCK SPINDLE DIAMETER ............. 1.9" / 50mm
TAILSTOCK SPINDLE TRAVEL ............... 4.7" / 120mm
BED WIDTH  ............................. 10.2" / 260mm
LONGITUDINAL FEED RANGE ................ .787mm - .0045mm
CROSS FEED RANGE = HALF OF LONGITUDINAL
ENGLISH THREADING RANGE ................ 4 - 56 TPI
METRIC THREADING RANGE ................. .4 - 7 mm
APPROX DIMENSIONS ...................... 75"L x 39"W x 50"H
APPROX WEIGHT .......................... 2,000 LBS

EQUIPPED WITH:
ELECTRONIC VARIABLE SPINDLE SPEED IN FOUR GEARED RANGES
    THROUGH AC INVERTER VARIABLE SPEED DRIVE

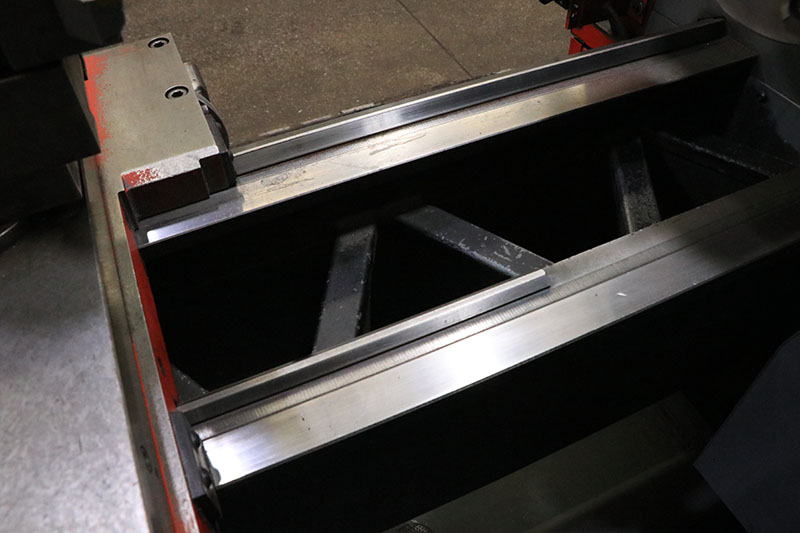

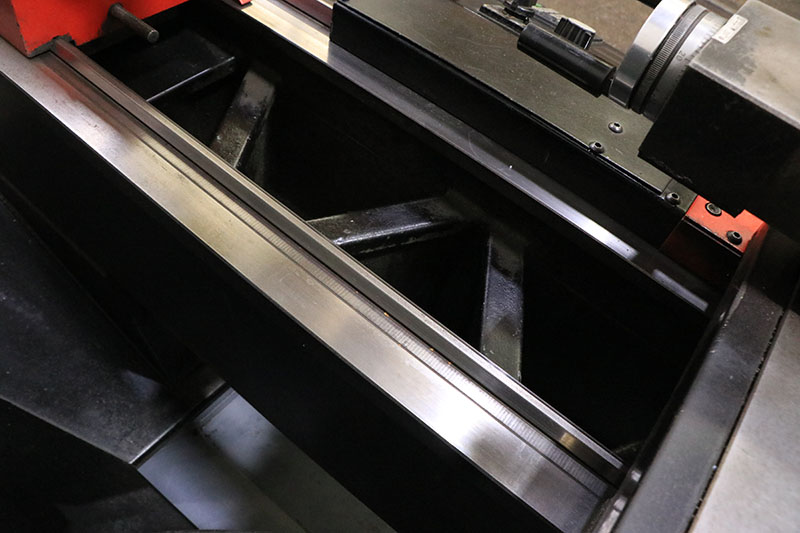

INDUCTION HARDENED & PRECISION GROUND BEDWAYS
UNIVERSAL GEARBOX ALLOWING FOR A COMPREHENSIVE RANGE OF
    INCH/METRIC THREADS

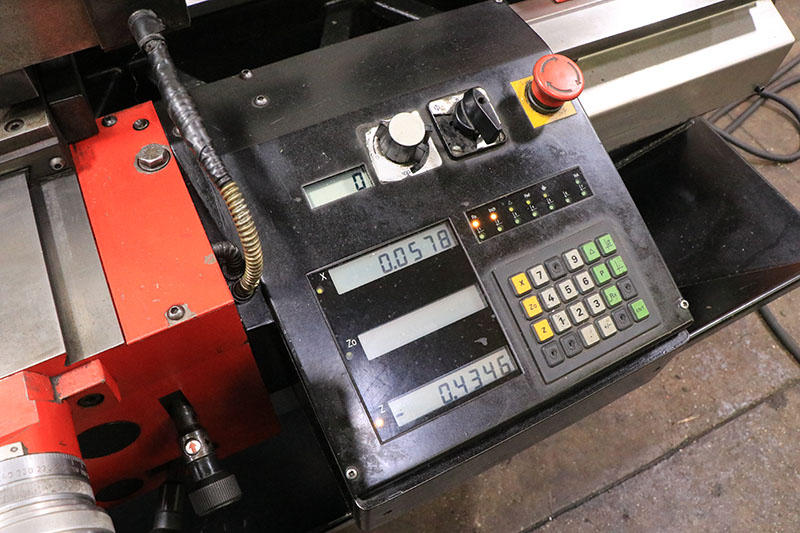

TWO AXIS DIGITAL READOUT & VARIABLE SPEED TACHOMETER

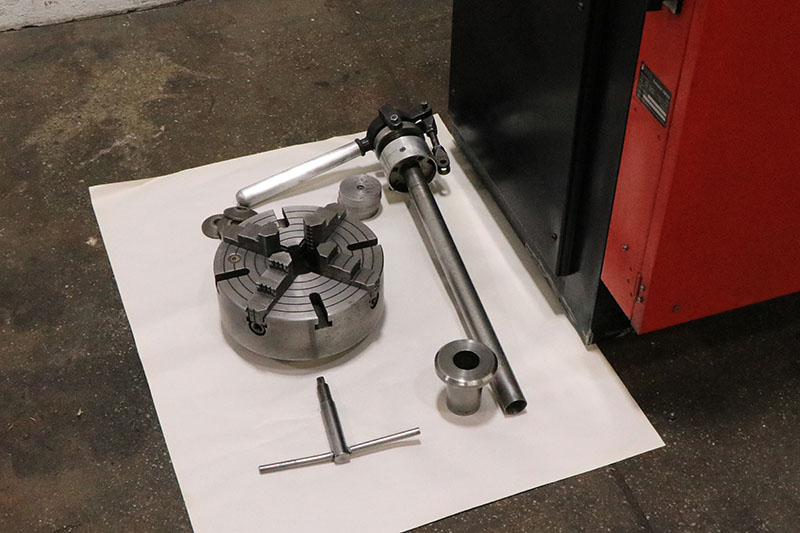

4-JAW CHUCK
3-JAW CHUCK

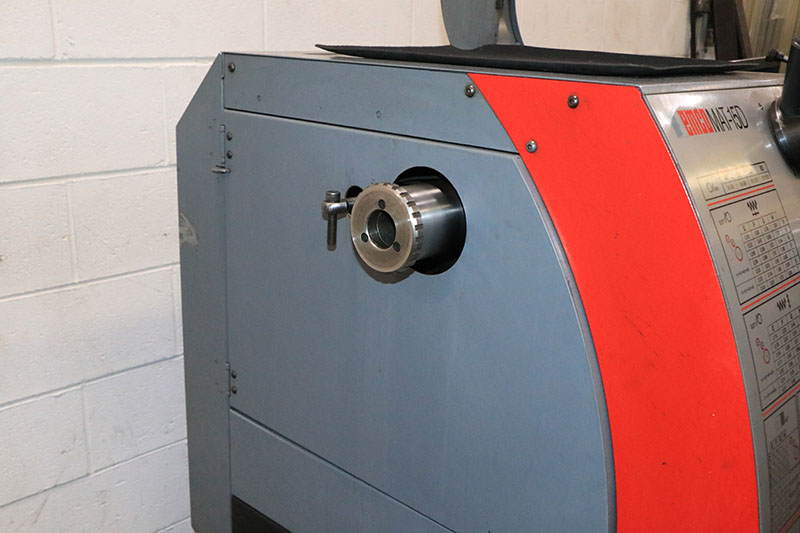

LEVER TYPE 5C COLLET CLOSER & NOSE PIECE

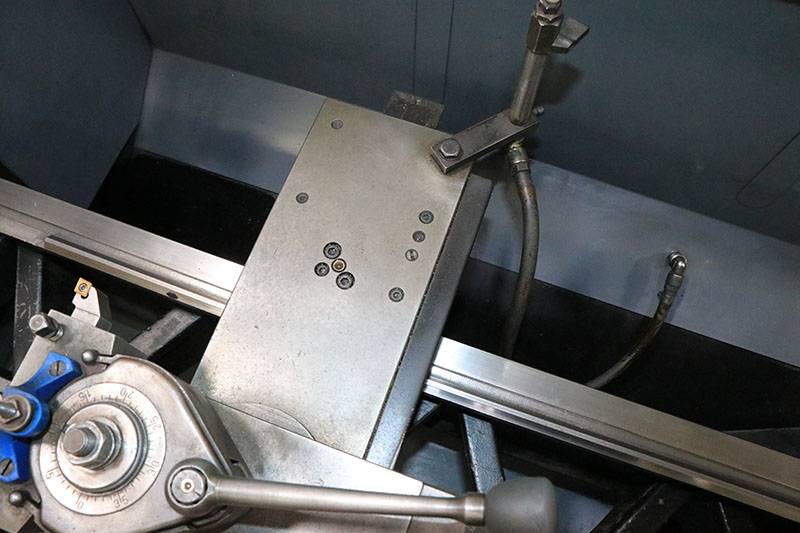

QUICK CHANGE TOOLPOST w/HOLDERS
CARRIAGE STOP

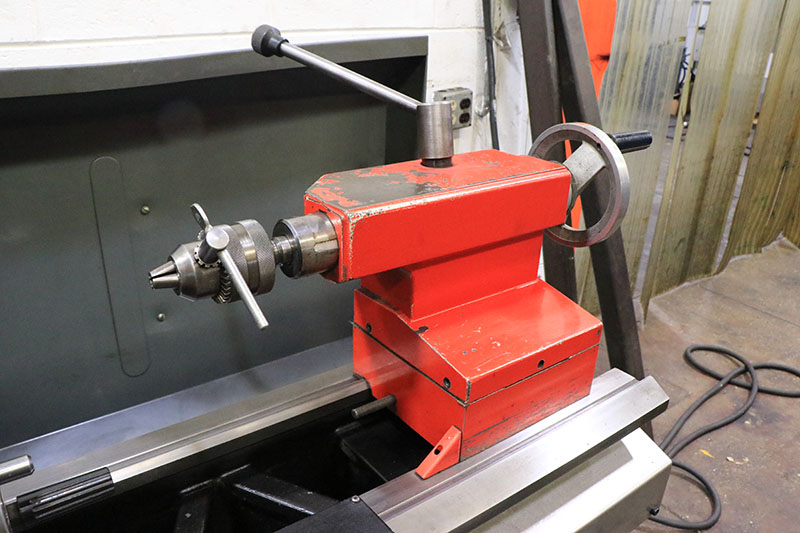

TAILSTOCK
COOLANT SYSTEM
REMOVABLE CHIP PAN
7.2 HORSE POWER SPINDLE DRIVE MOTOR

MADE IN AUSTRIA
INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE
