Excalibur E45CNC, 4-AXIS CNC & 1-AXIS PNEUMATIC CNC TOOL & CUTTER GRINDERS

Price on Request

Make:: Excalibur

Model:: E45CNC, 4-AXIS CNC & 1-AXIS PNEUMATIC

Year:: 2007

Ref #:: 161740

Or call us for a quote at (973) 497-7500 or send us an email at grinders@machineryvalues.com

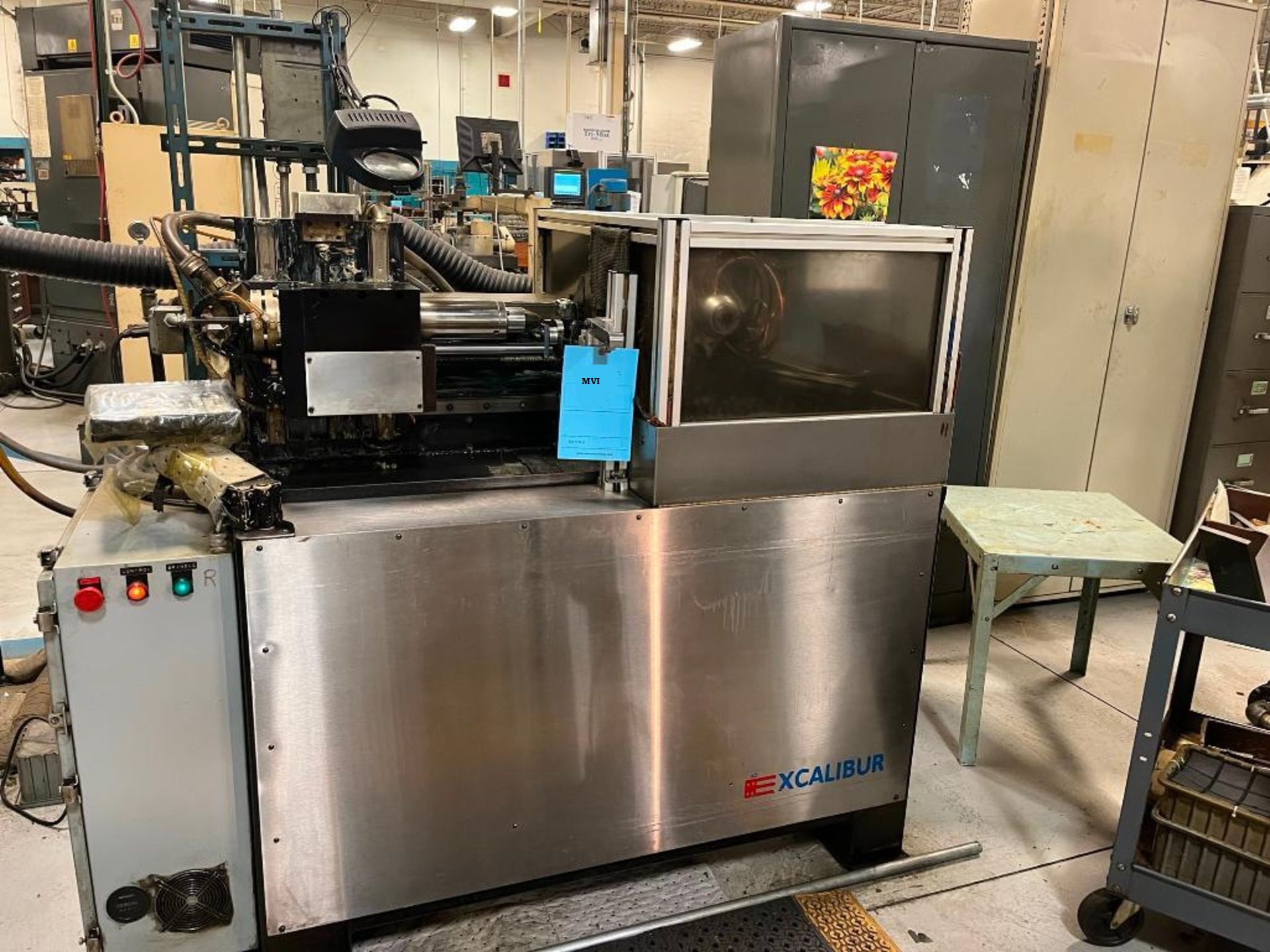

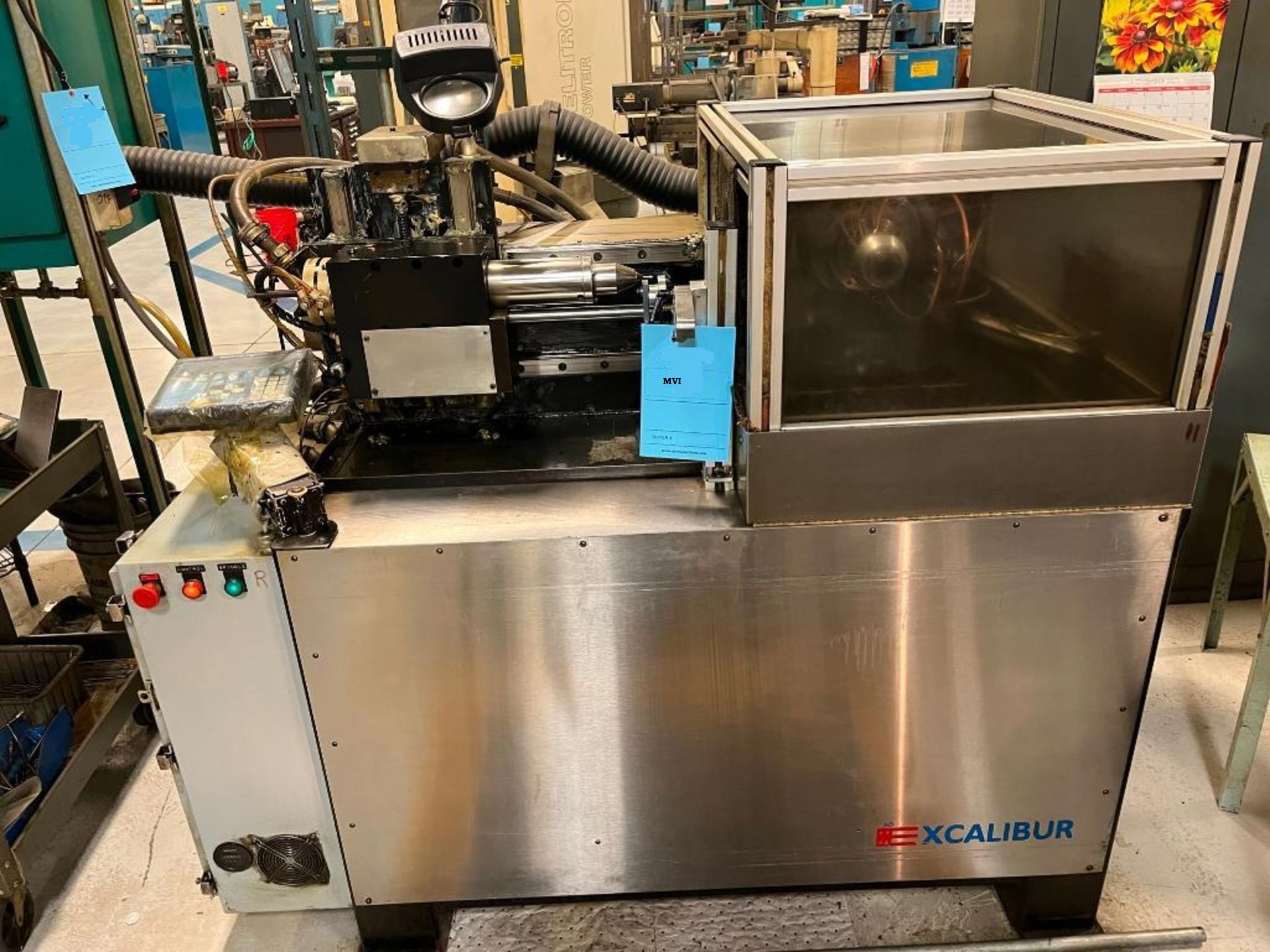

EXCALIBUR CNC TOOL & CUTTER GRINDER

New: 2007

The E45 is designed to manufacture small end
 mills from solid blanks in ONE chucking.
 It has four CNC axes and one pneumatic axis.
 The E45 has superb accuracy to produce tools
 from 1/32" to 3/4" diameter, straight or
 helical flute to 60 degree spiral.

MODEL: E45CNC    S/N: 4541     NEW: 2007

Max Tool Diameter: 0.750", 19.05 mm
Min Tool Diameter: 0.030", 0.76 mm
Max Length of Grind: 3.0", 76.2 mm
Max Overall Length of Tool: 8.0", 304.8 mm

WHEELHEAD AXES:
Y Slide: 9.0" (228.6 mm), repeatability 0.0002"
C Rotary (pneumatic): 0 to 60º left or Right

TOOLHEAD AXES:
X Slide: 15" (381 mm), repeatability 0.0002"
Z Slide:7.0" (177.0 mm), repeatability 0.0002"
A Rotary : (Work Spindle) free rotation,
 resolution 0.005º

FEEDRATES:
All Linear Axes: 0-200 IPM
Rotary A Axis: 150 RPM
Rotary C Axis: Pneumatic

WHEELHEAD:
Wheel Spindle RPM: 0-6000 RPM
Wheel Diameters: 4"-6"
Spindle HP: 5 HP (10 HP optional)

CONTROL:
Intel Pentium controlled 6-axis CNC controller.
Digital AC servos drive all linear axes.
Excalibur Conversational tool programs,
 written in-house by Excalibur.
Optional programs available; Stepdrills,
 Reamers, Routers, Tapered Mills.

*** EXCEPTIONAL CONDITION - JUST BEAUTIFUL CONDITION **
** INSEPRCT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE **
