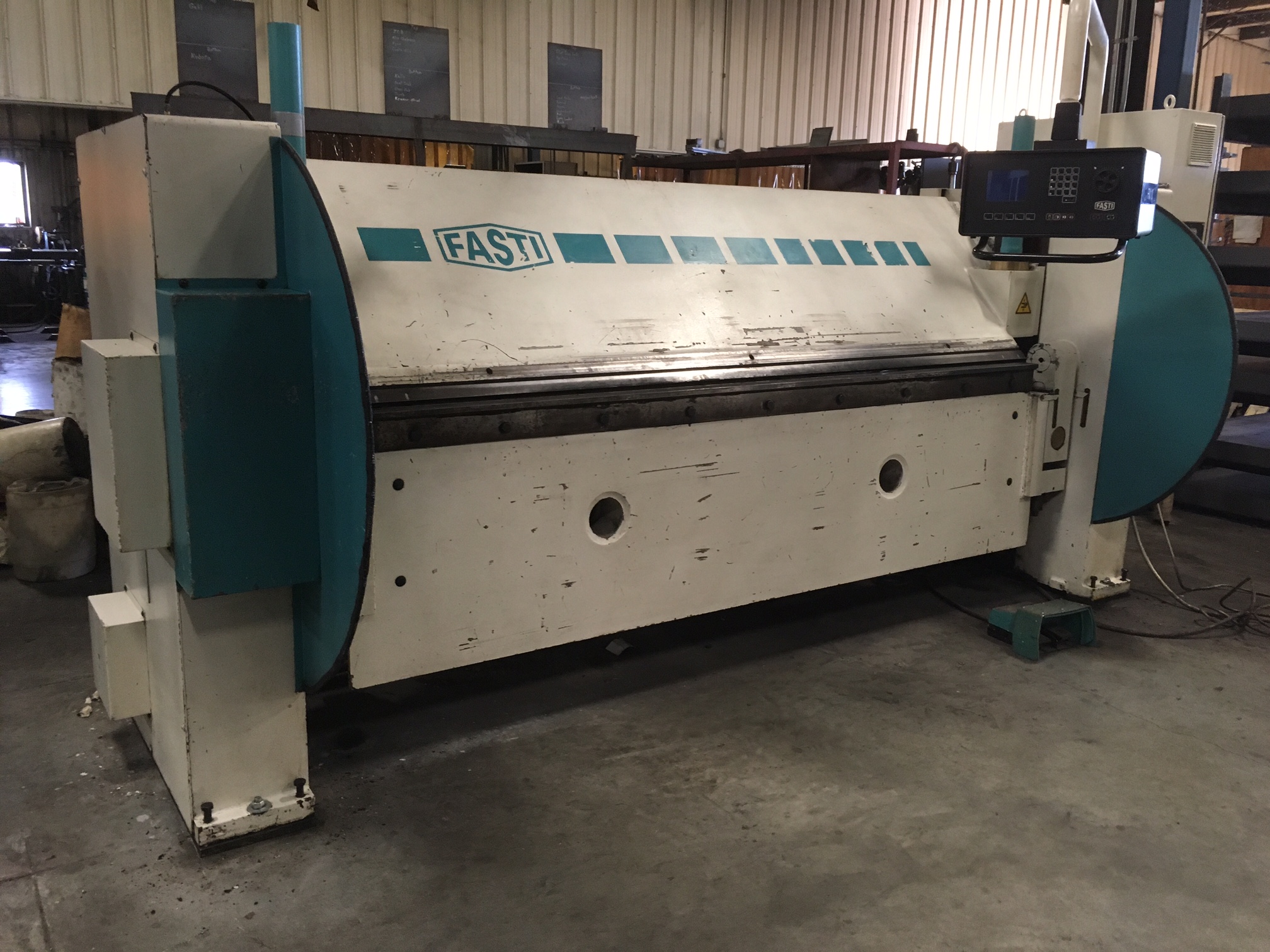

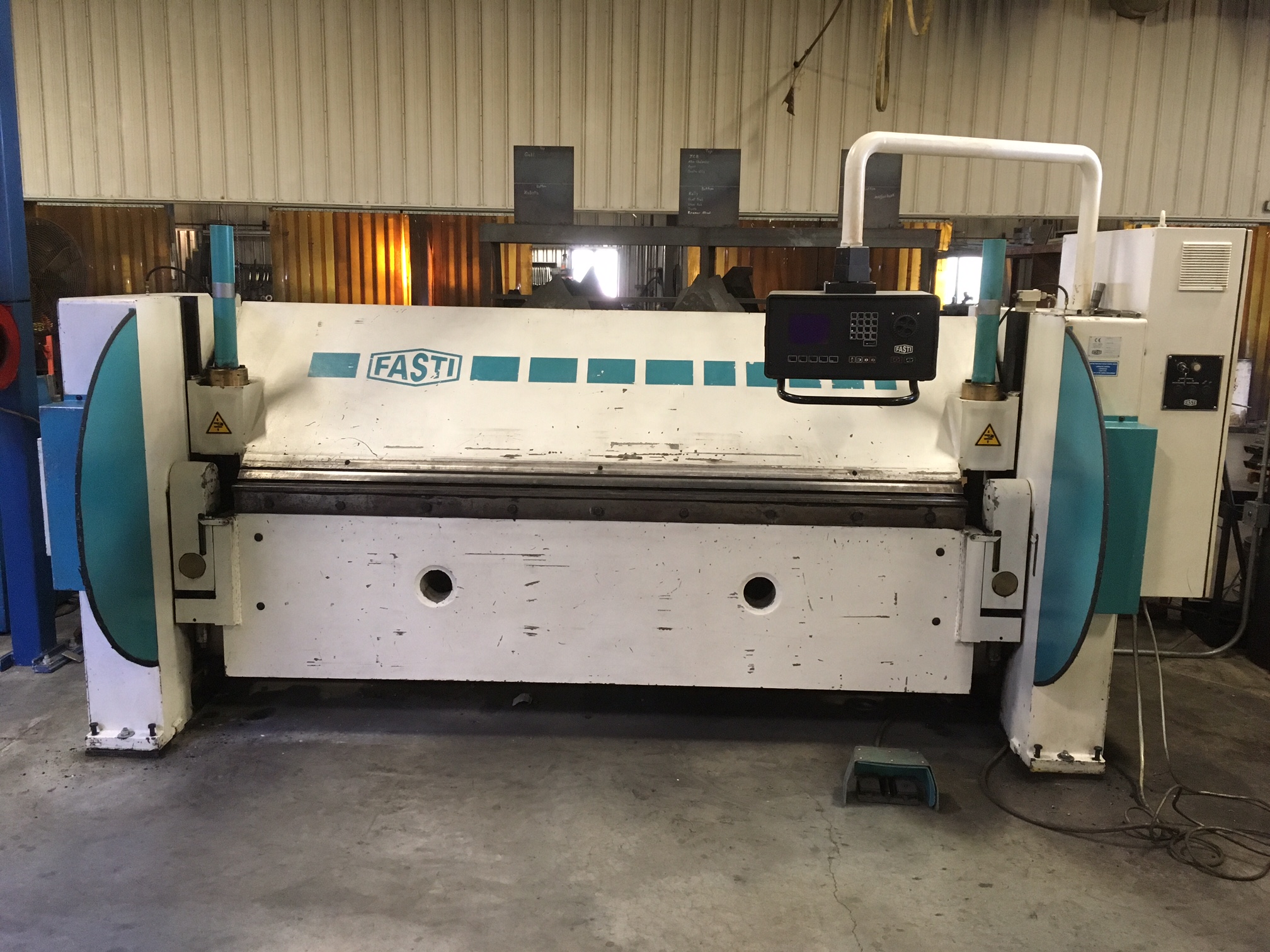

Fasti 212-25-6 CNC FOLDING MACHINES

$19,500

Make:: Fasti

Model:: 212-25-6

Year:: 1999

Ref #:: 169171

Or call us for a quote at (973) 497-7500 or send us an email at rl@machineryvalues.com


8' x 1/4" FASTI FOLD APRON BRAKE

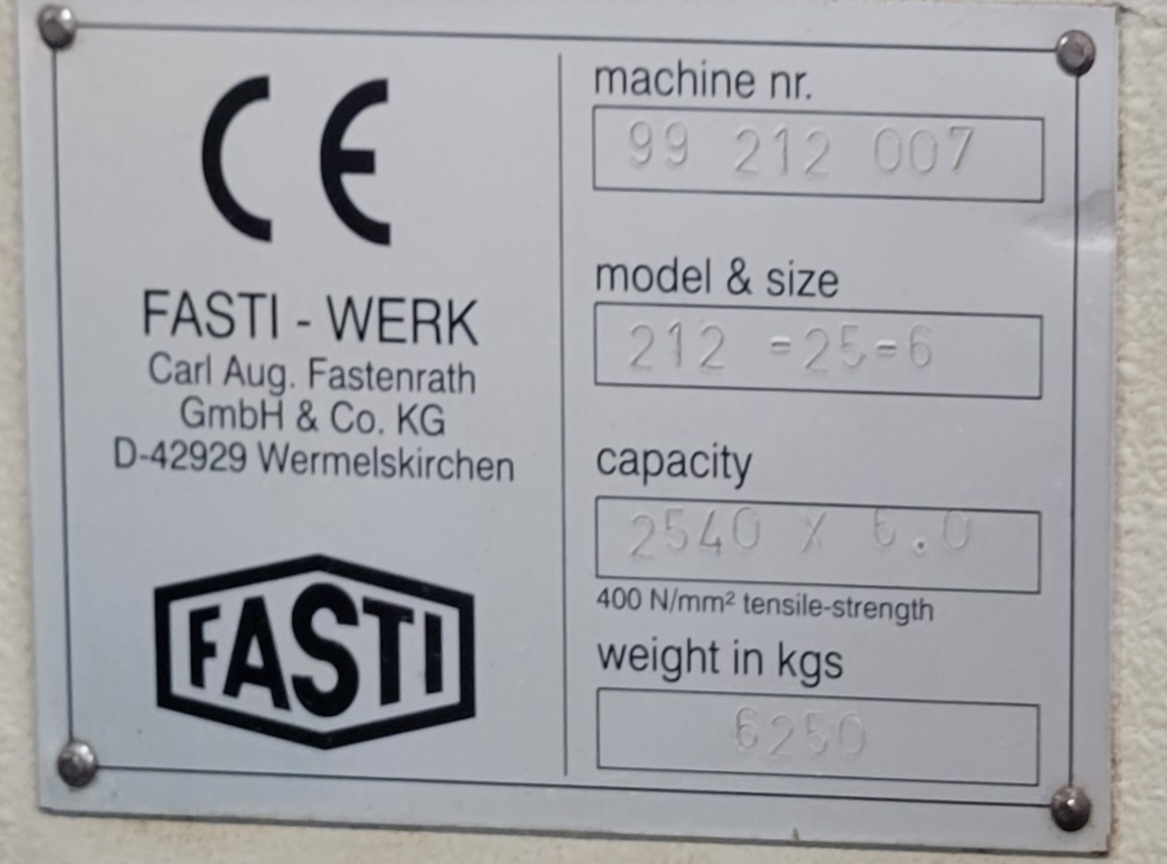

MODEL 212-25-6        S/N 99212007        NEW 1999

WORKING LENGTH ............... 100"
MAX SHEET THICKNESS .......... .236
CLAMPING BEAM STROKE ......... 13.77"
ANGLE ADJ. ................... 0-180 DEGREES
LOWER BEAM ADJUSTMENT ........ 3.15"
FOLDING BEAM ADJUSTMENT ...... 3.15"
MAXIMUM CLAMPING BEAM SPEED .. .71"/sec.
MAXIMUM FOLDING BEAM SPEED ... 22 deg./sec.
DRIVE MOTOR OUTPUT ........... 13.5 HP

WEIGHT: 13,800 lbs.

FEATURES:
- WELDED ALL-STEEL CONSTRUCTION
- LOW-MAINTENANCE DESIGN
- OPTIMAL PROFILE OF CLAMPING BEAM (45 DEGREES)
- TWO-SIDED CLAMPING BEAM DRIVE, RACK AND PINION
- TWO-SIDED CLAMPING BEAM DRIVE AND MEASUREMENT
- NO SHIMMNG REQUIRED FOR OFF-CENTER LOADS
- PATH MEASURING ON CLAMPING BEAM
- OVERLOAD PROTECTION
- FREE PASSAGE CUT-OUTS ON BOTH SIDES OF CLAMPING BEAM

EQUIPPED WITH:
- CNC CONTROL

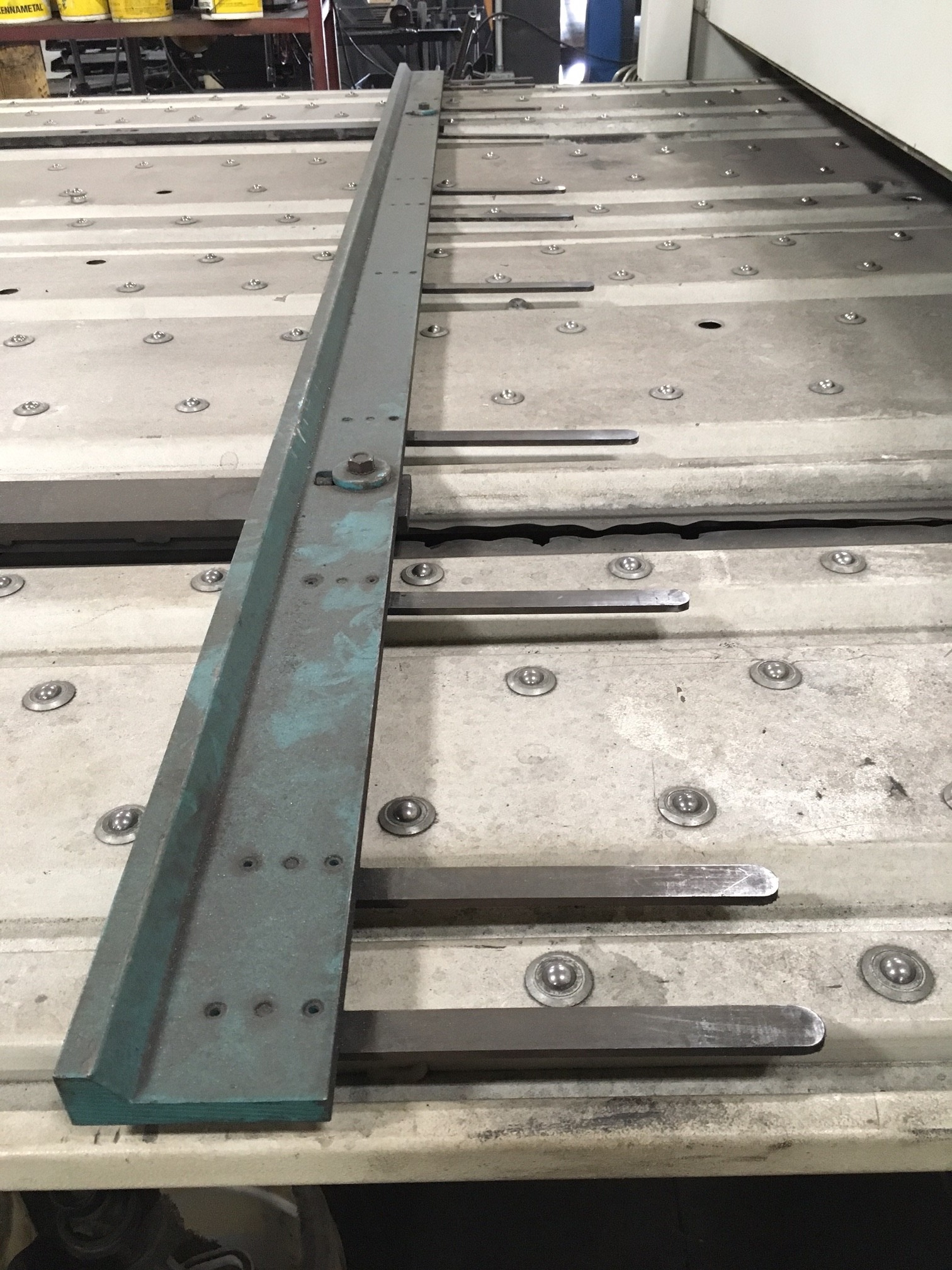

- RECTANGULAR SHAPED BACK GAUGE WITH .250" TO 78.75" and 39.6" to 118"
