Formech 508FS THERMOFORMING MACHINES

$7,950

Make:

Formech

Model:

508FS

Year:

2016

Ref #:

178860

Get a quote

Get financing

Or call us for a quote at (973) 497-7500 or send us an email at plastics@machineryvalues.com

---

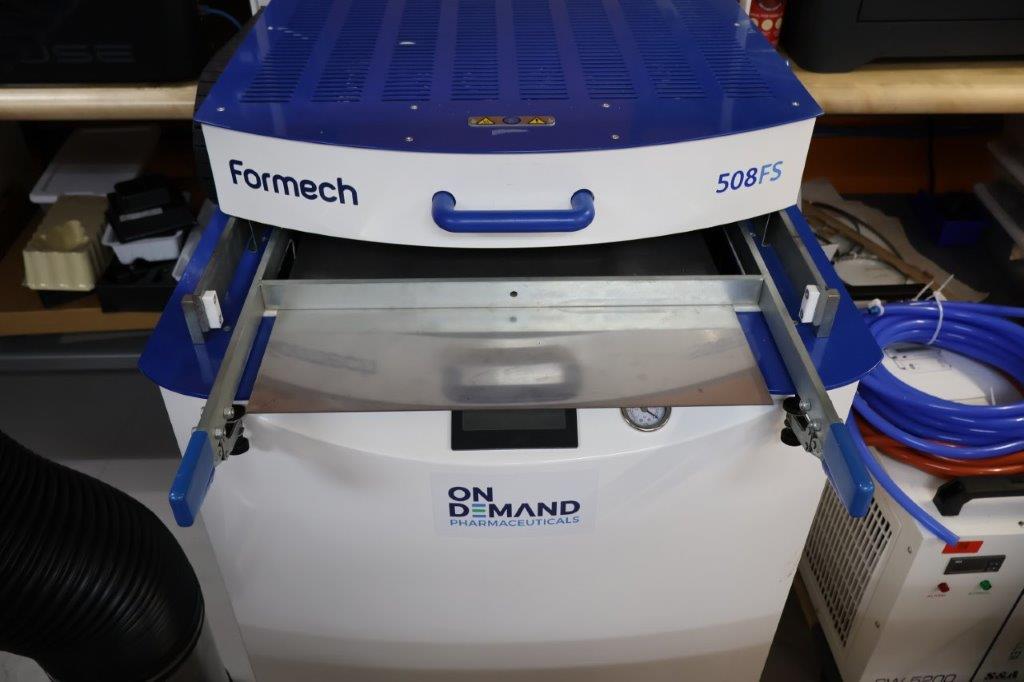

FORMECH 508FS FLOOR STANDING VACUUM FORMER

NEW: May 2016



TECHNICAL SPECIFICATIONS:

FORMIMG AREA (mm/inches): 482 x 432mm/ 19 x 17"

SHEET SIZE (mm/inches): 508 x 457mm/ 20 x 18"

MAX DEPTH of DRAW: 290mm/11.5"

MAX MATERIAL THICKNESS: 6mm/0.25"

HEATING ZONES: 4

HEATER TYPE: Quartz

WIDTH: 757mm/29.8"

HEIGHT: 1140mm/44.9"

DEPTH: 1474mm/58"

WEIGHT: 125kg/275 lbs.

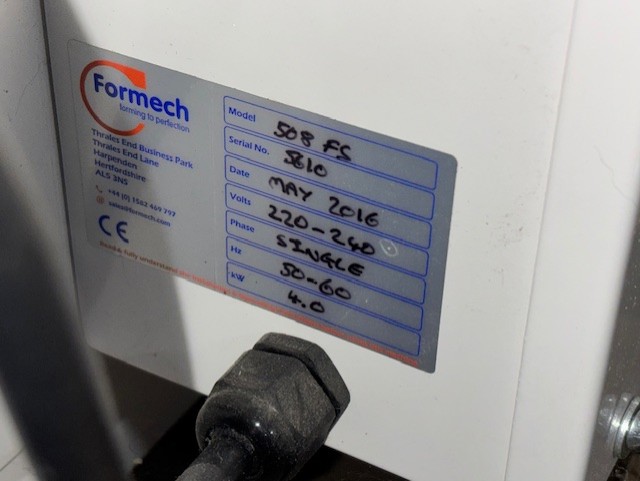

220-240 Volts Single Phase





The Formech 508FS offers significant advantages over its desktop sibling (508DT), with pre-stretch and auto-level features, and an upgraded vacuum pump for demanding applications. Higher wattage quartz heaters further enhance the versatility.

Higher Vacuum Flow

The 508FS comes with a dry rotary vane pump providing 10m3/h - more than enough for intensive vacuum forming on the machine.

Auto-Level Feature

Avoid material sag during the heating cycle with the Auto-Level feature, which maintains an even distance between heater and sheet. An audible alert tells the user the material is ready to form.

Pre-stretch

Pre-stretch enables the user to pump air under the heated sheet, creating a bubble to avoid thinning of material with deeper tools.
