Fowler R400, MADE IN ENGLAND BY BATY, COMPARATORS

Price on Request

Make:

Fowler

Model:

R400, MADE IN ENGLAND BY BATY,

Year:

Ref #:

178796

Get a quote

Get financing

Or call us for a quote at (973) 497-7500 or send us an email at grinders@machineryvalues.com

---



16" Fowler Baty - Model R400-FT2-E

  Horizontal Optical Comparator



27" Fusion touch screen DRO

  & optical edge sensor



S/N: 2065      New: 2024







Windows based measuring with full

  reporting options, SPC, CAD import/export

16"/400mm screen with 90º crosslines

  and chart clips

Profile illumination with halogen lamp

  and green filter

Lens magnification choice:

  10x, 20x, 25x, 50x and 100x

Surface illumination (fibre optic)

Helix adjustment of light source for

  accurate thread form projection

Workstage with two machined slots for

  holding accessories

Workstage measuring range of 300mm (12")

   x 150mm (6")

Digital angle measurement to 1 minute

0.5 micron resolution

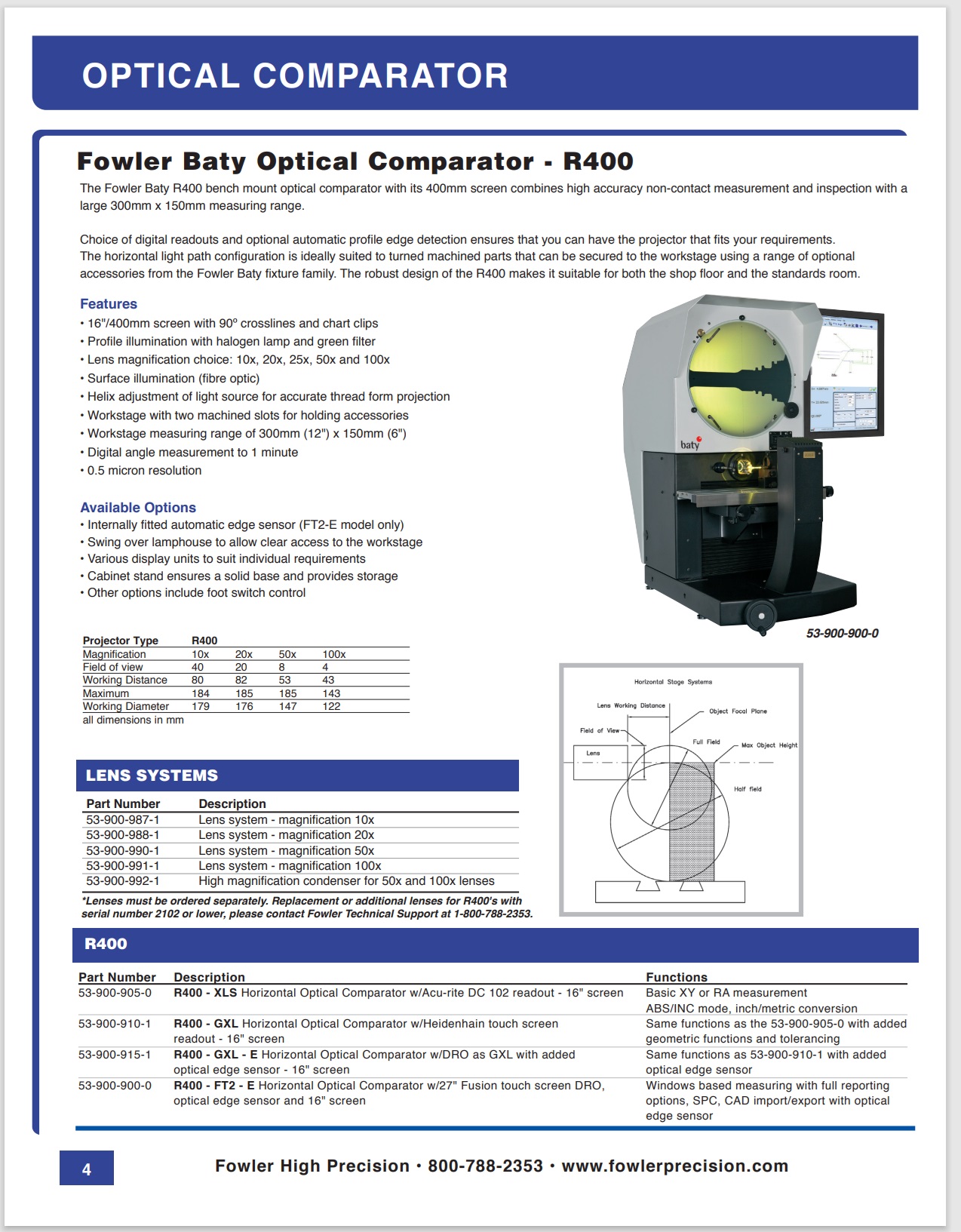

The Fowler Baty R400 bench mount optical

 comparator with its 16" (400mm) screen

 combines high accuracy non-contact

 measurement and inspection with a large

 12" (300mm) x 6" (150mm) measuring range.



The horizontal light path configuration is

 ideally suited to turned machined parts

 that can be secured to the workstage

 using a range of optional accessories

 from the Fowler Baty fixture family.







Video describing the Operation of the Fowler R400-FT2-E:



https://www.judgetool.com/products/fowler-baty-r400-horizontal-optical-comparators/39493_53-900-915-1/
