Fryer ET-14 CNC LATHES, FLAT BED (ENGINE LATHE STYLE)

$9,500

Make:: Fryer

Model:: ET-14

Year:: 2006

Ref #:: 178534

Or call us for a quote at (973) 497-7500 or send us an email at toolroom@machineryvalues.com

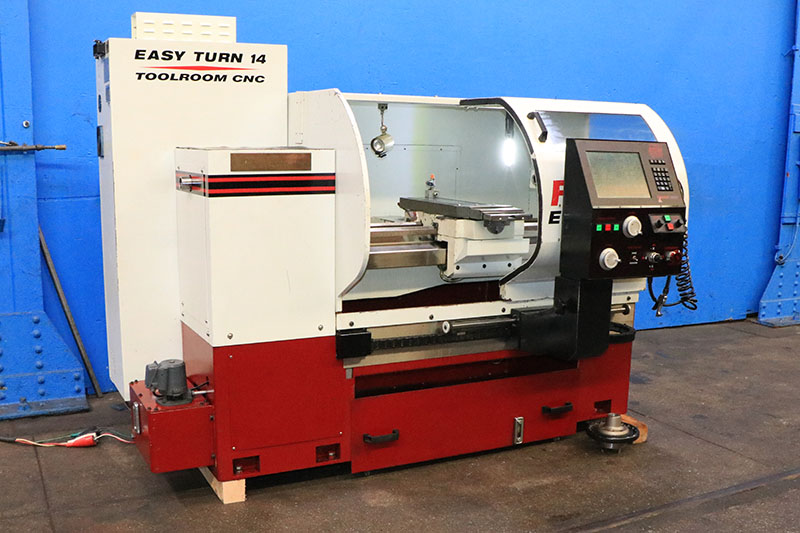

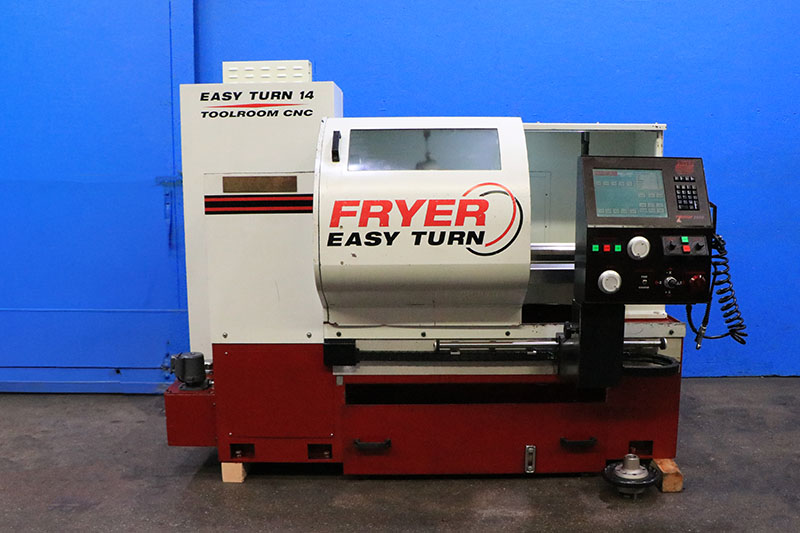

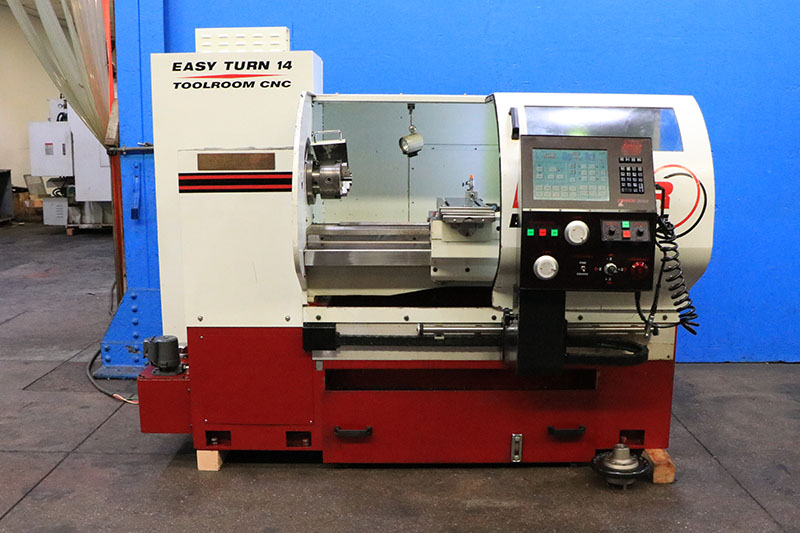

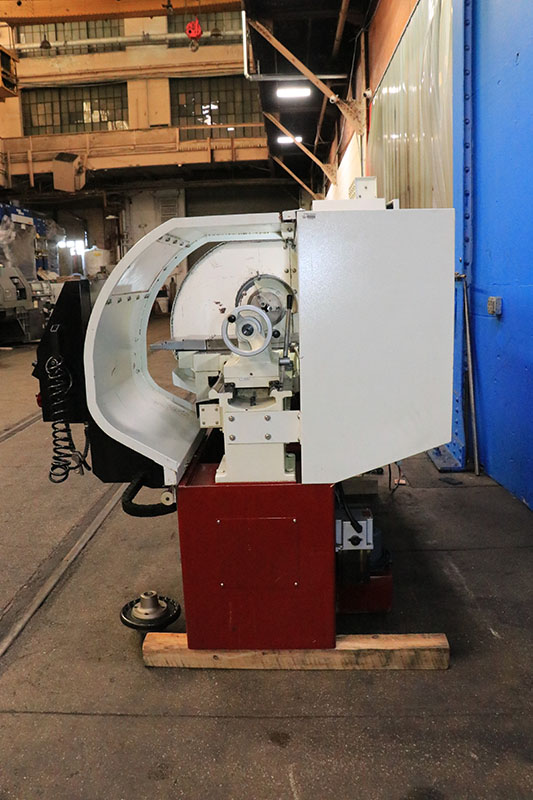

14" x 40" FRYER CNC / MANUAL COMBINATION LATHE
MODEL: ET - 14,  S/N: 14828,  NEW: 2006
WITH TOUCH 2000 CNC CONTROL

SPECIFICATIONS:
SWING OVER BED ............................ 14"
SWING OVER CROSS-SLIDE .................... 7"
DISTANCE BETWEEN CENTERS .................. 40"

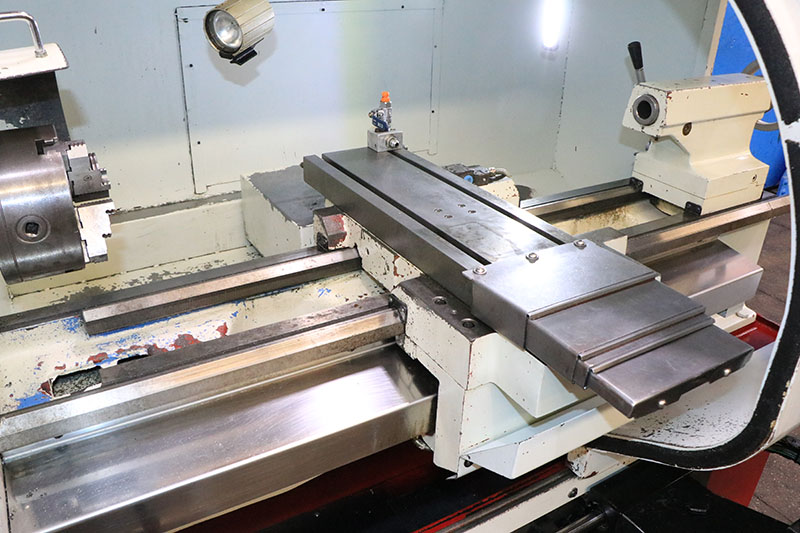

CROSS SLIDE TRAVEL ........................ 7.5"
SPINDLE NOSE (CAMLOCK) .................... D1-4 CAMLOCK
SPINDLE THROUGH HOLE ...................... 1.562"
SPINDLE SPEED RANGE ....................... 50 - 2,500 RPM

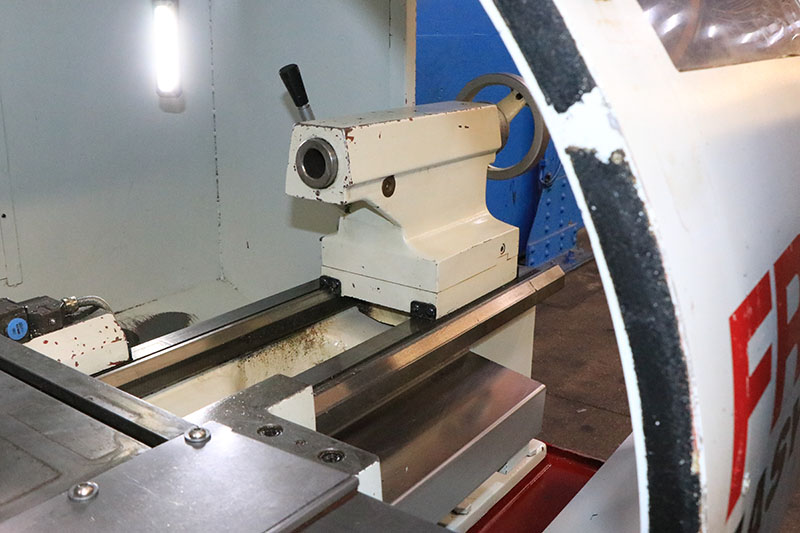

TAILSTOCK SPINDLE DIAMETER ................ 1.97"
TAILSTOCK QUILL TRAVEL .................... 4"
TAILSTOCK SPINDLE TAPER ................... #3 MORSE TAPER
APPROXIMATE MACHINE DIMENSIONS ......... 86"L x 72"W x 68"H
APPROXIMATE WEIGHT ........................ 5,000 LBS

EQUIPPED WITH:

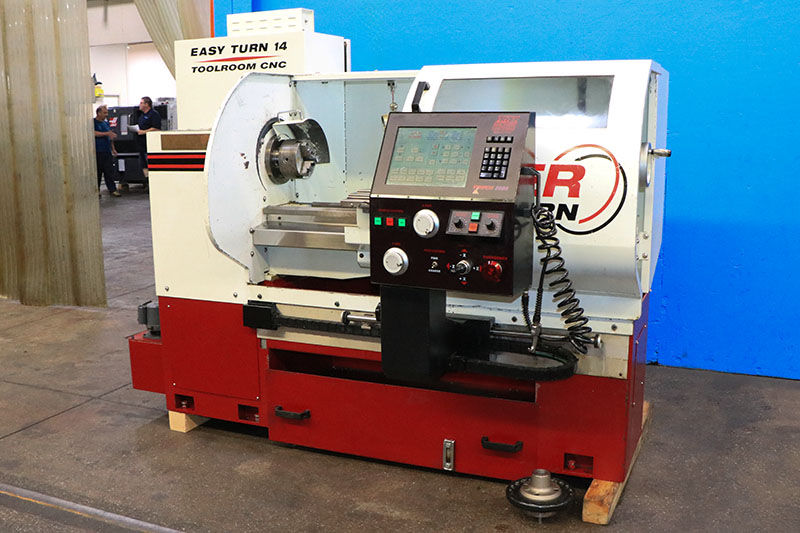

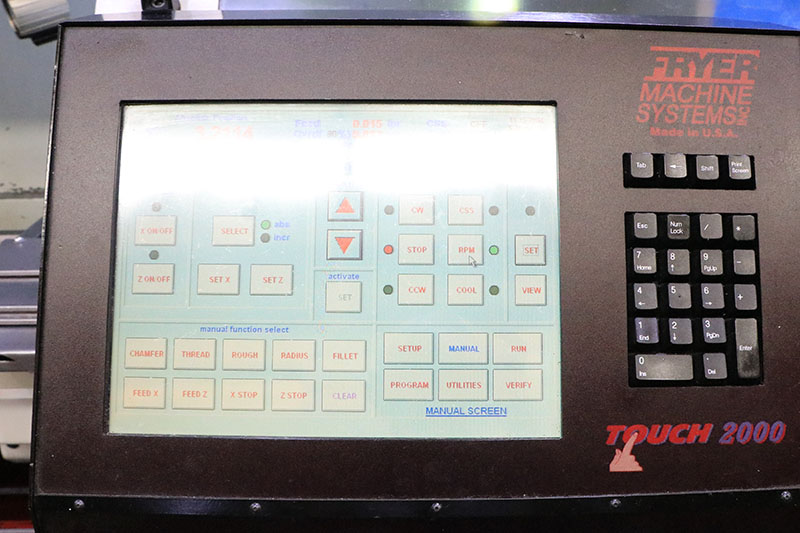

TOUCH MODEL: 2000i CNC CONTROL WITH WINDOWS XP

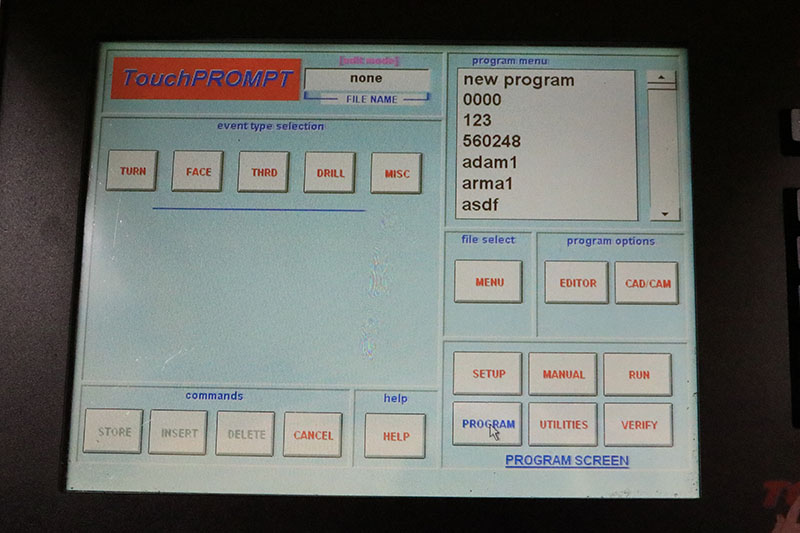

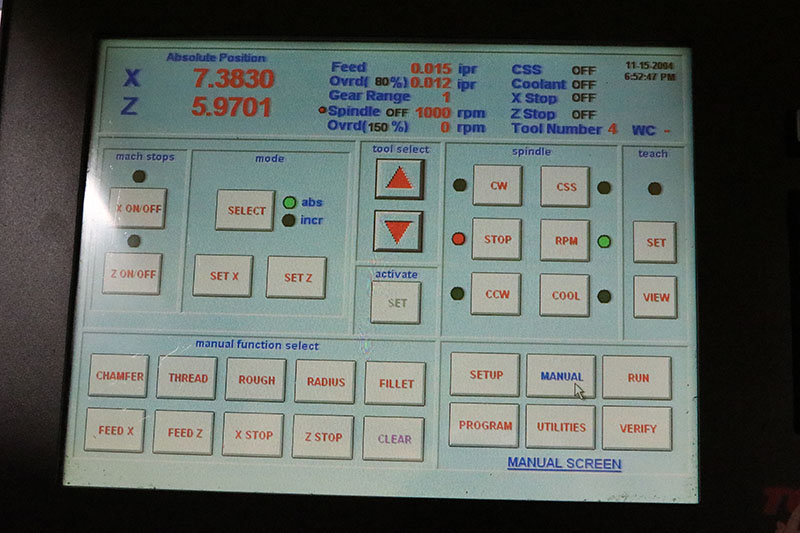

CONVERSATIONAL GRAPHICS

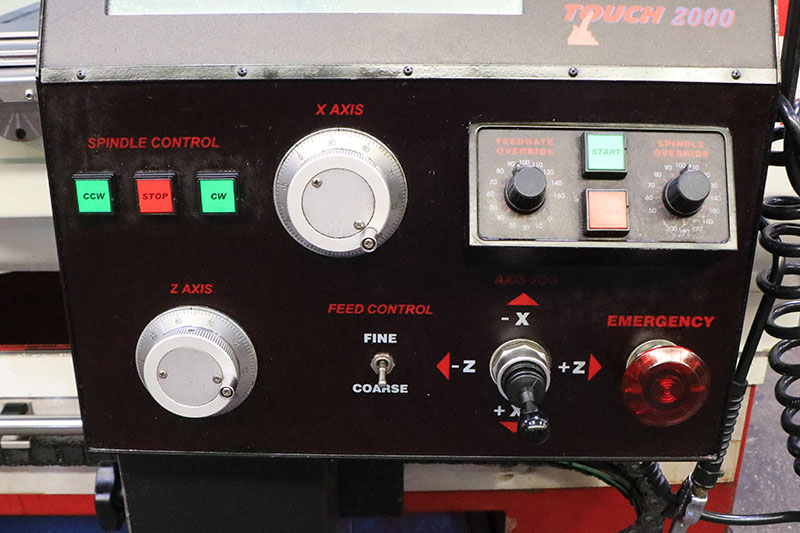

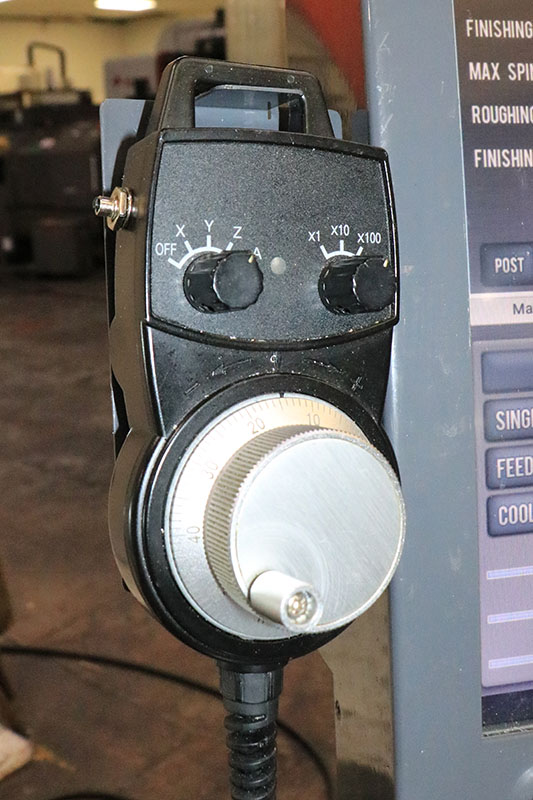

DIGITAL HANDWHEELS

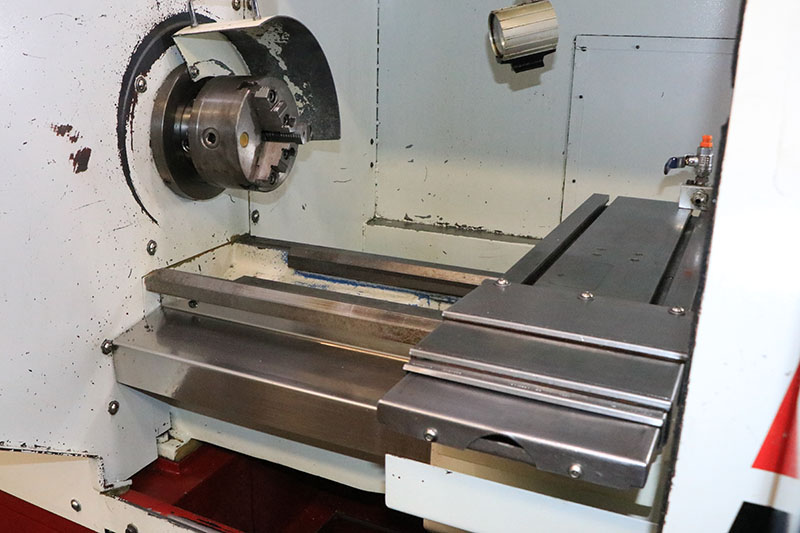

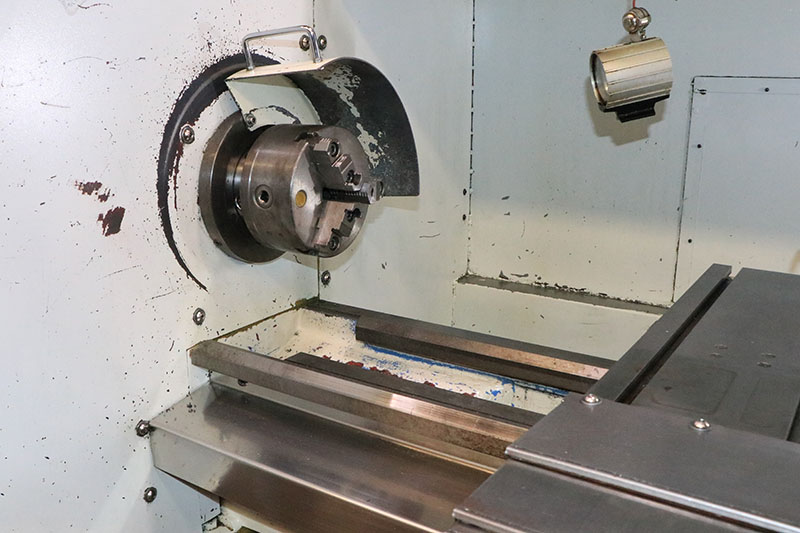

6" 3-JAW CHUCK

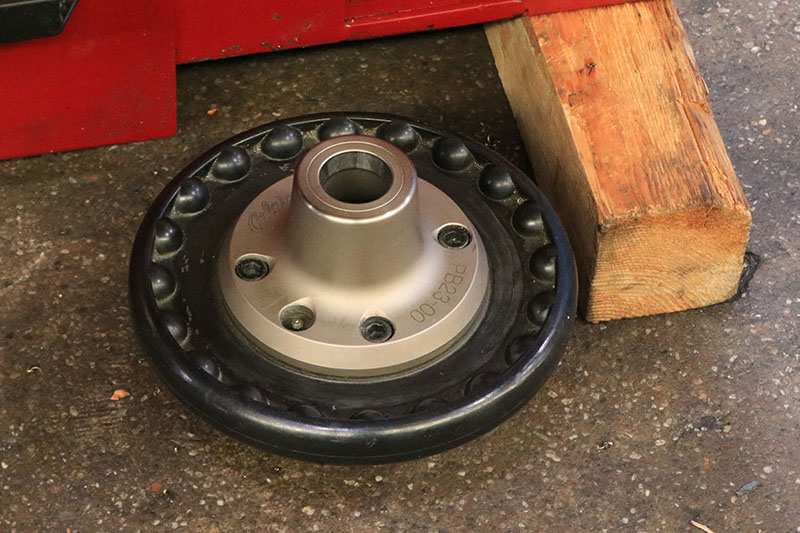

5C COLLET CHUCK
LIVE CENTER
DRILL CHUCK
FLOOD COOLANT SYSTEM WITH SPLASH GUARD
SET OF MANUALS FOR MACHINE AND PROGRAMMING
7.5 HORSEPOWER SPINDLE MOTOR

INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE
